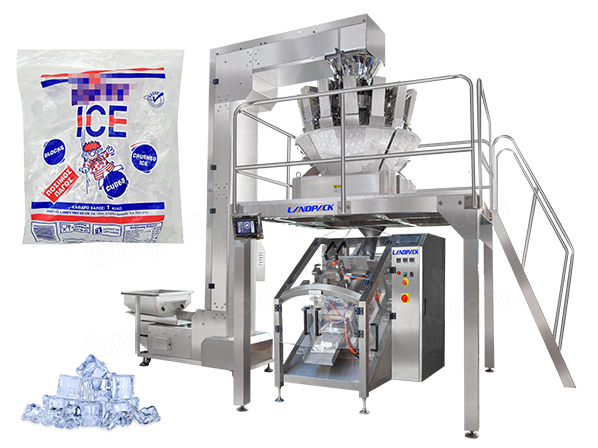

1kg 2kg 5kg 10kg Ice Vffs Packing Machine Tube Ice Cubes Packaging Machine

Application:

The LD-520A inclined vertical packaging machine is ideal for packing ice cubes, sugar crystals, nuts, coffee beans, and small hardware items. Designed with an inclined structure, it ensures smooth product feeding and prevents damage during packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Packing Type:
Machine Details:
Features:
Learn More:
Inquiry
Features:
Packing Type:
This machine supports a variety of pouch styles, including back sealing pouches, pillow pouches, and gusset pouches, making it ideal for both small and large-capacity ice cube and granular product packaging.

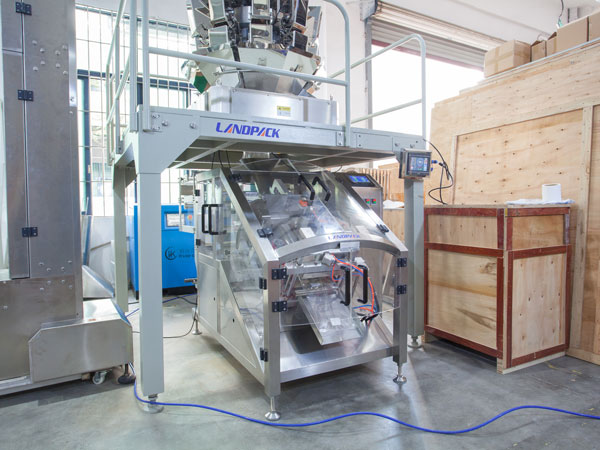

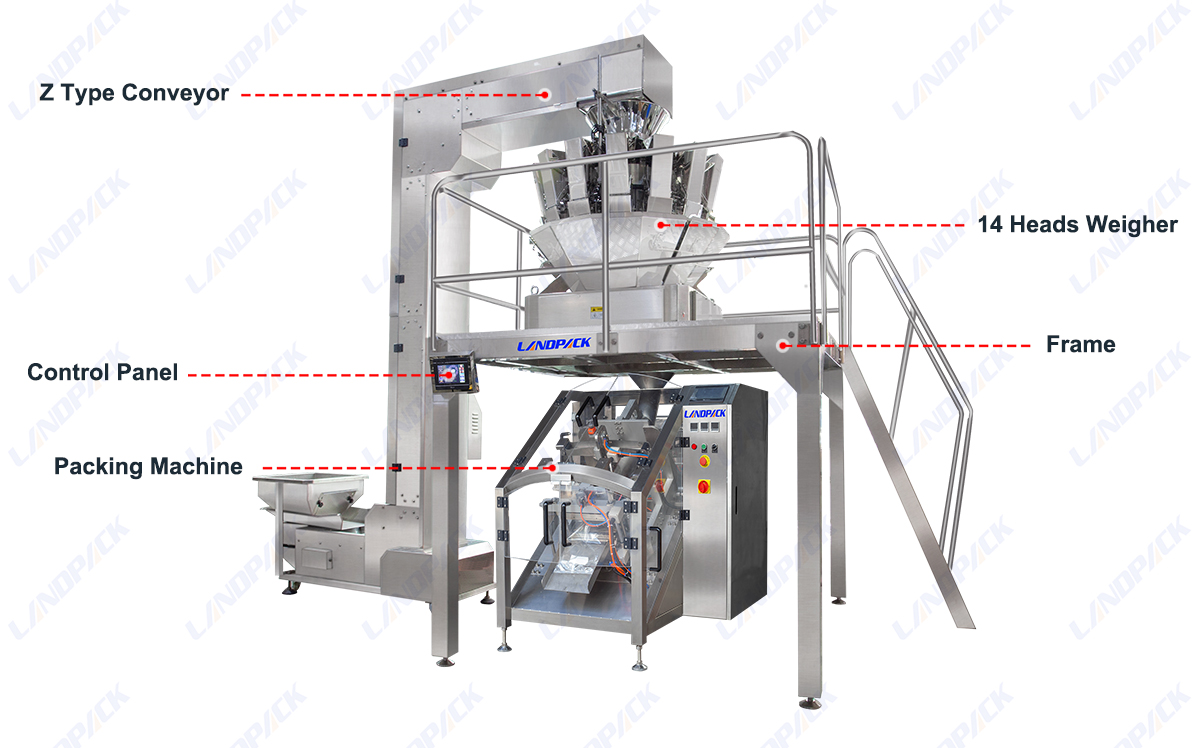

Machine Details:

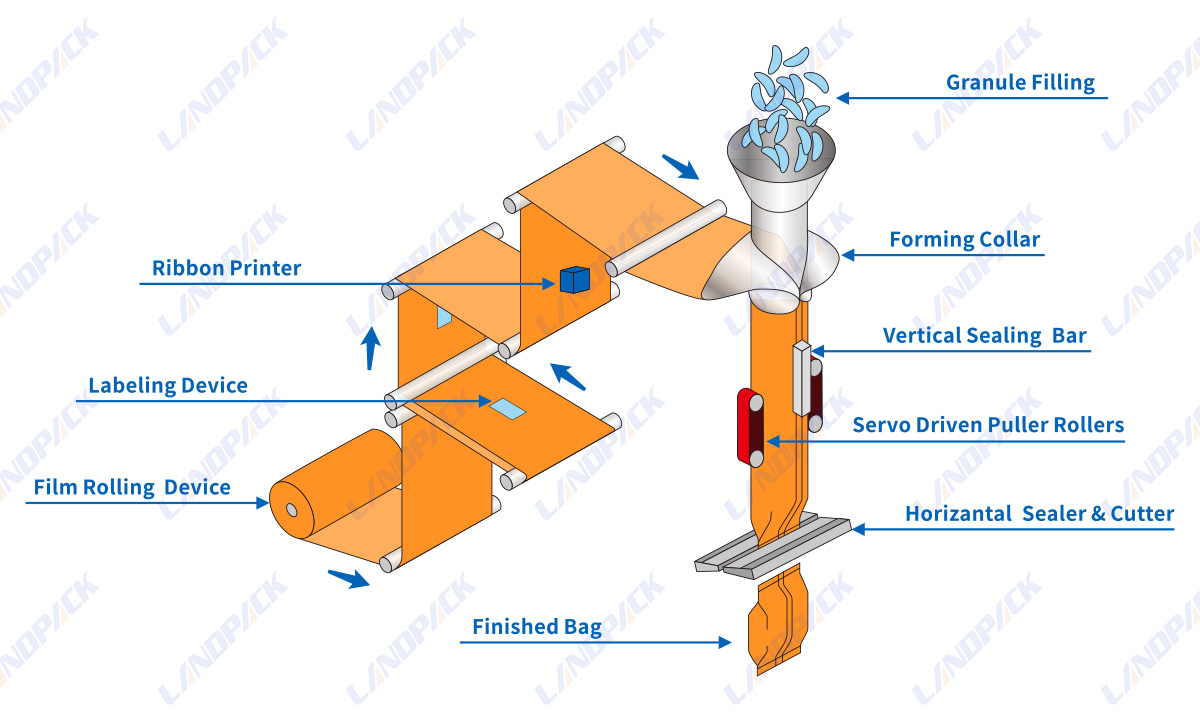

Working Process

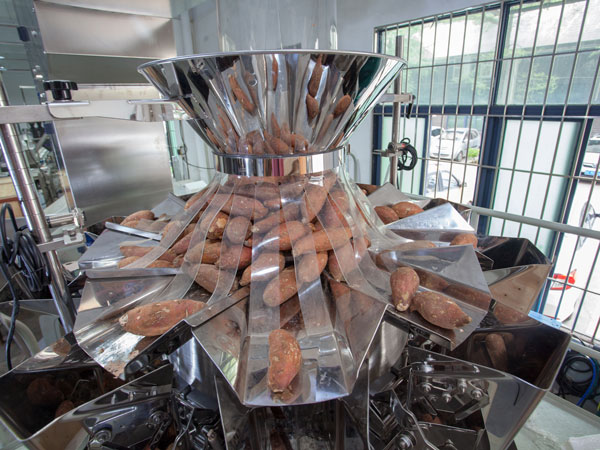

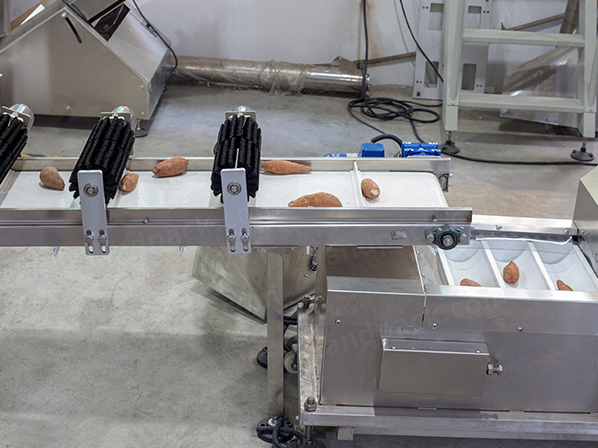

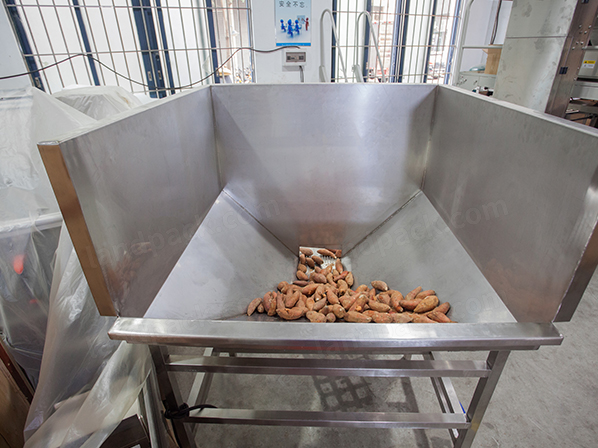

1. Ice Cube feeding and weighing

2. Bag forming

3. Filling

4. Sealing

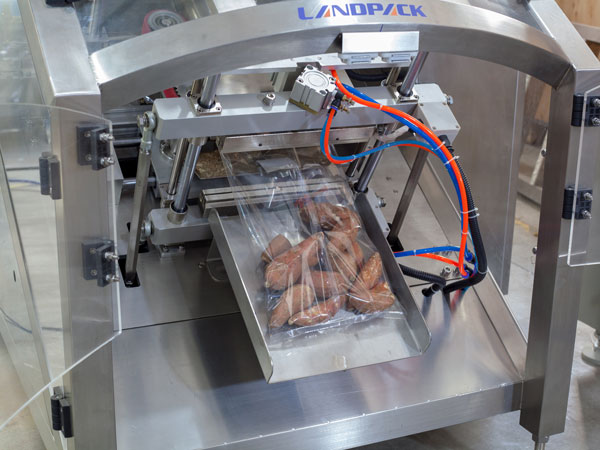

5. Finished Product Output


Specification

Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200
Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm
Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm
Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm
Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm
Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min
Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm
Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L
Features:
Machine Image Benefits

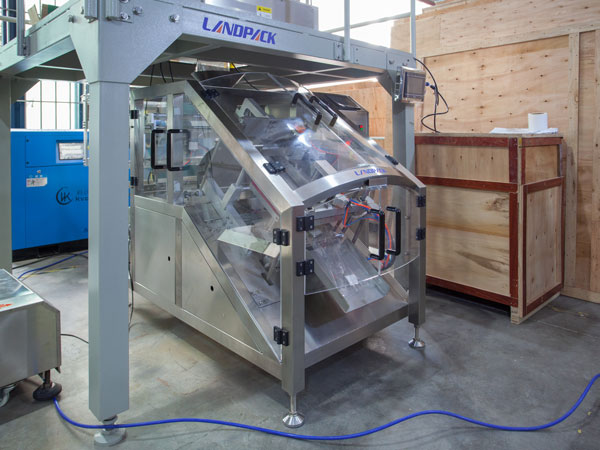

Inclined Structure for Gentle Product Handling

The LD-520A features an inclined design that allows smooth product flow, preventing fragile ice cubes or granular items from breaking during packaging.
Compact Vertical Form-Fill-Seal System

Integrates film pulling, bag forming, filling, and sealing in one compact unit, maximizing efficiency while minimizing floor space requirements.
Accurate Weighing and Filling Performance

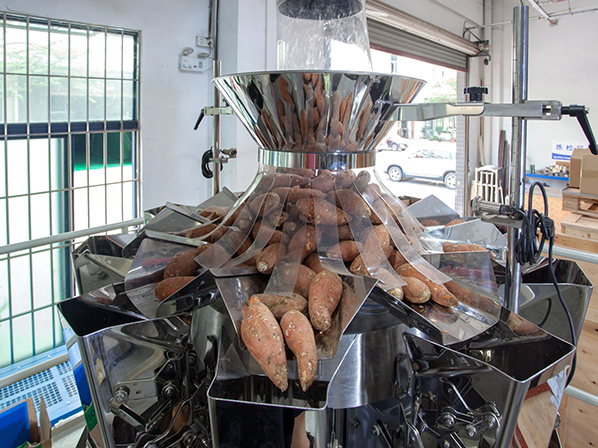

Works seamlessly with linear or multi-head weighers to achieve precise dosing for ice cubes, nuts, frozen vegetables, or similar granular products.

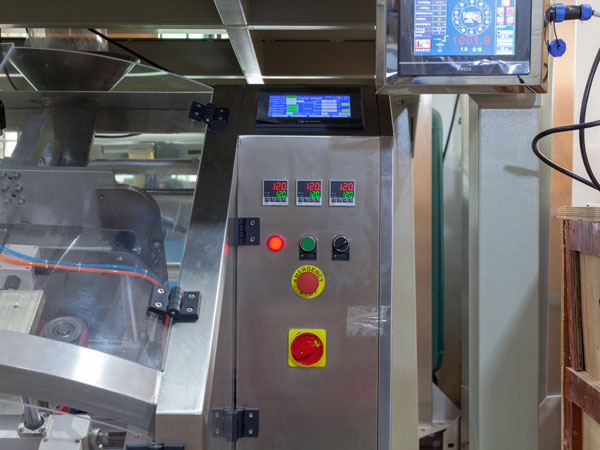

Stable Sealing and Temperature Control

Equipped with intelligent temperature control and reliable sealing jaws to ensure firm and leak-free seals, even under cold or moist environments.
Hygienic, Easy-to-Maintain Construction

All contact parts are made of SUS304 stainless steel, designed for quick cleaning and compliance with food safety standards.

Learn More:

1.If you need more ice cube packaging machine for your product , read our-- ice cube packaging machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one
