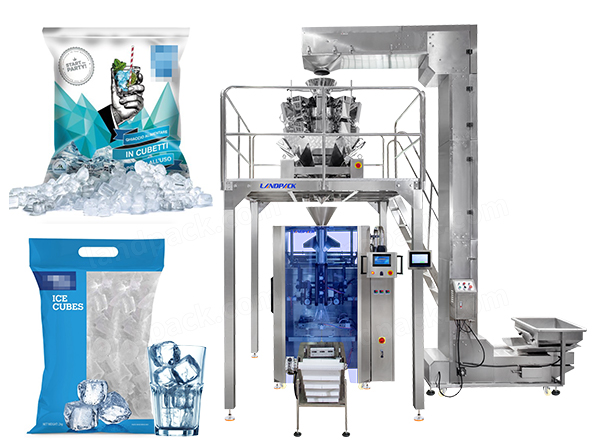

Automatic 1-5kg Ice Cube Vertical Vffs Packaging Machine

Application:

The vertical packaging machine is widely used for packing large-volume granular and cube-shaped products. It’s especially suitable for ice cubes, snack, frozen vegetables, sugar, rice, salt, nuts, and pet food.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Packing Type:

This machine is designed for large back sealing (pillow) bags, providing durable and moisture-proof packaging for heavy products. It can also be customized for gusset bags or flat-bottom pouches.

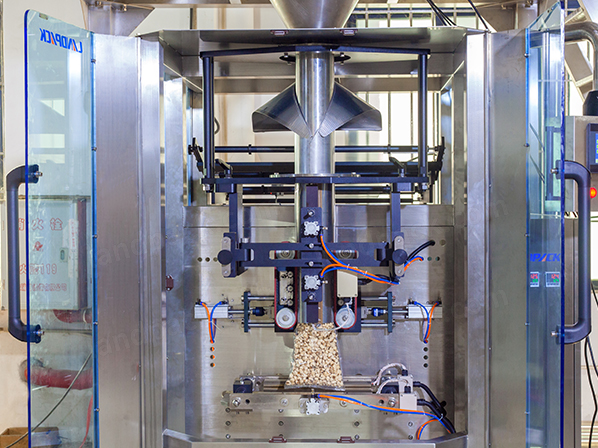

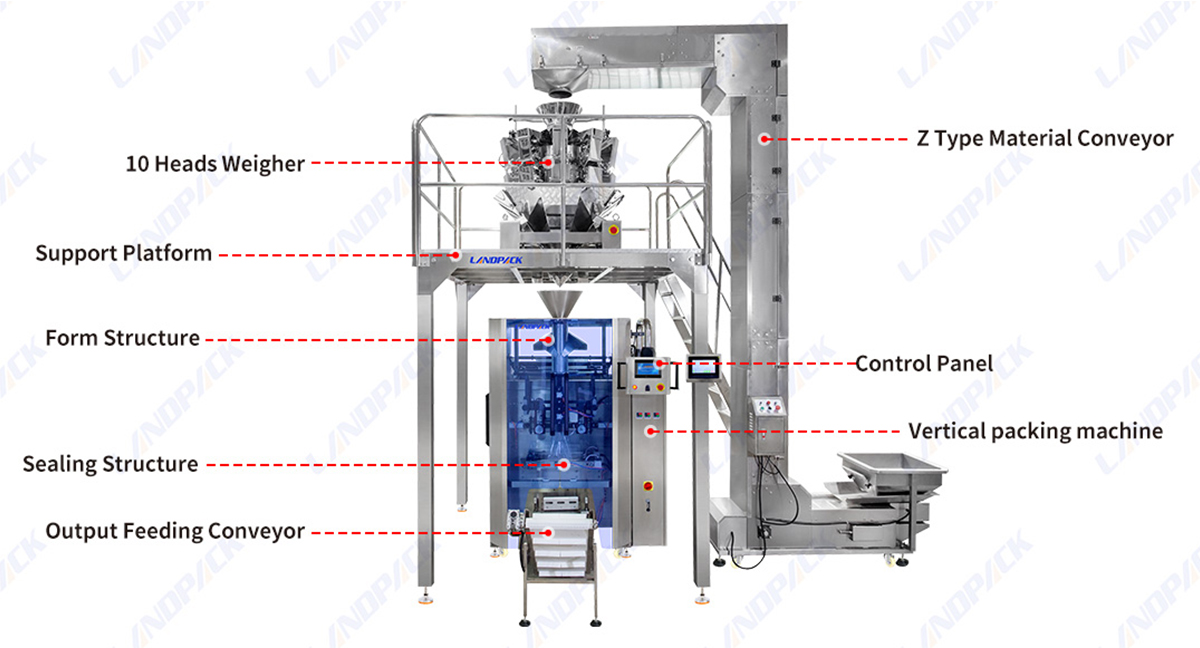

Machine Details:

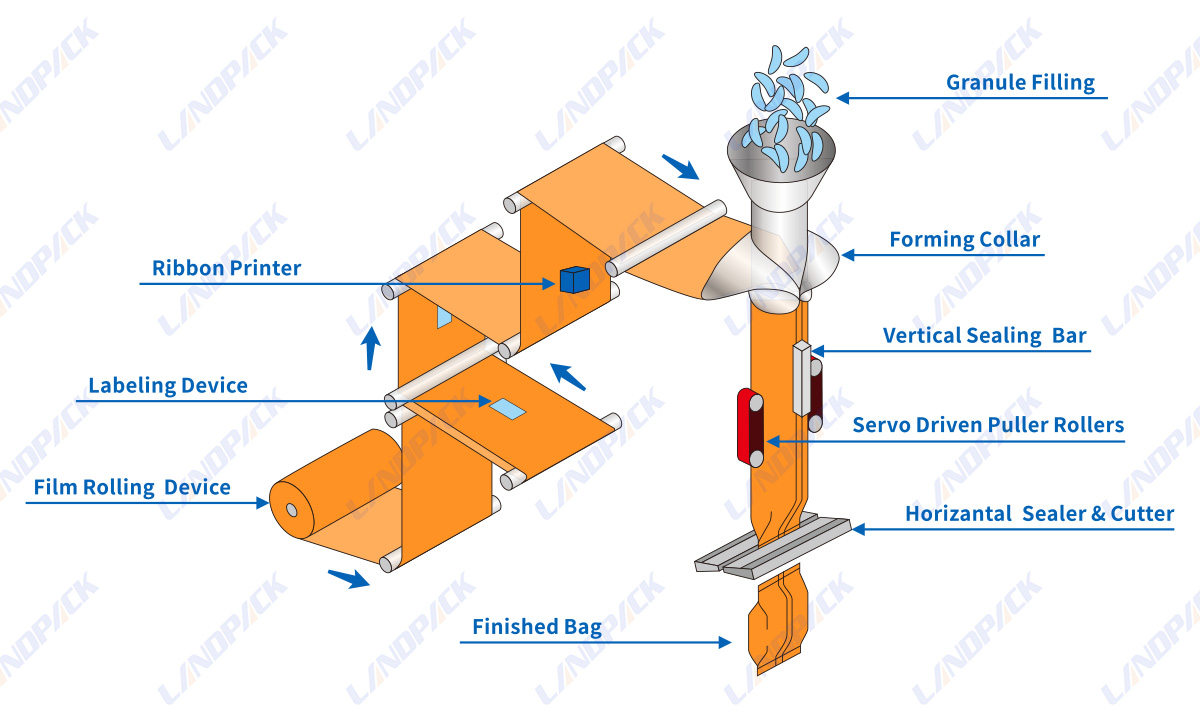

Working Process

1. Product Feeding

2. Weighing

3. Bag Forming

4. Product Filling

5. Sealing and Cutting

6. Finished Product Output

Specification

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

Machine Image	Benefits

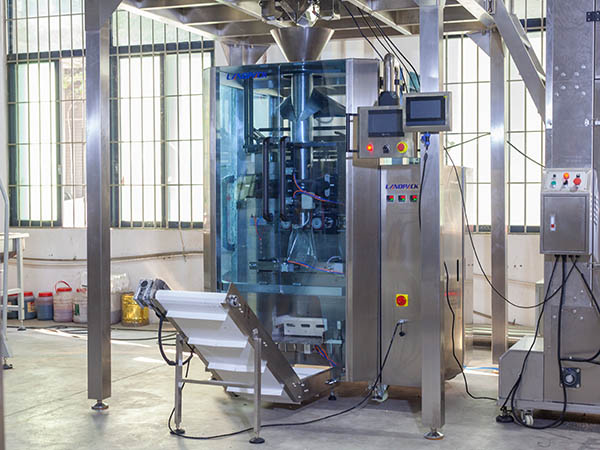

	Heavy-Duty Structure Built with a reinforced stainless-steel frame, the LD-720A ensures stable operation even when handling large 1–5kg packages.

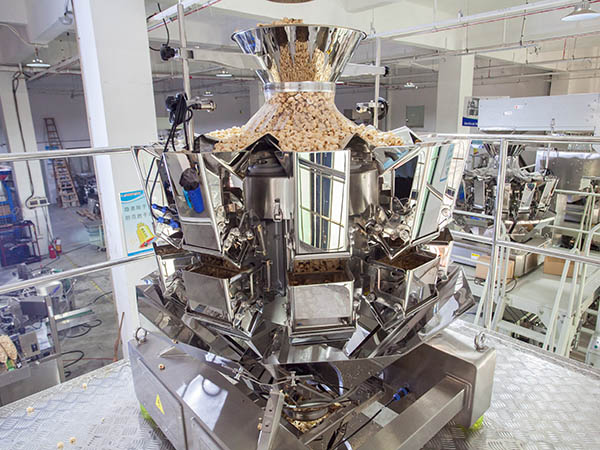

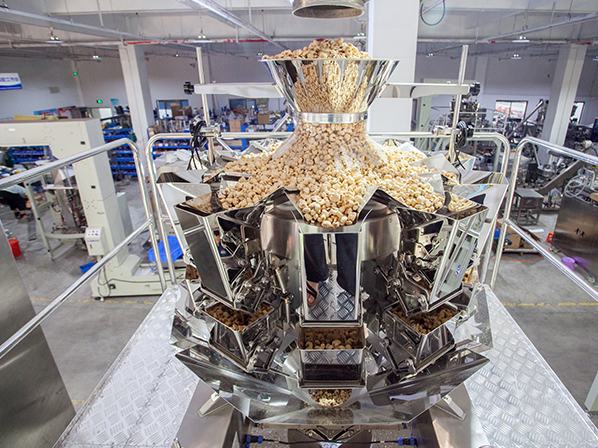

	Multi-Head Weigher System Equipped with a high-precision multi-head weigher for fast and accurate dosing of ice cubes or granular products, minimizing waste and ensuring consistency.

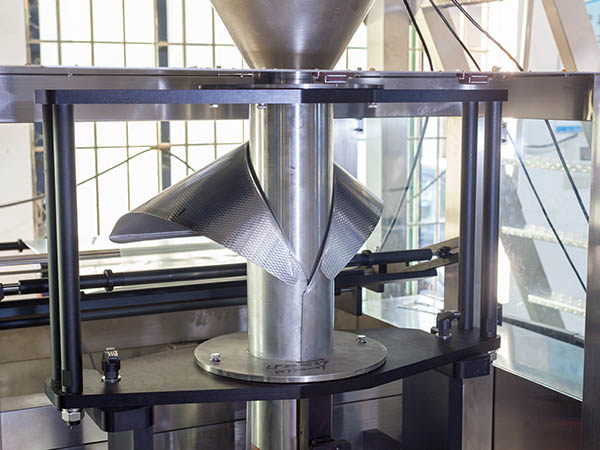

	Wide Film Compatibility Supports a variety of film materials and widths, suitable for producing strong and appealing large back sealing or gusset bags.

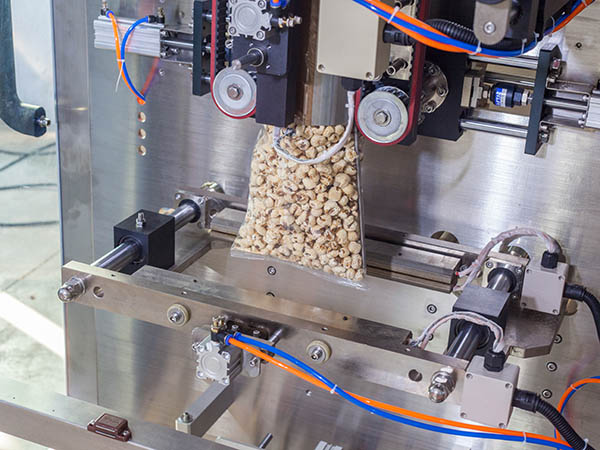

	Strong Sealing Performance Uses powerful heat sealing with temperature control to deliver leak-proof, moisture-resistant, and durable packaging for frozen items.

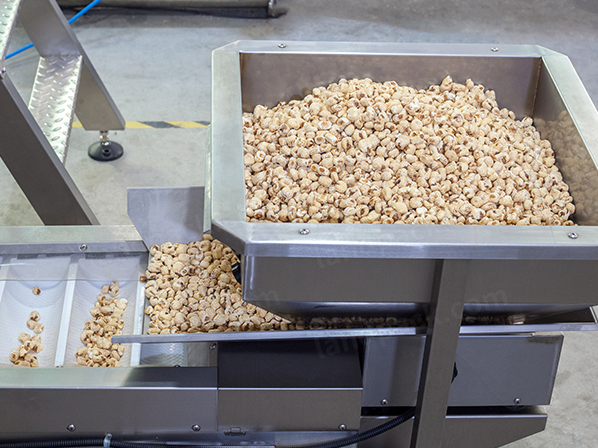

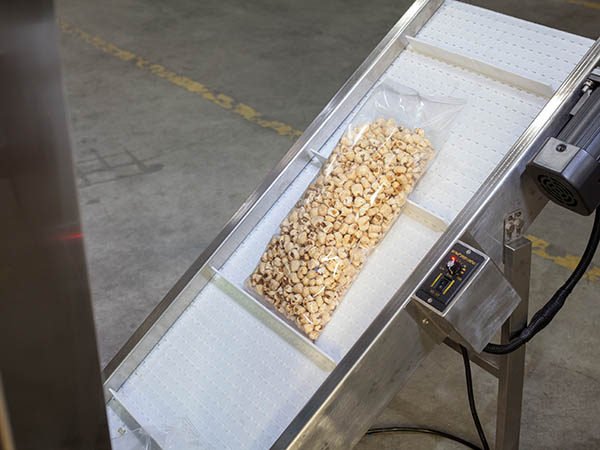

	Smooth Product Conveying Features a PLC touch screen for intuitive operation, quick recipe changes, and real-time fault alerts, making maintenance easy.

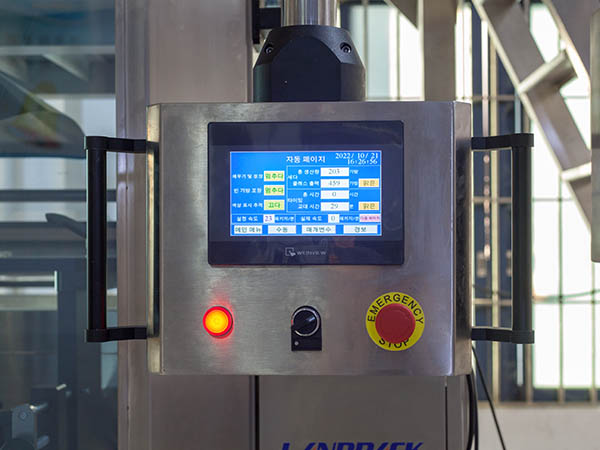

	User-Friendly Control System Features a PLC touch screen for intuitive operation, quick recipe changes, and real-time fault alerts, making maintenance easy.
