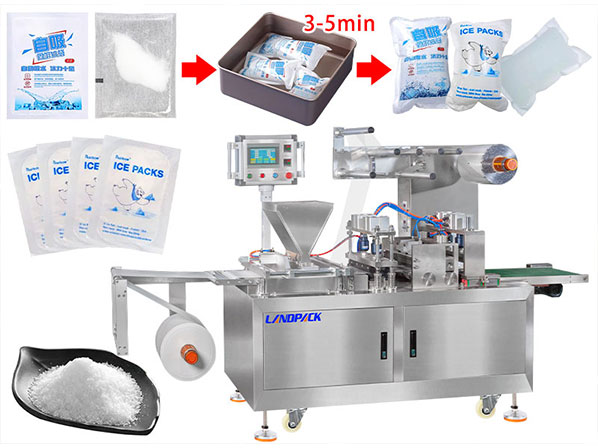

Fully Automatic Ice Bag 4 Side Seal Packing Sealing Machine

Application:

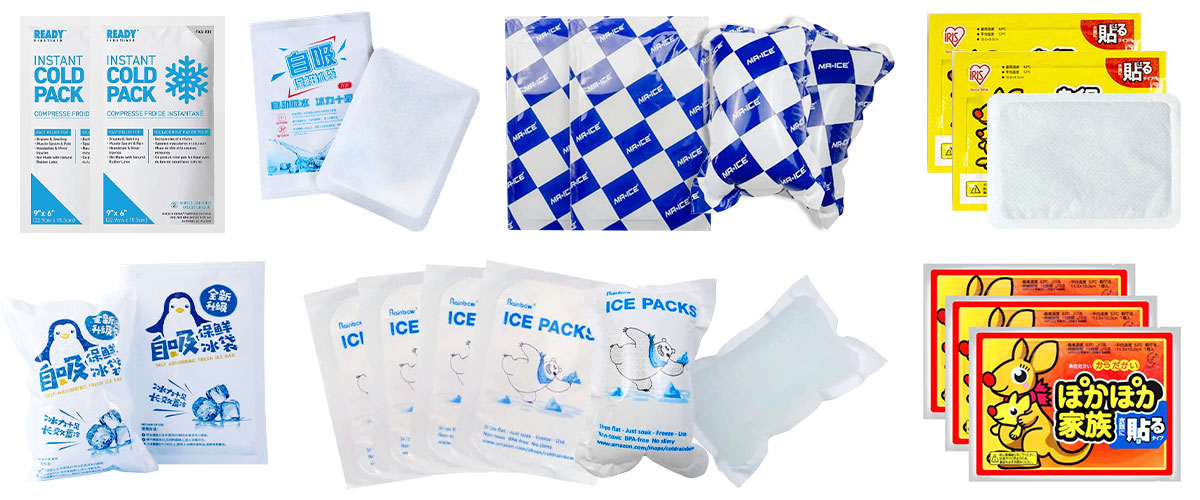

This ice packing machine is widely used for ice packs and gel cold packs, as well as four side sealing products such as medical cooling packs, heat therapy gel packs, disinfectant sachets

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This machine is designed for 3/4 sides sealing pouches, back sealing pouches, pillow pouches, and sachets, allowing manufacturers to switch packing formats according to product size, dosage, and presentation requirements.

Wide Application Range

The ice bag packaging machine is designed for stable, high-speed, and leak-proof packaging, making it suitable for chemical, medical & healthcare, and other industries:

Daily chemical products

• disposable wet wipes, alcohol pads, cosmetic sample sachets, and cleansing tissues

Medical & healthcare products

• Cooling patches, medical gel packs, disinfectant wipes

Industrial and consumer goods

• Desiccant packs, lubricant sachets, and chemical additives.

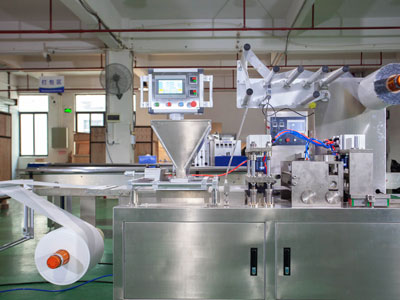

Machine Details:

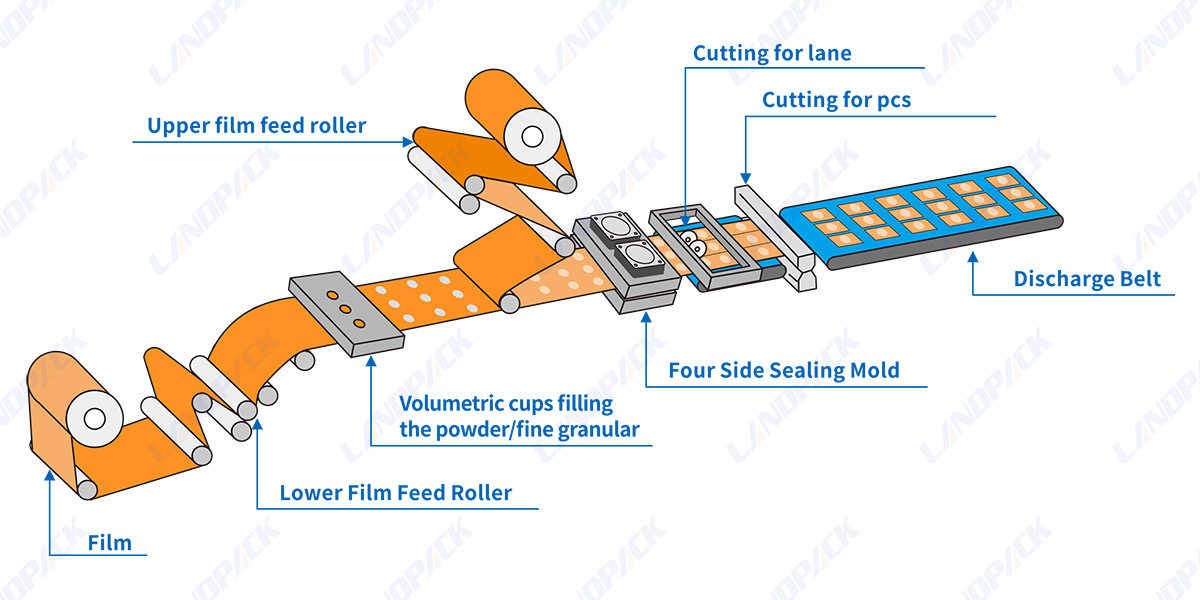

Working Process

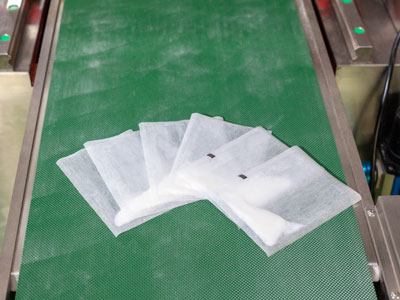

1. Material Feeding → 2. Date Printing → 3. Measuring and Filling → 4. Four Sides Sealing → 5. Cutting → 6. Output

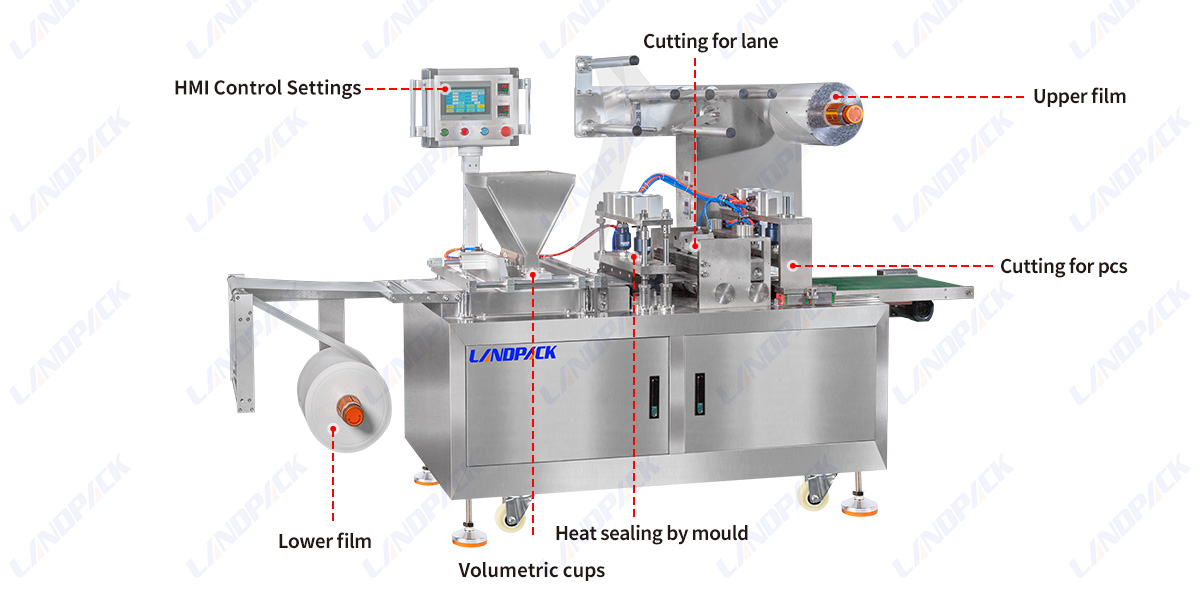

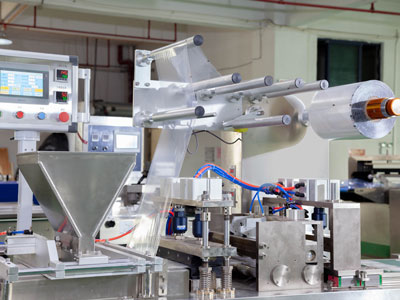

Key Component

Specification

Model	LPF-330
Processing capacity	20-150 bags/min
Applicable raw materials	Dry ice packs, heat patches, herbs warmers, etc.
Bag size	500 mm*150 mm

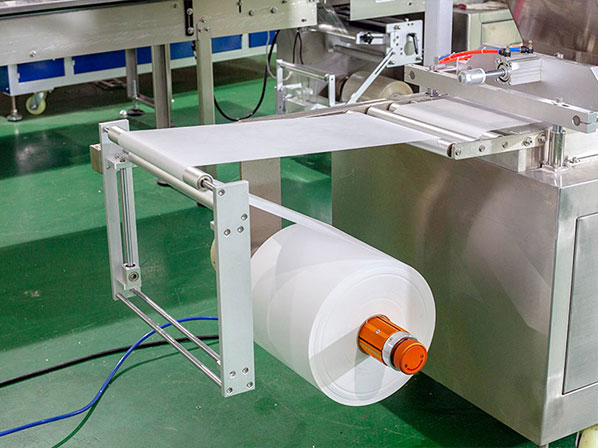

Roll film size	Φ≤320 mm, width 200-600 mm, inner diameter of paper core 76.2mm
Roll film material	Paper aluminum plastic, pure aluminum, aluminized, coated paper, composite transparent film, etc.
Total power	220V, 50Hz
Heating	3.2KW
Air consumption	≥30m³/h (self-provided)
Pressure	0.6-0.8Mpa

Features:

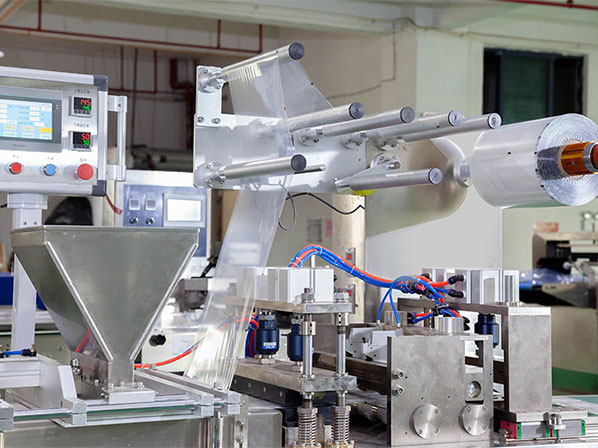

Machine Image	Benefits
	High-speed intermittent packaging performance Speedy intermittent packing performance with a stable output of 20-50 packs/min, and configurations that can reach 100-150 packs/min in order to meet productivity requirements.

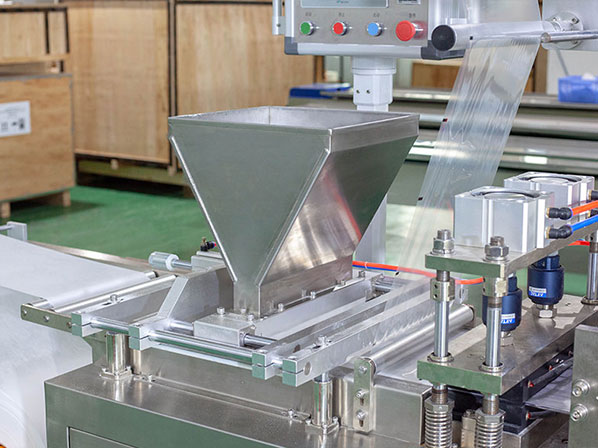

	Volumetric cup dosing system Volumetric cup dosing system developed specifically for powders and fine-grained materials, with a guarantee of the accuracy of filling and consistency, as well as solid weight control.

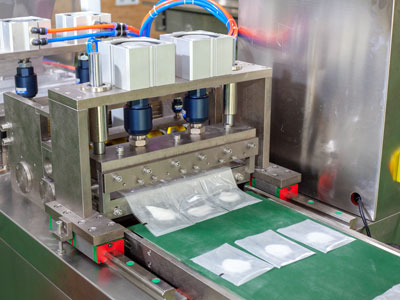

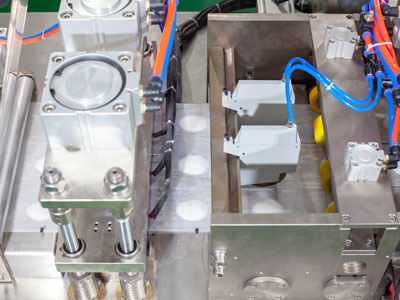

	Strong and leak-proof heat sealing structure A robust and leak-proof heat sealing structure, providing clean seals and superior reliability of the packaging even in intermittent operation.
	Fully automated packaging workflow Completely automated workflow for packaging including material feeding and printing of dates/lots, exact packaging, filling and cutting into one seamless process, reducing any manual intervention.
	Wide application capability Ability to be used in a wide range of applications, typically utilized for dry ice bags as well as herbal warmers, heat patches medical pads, and other four sides sealing pouch, pillow pouch, sachets that are used in a variety of industries.
	User-friendly control system A user-friendly control system that allows simple parameter adjustments, steady operation, and rapid switchover between different specifications of the product.
