Automatic Ice Cube Filling Machine With Large Ice Maker

Application:

This automatic ice filling machine with a large ice maker is designed for efficiently dispensing ice cubes into cups for frozen drinks, smoothies, and cold beverages.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Packing Type:

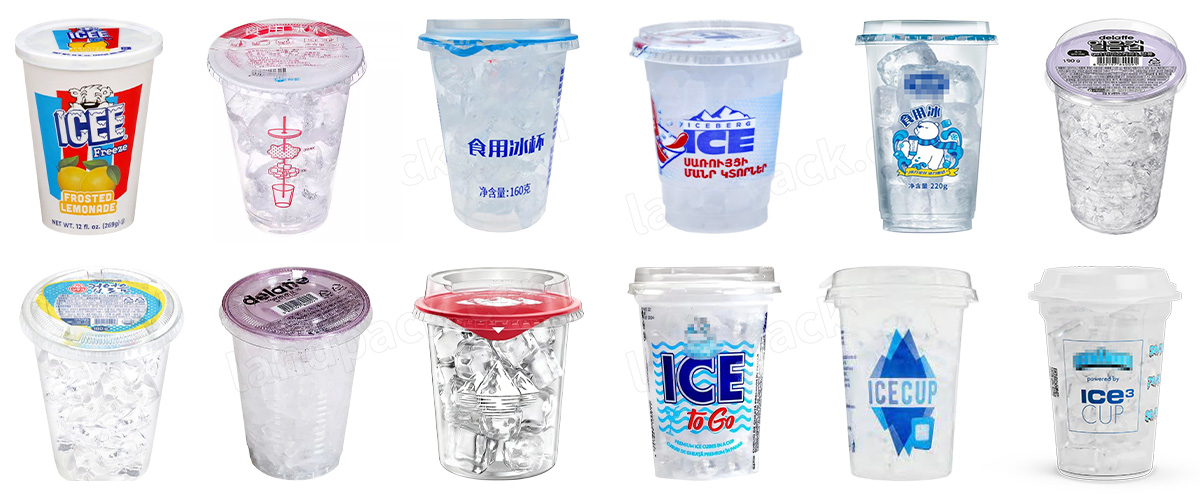

This automatic ice filling machine with a large ice maker supports various packaging formats to meet different production needs. It can fill ice cubes directly into cups, plastic containers, or bags, ensuring clean and consistent portioning. Ideal for frozen drink preparation, food service packaging, and commercial ice distribution, it provides flexible, efficient, and hygienic packaging solutions for both retail and industrial applications.

Machine Details:

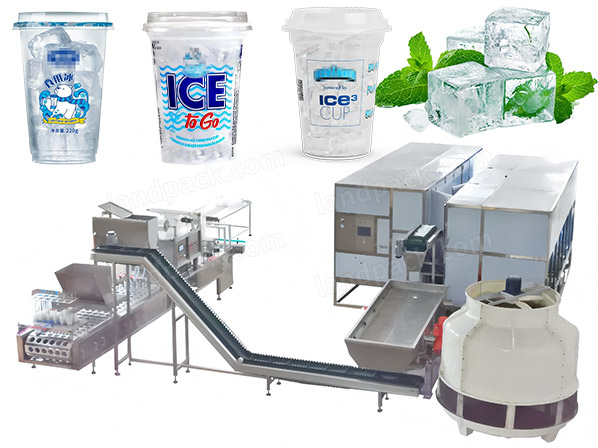

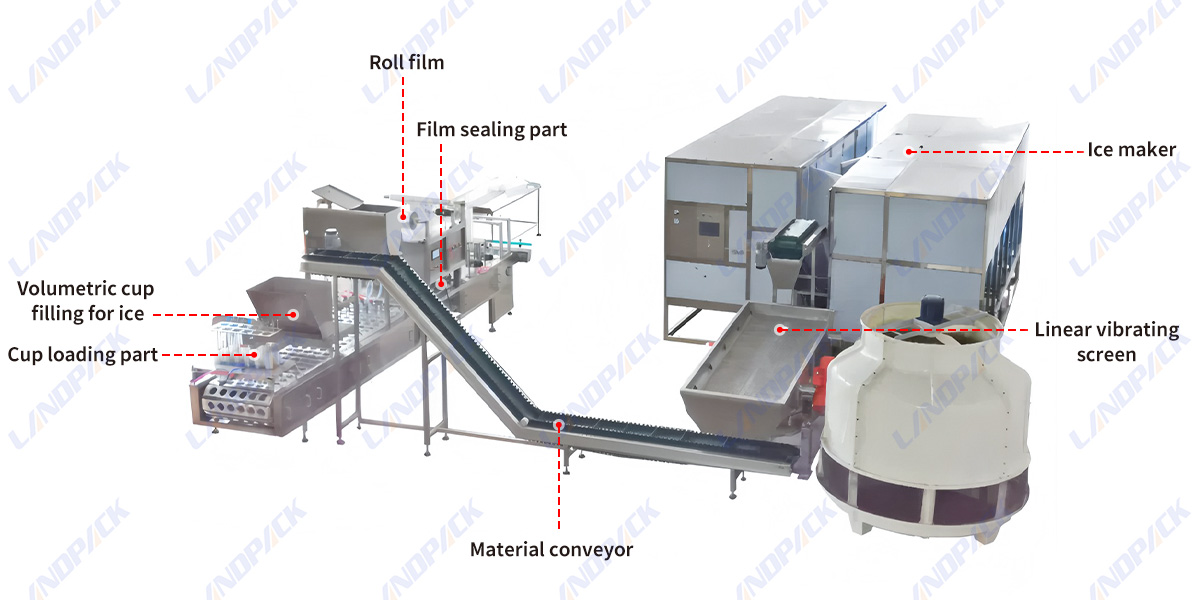

Working Process

1. Ice Maker

2. Linear Vibrating Screen

3. Material Conveyor

4. Volumetric Cup Filling For Ice

5. Cup Loading Part

6. Roll Film

7. Film Sealing Part

Model	LDZ-1	LDJ-2	LDJ-4	LDJ-6	LDJ-8
Type	Rotary type	Linear type	Linear type	Linear type	Linear type
Filling heads	1 head	2 heads	4 heads	4 heads	4 heads
Production capacity	1000pcs/hour	2000 pcs/hour	4000 pcs/hour	6000 pcs/hour	8000 pcs/hour
Filling volume	5-100ml; 100-500ml; 300-1000ml (adjustable)
Power	2KW	2.5KW	4.5KW	6KW	7.5KW
Air	0.6m³/MIN	0.65m³/MIN	0.7m³/MIN	0.75m³/MIN	0.8m³/MIN
Power source	220/380V 50HZ/60HZ
Weight	600KG	700KG	800 KG	1000 KG	1200 KG
Dimension	(L)1300(W)1200(H)2000(MM)	(L)2400(W)600(H)1750(MM)	(L)3300* (W)800*(H)1750(MM)	(L)3300(W)1000(H)1750(MM)	(L)4000(W)800(H)1750(MM)

Features:

Machine Image	Benefits

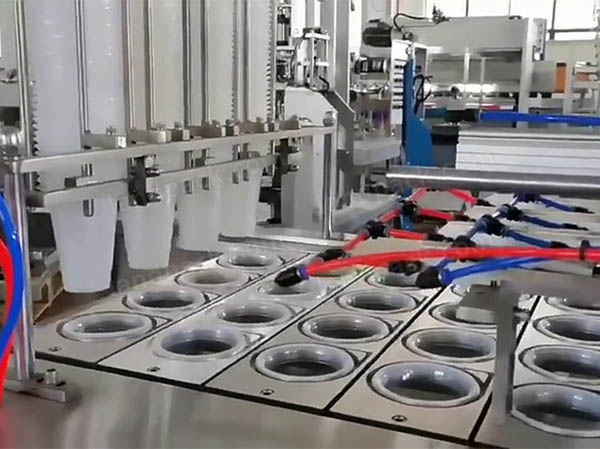

	Cup Feeding System The automatic cup feeding system accurately delivers and positions each cup under the filling station. Designed for smooth and stable operation, it prevents jamming and supports different cup sizes. Its hygienic design ensures clean handling, making it ideal for high-speed beverage or ice packaging lines.
	Ice Filling System Equipped with a large ice maker and precise dispensing mechanism, the ice filling system automatically measures and fills the exact amount of ice into each cup. The inclined feeding design minimizes ice breakage and ensures fast, uniform filling for frozen drinks and beverage production.

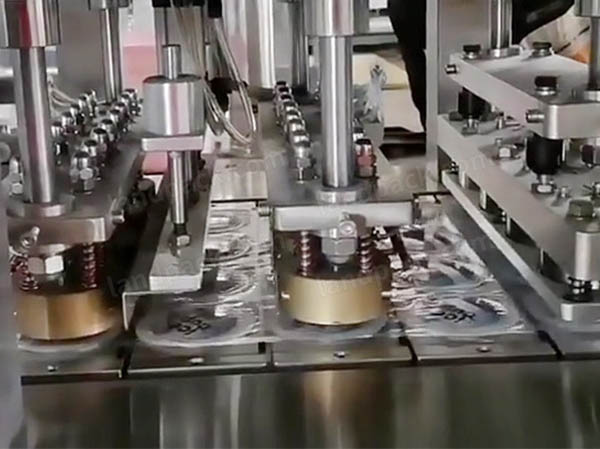

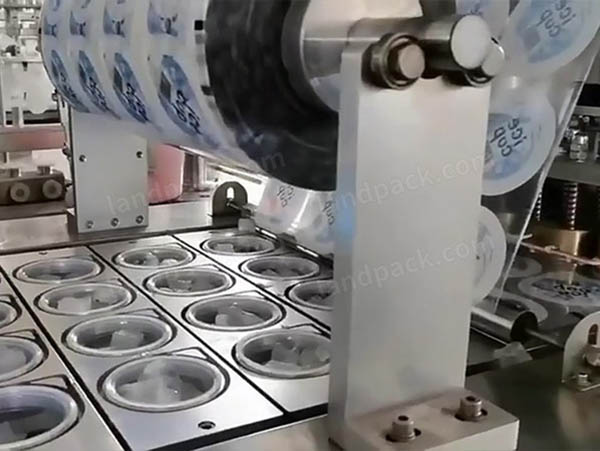

	Film Sealing System The film sealing system automatically pulls, positions, and heat-seals the film onto the cup top with strong, airtight sealing. It guarantees leak-proof packaging, maintains product hygiene, and ensures a clear, professional finish — suitable for both cold-chain storage and retail display.

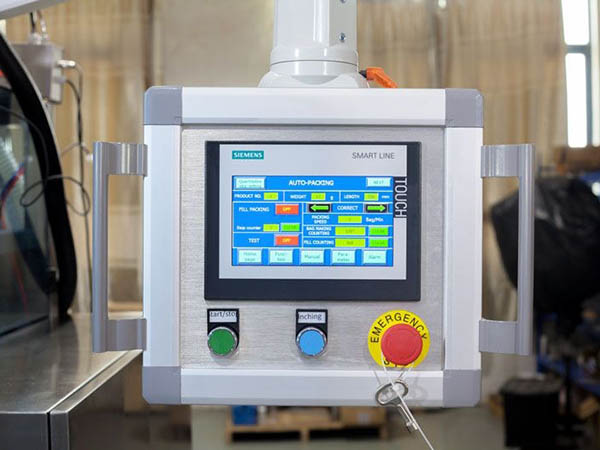

	Smart Control Panel User-friendly touch screen with PLC system allows for easy parameter setting, fault detection, and operation monitoring.
