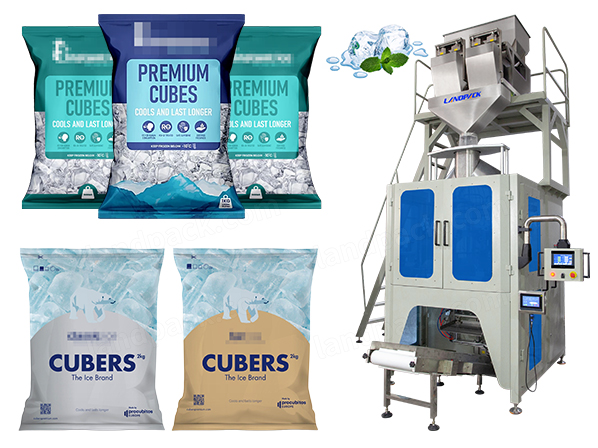

Food Grade Ice Cube Packing Machine For 1-50 kg ice cubes

Application:

It is ideal for ice cubes, frozen seafood pieces, fruit chunks, frozen dumplings, crystal jelly, sugar grains, corn kernels, and animal feed pellets, making it a versatile solution for both food and frozen product packaging industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Packing Type:

The LD-900AS supports gusset pouch as the primary packaging style, ideal for large-capacity and heavy-weight products. It can also be adapted for pillow pouch and back sealing pouch designs based on production needs.

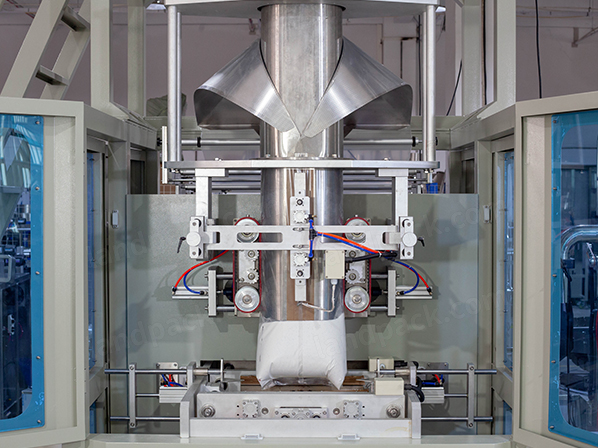

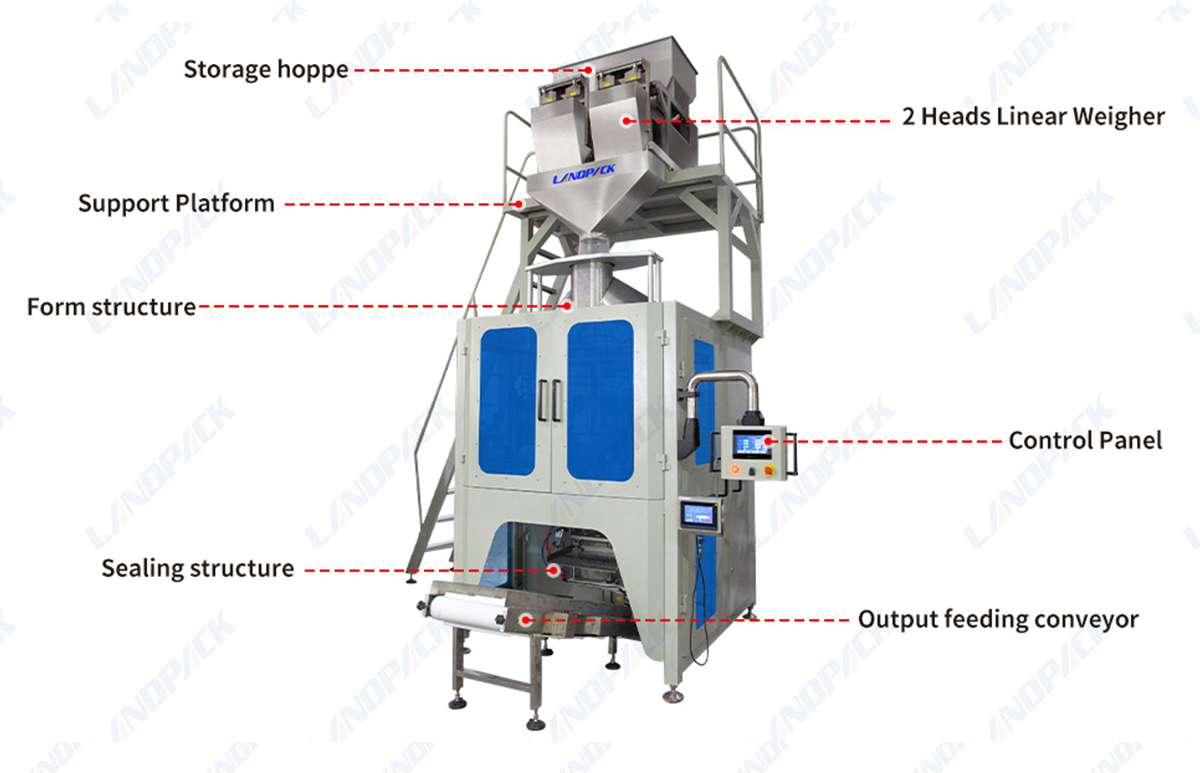

Machine Details:

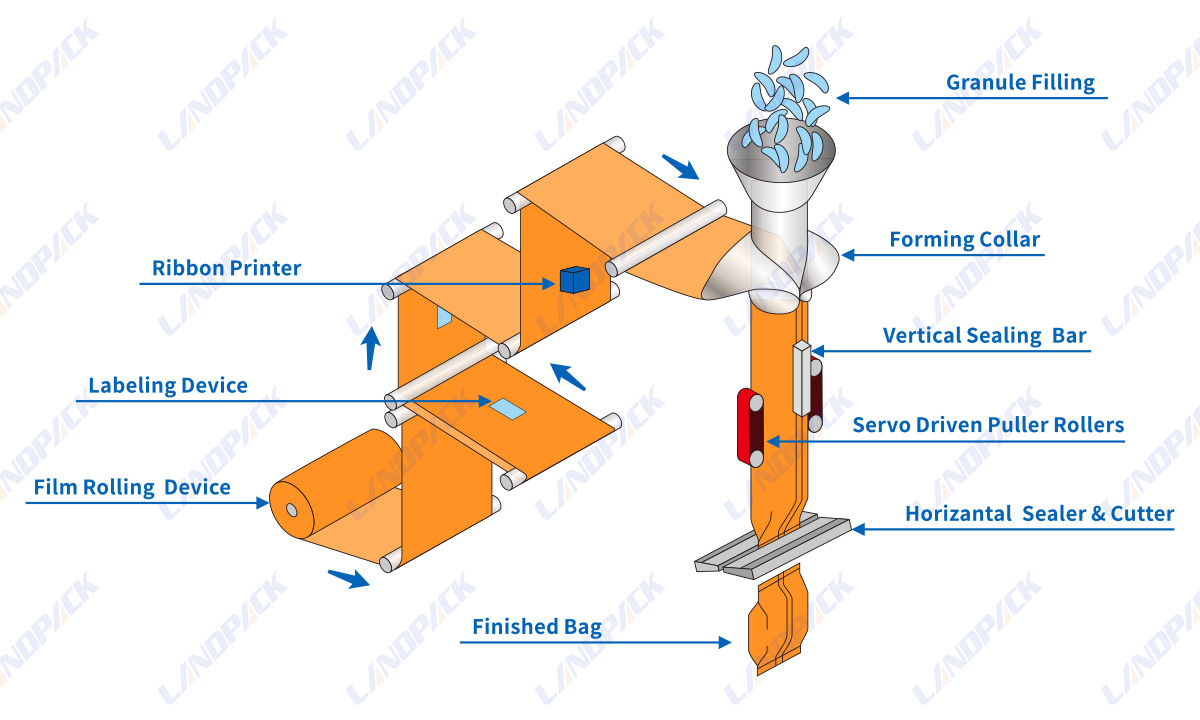

Working Process

1. Ice Cube feeding and weighing

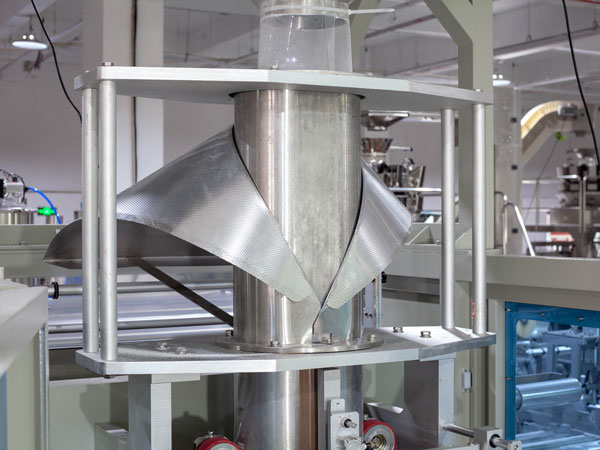

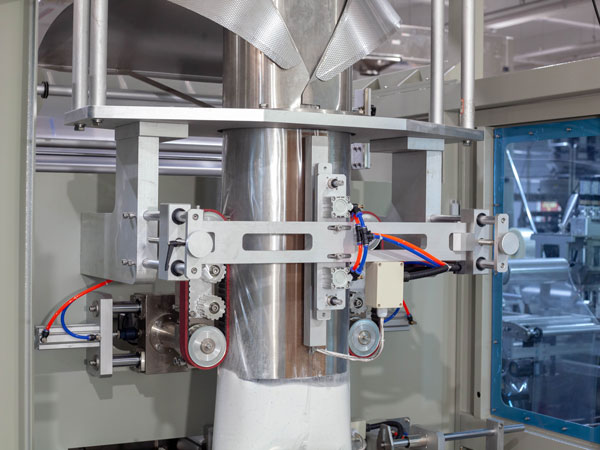

2. Bag forming

3. Filling

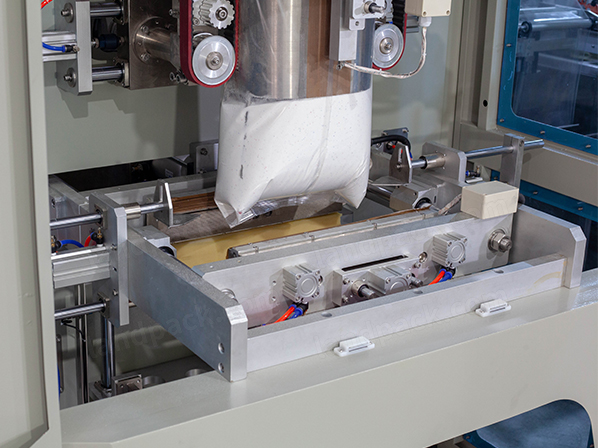

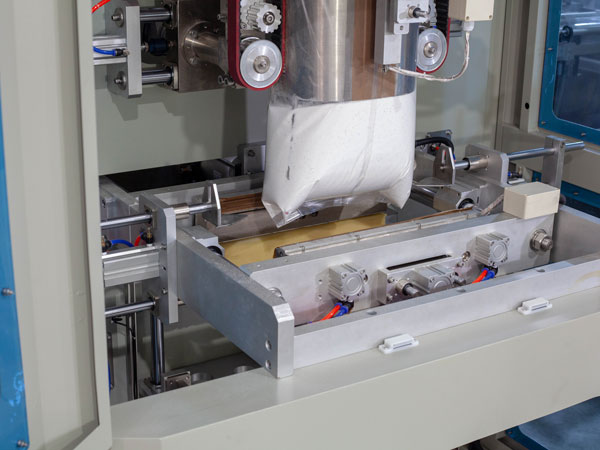

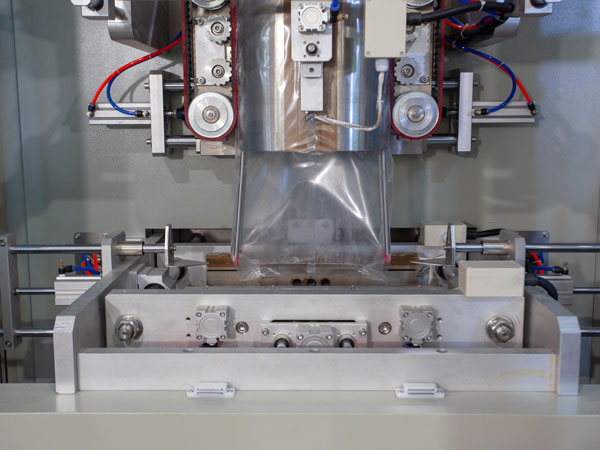

4. Sealing

5. Finished Product Output

Specification

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

Machine Image	Benefits

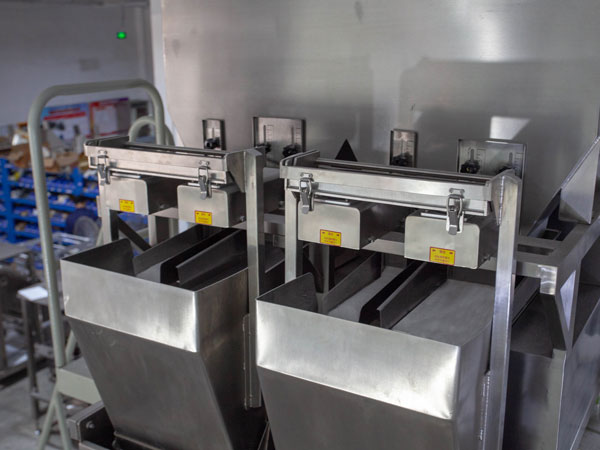

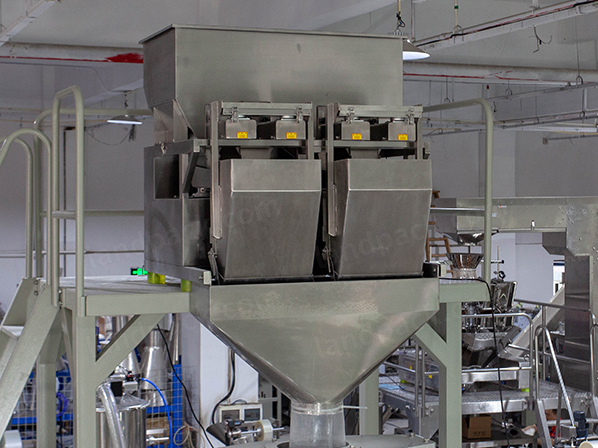

	High-Precision Dual Linear Weighing System Equipped with an advanced dual-head linear weigher, ensuring consistent accuracy and stable weight control for large-volume ice or granular materials.
	Reinforced Structure for Heavy-Duty Operation The LD-900AS adopts a robust frame and extended film-pulling system, designed to handle up to 10kg packages without compromising on speed or sealing quality.
	Smart Temperature and Sealing Control Features intelligent PID temperature regulation, maintaining perfect sealing strength even under humid or low-temperature working environments.
	Automatic Film Tracking and Centering System Uses a photoelectric sensor to automatically track film position, preventing misalignment and reducing material waste during continuous production.
	Hygienic and Easy-to-Clean Design All contact parts are made of food-grade stainless steel, with detachable hoppers and sealing jaws for quick maintenance and sanitation.
