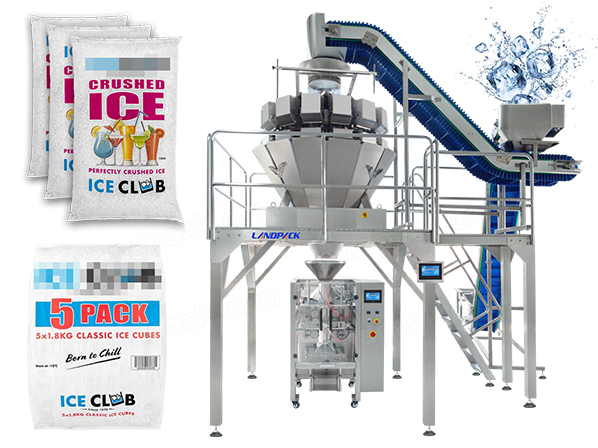

Automatic Ice Cubes Vertical Pouch Filling Weighing Packaging Machine

Application:

This vertical packaging machine with a multihead weigher is ideal for precise and efficient ice cube packaging. Also suitable for pet food, nuts, snacks, frozen foods, and granular products, making it a versatile choice for modern automated packaging lines.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Packing Type:

This vertical form fill seal packaging machine with a multihead weigher supports a wide range of bag types to meet different packaging needs. It is compatible with: Pillow Bags, Gusset Bags, Quad Seal Bags, Flat Bottom Bags, Chain Bags / Linked Bags.With flexible bag style options, it delivers efficient, clean, and attractive packaging for various granular, frozen, or snack products.

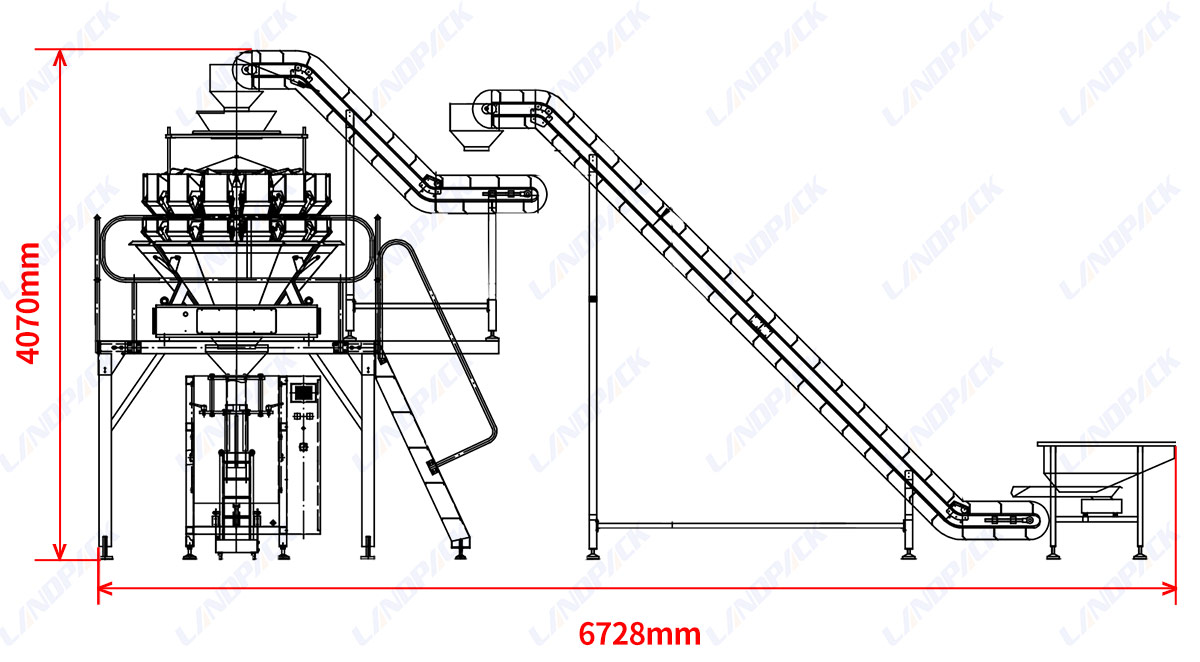

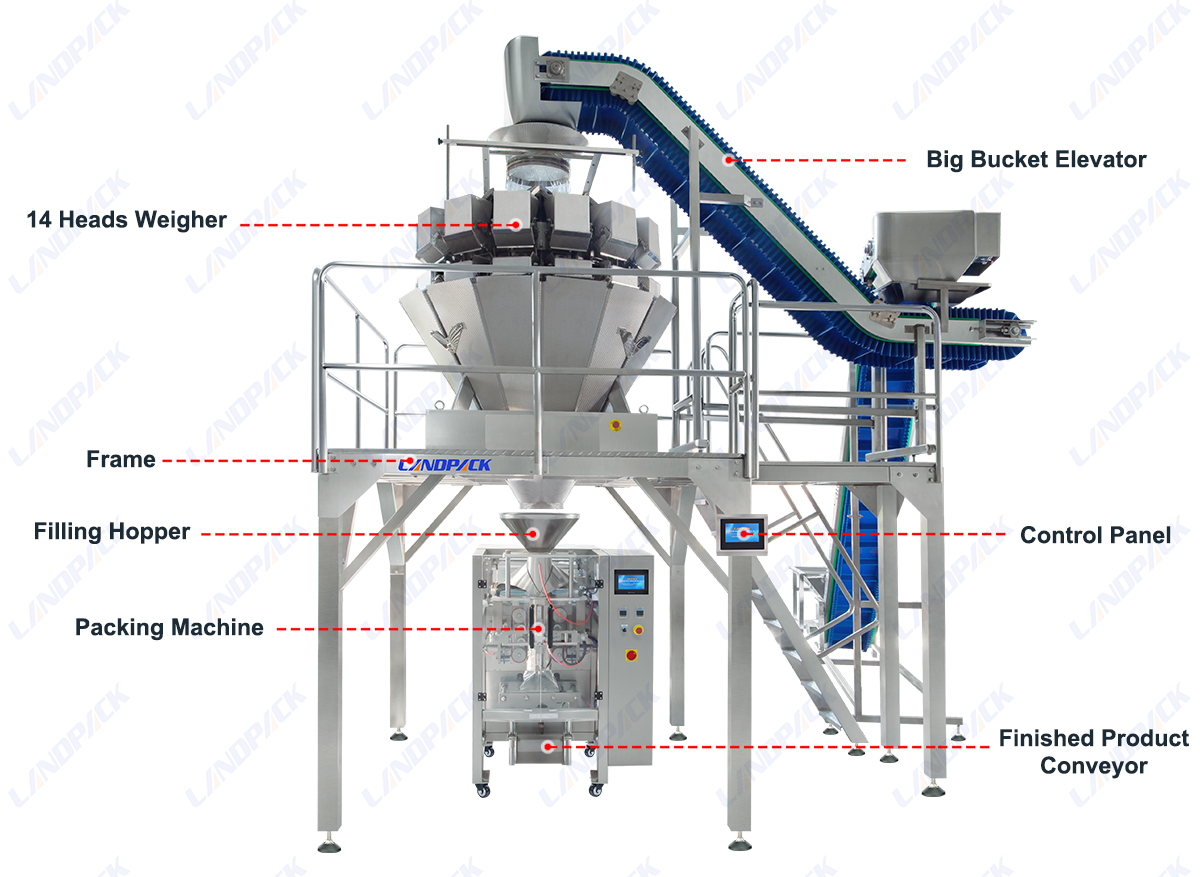

Machine Details:

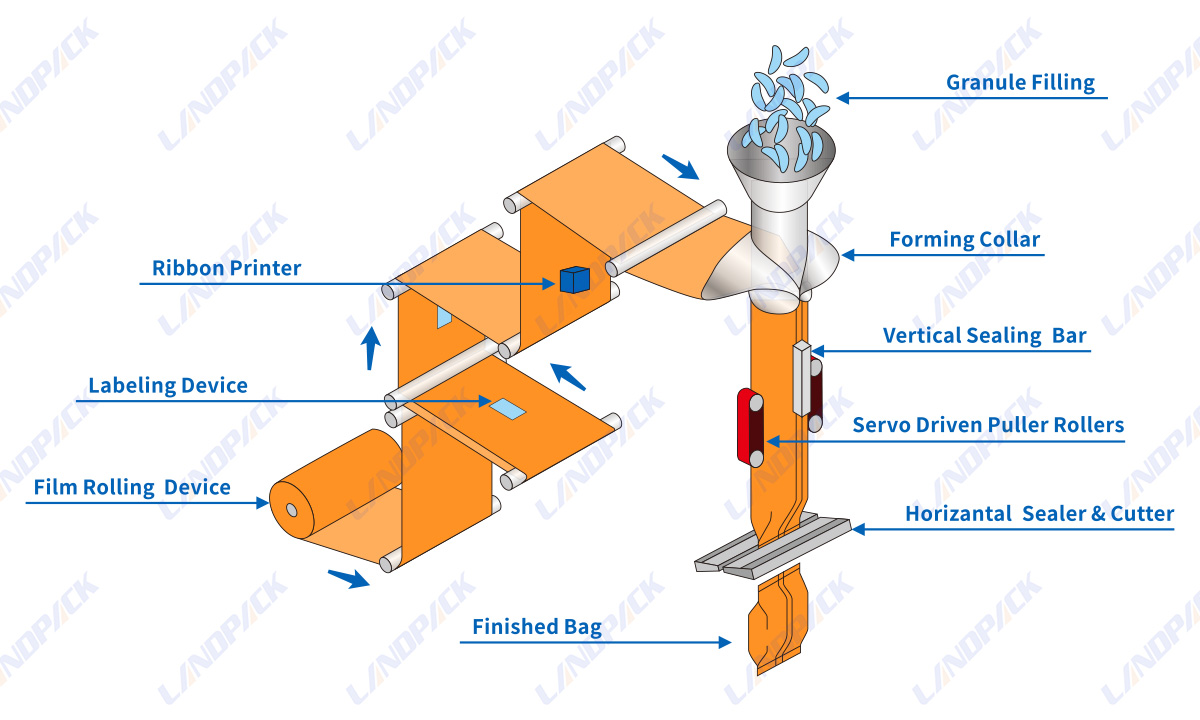

Working Process

1. Product Feeding

2. Accurate Weighing

3. Bag Forming

4. Product Filling

5. Sealing and Cutting

6. Finished Product Output

Specification

Model	LD-420A	LD-520A	LD-720A	LD-900A	LD-1050A	LD-1200A
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

Machine Image	Benefits

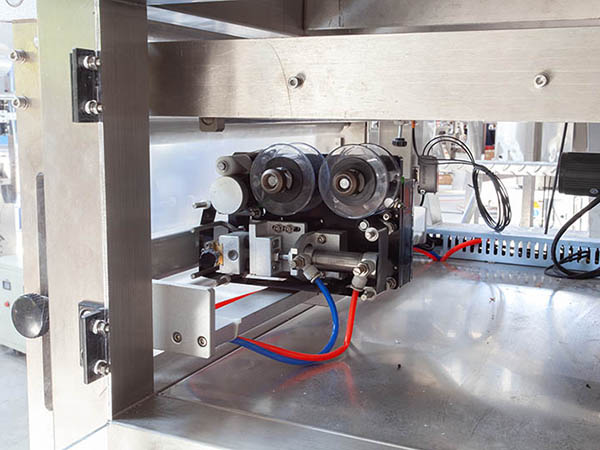

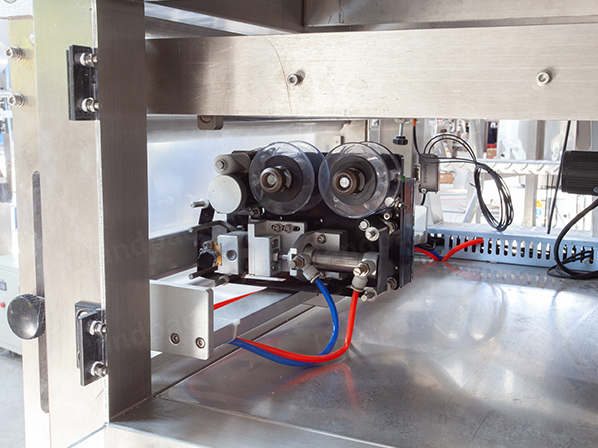

	Date Coding Machine The date coder prints clear production dates, batch numbers, or barcodes on each bag. It supports various printing formats and ink types, providing reliable traceability and compliance with food packaging standards.

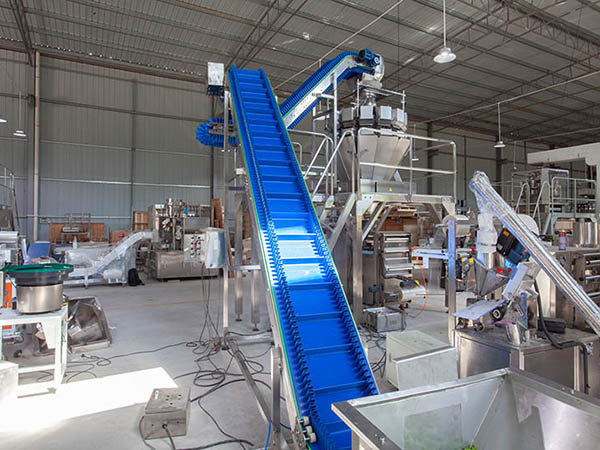

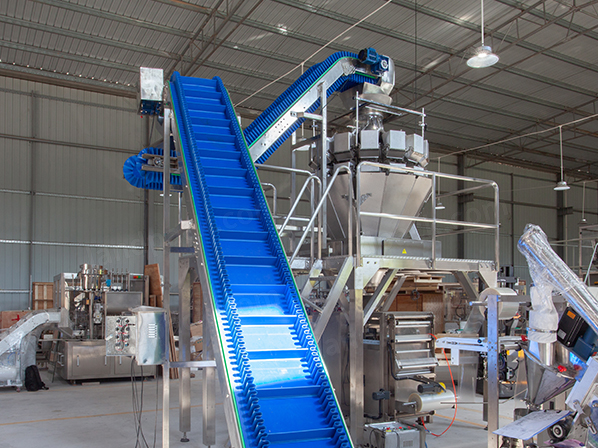

	Material Elevator The material elevator efficiently lifts and transfers products from the feeding hopper to the multihead weigher. Designed with a smooth, hygienic structure and adjustable speed control, it ensures stable product flow and prevents material damage or spillage.

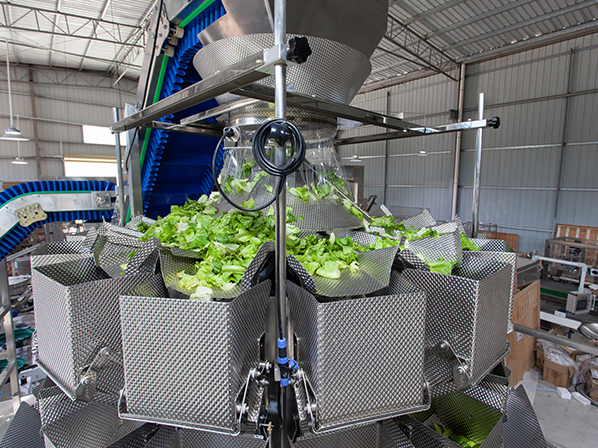

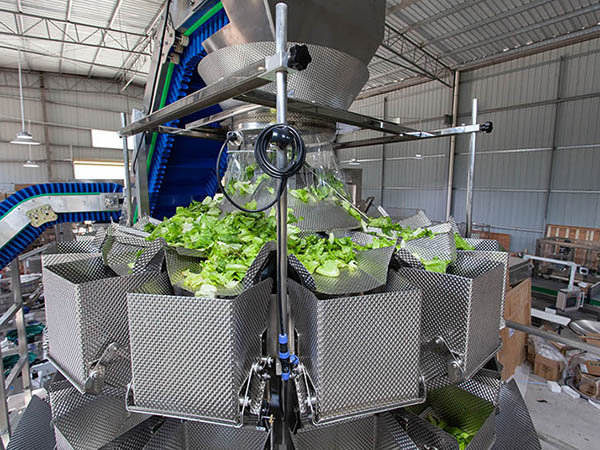

	Multihead Weigher Equipped with advanced sensors and intelligent control, the multihead weigher delivers precise, fast, and consistent weighing performance. It automatically adjusts weight distribution to minimize product loss and guarantee packaging accuracy for every batch.
	Vertical Packaging Machine (Main Unit) The vertical form fill seal (VFFS) main unit integrates film pulling, bag forming, filling, sealing, and cutting into one compact system. Built with a durable stainless-steel frame and servo-driven controls, it ensures smooth operation, tight sealing, and beautiful bag appearance.
