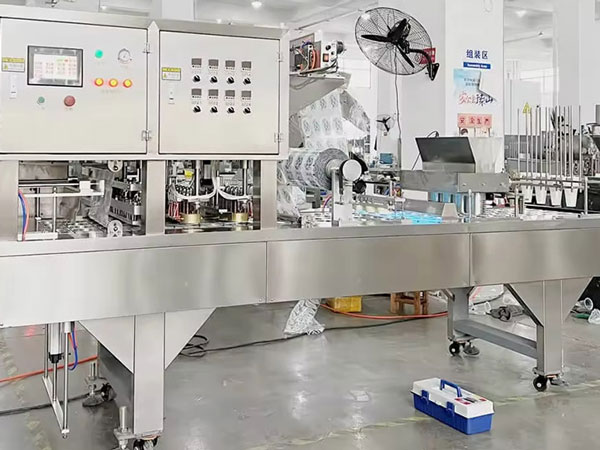

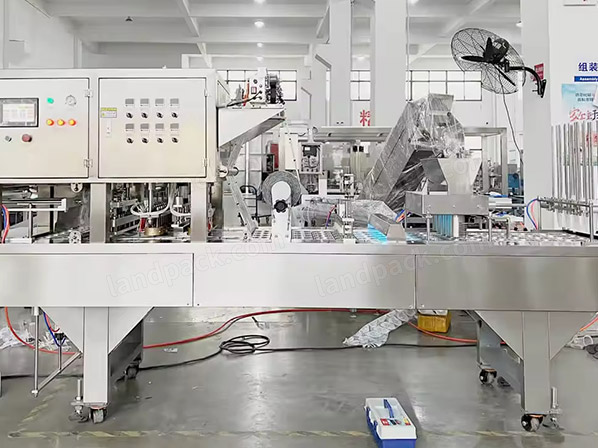

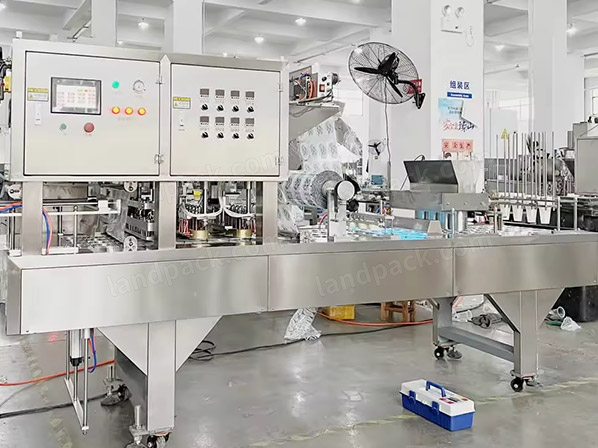

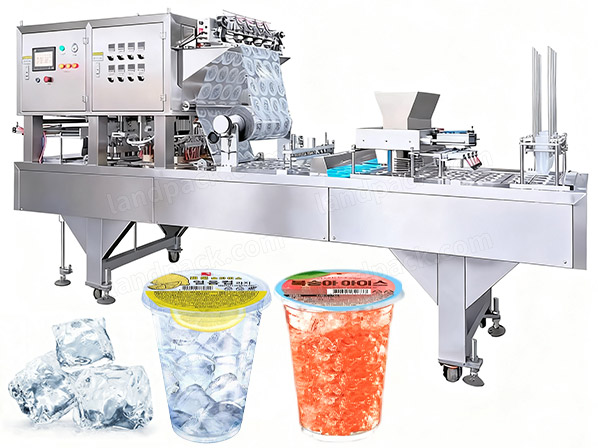

Automatic Ice Cube Plastic Cup Filling and Sealing Machine

Application:

It’s widely applied in the food, beverage, and hospitality industries, providing fast and hygienic packaging for ice cubes, fruit-flavored ice, crushed ice, and mini frozen cubes. Perfect for cold drink chains, bars, and juice shops

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Packing Type:

This machine is mainly designed for cup packaging, suitable for plastic cups, paper cups, and PET containers of different sizes and shapes. It can flexibly adapt to various cup volumes for ice cubes or frozen products, offering tight heat-sealed lids to ensure freshness and prevent leakage.

Machine Details:

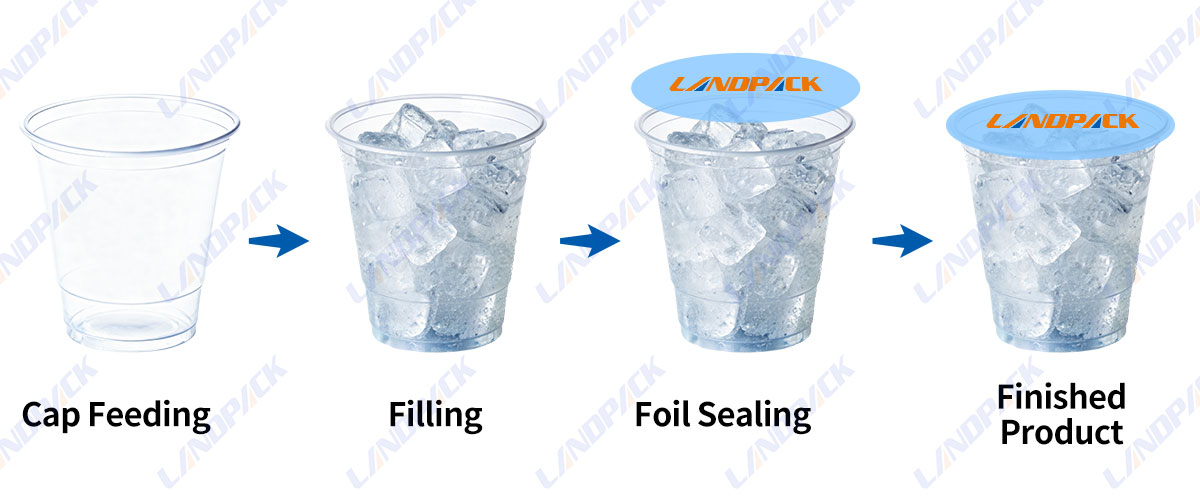

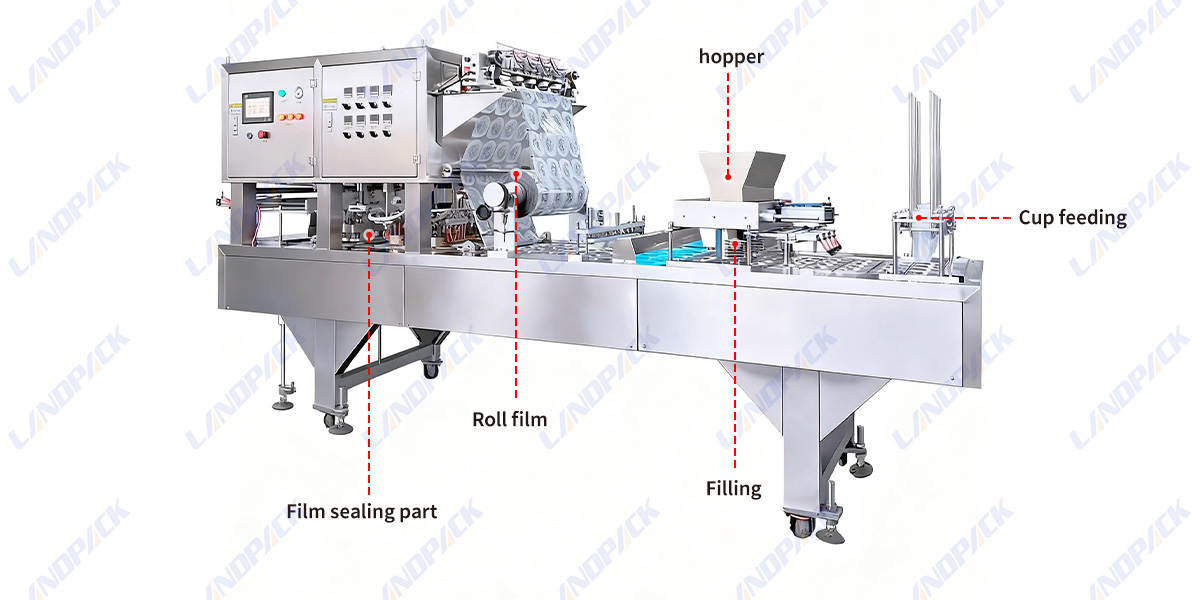

Working Process

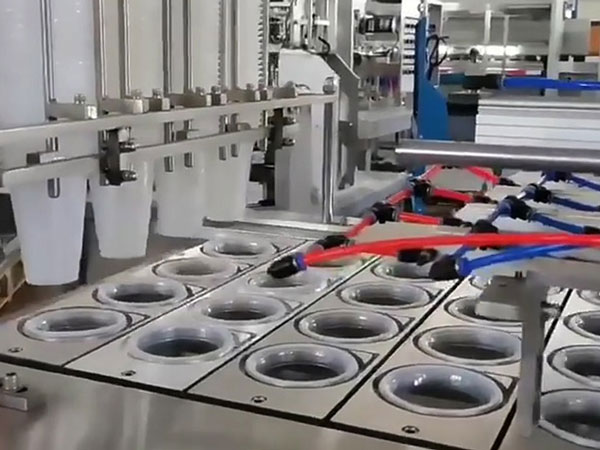

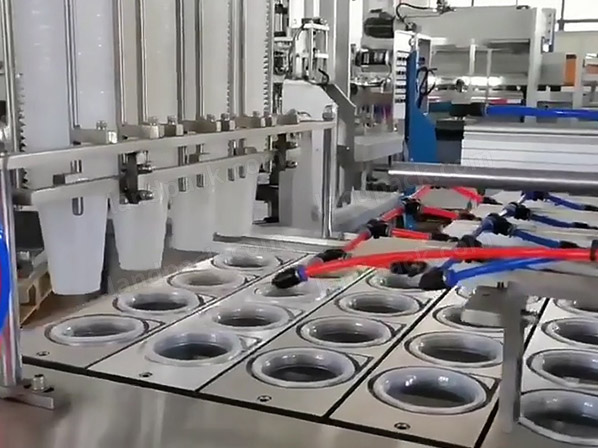

1. Plastic Cup Feeding

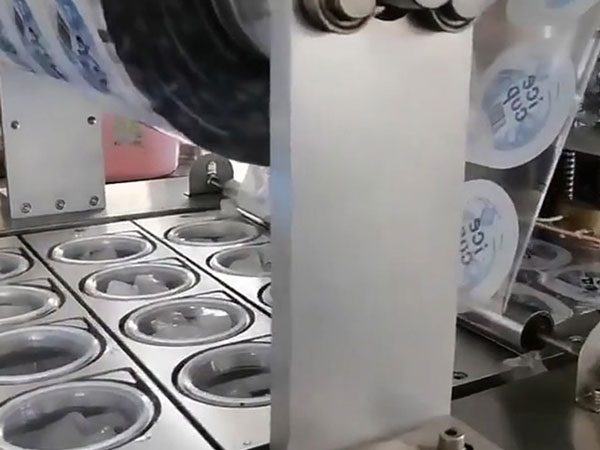

2. Ice cube weighing and filling

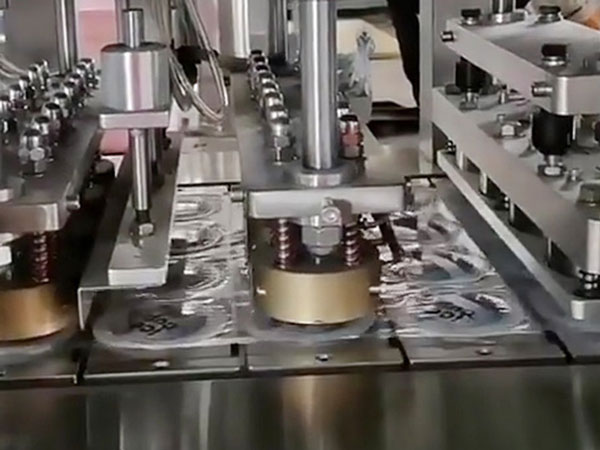

3. Cup Sealing

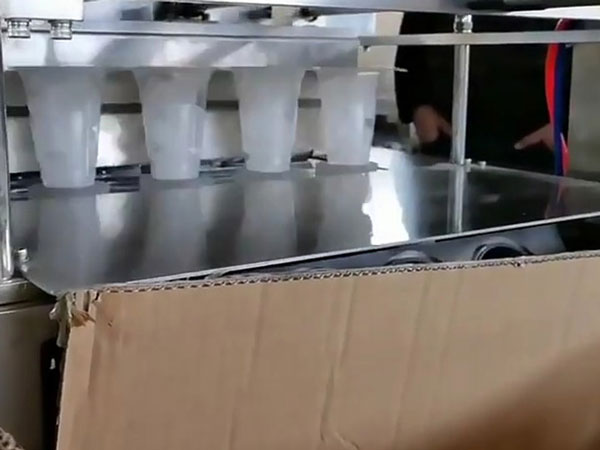

4. Finished Product Output

Specification

Model	LDZ-1	LDJ-2	LDJ-4	LDJ-6	LDJ-8
Type	Rotary type	Linear type	Linear type	Linear type	Linear type
Filling heads	1 head	2 heads	4 heads	4 heads	4 heads
Production capacity	1000pcs/hour	2000 pcs/hour	4000 pcs/hour	6000 pcs/hour	8000 pcs/hour
Filling volume	5-100ml; 100-500ml; 300-1000ml (adjustable)
Power	2KW	2.5KW	4.5KW	6KW	7.5KW
Air	0.6m³/MIN	0.65m³/MIN	0.7m³/MIN	0.75m³/MIN	0.8m³/MIN
Power source	220/380V 50HZ/60HZ
Weight	600KG	700KG	800 KG	1000 KG	1200 KG
Dimension	(L)1300(W)1200(H)2000(MM)	(L)2400(W)600(H)1750(MM)	(L)3300* (W)800*(H)1750(MM)	(L)3300(W)1000(H)1750(MM)	(L)4000(W)800(H)1750(MM)

Features:

Machine Image	Benefits
	High Automation Efficiency Fully automatic cup feeding, filling, sealing, and collecting system ensures continuous, stable, and labor-saving production—perfect for high-demand summer beverage packaging.
	Accurate Ice Filling System Equipped with precise volumetric or weighing control to ensure each cup is evenly filled with ice cubes for consistent cooling performance.
	Strong and Leak-Proof Sealing Uses heat sealing with food-grade film to tightly seal each cup, preventing leaks and maintaining hygiene during transport and storage.
	Durable Stainless-Steel Construction Made from high-quality stainless steel for corrosion resistance and easy cleaning, ideal for cold and wet working environments.
	Customizable Cup Sizes and Designs Supports various cup diameters and sealing film styles, allowing flexible adaptation to different beverage or ice packaging requirements.

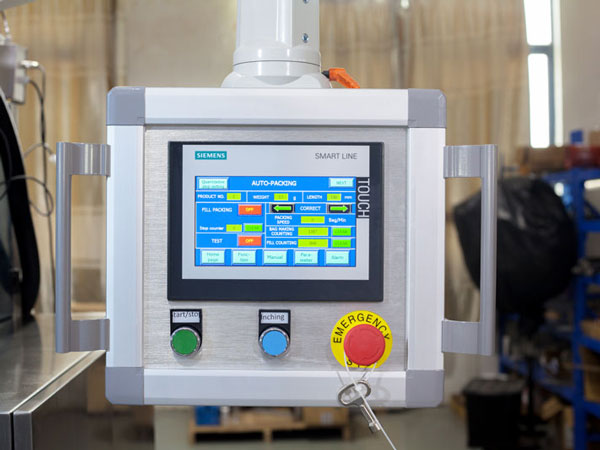

	User-Friendly Operation Touch screen interface with smart temperature and speed control makes the machine simple to operate and maintain, even for new users.
