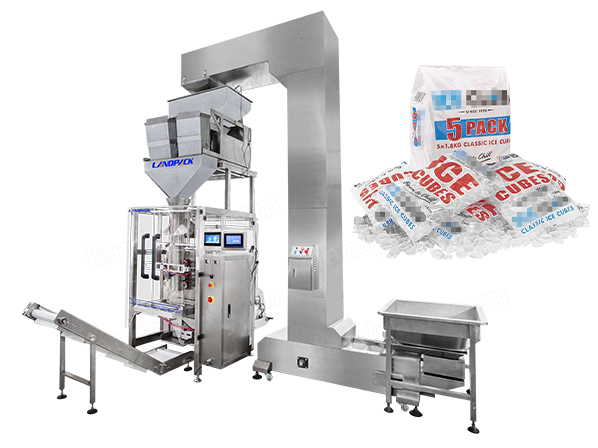

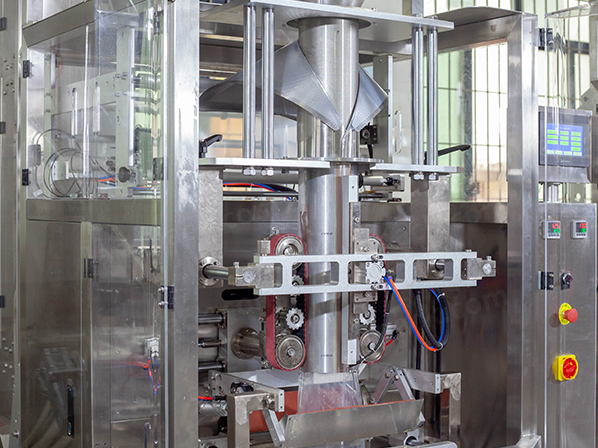

Automatic 2kg 5kg 10kg Ice Cube Packaging Machine Vertical Ice Packing Machine

Application:

With its dual linear weigher and sturdy sealing system, it handles both cold and wet materials with stability and efficiency. Besides ice cubes,, it’s also suitable for frozen food, pet food, plastic pellets, and hardware granules

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Packing Type:

Designed for pillow pouch, gusset pouch, and back sealing pouch, suitable for medium to large bag capacities ranging from 2kg to 10kg. The machine creates durable, leak-proof bags with strong seals, ensuring reliable storage and transportation even for wet or frozen products.

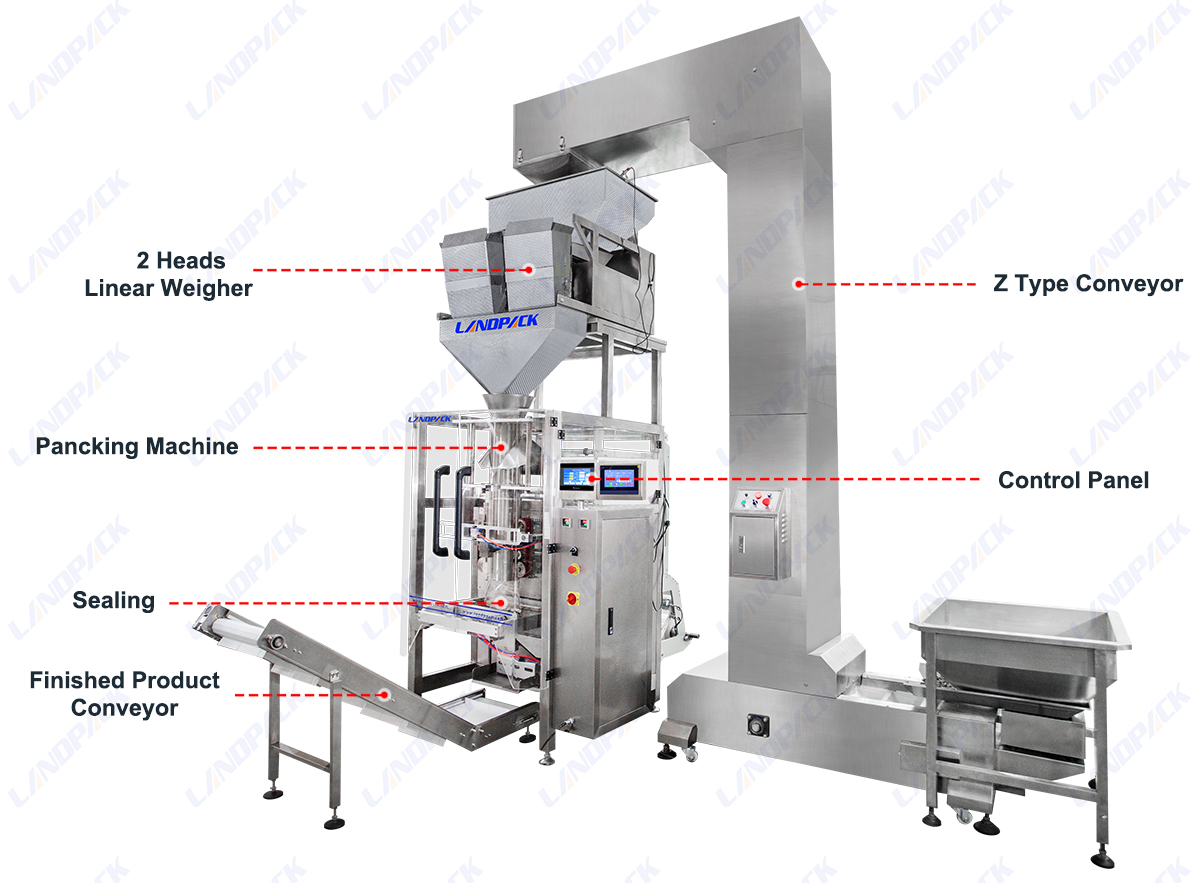

Machine Details:

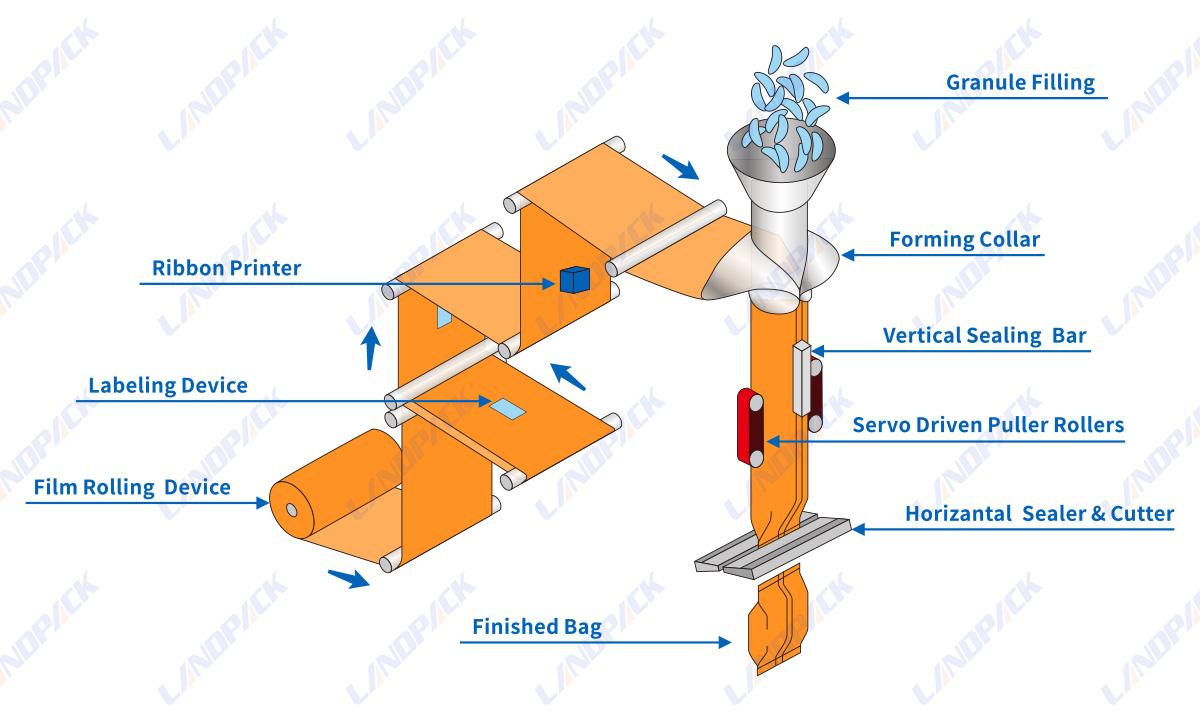

Working Process

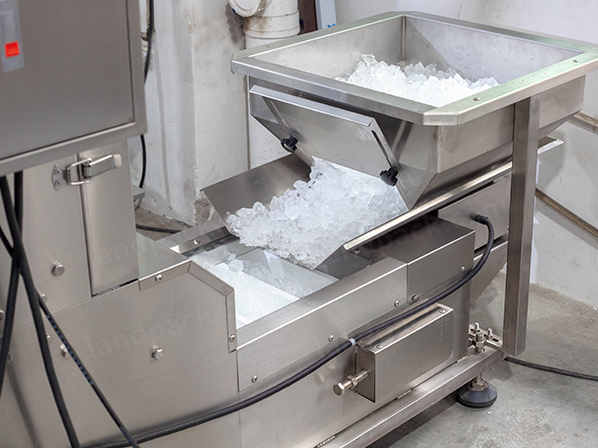

1. Ice Cube feeding and weighing

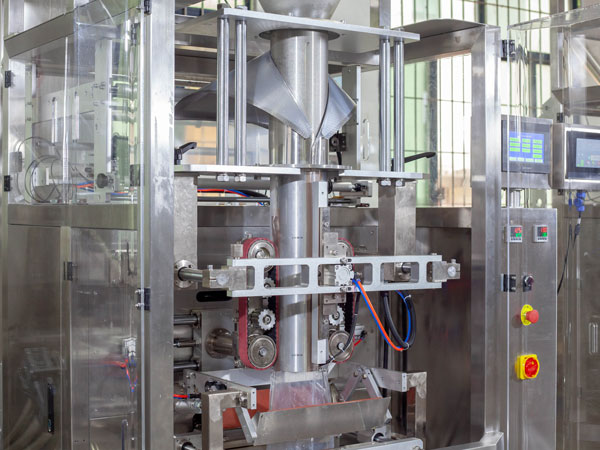

2. Bag forming

3. Filling

4. Sealing

5. Finished Product Output

Specification

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

Machine Image	Benefits

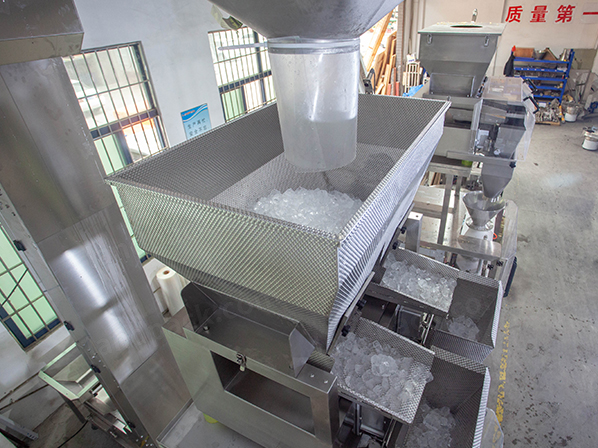

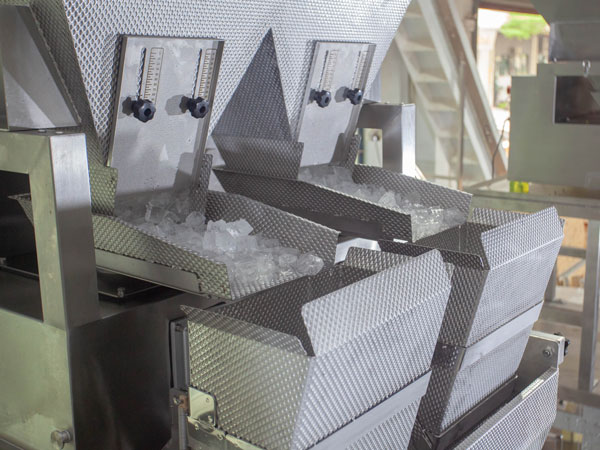

	Dual Linear Weigher for High Accuracy Equipped with twin-head linear weighers that deliver precise ice dosing from 2kg up to 10kg per bag, maintaining accuracy and consistency even with irregular ice shapes.
	Strong and Waterproof Construction Designed with full SUS304 stainless steel and sealed electrical components, the machine performs reliably in low-temperature and humid ice-packing environments.

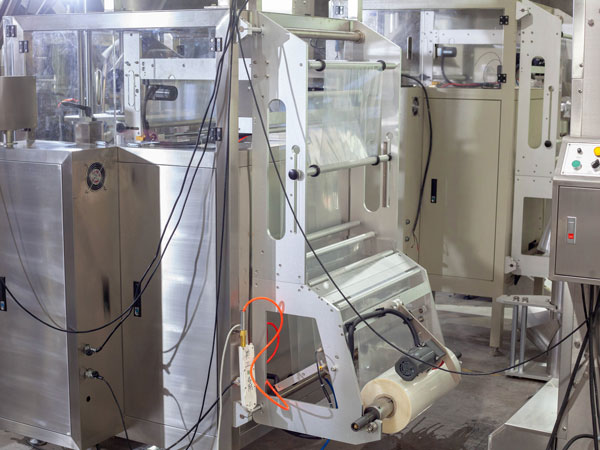

	Stable Film Feeding and Bag Forming Servo-driven film pulling and advanced tension control ensure smooth bag formation, minimizing film waste and improving sealing quality.

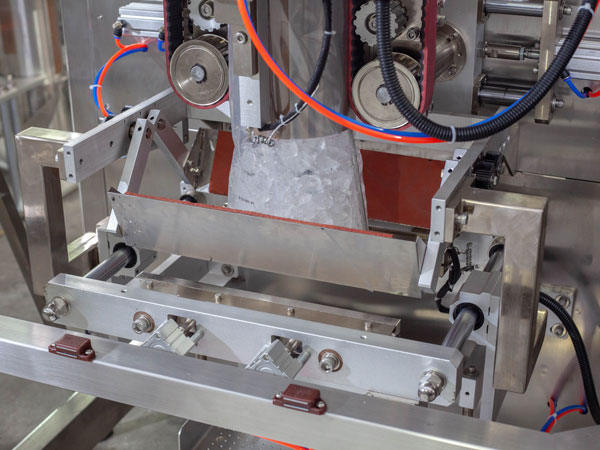

	Enhanced Sealing System Adopts constant-temperature sealing jaws with pressure control, providing firm, leak-proof seals to prevent bag breakage during cold storage and transport.

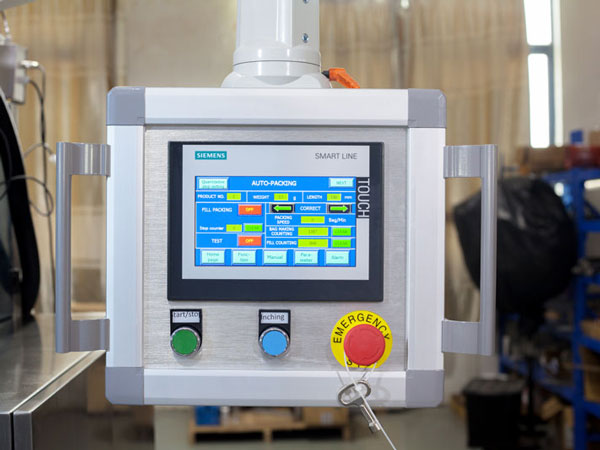

	Easy Operation and Maintenance Integrated PLC control with a color touch screen simplifies operation and parameter setting, while tool-free access makes cleaning and maintenance effortless.
