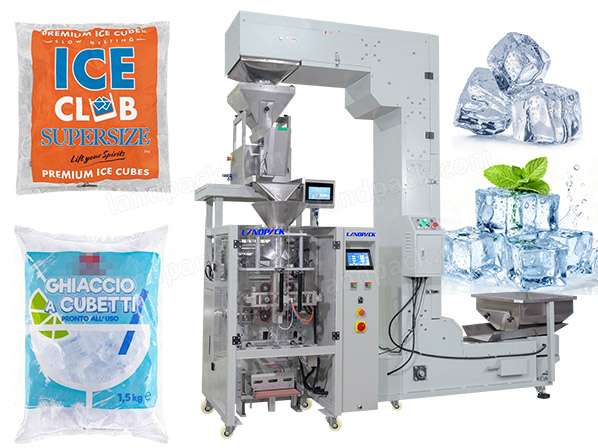

Single-head Linear Weigher Ice Cube Bag Form Fill Seal Packaging Machine

Application:

The LD-420AS vertical packaging machine with a single-head linear weigher is suitable for accurately packaging ice cubes and a variety of granular products into back sealing pouches such as candy pieces, coffee beans, small snack pellets, and powdered sea

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Packing Type:

The LD-420AS is designed to handle back sealing pouches, providing neat and durable packaging for ice cubes and granular products. Its adjustable bag former allows for different pouch sizes, such as pillow pouches, gusset pouches

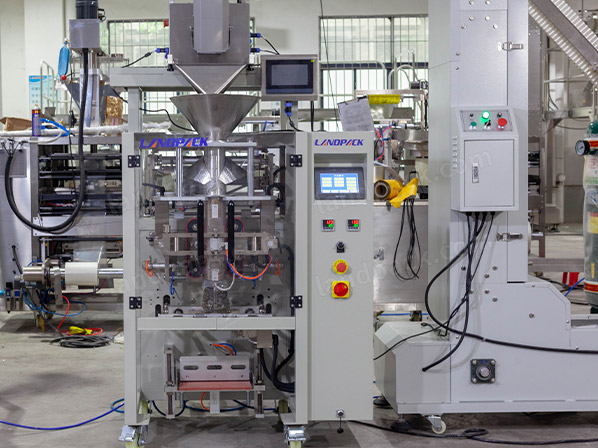

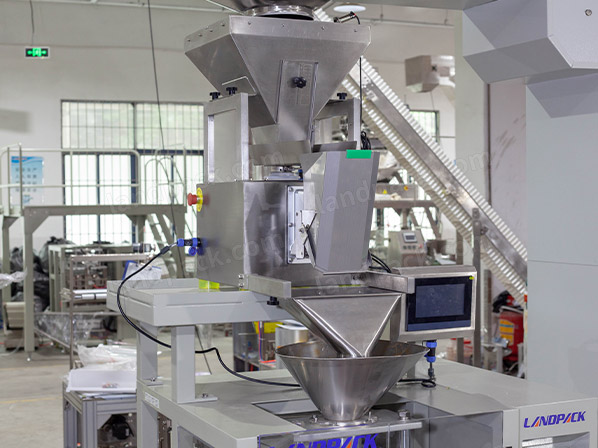

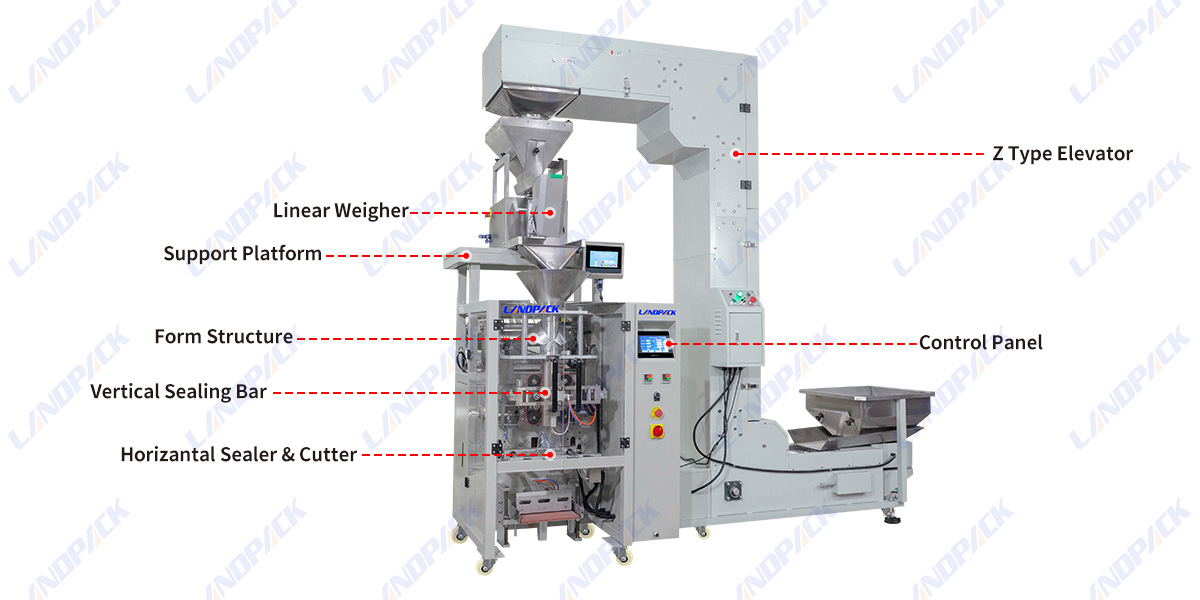

Machine Details:

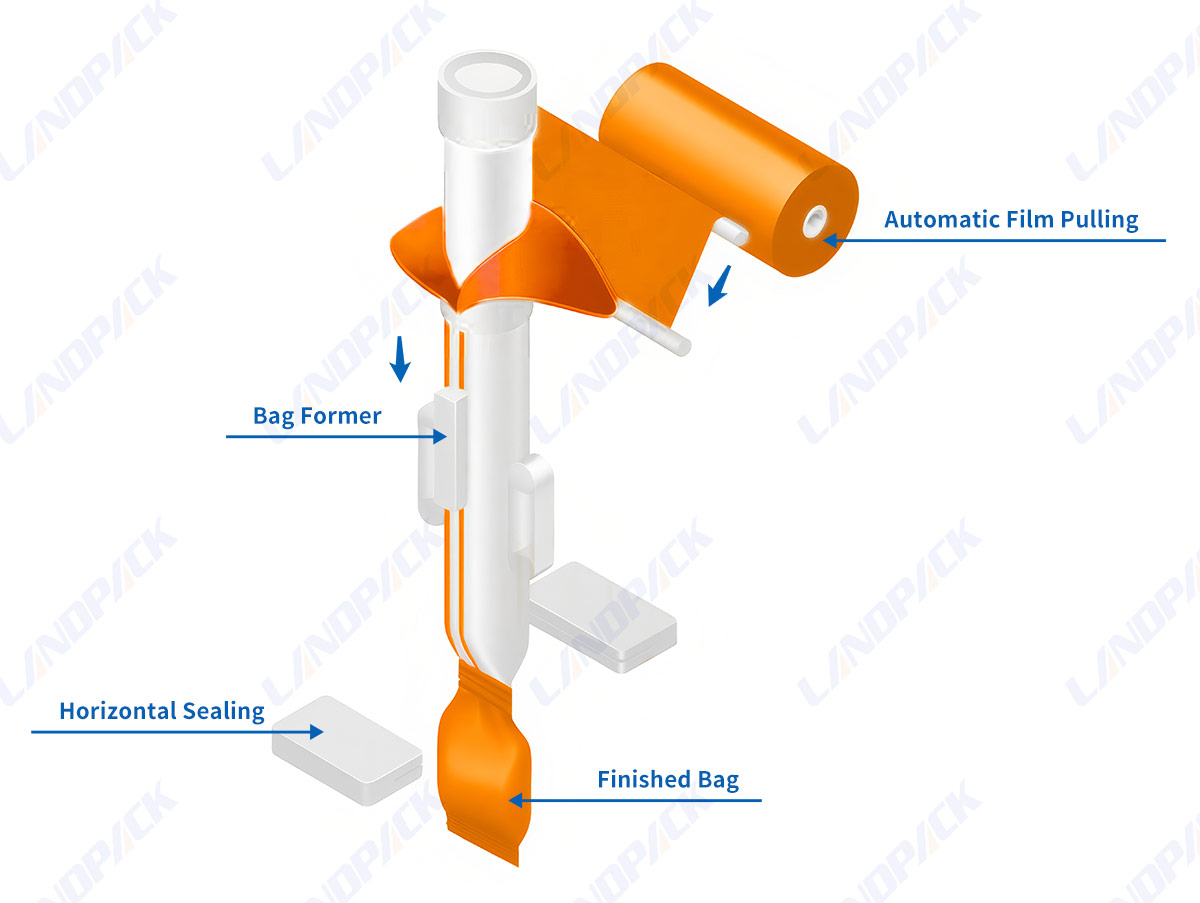

Working Process

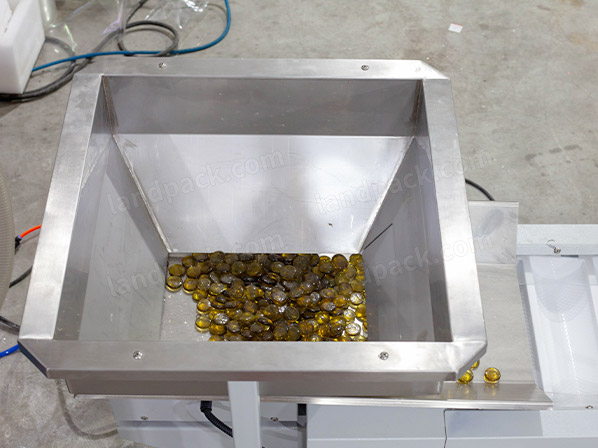

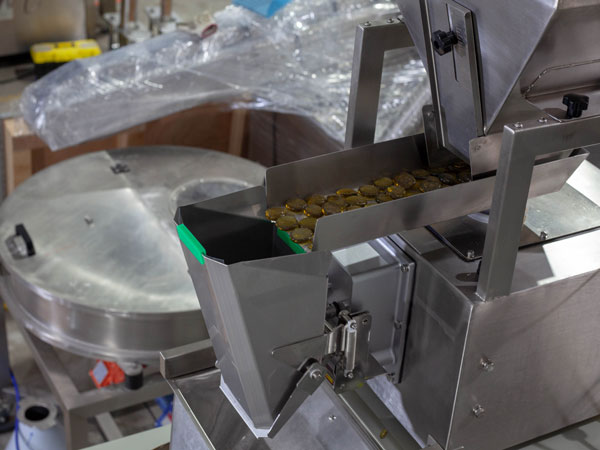

1. Ice Cube feeding and weighing

2. Bag forming

3. Filling

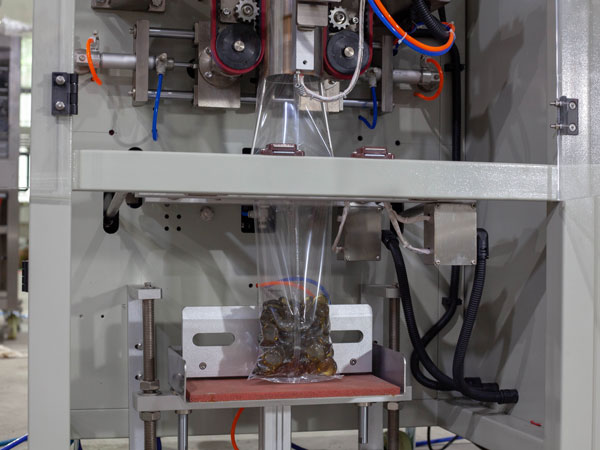

4. Sealing

5. Finished Product Output

Specification

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

Machine Image	Benefits

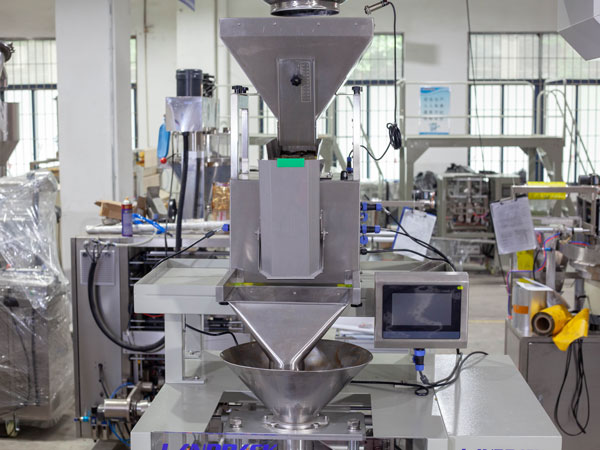

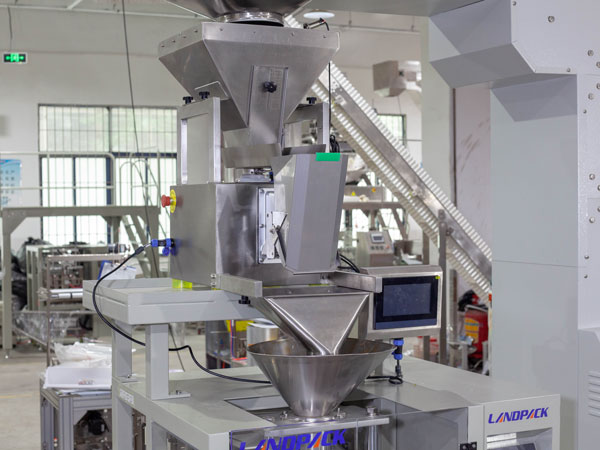

	Precision Linear Weighing System The single-head linear weigher ensures accurate portioning with consistent weight control, ideal for frozen or granular materials.
	Energy-Saving Operation Designed with a simplified structure and optimized motion control, reducing power consumption while maintaining smooth performance.
	Enhanced Hygiene Design All contact parts are made of food-grade stainless steel, easy to disassemble and clean, meeting strict hygiene standards.
	Stable Film Pulling & Sealing Advanced servo film pulling system and temperature-controlled sealing jaws deliver precise bag forming and strong, leak-proof seals.
	Flexible Application Range Suitable for packaging ice cubes, dried fruits, coffee beans, grains, or similar free-flowing products into back sealing pouches with consistent quality.
