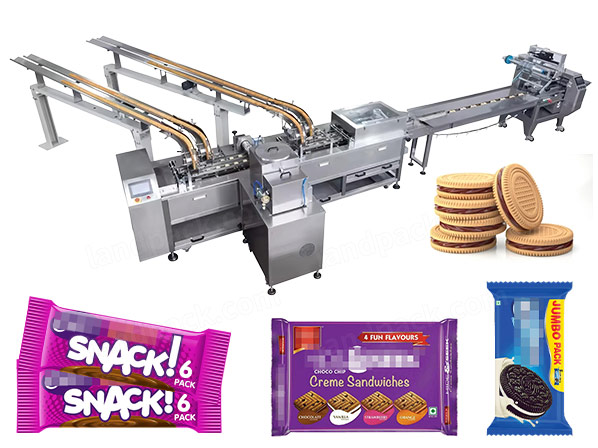

High Speed Sandwich Biscuit Feeding Packing Line Cream Sandwich Cookies Packing Machine

Application:

The high-speed pillow packaging machine is designed for sandwich biscuits, cream cookies, and other similar snacks. With the ability to fill cream at 1200 biscuits per minute and a packaging speed of up to 230 packs per minute, this solution is ideal for large-scale production lines demanding high efficiency and product quality.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The sandwich biscuit pillow packaging machine is specially designed for cream-filled biscuits and cookies. Equipped with an automated cream injection system and a stacking device for two-layer arrangement, it ensures precise sandwiching and efficient packaging of products like chocolate biscuits, wafer cookies, and cream-filled crackers.
* Snack: Sandwich Biscuits, Cream Cookies, Chocolate-Coated Wafers, energy bars, etc.
* Bakery Products: Layered Cakes with Cream, Pastries with Fillings, Swiss Rolls, Muffins with Cream Centers, etc.
* Instant Food: Instant Noodle, Rice Crackers, Ready-to-Eat Flatbreads, Snack Pies,etc.

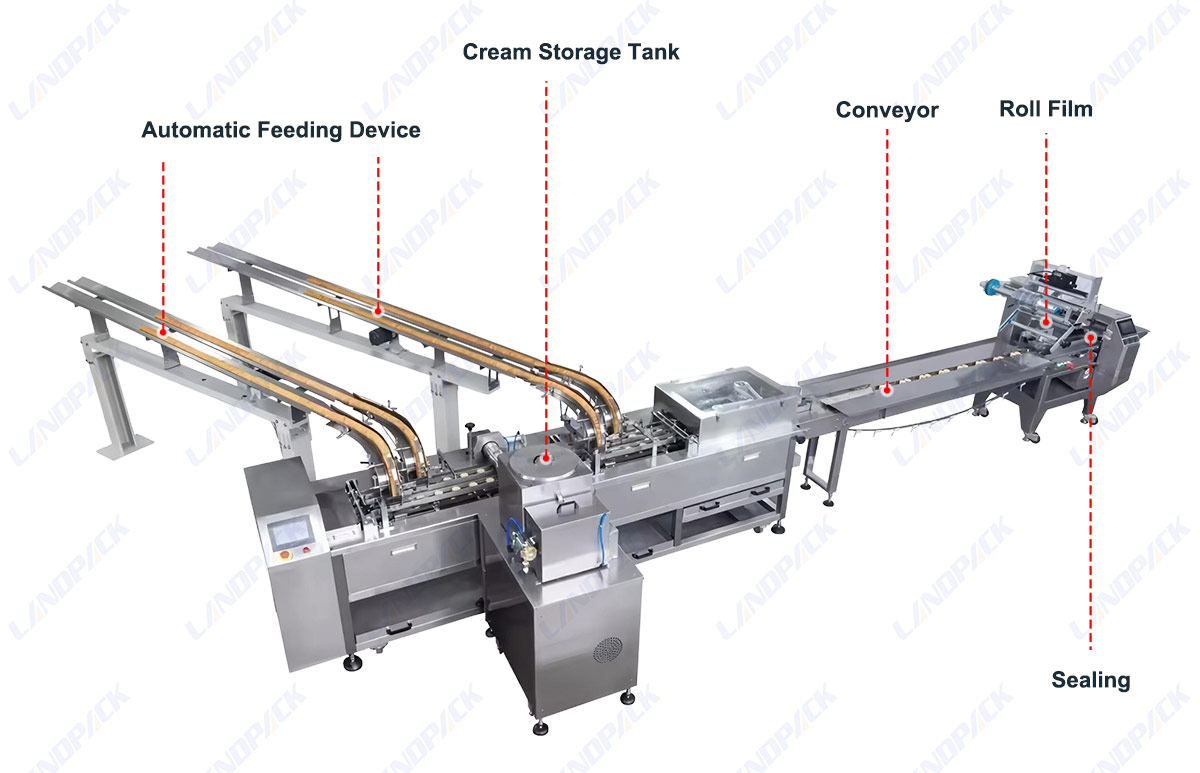

Machine Details::

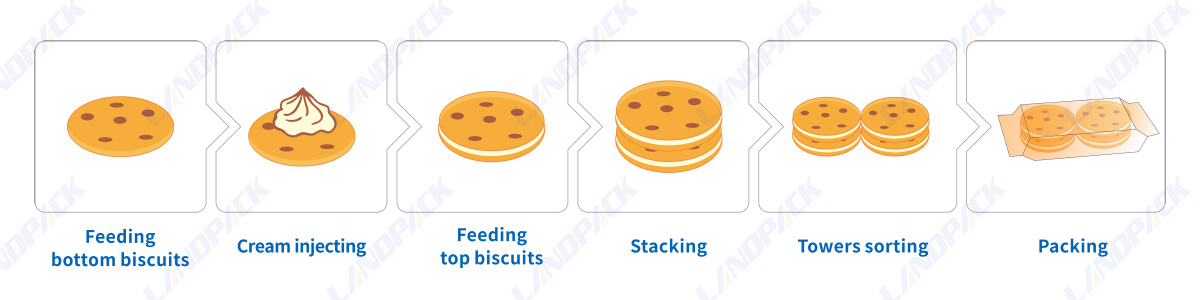

Working Process

1. Bottom Biscuit Feeding

2. Cream Filling

3. Top Biscuit Placement

4. Stacking Process

5. Row Sorting

6. Final Packaging

Double Row Biscuit Sandwich Machine
Speed	200-1200 pcs/min
Material	SS304
Filling Material	Cream, jam, peanut butter, etc
Biscuit Size	Ф35-Ф65mm
High Speed Flow Packing Machine
Model	LP-250B	LP-350B	LP-450B	LP-600B	LP-700B	LP-800B	LP-900B
Film width	Max.250mm	Max.350mm	Max.450mm	Max.600mm	Max.700mm	Max.800mm	Max.900mm
Bag length	65-190mm or 120-280 mm	90-220mm or 150-280 mm	150-450mm	160-500mm	180-600mm	210-650mm	240-700mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330mm	120-350mm	150-400mm
Product height	Max.40mm	Max.40mm	Max.75mm	Max.110mm	Max.110mm	Max.130mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180 bags/min	30-150 bags/min	20-150 bags/min	20-130 bags/min	20-120 bags/min	20-100 bags/min
Power	220V, 50/60Hz, 2.4kw	220V, 50/60Hz, 2.6kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 4.5kw	220V, 50/60Hz, 4.5kw
Machine size	37707201420mm	40307701420mm	40308201420mm	40309701500mm	40309801500mm	410011701550mm	430012701550mm
Machine quality	About 500kg	About 580kg	About 650kg	About 680kg	About 720kg	About 800kg	About 850kg
Remarks	optional air filling device/optional angle folding
Film material	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Features::

Machine Image	Benefits
	Control Panel * Smart touch screen interface for easy operation and parameter adjustment.

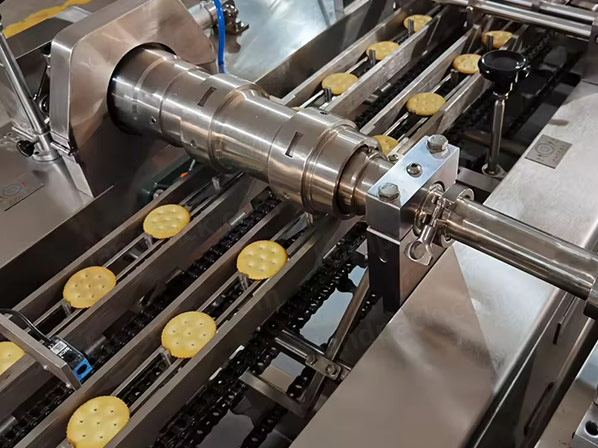

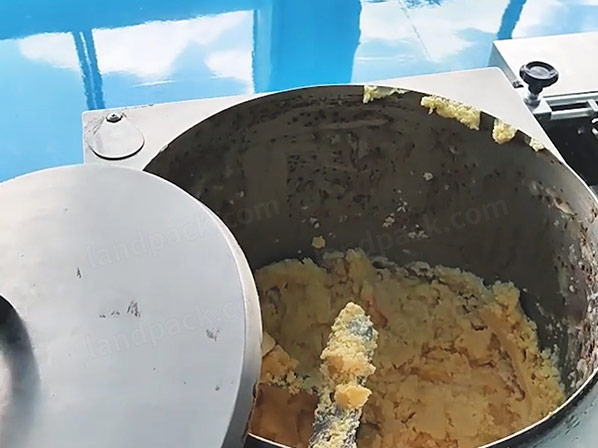

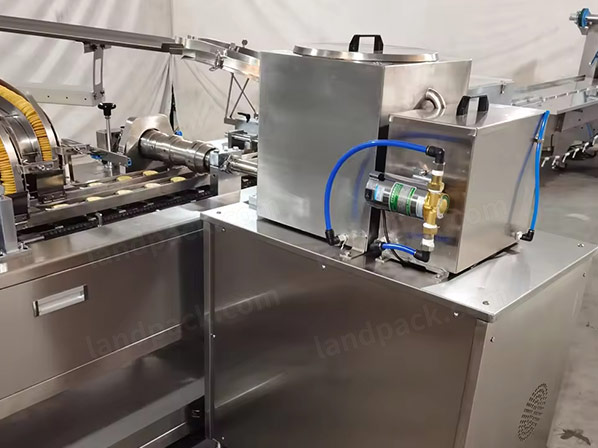

	Cream Injector * High-precision injector guarantees an even and consistent volume of cream distribution across every biscuit.
	Cream Injector * High-precision injector guarantees an even and consistent volume of cream distribution across every biscuit.

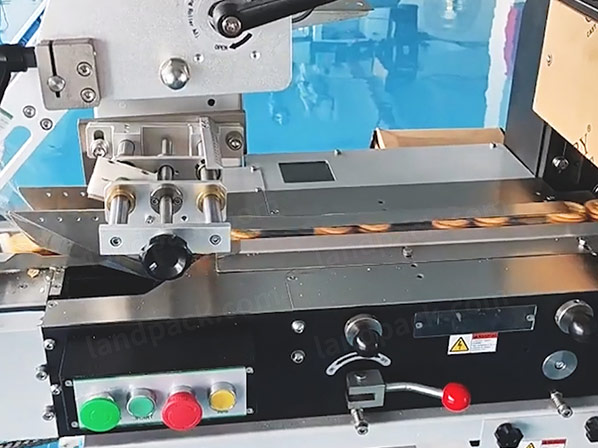

	Material Conveying System * The material conveying system transports products smoothly into the packaging chamber, ensuring accurate placement for optimal sealing.
