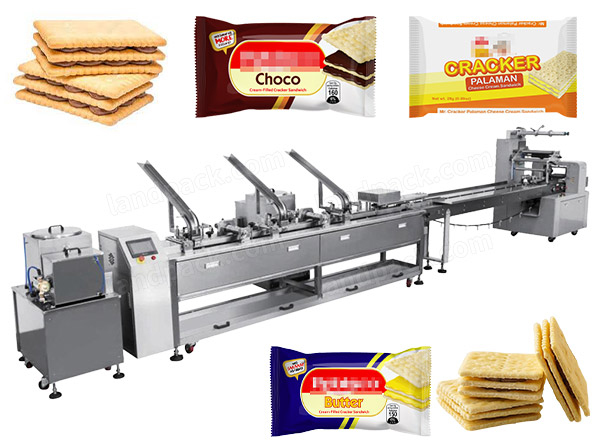

Automatic Sandwich Biscuit Flow Wrapping Machine With Cream Injector

Application:

The sandwich biscuit pillow packaging machine is specifically designed for packaging biscuits with cream filling, cookies. Ideal for packaging products like chocolate biscuits, wafer cookies, cream-filled crackers, and other similar snacks.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The sandwich biscuit pillow packaging machine is specifically designed for packaging biscuits with cream filling, cookies. Ideal for packaging products like chocolate biscuits, wafer cookies, cream-filled crackers, and other similar snacks.

* Baked Goods & Snacks: sandwich biscuits & cookies, chocolates & confectioneries, chips, crackers & breadsticks

* Frozen & Perishable Foods: frozen meat products, frozen fruits & vegetables, sandwiches, doughnuts

* Non-Food Products: face masks, medicine, capsules, small toys, tools, household products

It provides stability and a streamlined packaging that can accommodate a variety of textures and shapes, which makes it a great choice for large-scale bakery and snack production.

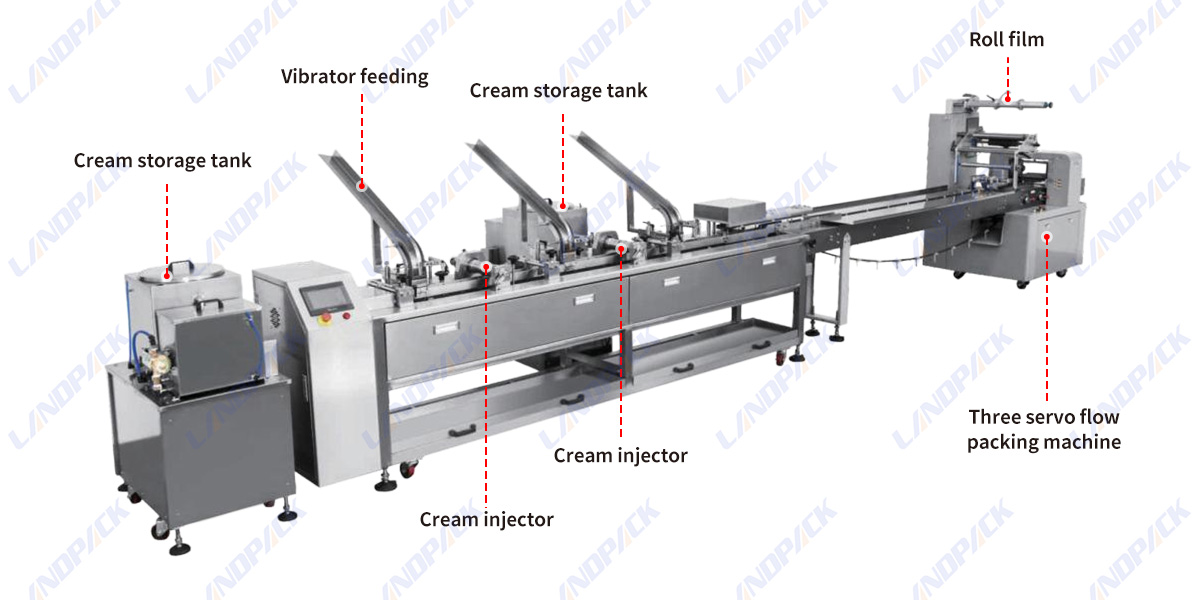

Machine Details:

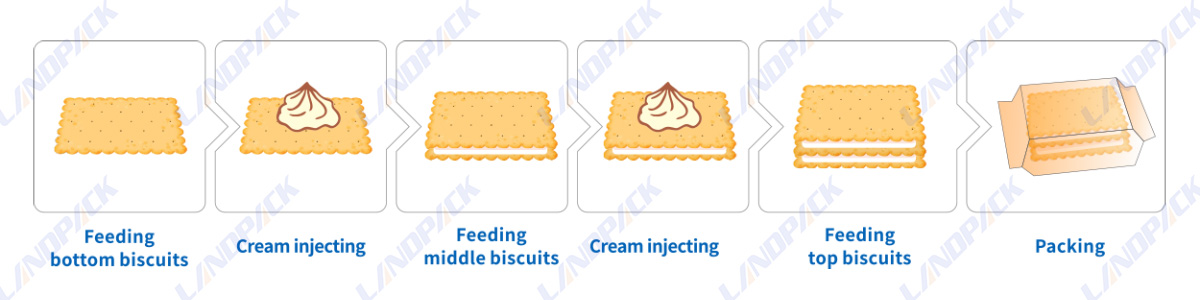

Working Process

1. Feeding Bottom Biscuits

2. Cream Injecting

3. Middle layer injection

4. Second layer of cream injection

5. Feeding Top Biscuits

6. Packing

Model	LP-250B	LP-350B	LP-450B	LP-600B	LP-700B
Film width	Max250mm	Max350mm	Max450mm	Max600mm	Max700mm
Bag length	65-190mm or 120-280 mm	65-190mm or 120-280 mm	150-450mm	160-500mm	180-600mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330mm
Product height	Max.40mm	Max.40mm	Max.75mm	Max.110mm	Max.110mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180bags/min	30-150Bags/min	20-150 bags/min	20-130 bags/min
Power	220V, 50/60Hz, 2.4kw	220V, 50/60Hz, 2.6kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw
Machine size	(L)3770(W)720(H)1420mm	(L)4030(W)770(H)1420mm	(L)4030(W)820(H)1420mm	(L)4030(W)970(H)1500mm	(L)4030(W)980(H)1500mm
Machine quality	About 500kg	About 580kg	About 650kg	About 680kg	About 720kg
Remarks	optional air filling device/optional angle folding
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Features:

Machine Image	Benefits
	Control Panel * Smart touch screen interface for easy operation and parameter adjustment.
	Cream Injector * High-precision injector guarantees an even and consistent volume of cream distribution across every biscuit.

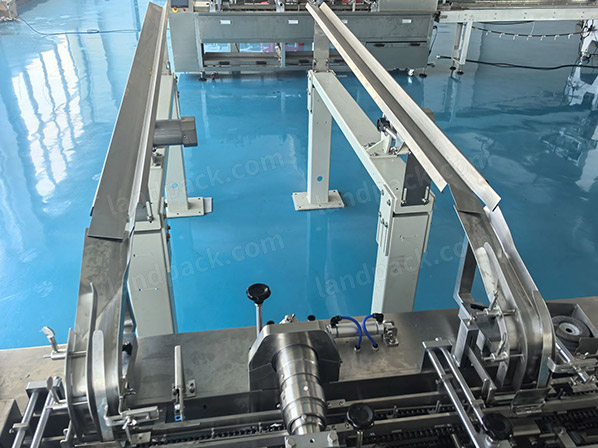

	Automatic Feeding Device * Accurately align and feed biscuits into the machine for improved efficiency.

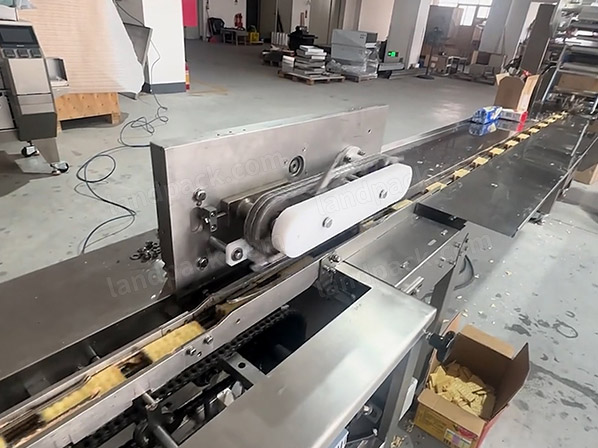

	Material Conveying System * The material conveying system transports products smoothly into the packaging chamber, ensuring accurate placement for optimal sealing.
