Part One | |||||||
Model | LP-250 | LP-350 | LP-450 | LP-600 | LP-700 | LP-800 | LP-900 |
Film width | Max250mm | Max350mm | Max450mm | Max600mm | Max700mm | Max.800 mm | Max.900mm |
Bag length | 65-190mm or120-280mm | 65-190mm or120-280mm | 150-450mm | 160-500mm | 180-600 mm | 210-650mm | 240-700mm |
Bag width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330 mm | 120-350mm | 150-400mm |
Product height | Max.40mm | Max.40mm | Max.75mm | Max.110mm | Max.110 mm | Max.130 mm | Max.150mm |
Film roll diameter | Max.320mm | ||||||
Packaging rate | 40-230 bags/min | 40-180bags/min | 30-150Bags/min | 20-150 bags/min | 20-130 bags/min | 20-120bag/min | 20-100 bags/min |
Power | 220V,50/60Hz,2.4kw | 220V,50/60Hz,2.6kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,4.5kw | 220V,50/60Hz,4.5kw |
Machine size | (L)3770*(W)720*(H)1420mm | (L)4030*(W)770*(H)1420mm | (L)4030*(W)820*(H)1420mm | (L)4030*(W)970*(H)1500mm | (L)4030*(W)980*(L)1500mm | (L)4100*(W)1170*(H)1550mm | (L)4300*(W)1270*(H)1550mm |
Machine quality | About 500kg | About 580kg | About650kg | About680kg | About720kg | About800kg | About 850kg |
Remarks | optional air filling device)/optional angle folding) | ||||||
Film material) | OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film |

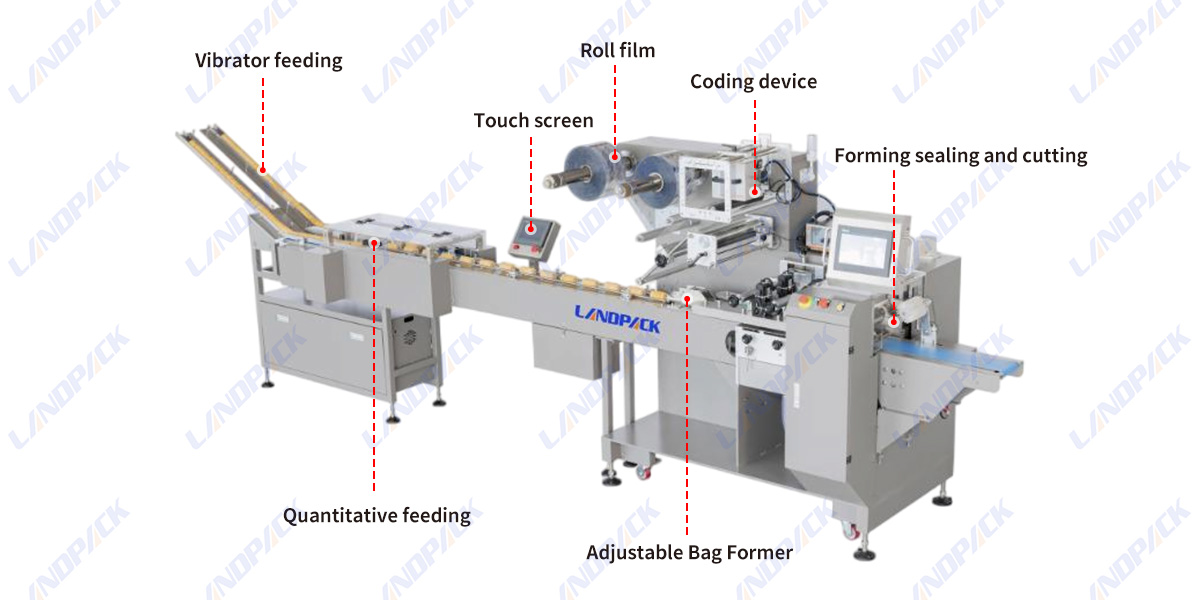

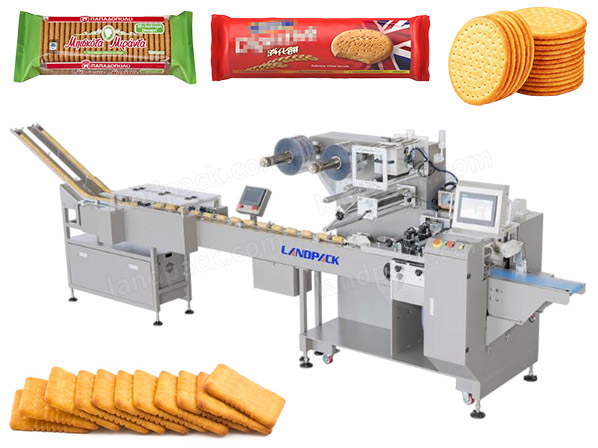

Machine Image | Benefits |
![]() |

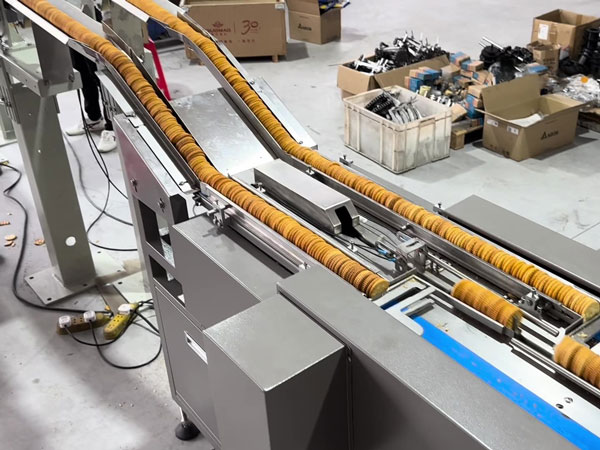

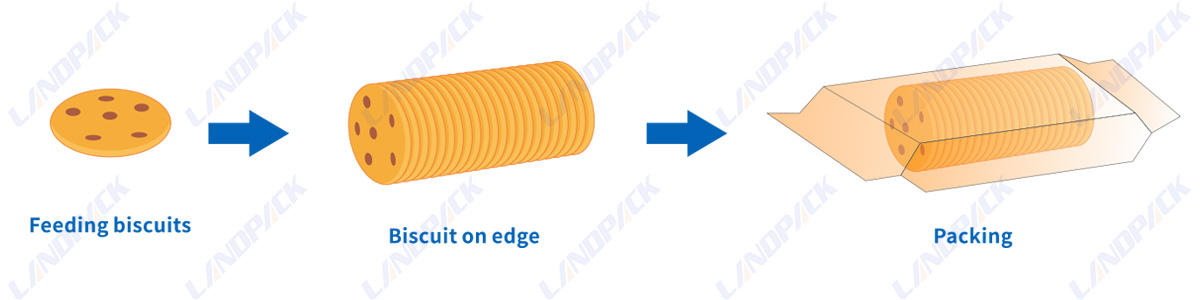

Biscuit Feeding The process starts with biscuit feeding, when the products are taken directly from the line of production and then buffered on conveyors. This guarantees an uninterrupted flow of biscuits through the next step, avoiding any obstruction or damage to the product. |
![]() |

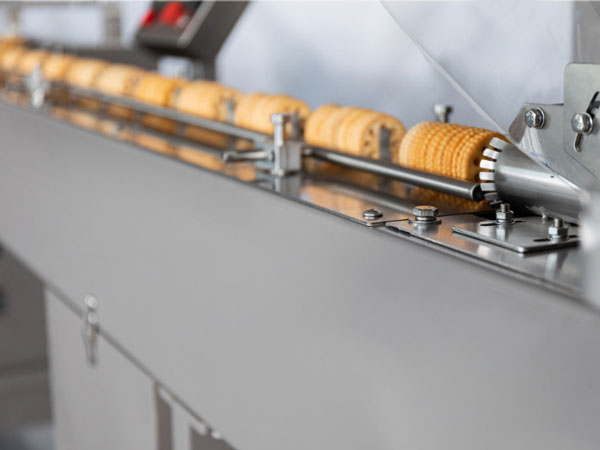

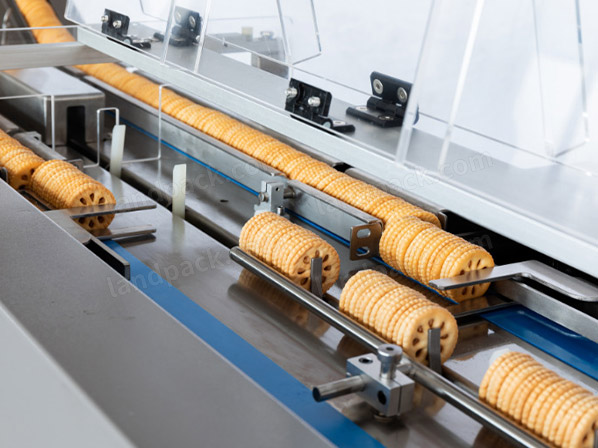

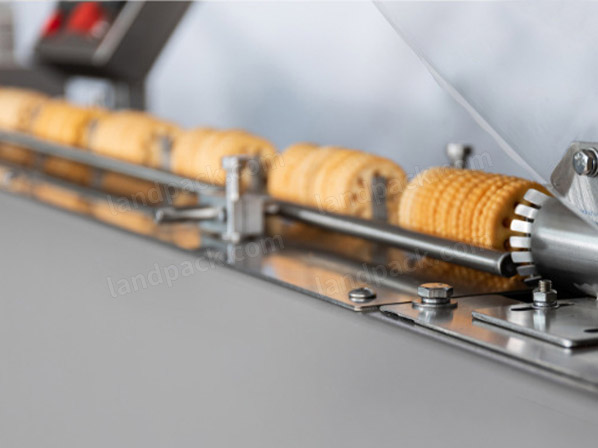

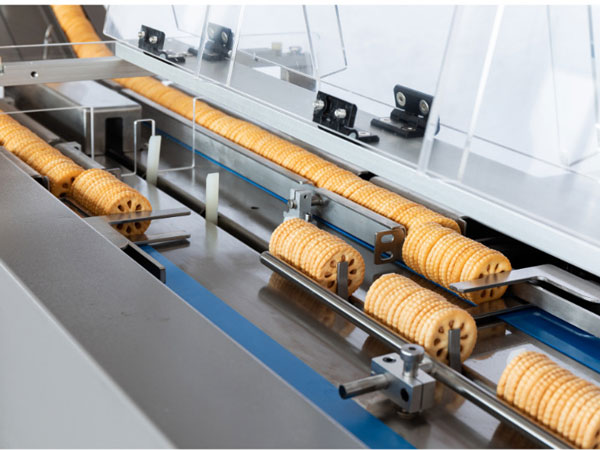

Sorting & Aligning In this phase, the broken biscuits are placed in neat lines or lanes with guide rails, vibration tray as well as servo-driven dividers. The aim is to avoid confusion and misalignment. |
![]() |

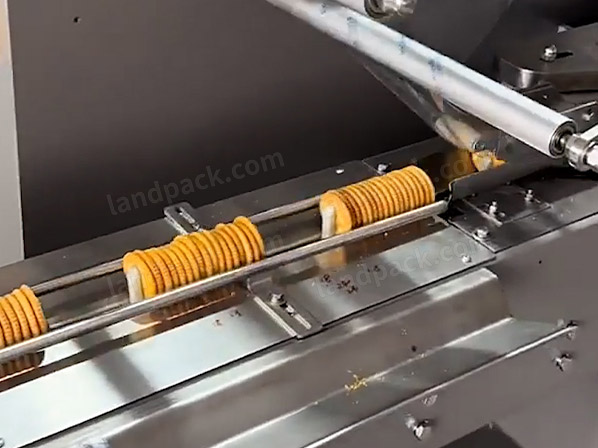

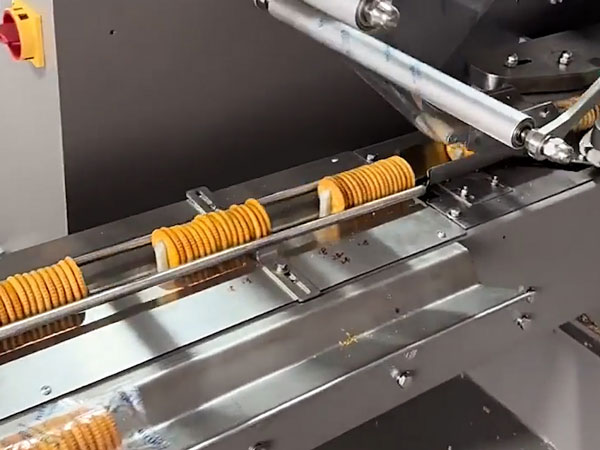

Counting & Grouping In this case, biscuits are measured by using photoelectric sensors and then grouped in accordance with the quantity required like 2, 3 five pieces in a package. This makes sure that each package has the exact amount of biscuits. |
![]() |
Packaging This packaging device seals the group of biscuits in the pillows bags.It is equipped with sealing jaws, film feeding and cutting tools to ensure strong sealing. |
