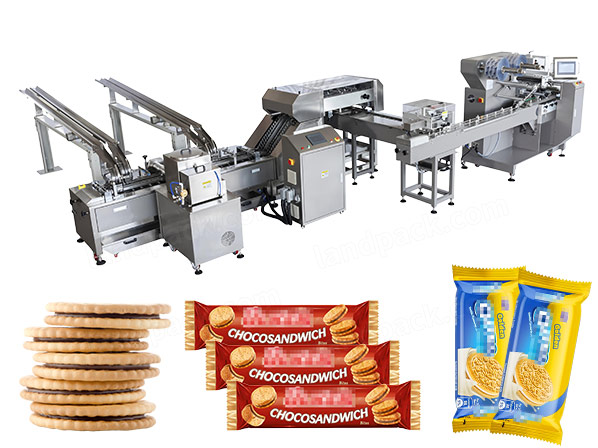

Biscuit Sandwiching Machine with Biscuit Flow Packing Machine

Application:

The biscuit sandwiching machine works by feeding bottom biscuits onto the conveyor automatically. A dosing system applies cream or filling with high precision, after which the top biscuits are placed to form sandwiches.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This machine has been designed for sandwiches biscuits and filled pastry with seamless functions for feeding and arranging, sandwiching, stacking and packaging. It is used extensively in the bakery and confectionery industries, allowing a wide assortment of shapes, tastes and fillings ranging from chocolate, cream and jam to a variety of nutritious ingredients.Here are some common uses and the types of products that are available:

* Sandwich Biscuits:

Classic cream-filled biscuits, Chocolate-coated sandwich biscuits, Double-layer sandwich cookies, Round and square sandwich biscuits

* Wafers & Crackers:

Wafer Sheets: Layered cream wafers, chocolate wafers

Savory Crackers: Salted crackers, cheese crackers, vegetable crackers

* Cookies & Pastries with Filling:

Butter cookies with cream or jam, Chocolate chip sandwich cookies, Fruit-filled soft pastries, Innovative flavor cookies

* Wafers & Layered Snacks:

Cream-filled wafers, Chocolate-coated wafers, Multi-layer wafer sandwiches

* Healthy & Customized Snacks:

Protein sandwich biscuits, Sugar-free sandwich cookies, Whole grain filled crackers, Tailored flavor sandwich snacks

Machine Details::

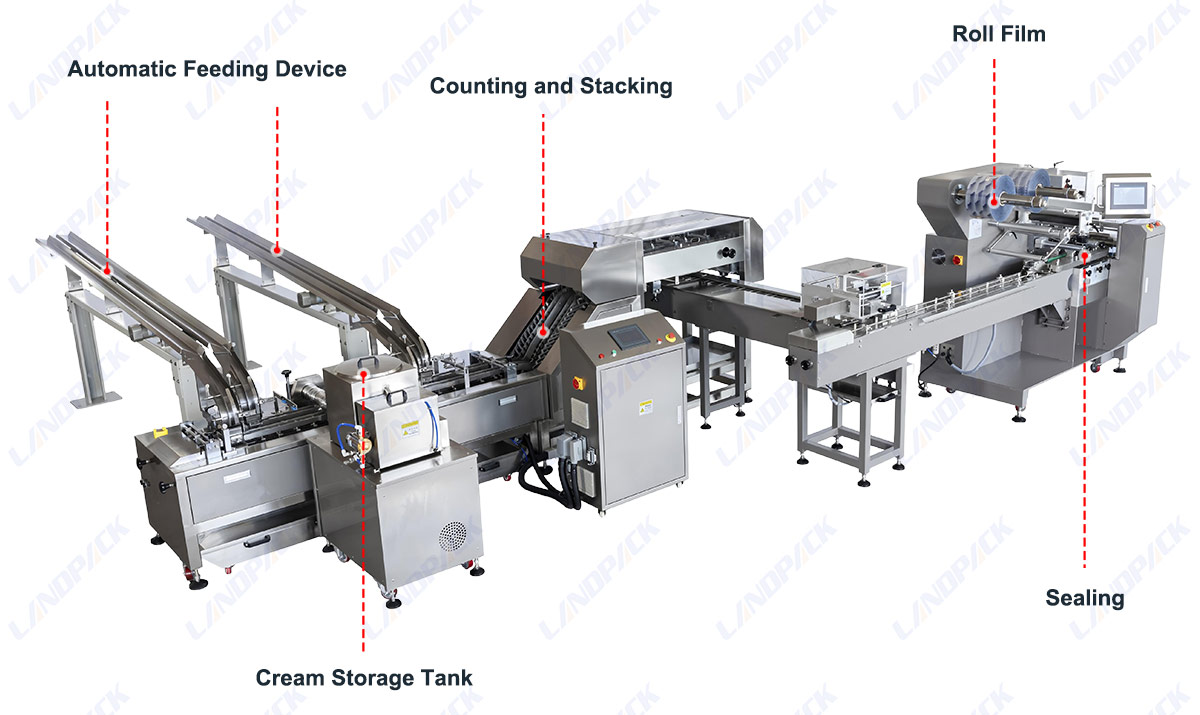

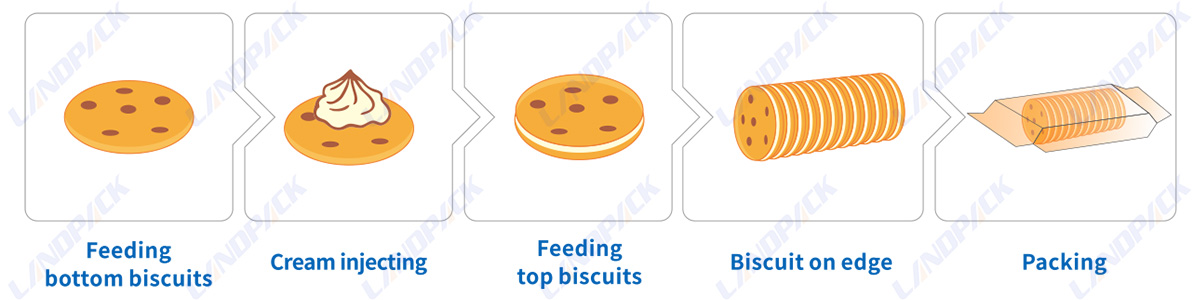

Working Process

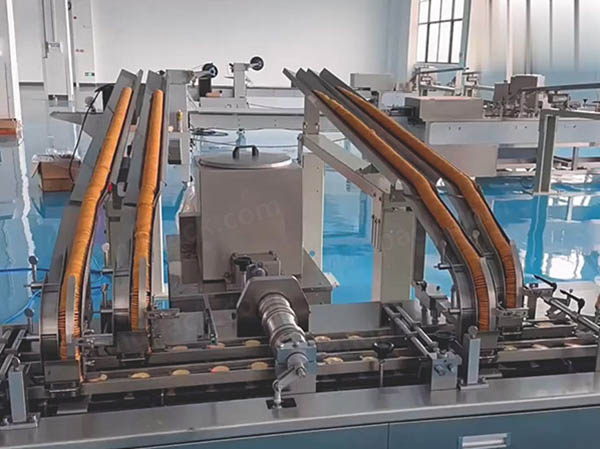

1. Feeding & Conveying

2. Cream Filling

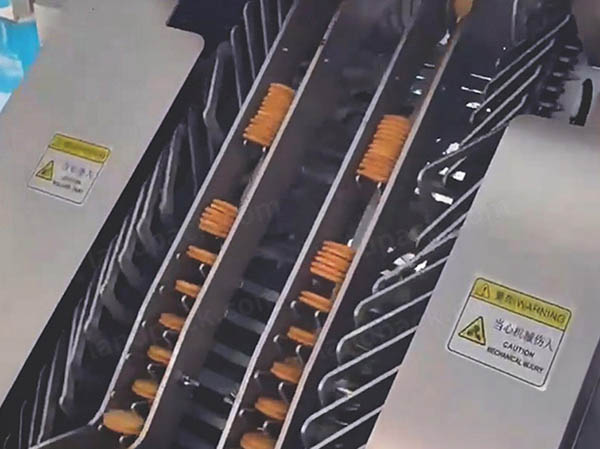

3. Biscuit Alignment & Sandwiching

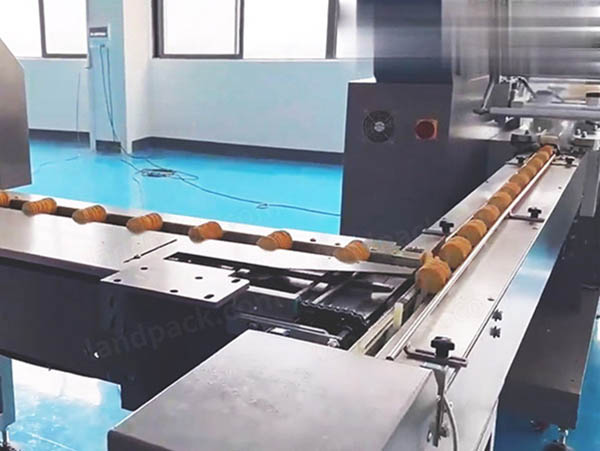

4. Counting & Grouping

5. Film Feeding & Bag Forming

6. Discharge & Output

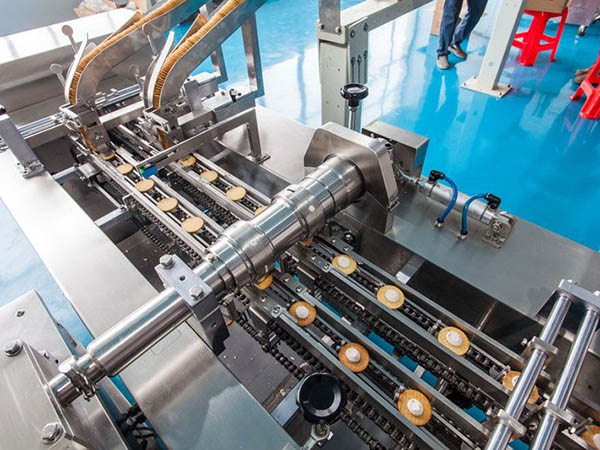

Double Row Biscuit Sandwich Machine
Speed	200-1200 pcs/min
Material	SS304
Filling Material	Cream, jam, peanut butter, etc
Biscuit Size	Ф35-Ф65mm

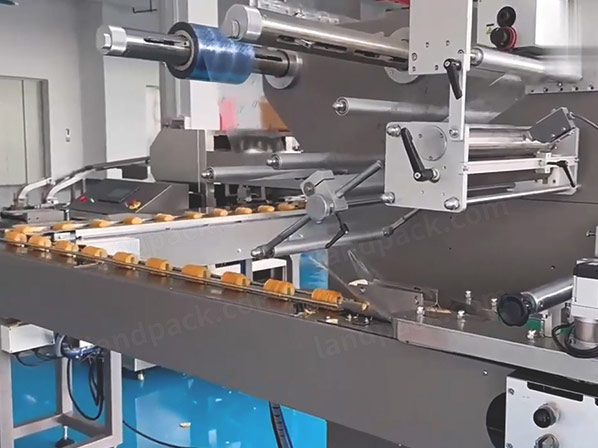

High Speed Flow Packing Machine
Model	LP-250B	LP-350B	LP-450B	LP-600B	LP-700B	LP-800B	LP-900B
Film width	Max.250mm	Max.350mm	Max.450mm	Max.600mm	Max.700mm	Max.800mm	Max.900mm
Bag length	65-190mm or 120-280 mm	90-220mm or 150-280 mm	150-450mm	160-500mm	180-600mm	210-650mm	240-700mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330mm	120-350mm	150-400mm
Product height	Max.40mm	Max.40mm	Max.75mm	Max.110mm	Max.110mm	Max.130mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180 bags/min	30-150 bags/min	20-150 bags/min	20-130 bags/min	20-120 bags/min	20-100 bags/min
Power	220V, 50/60Hz, 2.4kw	220V, 50/60Hz, 2.6kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 4.5kw	220V, 50/60Hz, 4.5kw
Machine size	37707201420mm	40307701420mm	40308201420mm	40309701500mm	40309801500mm	410011701550mm	430012701550mm
Machine quality	About 500kg	About 580kg	About 650kg	About 680kg	About 720kg	About 800kg	About 850kg
Remarks	optional air filling device/optional angle folding
Film material	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Features:

Machine Image	Benefits
	High Efficiency * Capable of producing 200–1000 sandwiches per minute with synchronized operation, ensuring consistent speed and stable output.
	Flexible Production * Supports 5–20 sandwiches per group and adapts to different biscuit shapes, including round, square, and rectangular.
	Precise Cream Filling * Equipped with independent hoppers and servo gear pump for accurate dosing of single or double flavors, guaranteeing uniform filling.

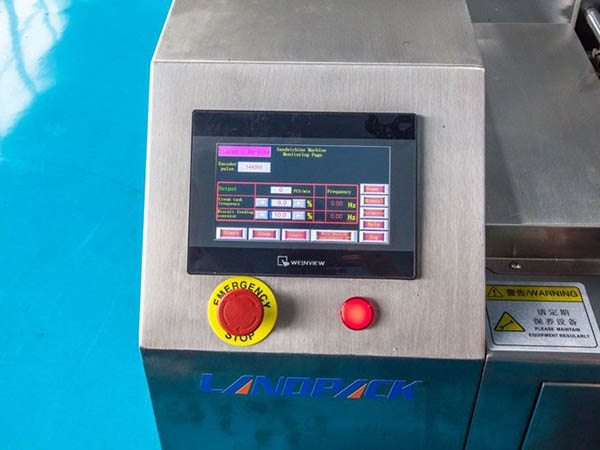

	Smart PLC Control * Touchscreen interface with simple parameter settings, hopper control, and speed adjustment for user-friendly operation.
	Hygienic & Easy Cleaning * Made of stainless steel with sanitary design, removable cream trays, and quick interchange stencils for convenient maintenance.
	Reliable Packaging Integration * Seamlessly connects with automatic counting, loading, and packing systems to reduce labor cost and improve production efficiency.
