High Speed Cream Biscuit Sandwiching Machine with Dual Filling

Application:

The dual-channel biscuit sandwich filling machine is widely used in the food industry to produce a variety of sandwich-type products. It can efficiently handle biscuits and cookies filled with chocolate, cream, or fruit jam, creating consistent, high-quality treats. The machine is also suitable for wafer sandwiches, layered sponge cakes, and snack bars with dual fillings.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;
Tel/Whtasapp: +86 18688215960
Video:
Packing Type:
Machine Details:
Features:
Learn More:
Inquiry
Video:
Packing Type:
This high-speed biscuit sandwiching machine is suitable for packing back-sealing pouches, pillow bags, and flow packs, with or without easy-tear features. It can handle various sandwich-type products such as chocolate-filled cookies, cream-filled biscuits, layered wafer sticks, and sponge cake sandwiches.

Machine Details:

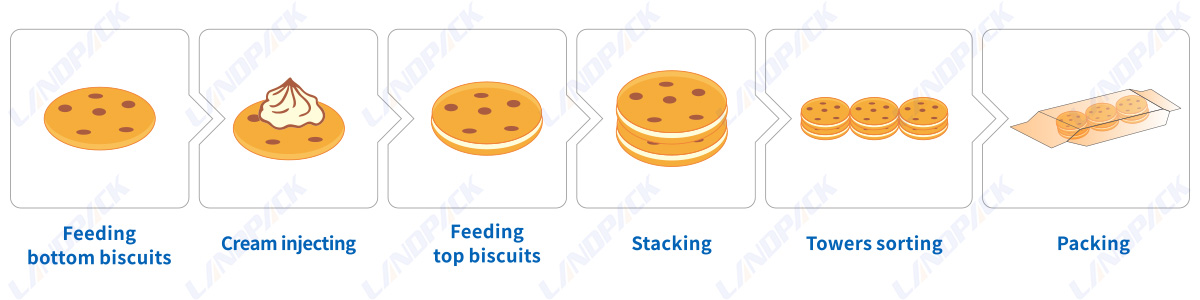

Working Process


1. Automatic bottom biscuit feeding

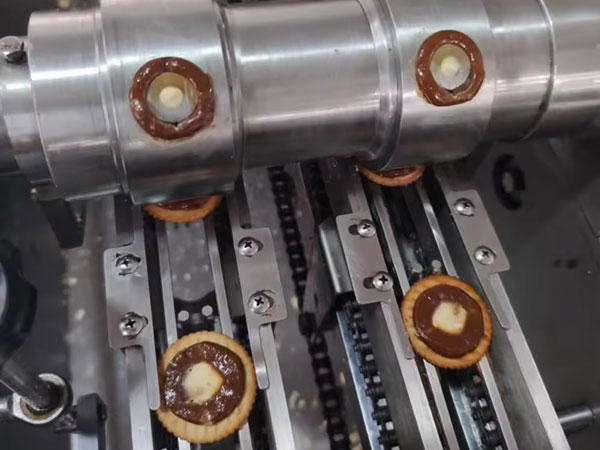

2. Cream injecting

3. Top biscuit feeding

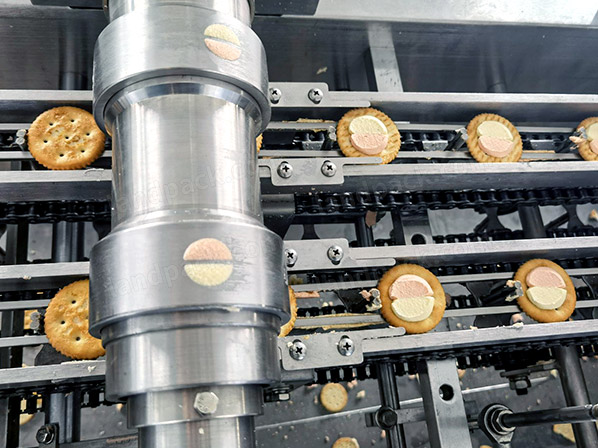

4. Sandwiching

5. Stacking

6. Biscuit sorting

7. Packing

8. Finished Product Output

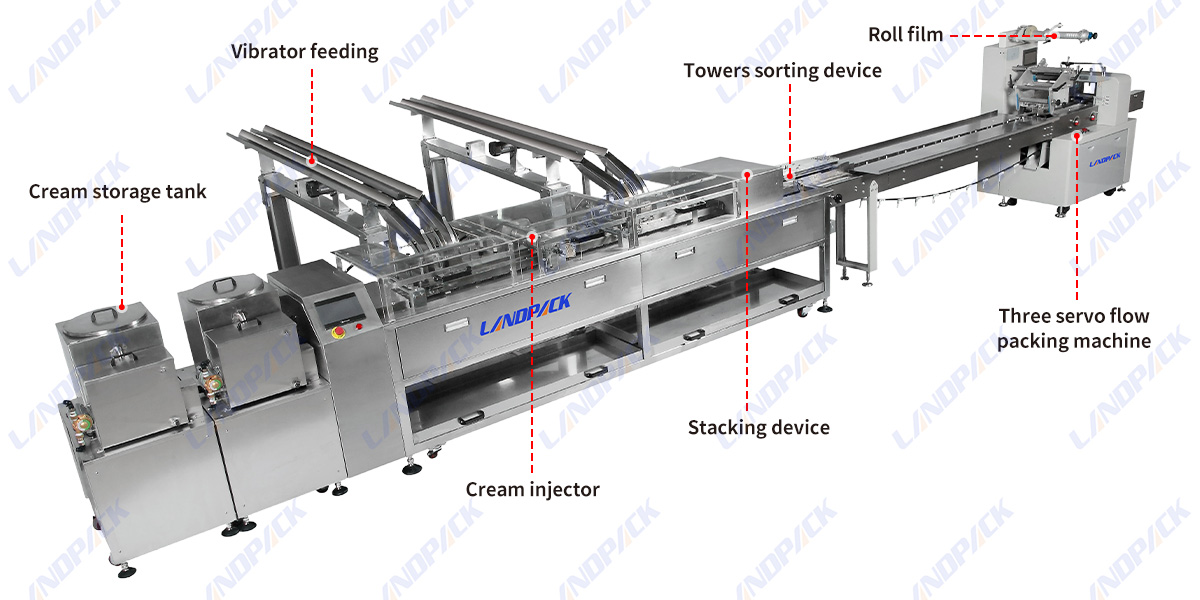

Key Component



Specification

Part One
Product name Sandwiching Biscuit Machine
Capacity 300-600pcs/min
Biscuit size Square: L(35-70)x W(30-60)x H(3-8)mm
Round:Φ35-70mm thickness:3-8mm
Output Biscuit One color cream filling(2+1)
Operating voltage Single-phase AC 220V 50Hz
Power 4kw/ 220V/50Hz
Part Two
Model LP-250 LP-350 LP-450 LP-600 LP-700 LP-800 LP-900
Film width Max250mm Max350mm Max450mm Max600mm Max700mm Max.800 mm Max.900mm
Bag length 65-190mm or120-280mm 65-190mm or120-280mm 150-450mm 160-500mm 180-600 mm 210-650mm 240-700mm
Bag width  30-110mm  50-160mm 50-180mm 100-280mm 100-330 mm 120-350mm 150-400mm
Product height Max.40mm Max.40mm Max.75mm Max.110mm Max.110 mm Max.130 mm Max.150mm
Film roll diameter  Max.320mm
Packaging rate 40-230 bags/min 40-180bags/min 30-150Bags/min 20-150 bags/min 20-130 bags/min 20-120bag/min 20-100 bags/min
Power 220V,50/60Hz,2.4kw 220V,50/60Hz,2.6kw 220V,50/60Hz,2.8kw 220V,50/60Hz,2.8kw 220V,50/60Hz,2.8kw 220V,50/60Hz,4.5kw 220V,50/60Hz,4.5kw
Machine size (L)3770*(W)720*(H)1420mm (L)4030*(W)770*(H)1420mm (L)4030*(W)820*(H)1420mm (L)4030*(W)970*(H)1500mm (L)4030*(W)980*(L)1500mm (L)4100*(W)1170*(H)1550mm (L)4300*(W)1270*(H)1550mm
Machine quality About 500kg About 580kg About650kg About680kg About720kg About800kg About 850kg
Remarks optional air filling device)/optional angle folding)
Film material) OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film
Features:
Machine Image Benefits

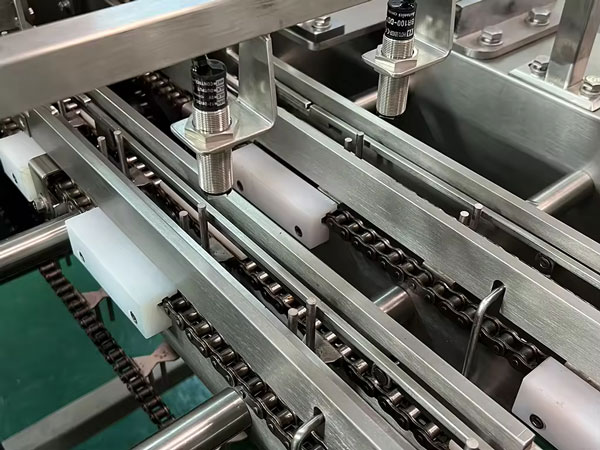

Biscuit Feeding System

The biscuit feeding system delivers the top and bottom layers of biscuits or cakes onto the production line. It uses conveyor belts or chain conveyors for precise alignment and spacing. Adjustable speed ensures synchronization with filling and pressing, reducing waste and maintaining smooth operation.

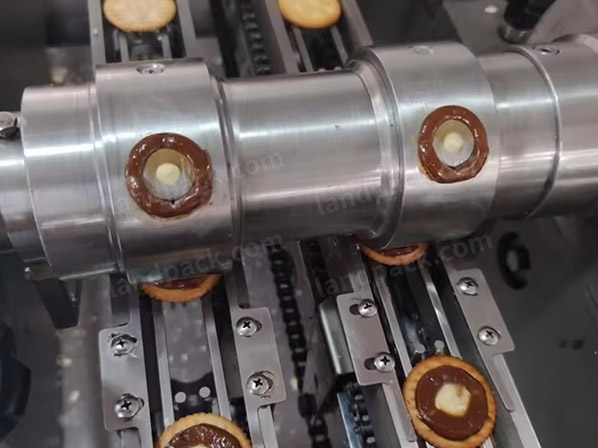

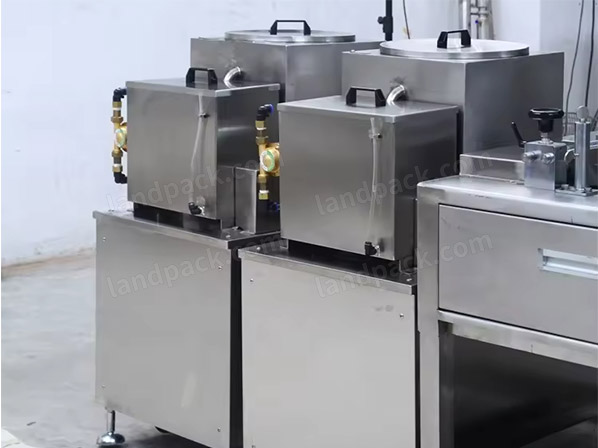

Dual-Filling System

The dual-filling system has two separate hoppers for different fillings, such as chocolate or cream. It deposits the exact amount of filling on each product, ensuring consistency. Adjustable flow and optional heating/cooling maintain filling quality and prevent overflow.

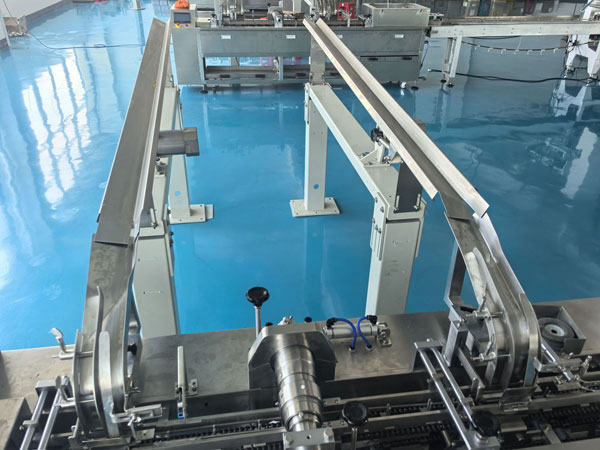

Pressing/Assembling Device

This device combines the top and bottom layers with the filling to form a complete sandwich. Pressure can be adjusted to avoid breaking layers or overflowing filling. Synchronized belts stabilize products, ensuring uniform size, shape, and appearance.

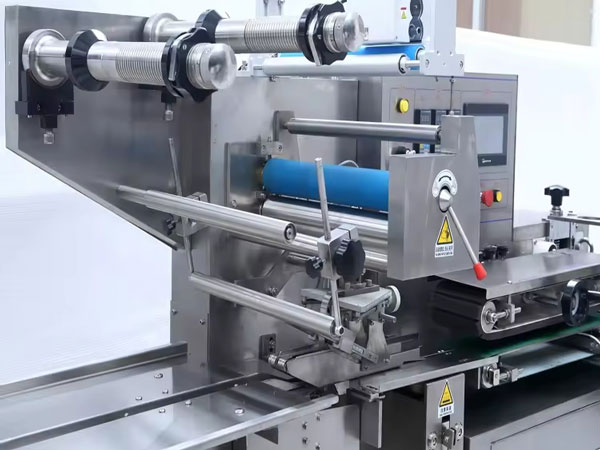

Packaging System

The packaging system automatically packs finished products for storage or sale. It can handle flow wrap, horizontal or vertical packing, or pre-made pouches. Some systems include sealing, labeling, and date coding, providing professional, market-ready products.
Control System

The control system uses a PLC to manage speed, filling, and pressing. A touchscreen allows real-time monitoring and quick adjustments. Safety sensors protect both operators and equipment, ensuring smooth, efficient, and secure production.
Learn More:

1.If you need more feeding packing lines for your product , read our-- Automatic Feeding Packing Line

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate


4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one
