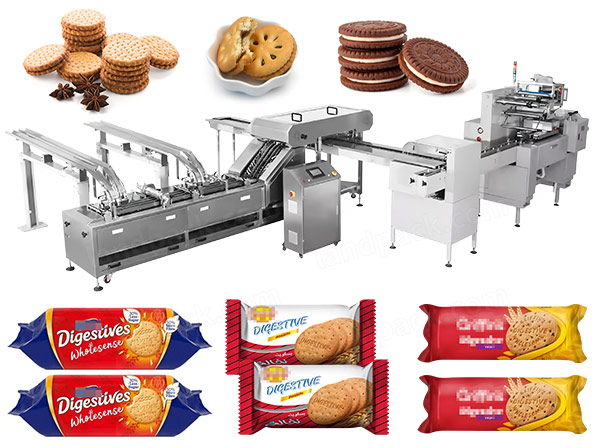

Fully Automatic Sandwich Biscuits Flow Packing Machine

Application:

This packing line is perfect for sandwiches that are filled with chocolate, cream or jam made from fruit. It also handles wafer sandwiches as well as soft sponge cakes as well as mini snacks. The system guarantees rapid production of uniform and neatly packaged items ready to sell.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;
Tel/Whtasapp: +86 18688215960
Video:
Packing Type:
Machine Details:
Features:
Learn More:
Inquiry
Video:
Packing Type:
This packing line is perfect for sandwiches that are filled with chocolate, cream or jam made from fruit. It also handles wafer sandwiches as well as soft sponge cakes as well as mini snacks. The system guarantees rapid production of uniform and neatly packaged items ready to sell.

Machine Details:
Working Process


1. Automatic bottom biscuit feeding

2. Cream injecting

3. Top biscuit feeding

4. Sandwiching

5. Stacking

6. Biscuit sorting

7. Packing

8. Finished Product Output

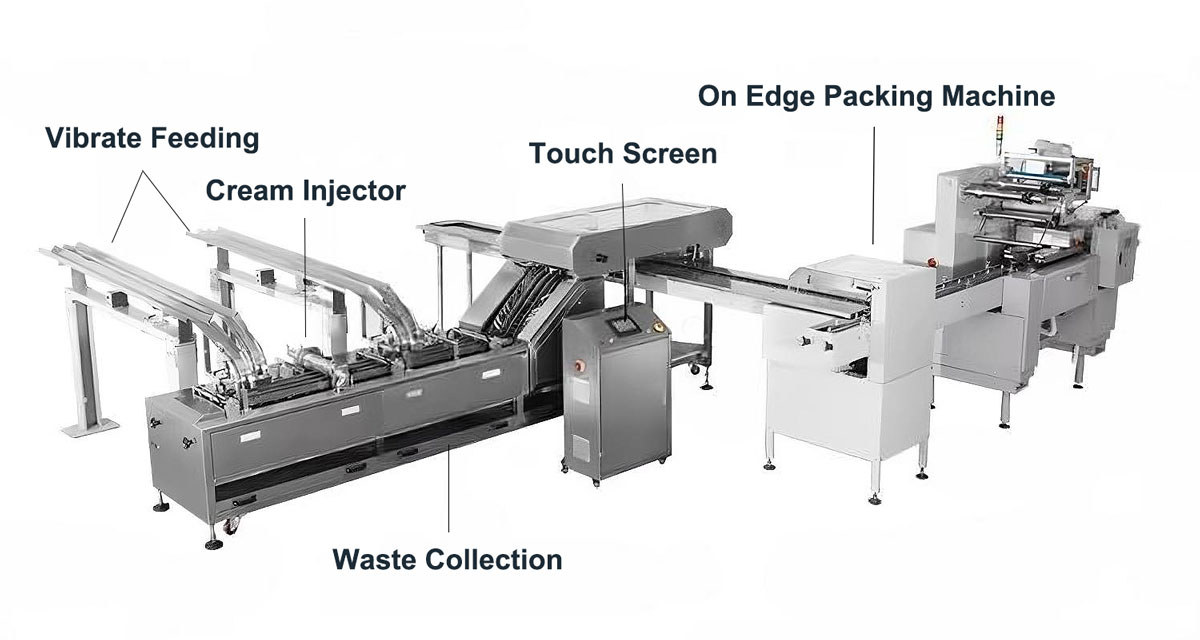

Key Component



Specification

Part One
Product name Sandwiching Biscuit Machine
Capacity 300-600pcs/min
Biscuit size Square: L(35-70)x W(30-60)x H(3-8)mm
Round:Φ35-70mm thickness:3-8mm
Output Biscuit One color cream filling(2+1)
Operating voltage Single-phase AC 220V 50Hz
Power 4kw/ 220V/50Hz
Part Two
Model LP-250 LP-350 LP-450 LP-600 LP-700 LP-800 LP-900
Film width Max250mm Max350mm Max450mm Max600mm Max700mm Max.800 mm Max.900mm
Bag length 65-190mm or120-280mm 65-190mm or120-280mm 150-450mm 160-500mm 180-600 mm 210-650mm 240-700mm
Bag width  30-110mm  50-160mm 50-180mm 100-280mm 100-330 mm 120-350mm 150-400mm
Product height Max.40mm Max.40mm Max.75mm Max.110mm Max.110 mm Max.130 mm Max.150mm
Film roll diameter  Max.320mm
Packaging rate 40-230 bags/min 40-180bags/min 30-150Bags/min 20-150 bags/min 20-130 bags/min 20-120bag/min 20-100 bags/min
Power 220V,50/60Hz,2.4kw 220V,50/60Hz,2.6kw 220V,50/60Hz,2.8kw 220V,50/60Hz,2.8kw 220V,50/60Hz,2.8kw 220V,50/60Hz,4.5kw 220V,50/60Hz,4.5kw
Machine size (L)3770*(W)720*(H)1420mm (L)4030*(W)770*(H)1420mm (L)4030*(W)820*(H)1420mm (L)4030*(W)970*(H)1500mm (L)4030*(W)980*(L)1500mm (L)4100*(W)1170*(H)1550mm (L)4300*(W)1270*(H)1550mm
Machine quality About 500kg About 580kg About650kg About680kg About720kg About800kg About 850kg
Remarks optional air filling device)/optional angle folding)
Film material) OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film
Features:
Machine Image Benefits

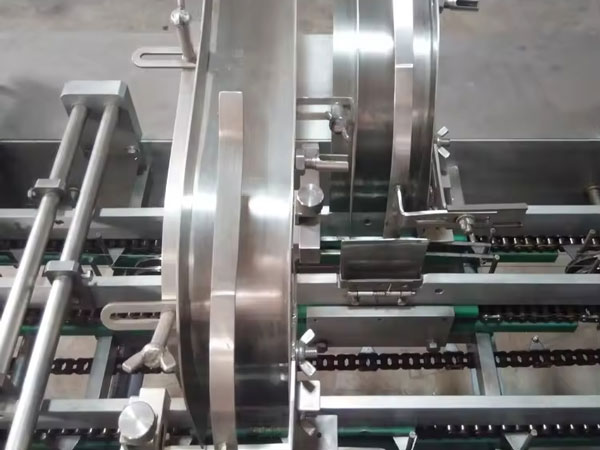

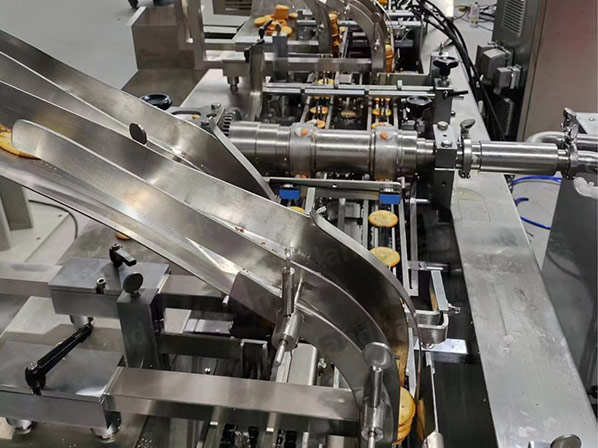

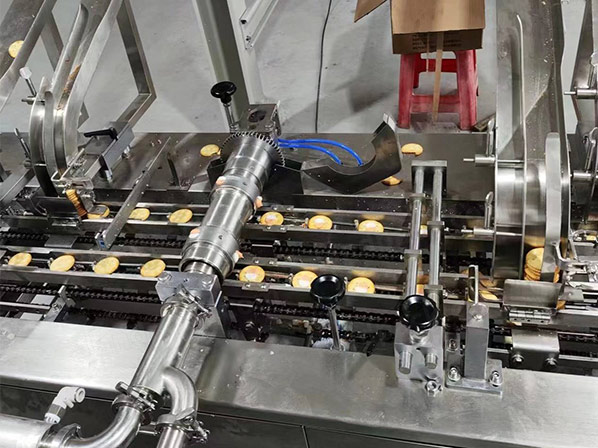

Biscuit Feeding & Aligning System

This system arranges and distributes the biscuits in an organized fashion on the production line. Chains or conveyor belts guarantee precise spacing and position. The adjustable speed of the conveyor keeps the feeding on time to the sandwiching as well as packing process.

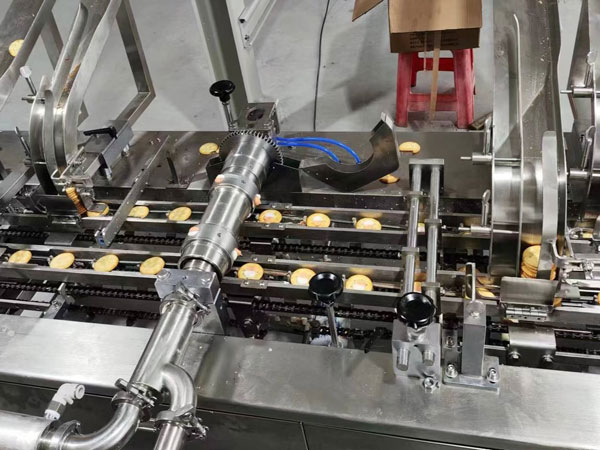

Filling & Sandwiching System

The two hoppers can store various fillings like cream, jam, chocolate, and so on. The precise pumps distribute the filling evenly on biscuits, ensuring an even thickness. The device presses the bottom and top layers to create sandwich biscuits that are complete.

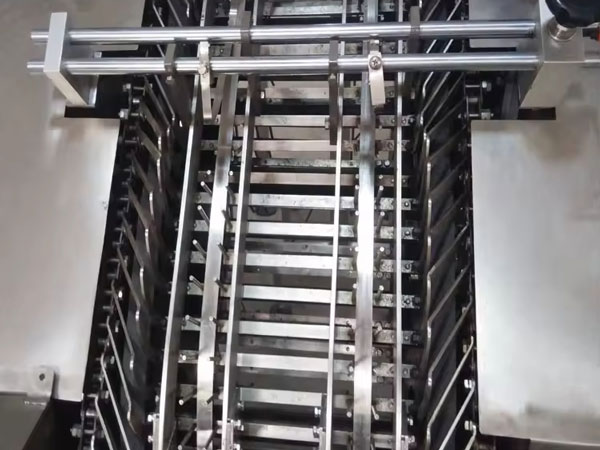

Transition Conveyor System

The conveyor is able to smoothly transfer sandwiches that are finished into the packing unit. It's equipped with positioning and guiding features to prevent product misalignment.
Edge Packaging Machine

This machine wraps sandwich biscuits in pillows flow packs, pillows or pouches for back-sealing. It utilizes a high-speed servo control for precise films and seals. Other functions are date coding, labeling or tear-away notches for easy-tear.
Control & Synchronization System

This entire range is operated by the PLC control system, which has touchscreen interface. Operators can track, adjust parameters, and change product settings rapidly. Complete synchronization between packaging and sandwiching processes ensures a seamless, continuous production.
Learn More:

1.If you need more feeding packing lines for your product , read our-- Automatic Feeding Packing Line

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate


4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one
