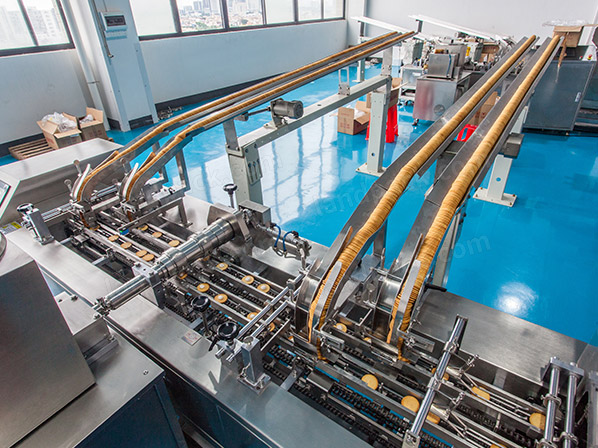

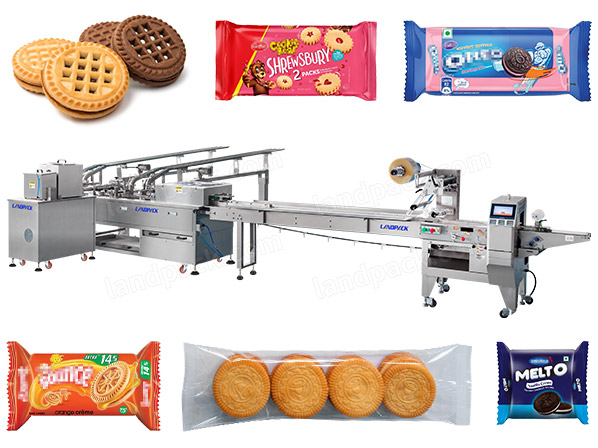

Automatic Cream Biscuit Sandwiching Machine with Packaging Machine

Application:

This machine is widely used in the food industry for packing various sandwich biscuits and snacks. It can handle products such as cream-filled biscuits, chocolate sandwich cookies, strawberry or vanilla flavored sandwich biscuits, and 2+1 layered chocolate-coated cookies.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

This video shows that this machine ensures precise filling, neat alignment, and seamless transfer to pillow bags or multipacks—
boosting efficiency, hygiene, and product consistency for biscuit factories and snack producers.

This video shows that this fully automatic feeding and packing line could handle chocolate, energy, and cereal bars,
arranging, aligning, and packing them into individual or multipacks with speed, precision, and minimal labor—perfect for large-scale business.

Bag & Pouch Type:

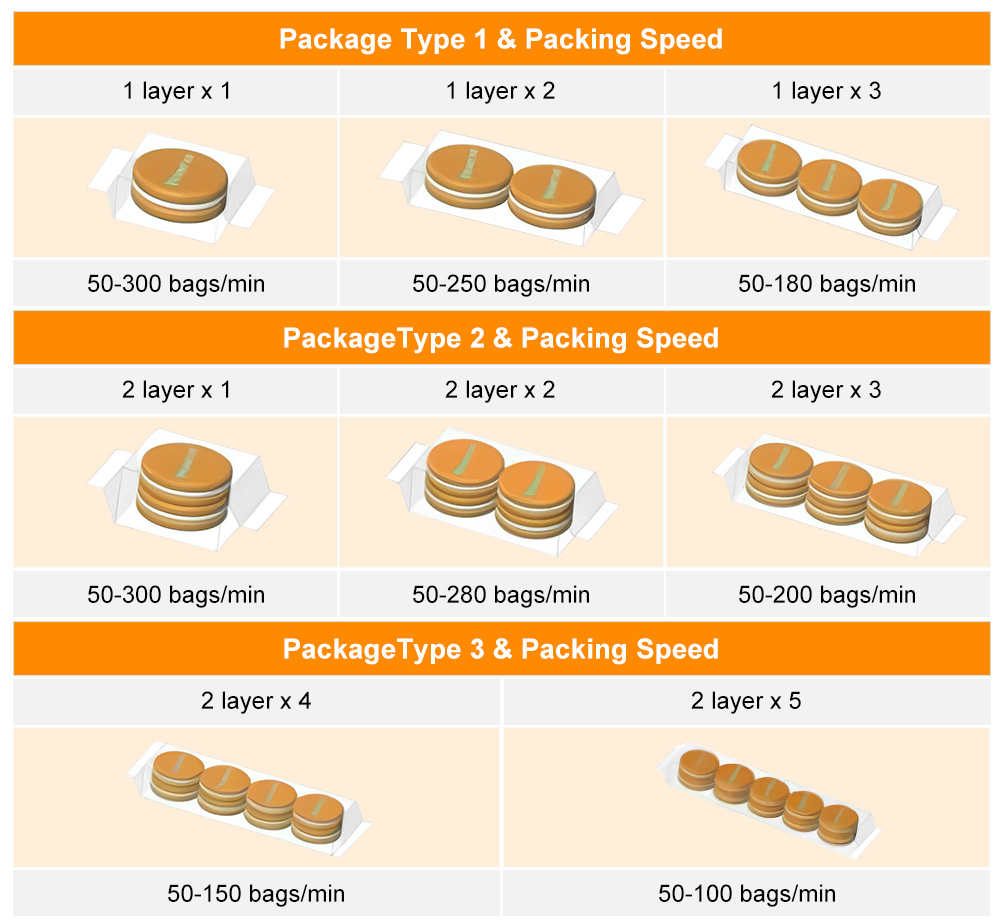

The Automatic Biscuit Sandwiching Machine with packing machine is compatible with a wide range of bag types, including pillow bags, chain bags, strip packs, and back sealing pouch.Need more packing line for your product,please click here!

Machine Details:

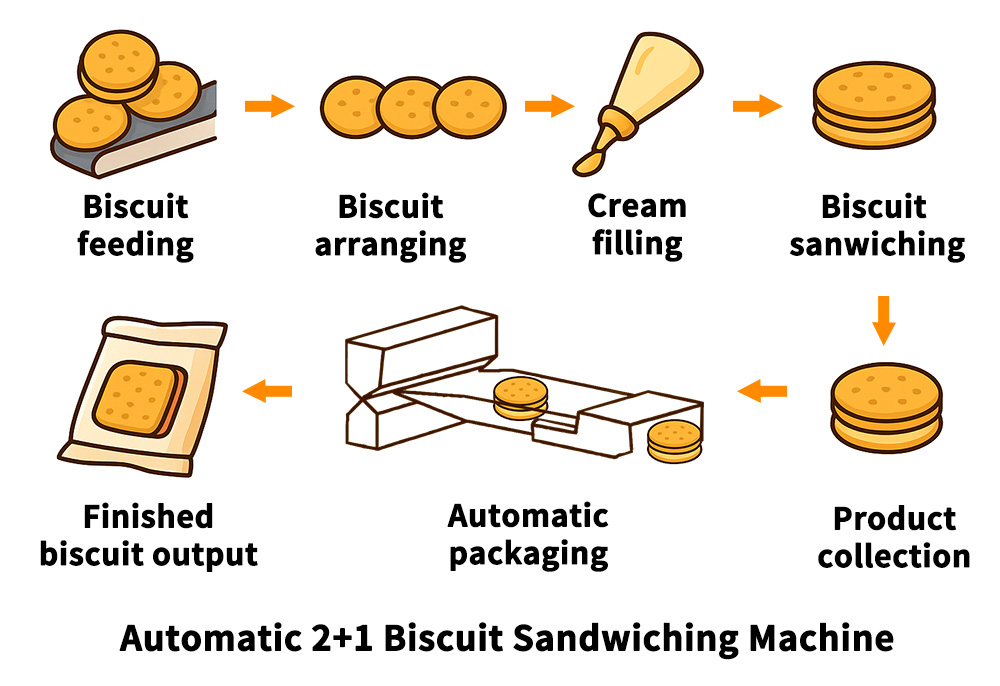

Working Process

1. Automatic bottom biscuit feeding

2. Cream injecting

3. Top biscuit feeding

4. Sandwiching

5. Stacking

6. Biscuit sorting

7. Packing

8. Finished Product Output

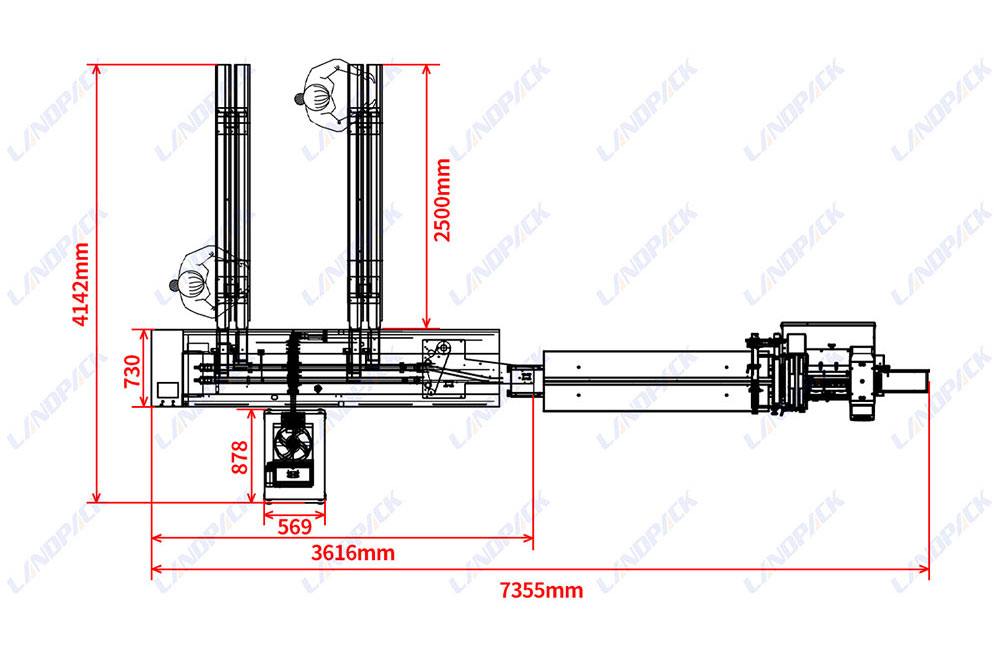

Key Component

Specification

Part One
Product name	Sandwiching Biscuit Machine
Capacity	300-600pcs/min
Biscuit size	Square: L(35-70)x W(30-60)x H(3-8)mm
Biscuit size	Round:Φ35-70mm thickness:3-8mm
Output Biscuit	One color cream filling(2+1)
Operating voltage	Single-phase AC 220V 50Hz
Power	4kw/ 220V/50Hz

Part Two
Model	LP-250	LP-350	LP-450	LP-600	LP-700	LP-800	LP-900
Film width	Max250mm	Max350mm	Max450mm	Max600mm	Max700mm	Max.800 mm	Max.900mm
Bag length	65-190mm or120-280mm	65-190mm or120-280mm	150-450mm	160-500mm	180-600 mm	210-650mm	240-700mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330 mm	120-350mm	150-400mm
Product height	Max.40mm	Max.40mm	Max.75mm	Max.110mm	Max.110 mm	Max.130 mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180bags/min	30-150Bags/min	20-150 bags/min	20-130 bags/min	20-120bag/min	20-100 bags/min
Power	220V,50/60Hz,2.4kw	220V,50/60Hz,2.6kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,4.5kw	220V,50/60Hz,4.5kw
Machine size	（L）3770（W）720（H）1420mm	（L）4030（W）770（H）1420mm	(L)4030(W)820(H)1420mm	(L)4030(W)970(H)1500mm	(L)4030(W)980(L)1500mm	(L)4100(W)1170(H)1550mm	(L)4300(W)1270(H)1550mm
Machine quality	About 500kg	About 580kg	About650kg	About680kg	About720kg	About800kg	About 850kg
Remarks	optional air filling device）/optional angle folding）
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Features:

Machine Image	Benefits

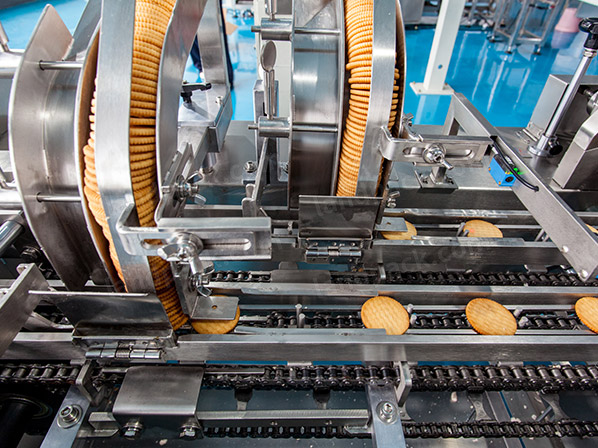

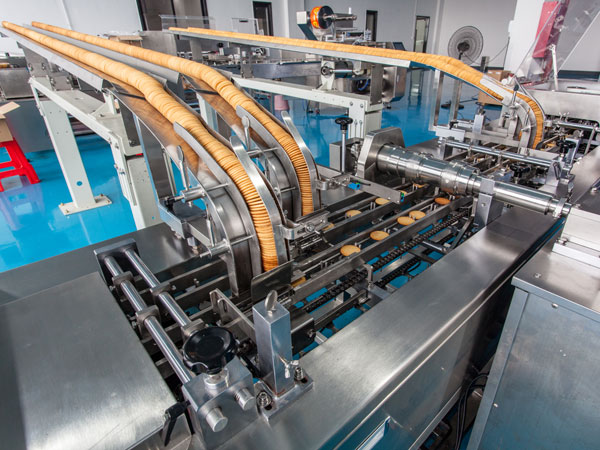

	Biscuit Feeding System The feeding system arranges biscuits into an orderly line and delivers them smoothly onto the conveyor. It ensures accurate positioning, prevents overlap or damage.

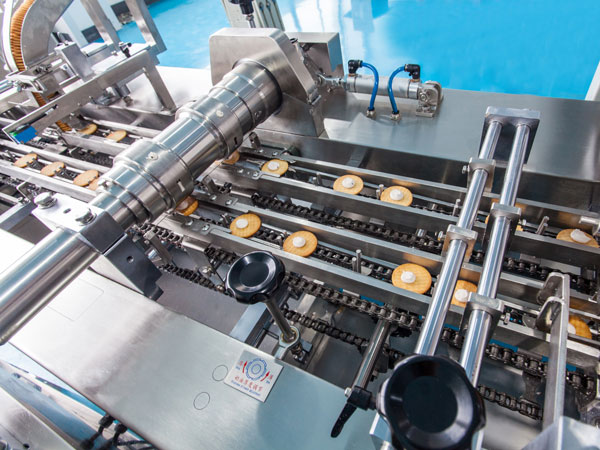

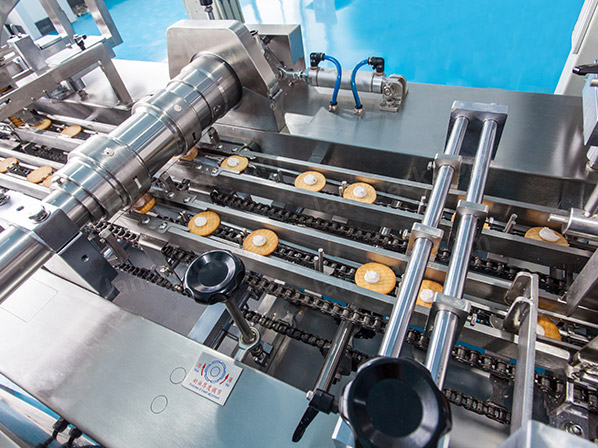

	Cream filling device The filling device uses precise pumps to apply cream, chocolate, or other material onto each biscuit. The filling volume can be adjusted according to product needs.
	Sandwiching System The sandwiching machine automatically places biscuits on top of the filled ones to form complete sandwiches. It supports both double-layer and 2+1 sandwich packing types.

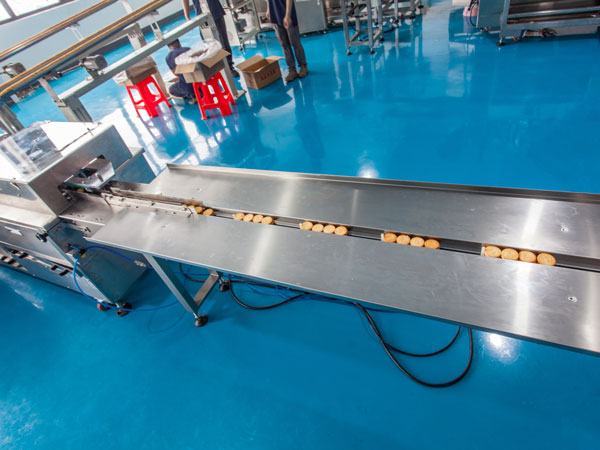

	Conveying & Aligning Belt After sandwiching, the conveyor belt organizes and aligns the biscuits in rows,preparing the sandwiches for high-speed packing.

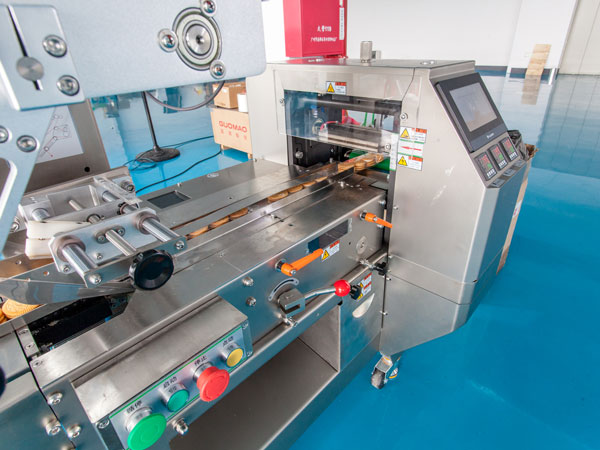

	Packing Machine The machine packing the biscuits into back sealing pouch, strips, or individual packs. It completes forming, filling, and sealing in one process.

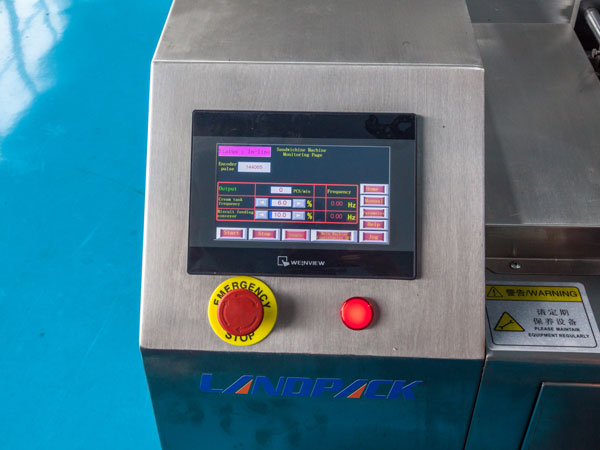

	Control System The machine is operated by a PLC-based control system with a user-friendly touch screen. It allows easy parameter adjustment, offers real-time monitoring, and ensures stable performance.
