Automatic Spout Pouch Filling Machine | Liquid Spout Pouch Filling and Capping Machine

Application:

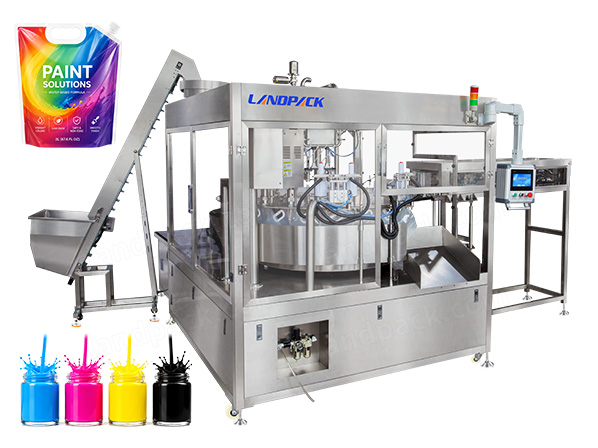

The Automatic 4-head spout pouch filling and capping machine for water-based paint and liquid products, with rotary pump filling, CIP cleaning, foil sealing and laser coding.The machine is suitable for free-flowing liquids, medium-viscosity liquids and selected viscous products packed in premade spout pouches, especially water-based coatings and chemical liquids.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

It can be used in coating, household chemical, agricultural chemical, personal care, industrial liquid and selected food production lines where automatic pouch feeding, rotary pump filling, cap feeding, capping, foil sealing and coding are required. Such as water-based coating, laundry detergent, liquid fertilizer, shampoo, white glue, tomato sauce, floor cleaner, plant nutrient solution, fabric softener, honey, latex paint, dishwashing liquid, syrup, water-based resin, body wash, construction adhesive, fruit concentrate and industrial cleaning liquid.

Machine Details:

Working Process

Spout Pouch Feeding → Rotary Pump Filling → Cap Feeding → Capping → Aluminum Foil Sealing → Laser Coding → Finished Product Output

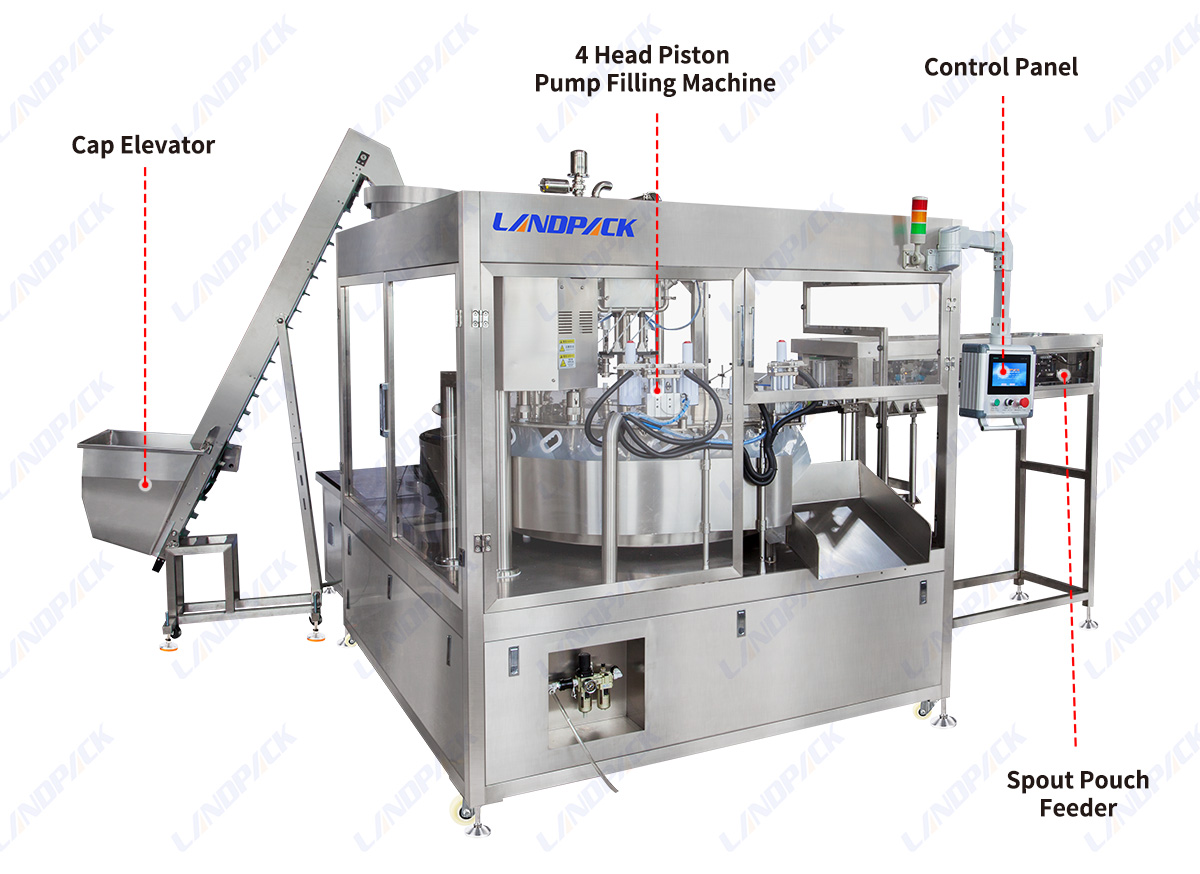

Key Component

Specification

Model	LF-XZD1T	LF-XZD2T	LF-XZD4T	LF-XZD6T	LF-XZD10T
Filling Head	1	2	4	6	10
Voltage	220V/110V, 50-60Hz
Power	1KW	3KW	3KW	3KW	3KW
Filling Speed	1200 bph	1500-2100 bph	3300-3900 bph	4500-6000 bph	4800-6000 bph
Filling Range	10-300ml	30-2000ml	100-500ml	10-350 ml	50-2000ml
Filling Accuracy	±1%
Air Pressure	0.4-0.7MPa	0.4-0.7MPa	0.8Mpa	0.8Mpa	0.5-0.8Mpa
Machine Weight	300kg	260KG	2600kg	2500kg	700KG

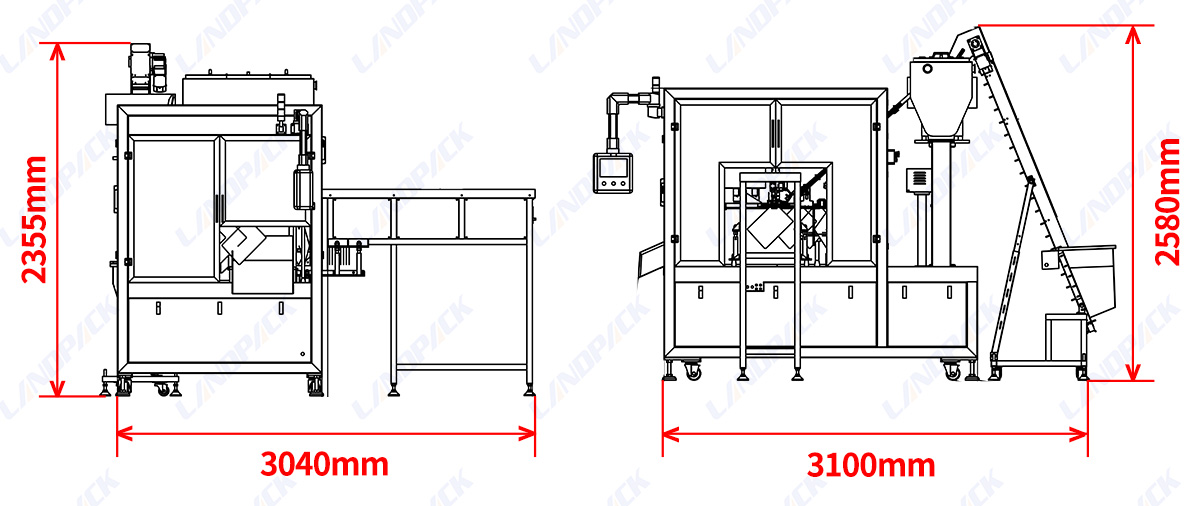

Machine Size	150012001200mm	250022001900mm	140012301900mm	245019002200mm	245019002200mm

Features:

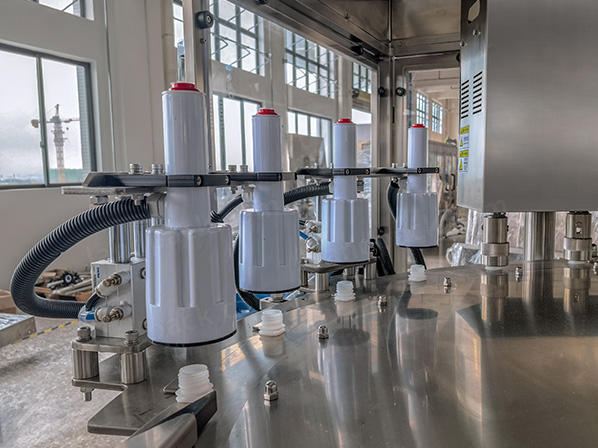

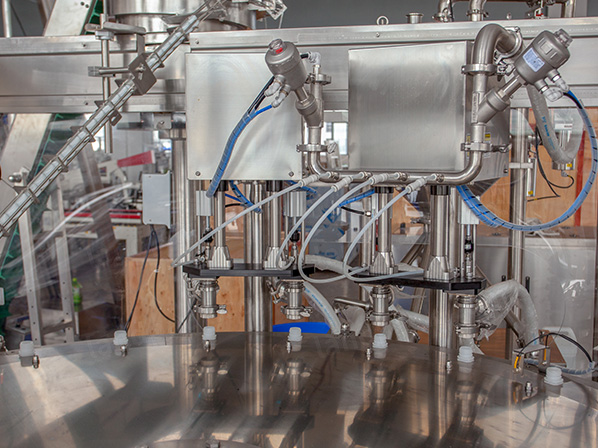

1. Four-head rotary pump filling system fills multiple spout pouches simultaneously and supports adjustable filling volumes.

2. Rotary pump metering is suitable for water-based paint, detergent, adhesive, sauce and other liquid or medium-viscosity products.

3. Automatic spout pouch feeding transfers empty premade pouches into the filling station for continuous production.

4. Cap elevator and feeding system automatically supplies caps to the capping station, reducing manual cap loading.

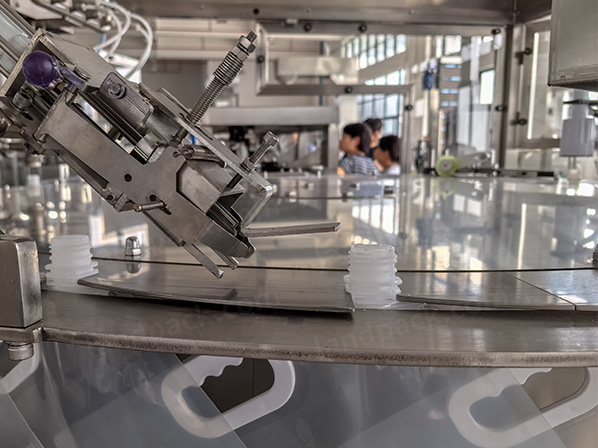

5. Automatic capping system tightens each cap after filling and can be adjusted according to the pouch spout and cap specification.

6. CIP cleaning system cleans the filling pumps and product pipelines to simplify product changeover and routine sanitation.

7. Aluminum foil sealing system provides an additional sealing process for compatible spout and cap structures.

8. Laser coding system can mark production dates, batch information, traceability codes or other required information.

9. Enclosed machine structure helps isolate the filling and capping area while allowing operators to observe production through the transparent doors.
