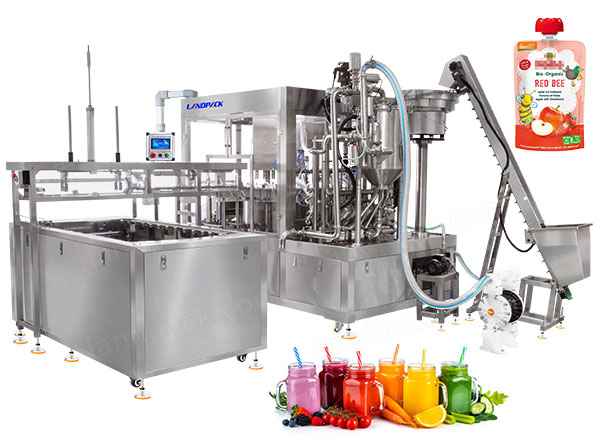

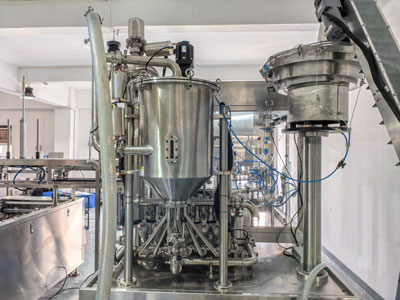

Automatic 6 Heads Squeeze Pouch Spout Pouch Filling And Capping Machine

Description:

This 6 heads spout pouch filling machine is a fully automatic liquid and semi-liquid packaging solution, integrating automatic pouch feeding, precise filling, pouch capping, and CIP cleaning system. Designed for juice, yogurt, detergent, shampoo, cooking oil, sauces, and liquid additives.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

Suitable for filling spout pouches, squeeze pouches and customized spout bags in various volumes and shapes.

Wide Application Range

This automatic spout pouch filling machine is suitable for a wide range of liquid and viscous products:

Food & Beverage Products

• Fruit juice, yogurt, milk drinks, puree, sauces, ketchup, cooking oil

Daily Chemical Products

• Laundry detergent, shampoo, conditioner, hand soap, liquid soap

Industrial & Chemical Liquids

• Lubricants, additives, liquid chemicals (non-corrosive)

Machine Details:

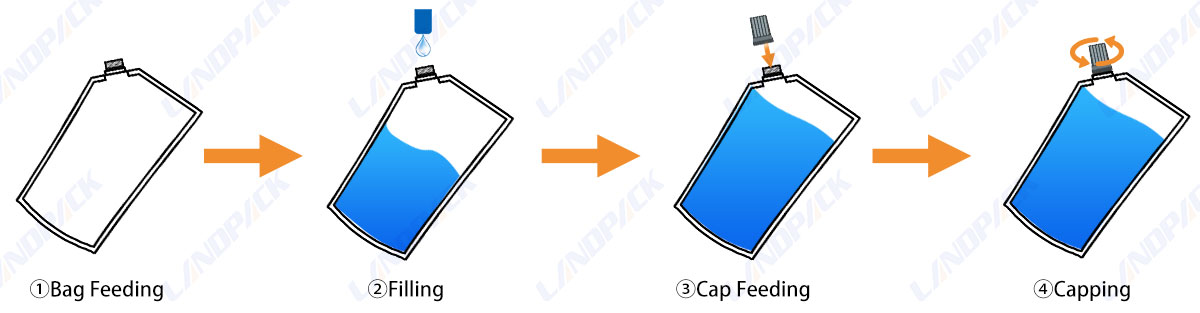

Working Process

1. Cap feeder → 2. Auto spout pouch feeder → 3. 6 head piston pump filling → 4. 6 head water rinser → 5. Auto Cap feeder and Capping machine → 6. Finished product collection

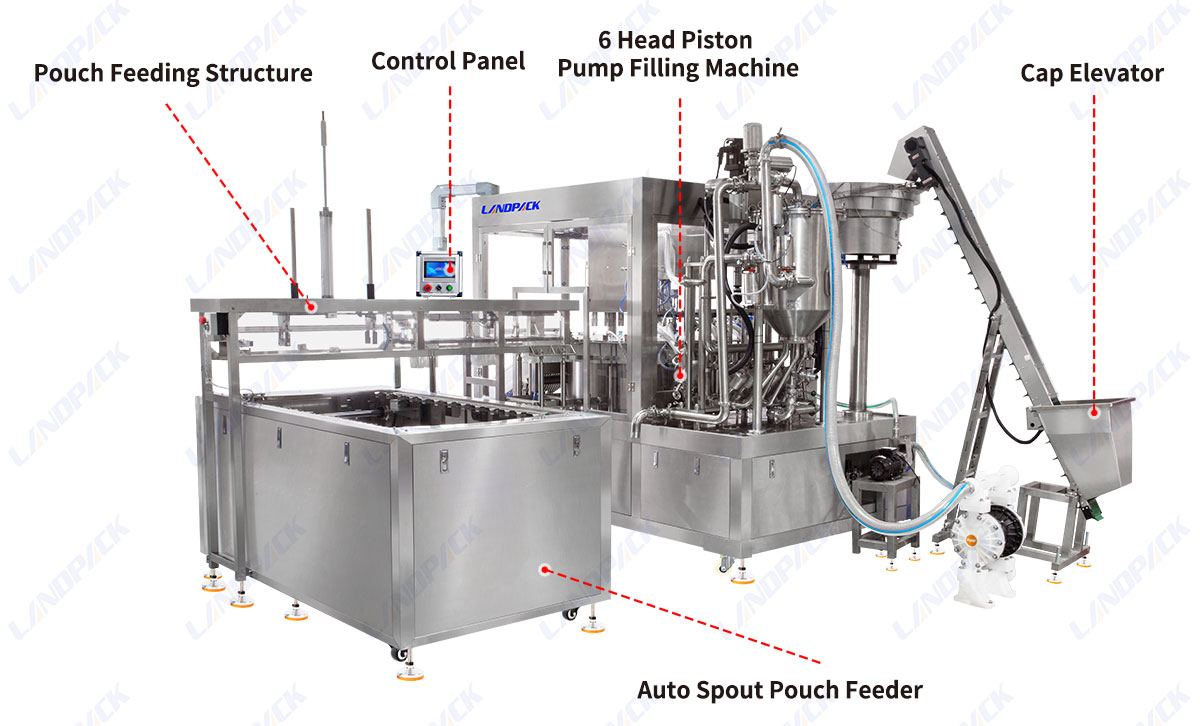

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Model	LF-XZD1T	LF-XZD2T	LF-XZD4T	LF-XZD6T	LF-XZD10T
Filling Head	1	2	4	6	10
Voltage	220V/110V, 50-60Hz
Power	1KW	3KW	3KW	3KW	3KW
Filling Speed	1200 bph	1500-2100 bph	3300-3900 bph	4500-6000 bph	4800-6000 bph
Filling Range	10-300ml	30-2000ml	100-500ml	10-350 ml	50-2000ml
Filling Accuracy	±1%
Air Pressure	0.4-0.7MPa	0.4-0.7MPa	0.8Mpa	0.8Mpa	0.5-0.8Mpa
Machine Weight	300kg	260KG	2600kg	2500kg	700KG

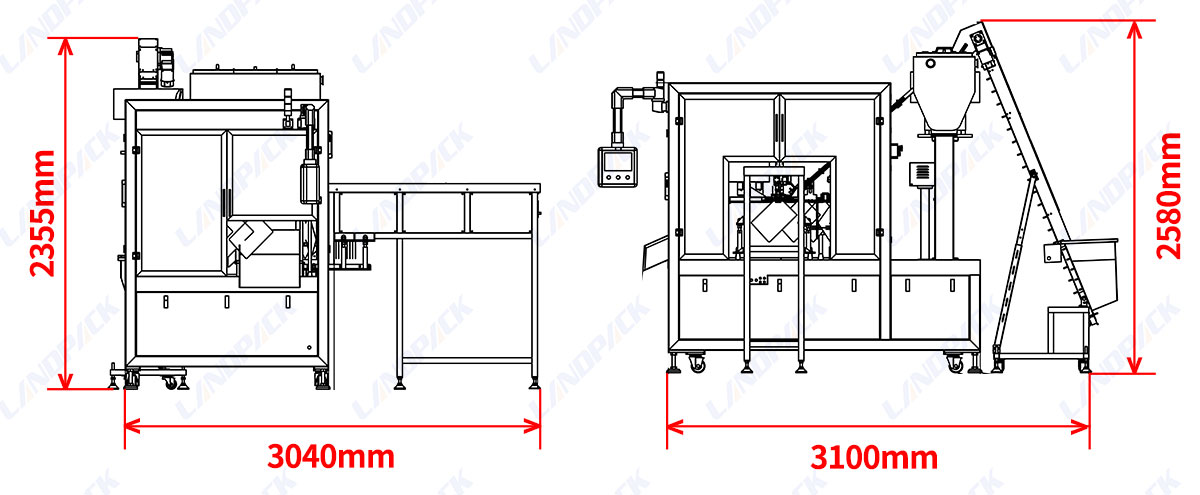

Machine Size	150012001200mm	250022001900mm	140012301900mm	245019002200mm	245019002200mm

Features:

Machine Image	Benefits
	Full SS316 Hygienic Construction The entire machine is constructed from SS316 stainless steel, which has a food-grade design.

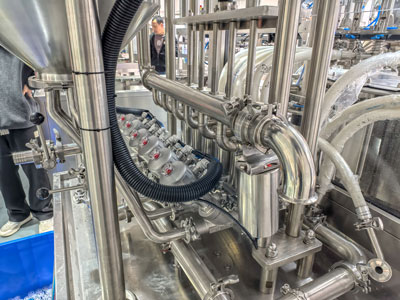

	Integrated CIP Filling System CIP-integrated cleaning features allow for full internal cleaning of pipelines, hoppers and filling nozzles, without dead corners.

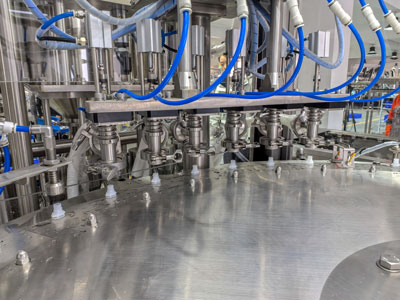

	High-Speed 6-Nozzle Filling Capacity With six filling nozzles, this machine can produce a steady output of between 150 and 180 spout pouches per minute.

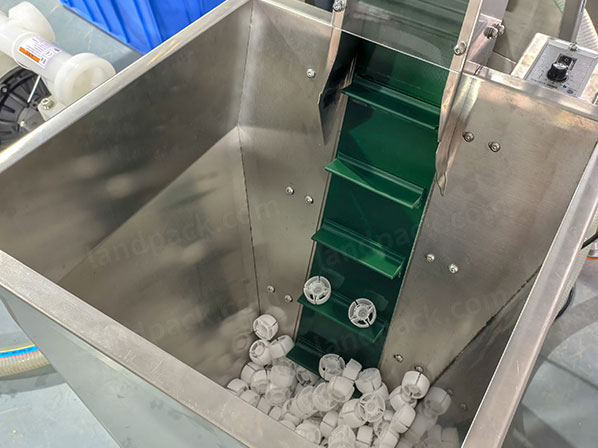

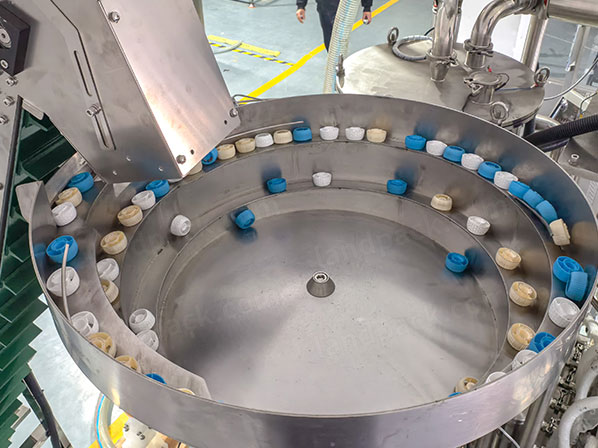

	Automatic Spout Pouch & Cap Feeding Auto-spout pouch feeder and cap lifter that vibrates make it easier to handle and provide constant, steady operation.

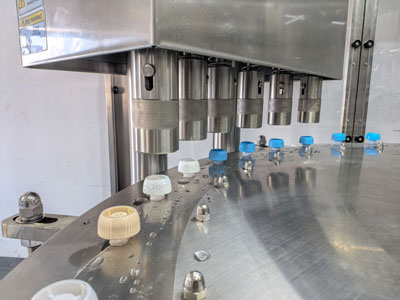

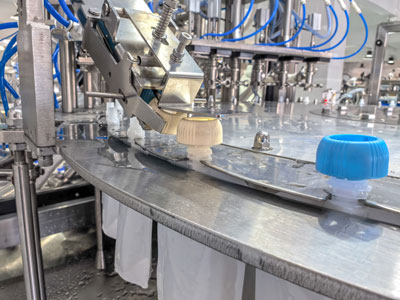

	Servo-Controlled Capping System Caps heads are operated by servo motors, ensuring exact torque control, steady cap positioning, and durable seal quality.
	Enhanced Hygiene After Filling Includes water-cleaning of spouts after filling. It also has CIP connections to filling nozzles, which ensure that spouts are clean.
