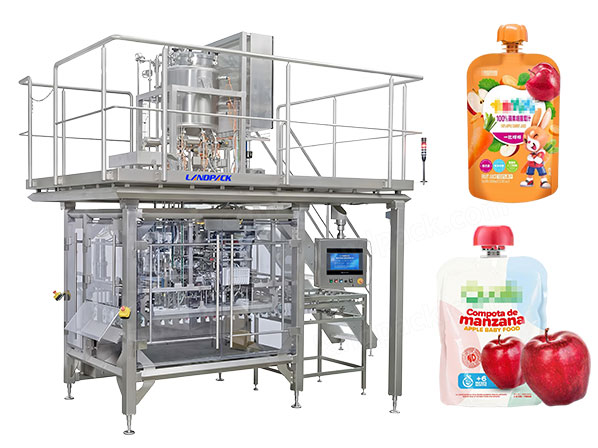

Fully Automatic Liquid Squeeze Pouch Spout Pouch Filling Capping Machine

Application:

This automatic spout pouch filling machine is suitable for spout pouch packaging of various liquid products such as sauce, ketchup, honey, jam, yogurt, puree, fruit juice, jelly drink, concentrated beverage, shampoo, lotion, detergent, hand sanitizer, fruit puree, vegetable puree, nutrition paste.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;
Tel/Whtasapp: +86 18688215960
Video:
Application:
Machine Details:
Features:
Learn More:
Inquiry
Video:
Application:
Designed for a wide range of spouted pouches, including: Stand-up spout pouches, Flat squeeze pouches, Center spout pouches, Corner spout pouches, Single-layer PE pouches, Laminated barrier pouches.

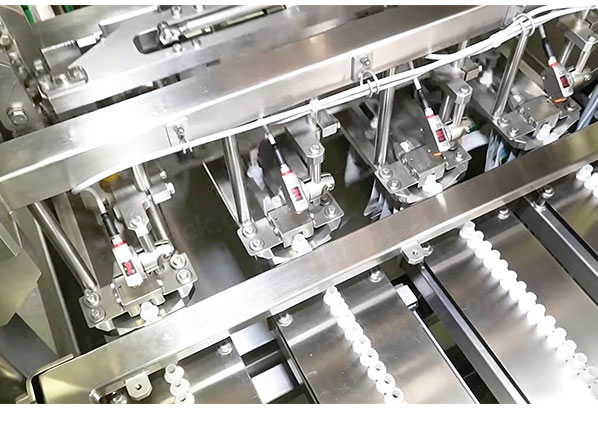

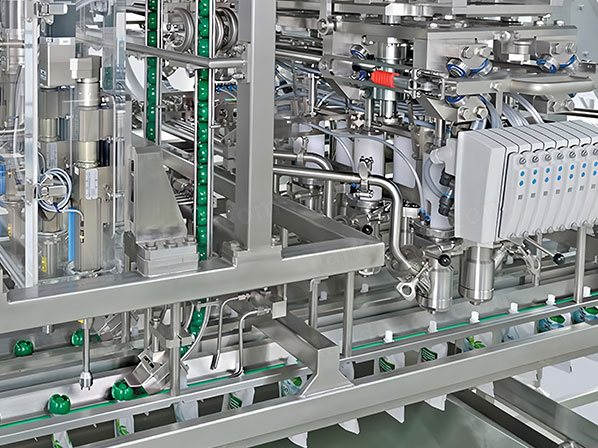

Machine Details:

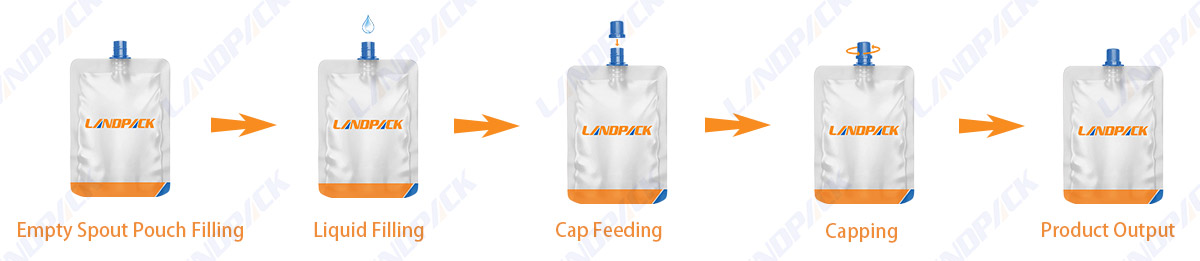

Working Process


1. Pouch loading → Pouch opening → Filling → Cap feeding → Cap tightening → Finished pouch discharge

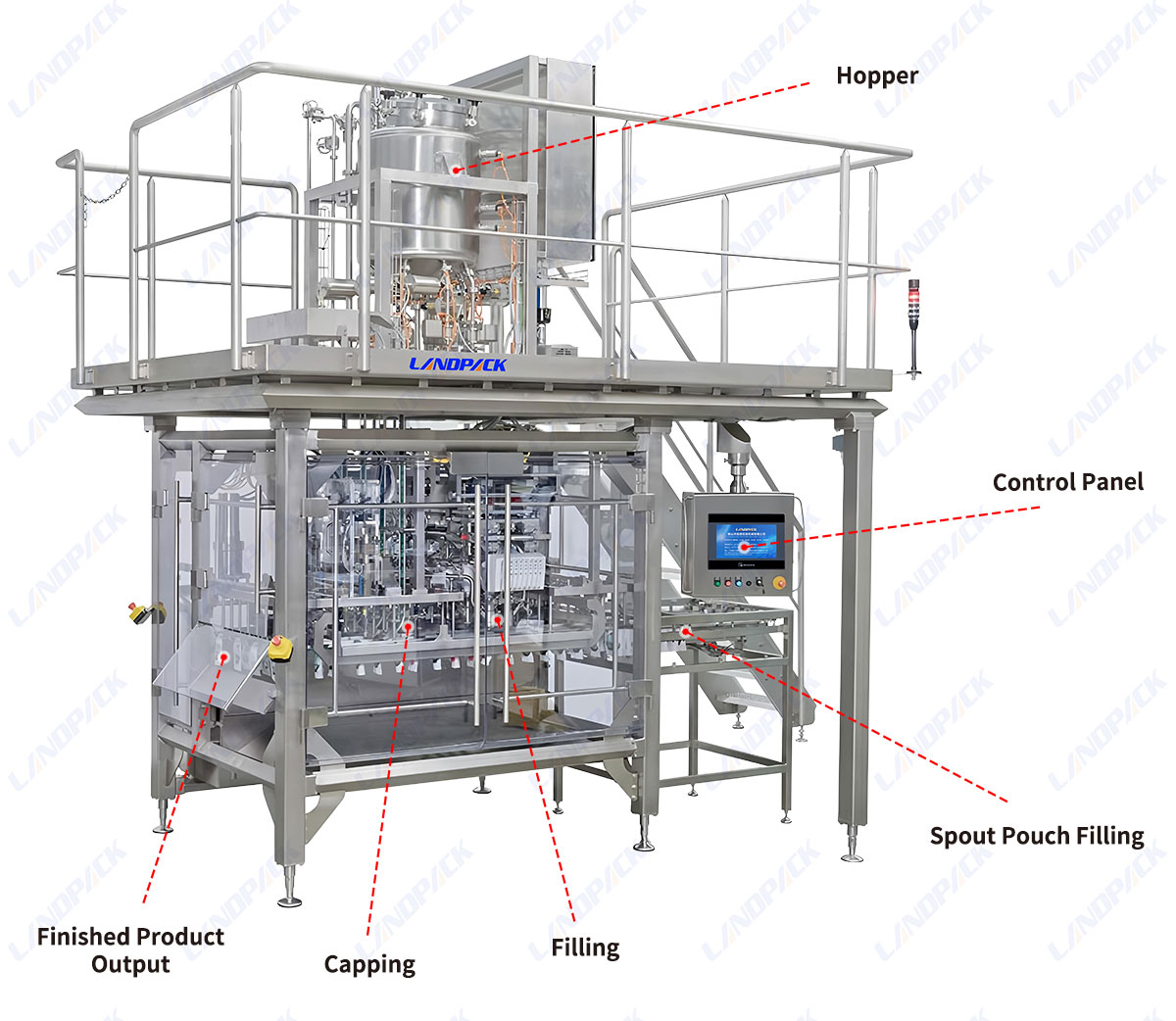

Key Component


Specification

Model LD-810L
Filling heads 2
Capacity 1200-2000 bags/hour
Filling volume 50-500ml(customizable 1L 2L 3L)
Error ≤1%
Power 380V
Air pressure 0.7 m³/min
Weight 1200kg
Features:

1. Fully automatic process including pouch loading, filling, cap feeding, capping and discharge.

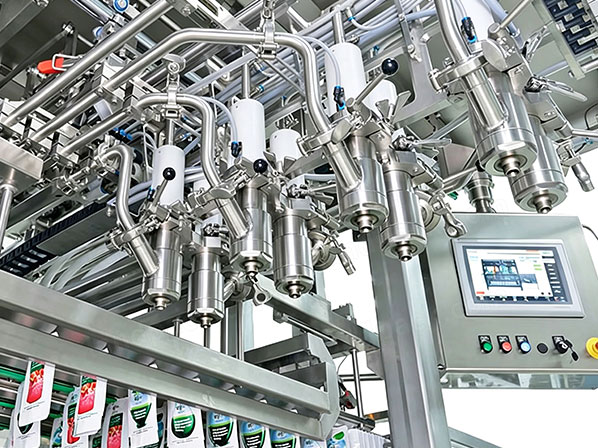

2. High-precision piston filling system with volume tolerance up to ±1.5%.

3. Intelligent no-pouch no-filling function reduces waste and keeps production clean.

4. Automatic vibrating cap sorter ensures correct cap orientation and feeding.

5Adjustable capping torque provides secure and consistent sealing quality.

6. PLC touch screen control with bilingual interface for easy operation.
Learn More:

1.Learn more Landpack Spout Pouch Filling Machine

3.Certificate of the Landpack packing machine.
