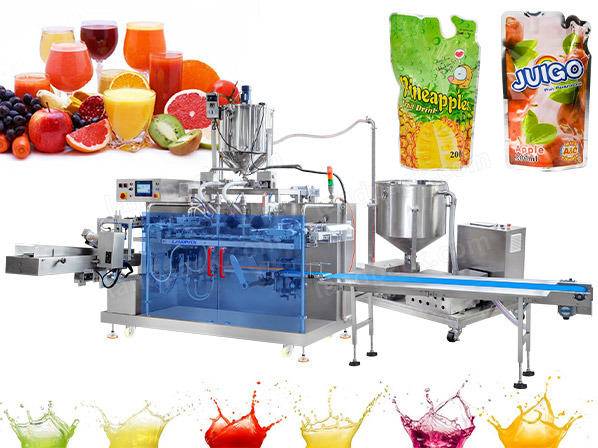

Fully Automatic Spout Pouch Filling And Sealing Machine

Application:

The spout pouch packing machine is ideal for packing liquid and semi-liquid products such as fruit juice, yogurt drinks, tomato paste, chili sauce, edible oil, detergent, and shampoo.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

This video shows our spout pouch machine with a 100L hopper and dual filling nozzles,
designed for automatic pouch opening, precise filling, and strong sealing. It ensures leak-proof packaging for juice, sauce, detergent, and more.

In this video, the machine demonstrates automatic pouch loading, accurate filling, and reliable cap placement with tight sealing.
It is suitable for high viscosity, liquid containing particles. Perfect for solving blockage.

Bag & Pouch Type:

This automatic spout pouch filling machine is compatible with spout pouches, stand up pouches, flat pouches, doypack, zipper pouch.

Machine Details:

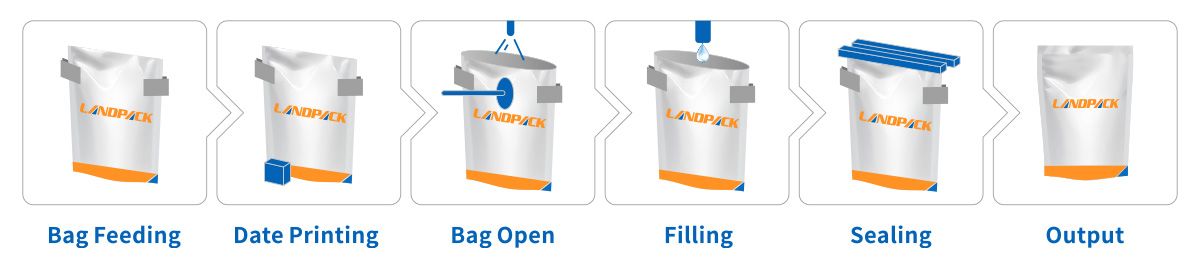

Working Process

1. Automatic Pouch Feeding

2. Date Printing

3. Bag Opening

4. Filling

5. Sealing

6. Output

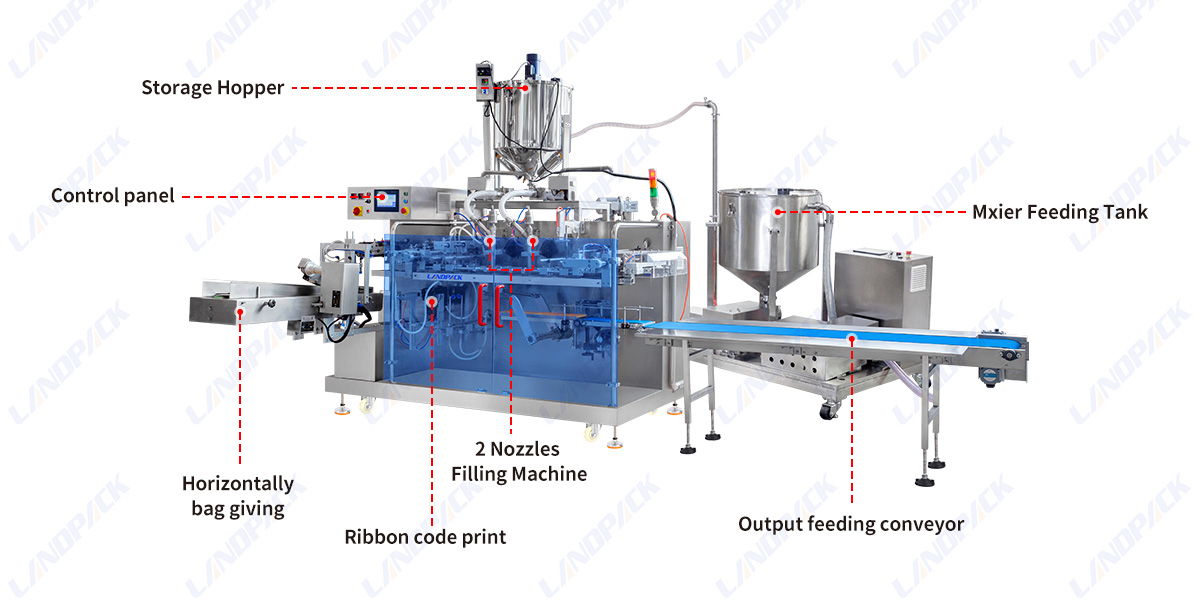

Key Component

Specification

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product

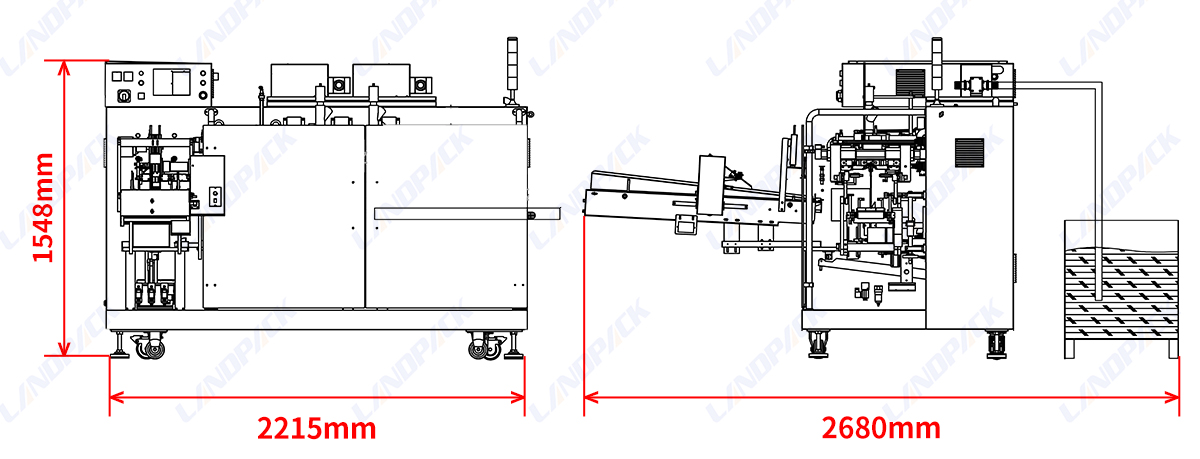

Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Features:

Machine Image	Benefits

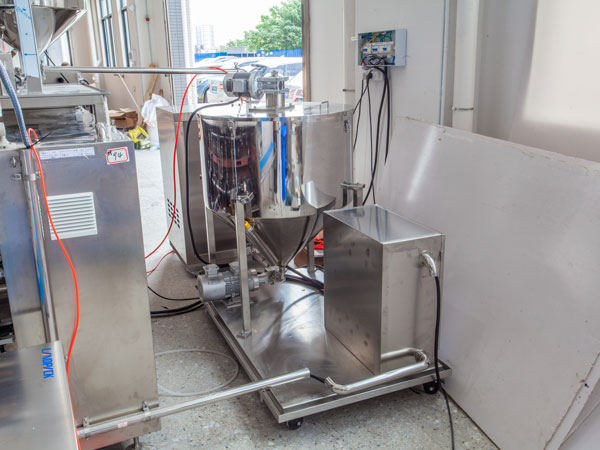

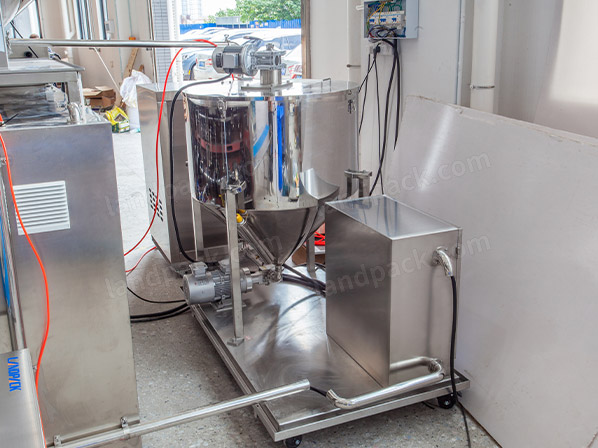

	100L Hopper Large stainless steel hopper for storing liquid products such as juice, sauces, detergent, or alcohol. It provides stable product feeding for continuous operation.

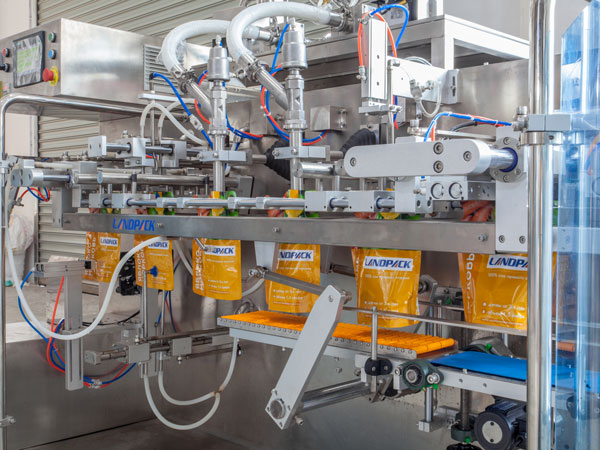

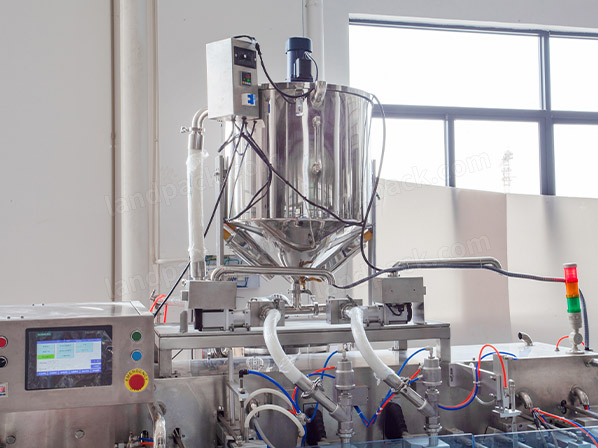

	Dual Filling Nozzles (2 Heads): Two precision filling nozzles ensure accurate dosing into spout pouch. The dual-head design increases production speed while maintaining consistency and minimizing product waste.

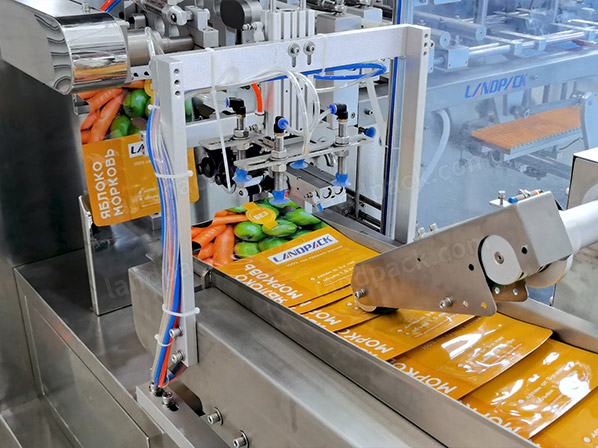

	Automatic Pouch Feeding : Premade spout pouches are automatically picked and positioned. The machine gently opens the pouch using air or mechanical devices, ensuring the pouch is ready for filling..

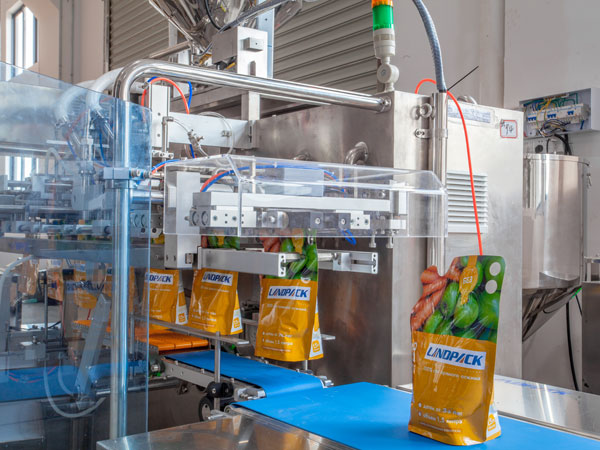

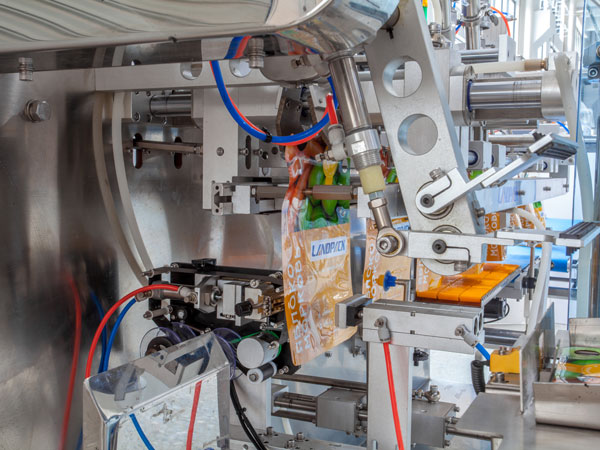

	Sealing Station: After filling, the machine heat-seals the top of spout pouch.The strong, airtight seal protects product freshness and prevents leakage during storage and transport.

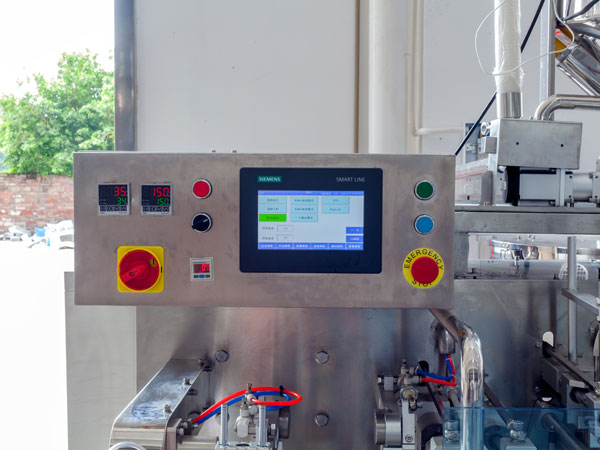

	Control Panel (PLC Touch Screen): User-friendly interface to set filling volume, sealing temperature, and speed. It also provides alarms and diagnostics for efficient and safe operation.
