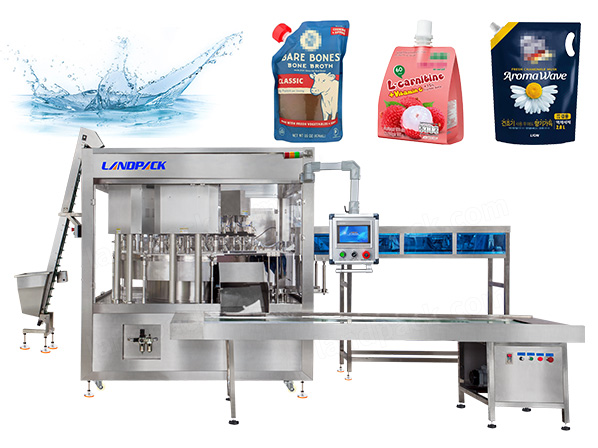

Automatic Fruit Juice Jelly Spout Pouch Squeeze Pouch Filling Capping Machine

Application:

This spouch pouch filling machine is used for filling and cappin squeeze pouch/ spout pouch for packaging liquids and semi-liquid products such as juice, jelly, soy milk, yogurt, fruit juice, seasoning,detergent, mineral water, juice, ice cream, edible oil, seasoning,scour, laundry detergent, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

This video shows that the liquid is filled into pouch by spout pouch filling capping machine, control by servo motor, .
high filling accuracy, 100bpm.

This video specifically shows how the top spout pouch is filled with liquid.Food grade, convenient operation, high performance.
It is widely used in the packaging of laundry detergent,ketchup, baby food, and sports drinks

Bag & Pouch Type:

Our spout pouch packing machine is suitable for filling liquid into top or side spout.Suitable for your liquid or semi liquid product such as baby food, sauce, soup,paste.If you need another packing machine for your top spout pouch,please click here

Machine Details:

Working Process

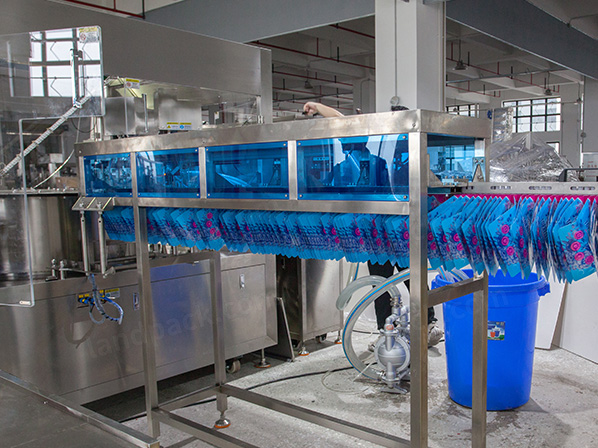

1. Automatic Pouch Feeding

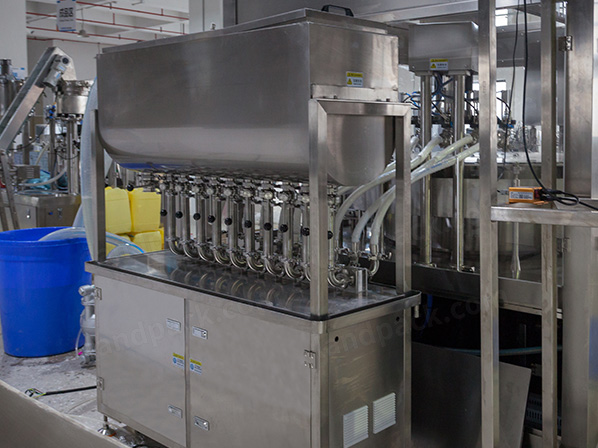

2. Liquid Loading Measuring

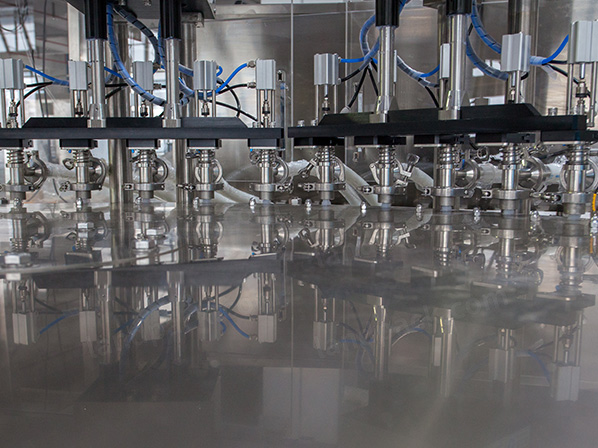

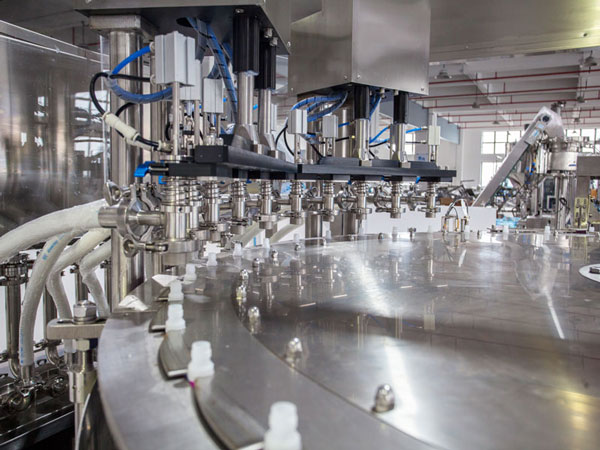

3. Filling System

4. Cap Feeding System

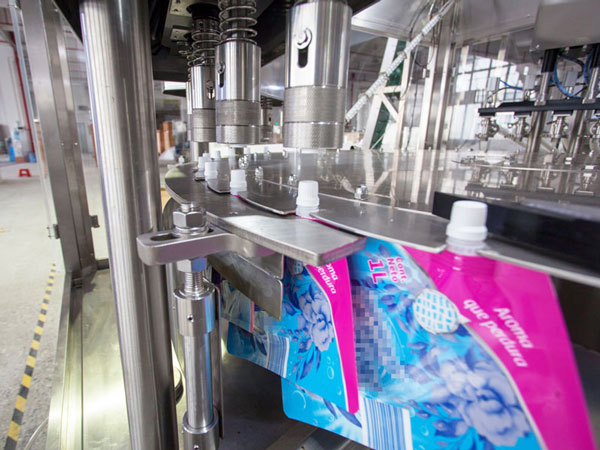

5. Capping System

6. Finished Bag Collection

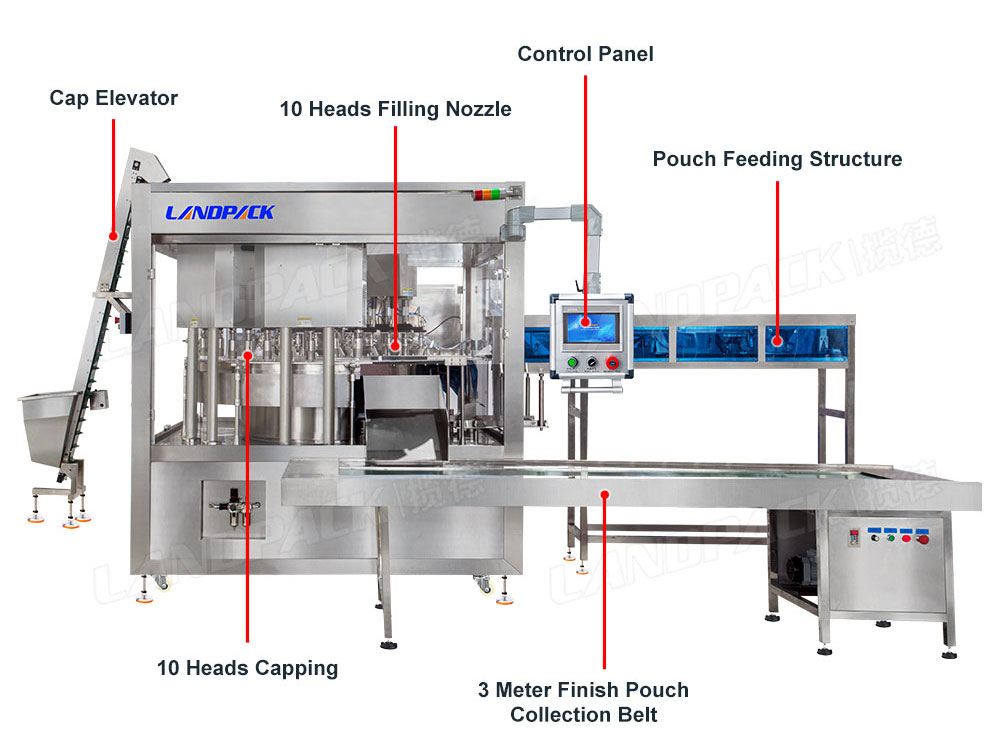

Key Component

Specification

Model	LF-XZD1T	LF-XZD2T	LF-XZD4T	LF-XZD6T	LF-XZD10T
Filling Head	1	2	4	6	10
Voltage	220V/110V, 50-60Hz
Power	1KW	3KW	3KW	3KW	3KW
Filling Speed	1200 bph	1500-2100 bph	3300-3900 bph	4500-6000 bph	4800-6000 bph
Filling Range	10-300ml	30-2000ml	100-500ml	10-350 ml	50-2000ml
Filling Accuracy	±1%
Air Pressure	0.4-0.7MPa	0.4-0.7MPa	0.8Mpa	0.8Mpa	0.5-0.8Mpa
Machine Weight	300kg	260KG	2600kg	2500kg	700KG
Machine Size	150012001200mm	250022001900mm	140012301900mm	245019002200mm	245019002200mm

Features:

Machine Image	Features
	Pouch Feeding: 1. The pouch feeding structure utilizes a clamp and positioning device to ensure the spout pouch precisely aligns with the filling nozzle. 2. Spout bags of varying sizes and shapes can be customized or accommodated, meeting the mass production requirements of large-scale enterprises. 3. The gentle clamping mechanism ensures a pouch-quality appearance without scratches or dents.
	Pouch Filling: 1. The number of filling nozzles and pump type (piston pump, gear pump) can be customized based on speed requirements and material properties. 2. Servo drive ensures filling tolerances as low as ±1%. 3. The anti-drip design automatically shuts off liquid flow at the end of filling, preventing secondary contamination of the bag opening and meeting hygiene standards.
	Pouch Capping: 1. A vibrating feeder and cap-sorting track neatly arrange caps and transport them to the capping station. 2. Precise torque control prevents damage to cap threads due to overtightening, or leakage and contamination of the bag surface due to over-loosening. 3. Customizable processing based on bag size.
