Spout Pouch Filling Machine - Stand-up Pouch Filling Machine

Application:

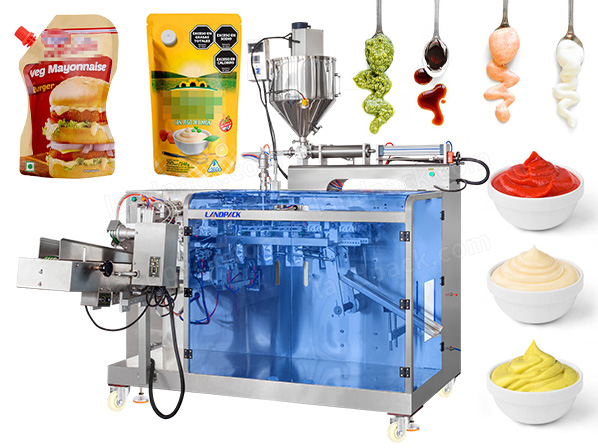

The LDSP-160L horizontal spout pouch filling machine is designed for efficiently packaging a wide range of liquid and semi-liquid products, making it ideal for fruit purées like banana sauce, tomato paste, chili sauce, salad dressings, dipping sauces, soup bases, chocolate syrup, and other viscous condiments.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This machine is primarily designed for spout pouches—including corner-spout pouches, and top-spout doypacks—ensuring accurate liquid filling and secure sealing for thick or fluid products. In addition, it is fully compatible with standard doypacks, zipper pouches, and stand-up pouches

Wide Application Range

This machine is widely used for various liquid and semi-liquid food products, particularly those with high viscosity or fine particles. It is suitable for many segments within the food and condiment industries.

Fruit-Based Pastes

• Banana Paste, Mango Puree, Strawberry Jam, Blueberry Sauce

Vegetable Purees & Paste Foods

• Pumpkin Puree, Sweet Potato Paste, Carrot Puree

Condiments & Sauces

• Chili Paste (smooth type), Ketchup, Salad Dressing (compatible viscosity)

Machine Details:

Working Process

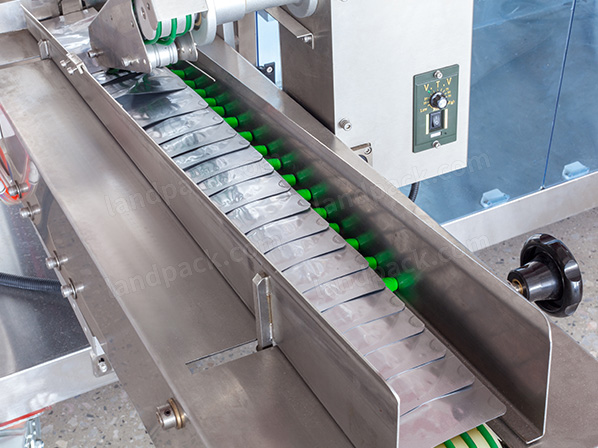

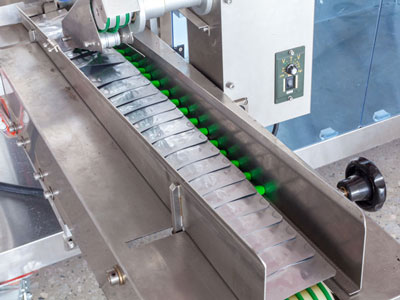

1. Auto Feeding Bag → 2. Ribbon code print → 3. Open the bags → 4. Automatic filling → 5. Hot sealing → 6. Output

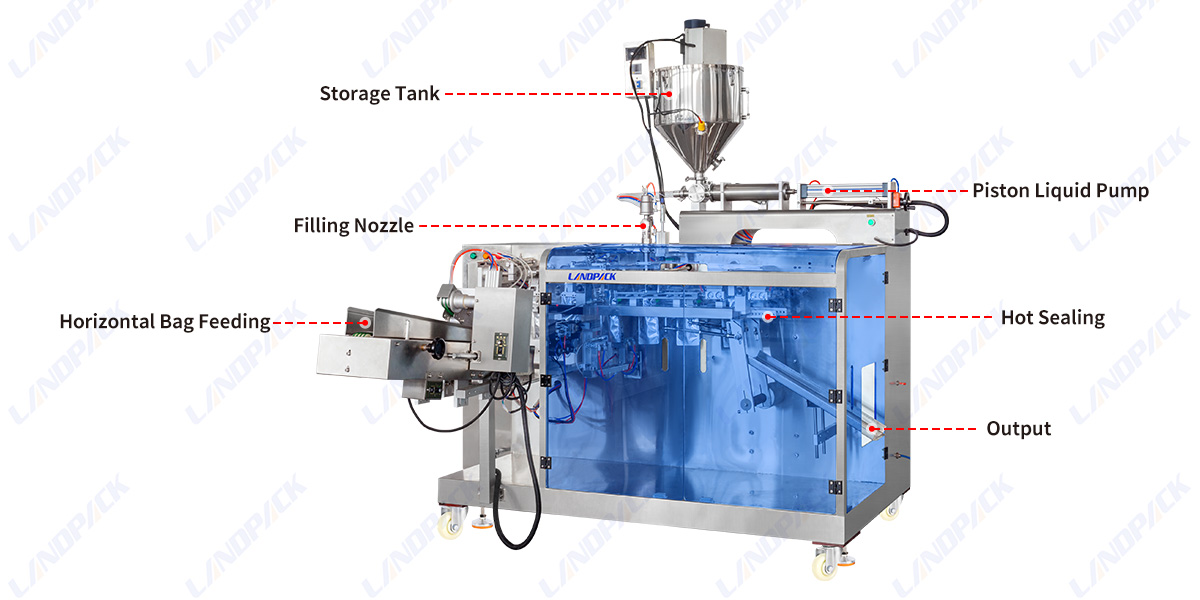

Key Component

Specification

Type LDSP-160 LDSP-160Y LDSP-210 LDSP-260

Bag Type 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Bag Size 110-230mm*80-160mm(L*W) 70-100mm*110-230(L*W) 100-210mm/110-320mm（L*W） 100-260mm/110-320mm（L*W）

Filling Range 10g-100g 10g-100g 10g-1kg 10g-3kg

Packing Speed 20-45bags/min(speed is determined
by the product filling quantity) 25-50bags/min(speed is determined
by the product filling quantity) 20-50bags/min (speed is determined
by the product filling quantity) 20-50bags/min (speed is determined
by the product filling quantity)

Machine weight 800KG 800KG 900KG 1000KG

Total Power 2.0KW 2.0KW 2.0KW 2.0KW

Work Flow 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling
5.Heating sealing 6.Output of product

Dimensions 1750mm X 1285mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H)

Collocation Screw metering,screw elevator

Features:

Machine Image	Benefits

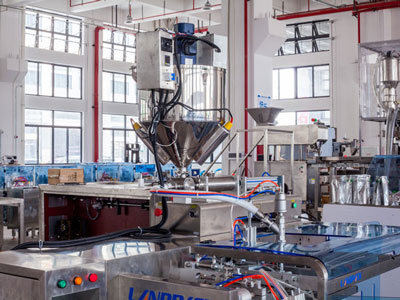

	Versatile Doypack Solution for Sauces and Semi-Liquid Products The LDSP-160L horizontal doypack machine is designed to handle a wide range of sauces, soups, fruit purees, dipping condiments, and daily chemical liquids, ensuring clean, accurate, and efficient pouch packaging.

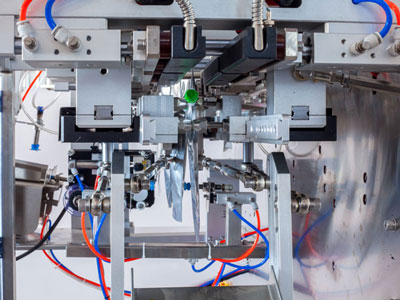

	Reinforced Double-Sealing Technology for Zero-Leak Packaging Equipped with a dual-seal mechanism, the machine provides strong, uniform, and visually appealing seals. This ensures excellent leak resistance, even when filling high-viscosity, oily, or heated liquids.

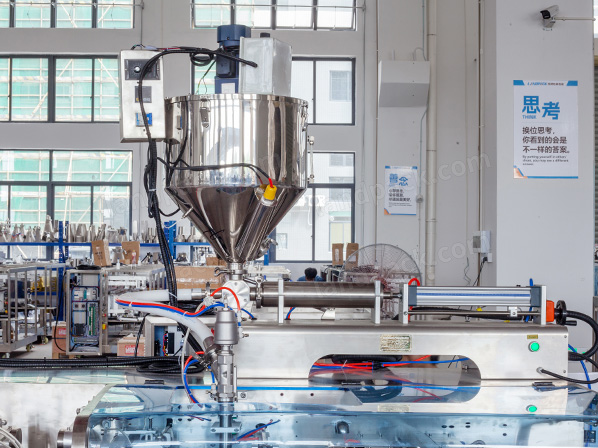

	Heated and Agitated Hopper to Maintain Perfect Flow Consistency The hopper incorporates heating and continuous stirring functions to ensure stable flowability. This prevents thick sauces—such as banana paste or tomato sauce—from solidifying, separating, or sticking during dosing.
	Large-Diameter Filling Nozzle for Thick and Chunky Sauces The enlarged filling tube and precision metering system enable smooth filling of viscous, semi-viscous, or particle-containing sauces without clogging, ensuring consistent filling accuracy.

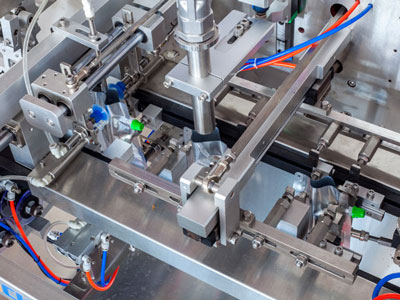

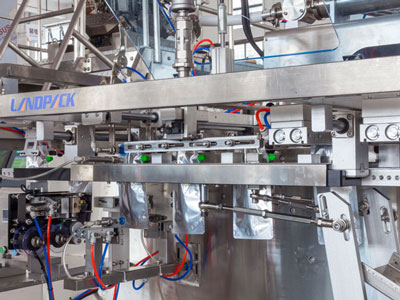

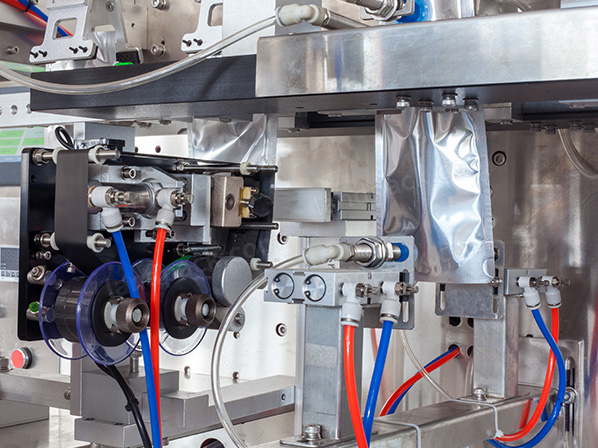

	Stable Spout Pouch Handling for Premium Packaging Formats Specially configured for spout pouches, the machine maintains precise bag opening, gripping, filling, and sealing—supporting modern packaging formats widely used in sauces, baby food purées, and household liquids.

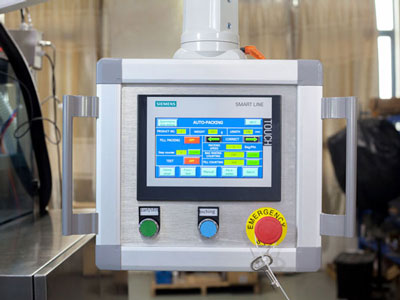

	User-Friendly Controls with Recipe Storage The PLC and touchscreen provide easy operation, allowing quick product switchover, adjustable filling parameters, and recipe memory for different sauce or pouch types

Learn More:

1.If you need more Spout Pouch Filling Machinee for your product , read our-- doypack machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
