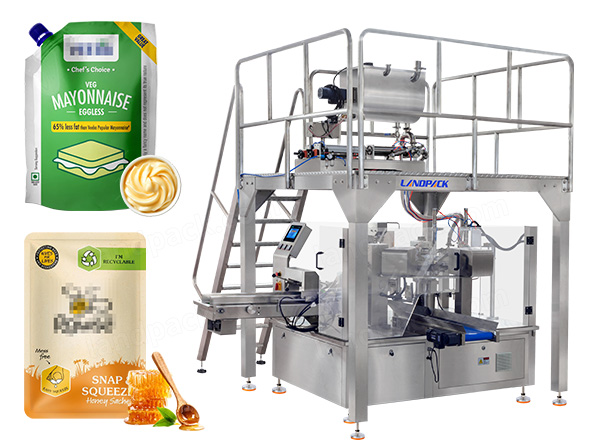

Automatic Spout Pouch Stand up Pouch Sauce Paste Filling Sealing Machine

Application:

This machine is ideal for packing a wide range of flowable products—such as chili oil, salad dressing, yogurt drinks, concentrated fruit paste, soy sauce, and liquid supplements—into side spout pouches, ensuring stable filling accuracy and efficient output for both food and functional liquid applications.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This machine is compatible with a wide range of consumer-preferred pouch formats, including spout pouches for easy pouring of liquids and sauces, doypacks that provide excellent shelf presentation, and zipper pouches that offer convenient resealability for repeated use. It also supports stand-up pouches designed for stability and visibility on retail shelves, as well as all kinds of premade pouches that require precise filling and clean sealing for both liquid and semi-liquid products.

Wide Application Range

With fully automated functions—from pouch pickup to sealing and output—the machine delivers high efficiency, strong hygiene control, and reliable performance for diverse liquid packaging applications.

Food Sauces & Condiments:

• Chili sauce, tomato paste, salad dressing, sesame paste, BBQ sauce

Liquid Beverages

• Fruit juice, coconut milk, herbal tea drinks, yogurt beverages

Cooking Ingredients

• soy sauce, vinegar, cooking wine, broth concentrates

Machine Details:

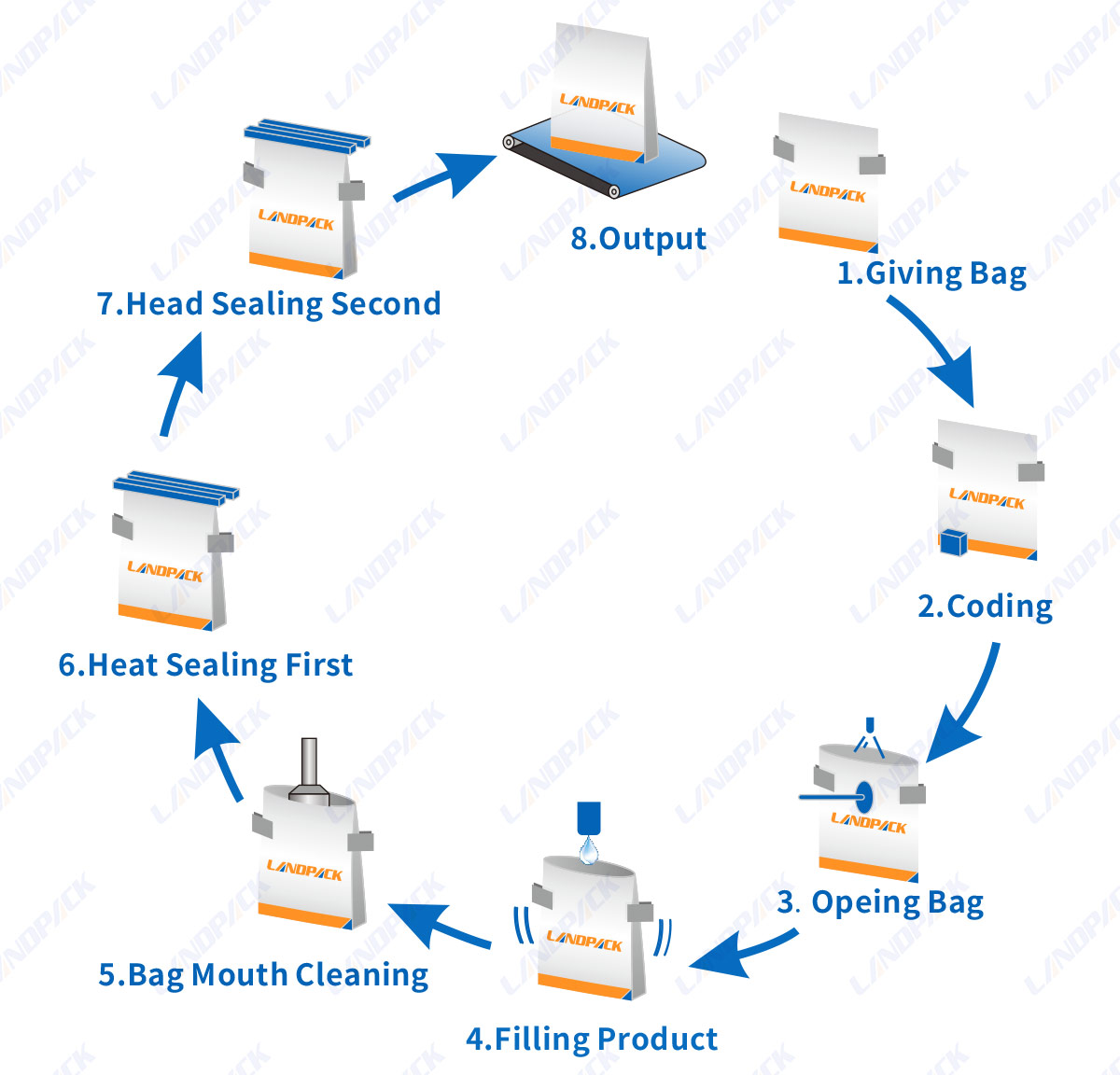

Working Process

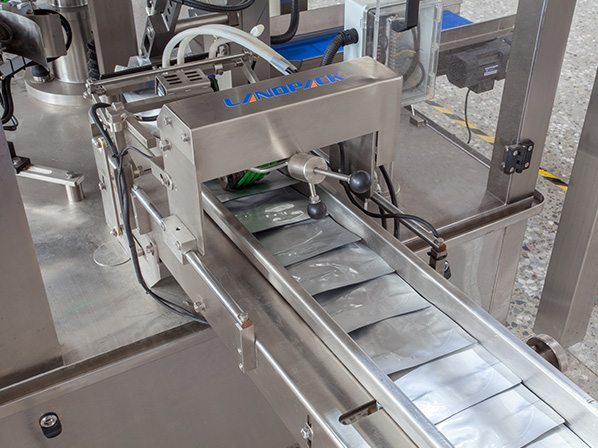

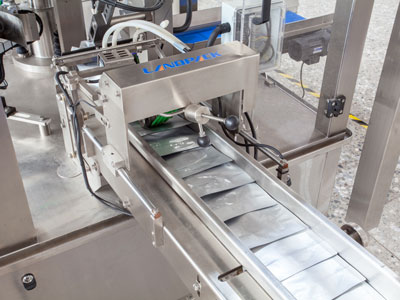

1. Auto Feeding Bag → 2. Ribbon code print → 3. Open the bags → 4. Automatic filling → 5. Hot sealing → 6. Output

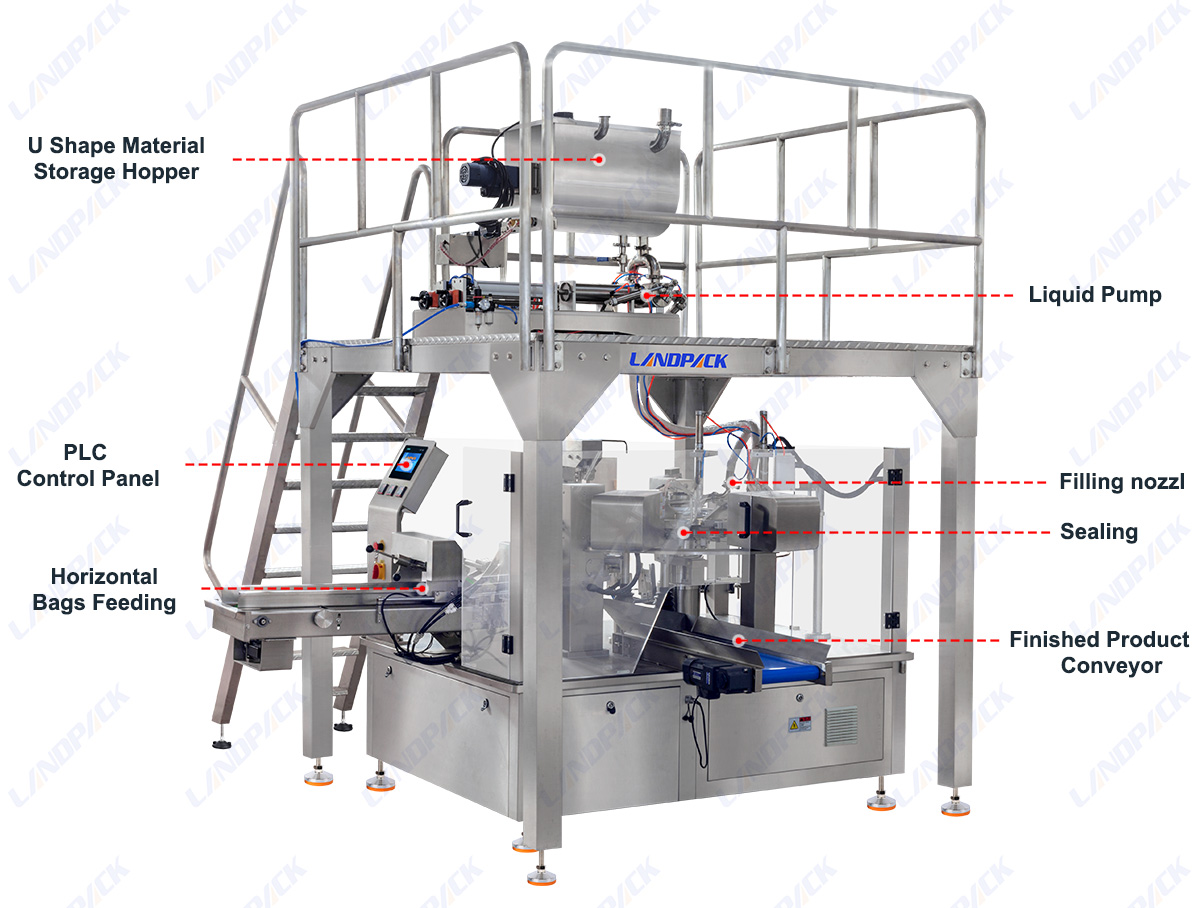

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Type LD-8230 LD-8260 LD-8300 LD-8400

Bag Type 3-side, 4-side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.

Bag Size(L*W) W: 80-230mm, L: 150-380mm W: 140-260mm, L: 150-380mm W: 180-300mm, L: 150-430mm W: 270-400mm, L: 200-500mm

Filling Range 10-1000g 1500g 2000g 3000g

Packing speed 20-60 bags/min 20-50 bags/min 10-40 bags/min 10-25 bags/min

Voltage Standard AC380V+10%, three-phase 50HZ

Total Power 3.75KW 3.75KW 3.85KW 4.5KW

Air Consumption 0.4m³/min

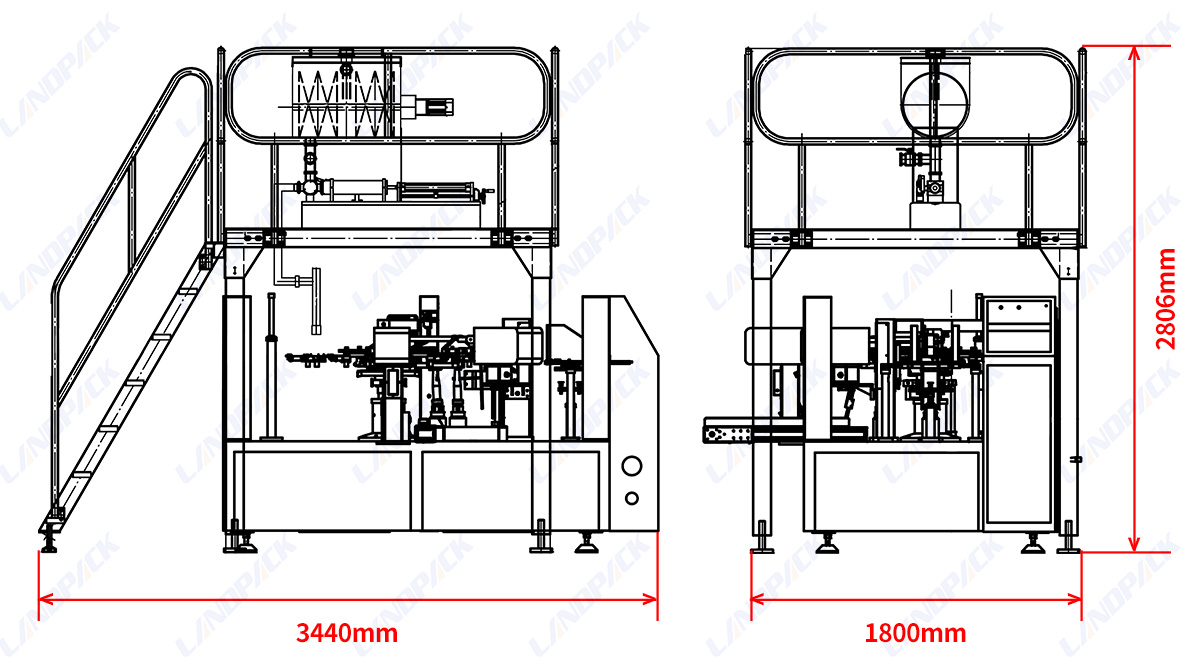

Dimensions 1740*1380*1450mm(L*W*H) 2460*1830*1460mm 2260*2200*1520mm

Machine Weight 1300kg 1300kg 1700kg 2000kg

Features:

Machine Image	Benefits

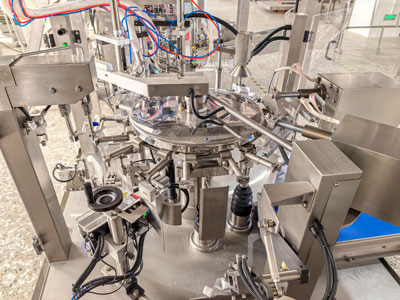

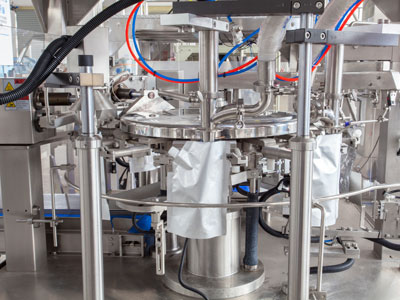

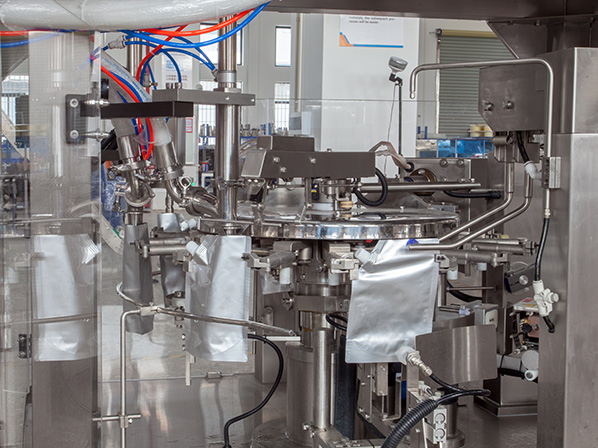

	Eight-station rotary platform for stable automation The LD-8230 adopts an eight-position rotary structure that ensures each pouch is handled with precise timing from pickup to sealing. This layout reduces vibration, enhances long-term stability, and maintains consistent performance when packing liquids and sauces.
	Dual-fill discharge system for high output Two synchronized filling nozzles allow simultaneous dosing into two pouches, effectively doubling production speed. The dual-line filling maintains accuracy for viscous materials and minimizes dripping or splashing, ensuring clean and efficient operation.

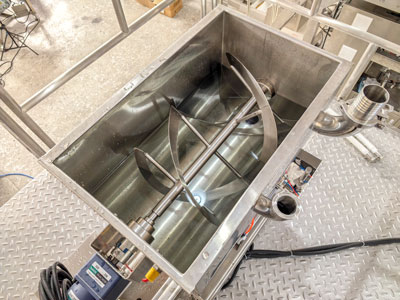

	U-type storage hopper with optimized material flow The large-capacity U-shaped hopper keeps sauces and liquids moving smoothly without blockage. It can be equipped with heating and mixing to maintain proper viscosity, contributing to steady dosing and overall system reliability.

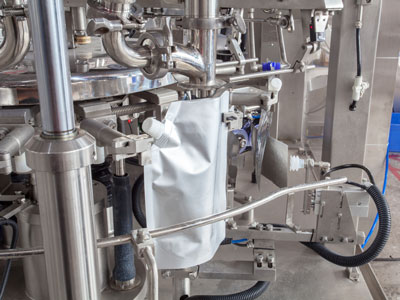

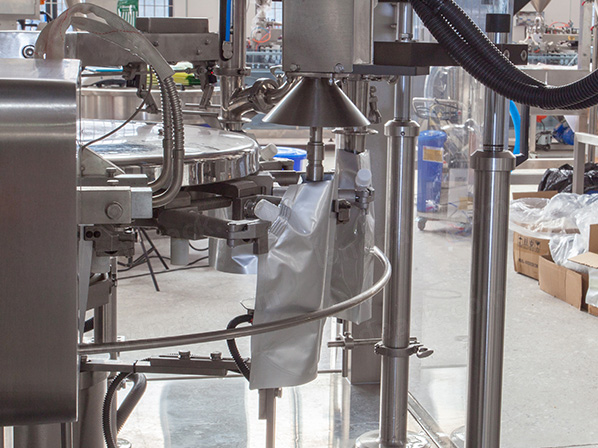

	Enhanced handling for side-spout pouch formats The machine is specially configured to align, support, and open angled side-spout bags with high precision. This ensures smooth nozzle insertion and reduces deformation, making it ideal for premium-shaped pouches used in beverage, sauce, and gel applications.

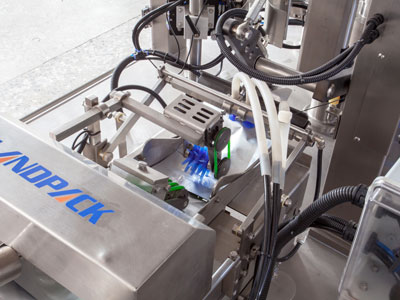

	Full pouch detection and safety interlock system Sensors monitor bag pickup, opening, filling, and sealing in real time, ensuring the machine never fills an un-opened pouch. This prevents leakage, reduces product waste, and keeps the production environment clean and controlled.
	Quick-change, hygiene-focused design Tool-free adjustments allow operators to switch pouch sizes or formats quickly, minimizing downtime for product exchange. All product-contact parts can be easily removed and washed, supporting strict sanitation standards for food and sauce processing.
