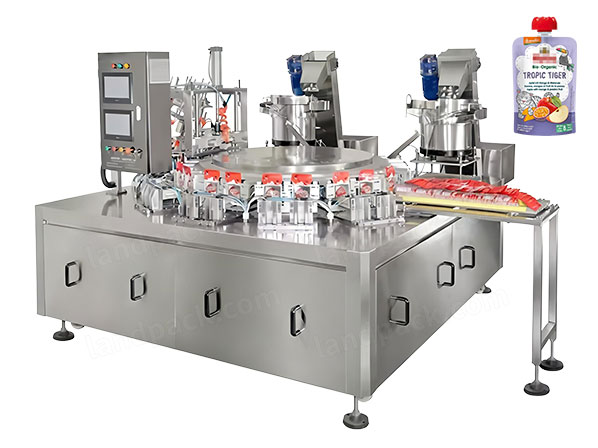

Fully Automatic Spout Inserting Welding Sealing Machine

Application:

This spout sealing machine is suitable for spout pouch preforming before liquid filling.It is designed for fruit puree, yogurt, sauces, baby food, juice, functional drinks, liquid nutrition products, liquid soap, detergent, and cosmetic liquids.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Video:

Application:

Machine Details:

Features:

Learn More:

Video:

Application:

This spout sealing machine is suitable for various premade pouches, including stand-up pouches, doypacks, flat pouches, gusset bags, and shaped pouches. Supports center spout, corner spout and top spout configurations, with different sizes and materials such as laminated film or aluminum foil pouches.

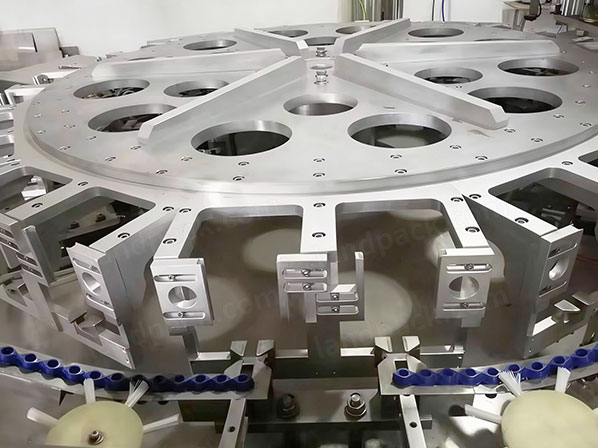

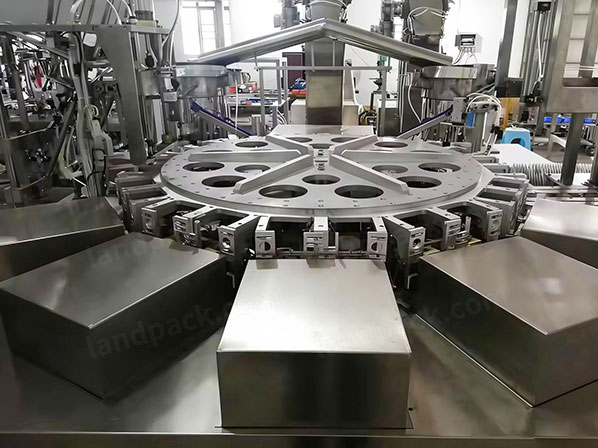

Machine Details:

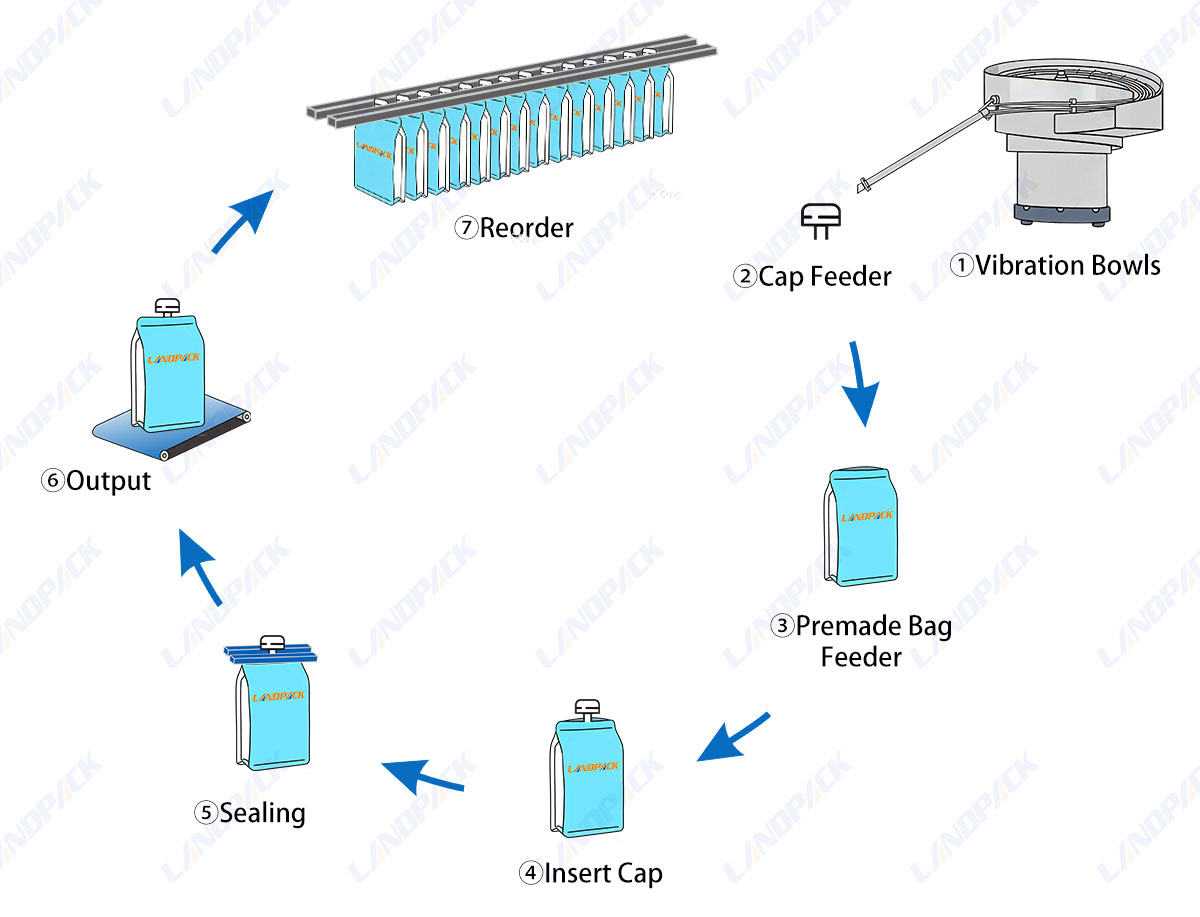

Working Process

1. Pouch feeding → Spout positioning → Heat welding → Heat sealing → Cooling → Pouch discharge → Finished product output

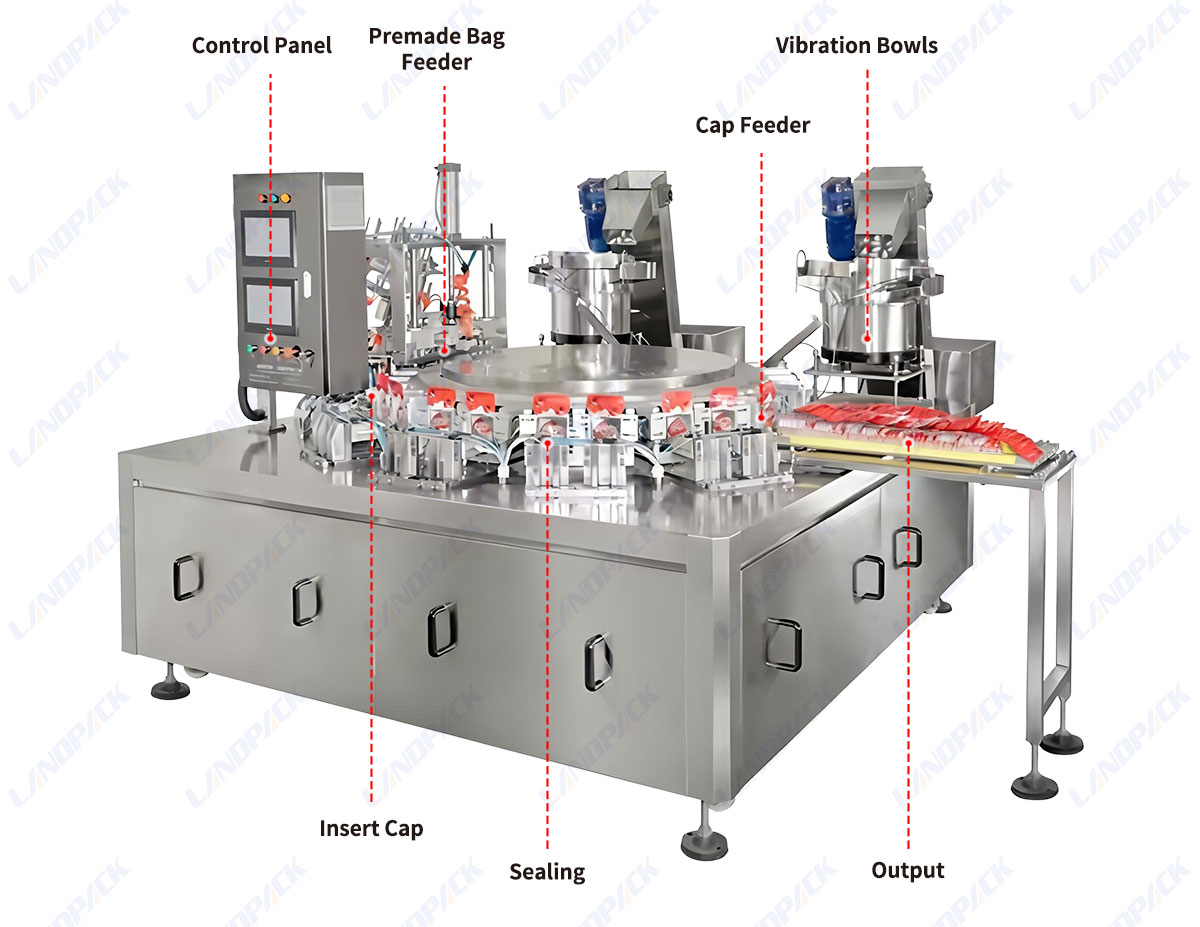

Key Component

Specification

Model	LDSS-12-70
Pouch dimension	L×W(70-230)×(60-120)mm
Spout inner size	8.2mm or 8.6mm or 10mm, 13mm Custom-made
Capacity	40-80pcs/min(70pcs/min can be very stable)
Power supply	AC380V, 50HZ, 3P, 8.0KW
Air supply	0.5-0.7MPa 180NL/min
Chilling water	6L/min
Machine dimension	(L×W×H)Major machine: 2480×2280×1800mmAuto pouch discharging device: 13008201700mm
Weight	2300KG

Features:

1. Fully automatic process including spout feeding, pouch handling, welding and discharge.

2. Rotary/turntable structure with compact design and space-saving layout.

3. PLC and touch screen control for simple operation and stable long-term running.

4. High-quality components (temperature controller, pneumatic parts) ensure durability.

5. Multi-stage heating and cooling sealing system for strong and reliable welding.

6. Automatic fault detection, alarm and diagnostic system for safe operation.

Learn More:

1.Learn more Landpack Spout Pouch Filling Machine

2.Why choose Landpack

3.Certificate of the Landpack packing machine.

4.Guidance for first time to buy Filling Machine/ Packing Machine
