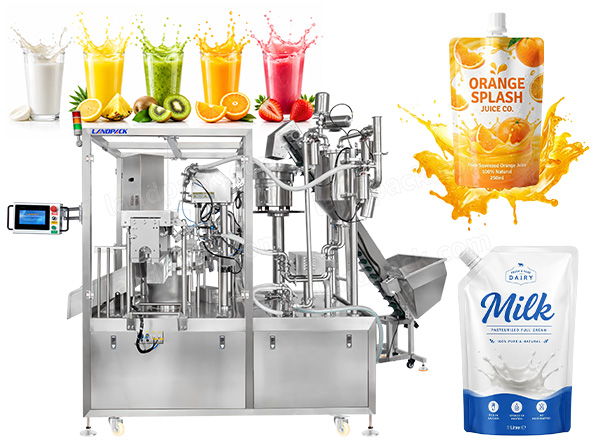

Fully Automatic Double Heads Liquid Spout Pouch Filling Machine

Application:

The Spout Pouch Filling Machine is specially designed for filling liquid products into spout pouches such as purified water, flavored water, juice, sports drinks, energy drinks and functional beverages, sauce, syrup, honey, jelly drinks and liquid condiments, laundry detergent, fabric softener, hand soap and cleaning liquids.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

The Spout Pouch Filling Machine is suitable for spout pouches, corner spout pouches, center spout pouches, stand-up spout pouches, aluminum foil spout bags, transparent spout pouches, juice pouches and customized nozzle pouch packaging.

Machine Details:

Working Process

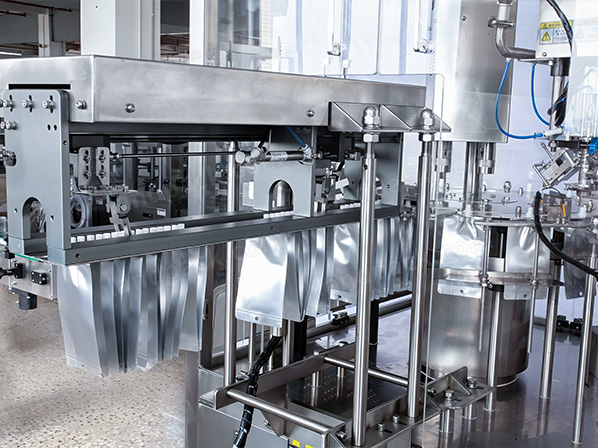

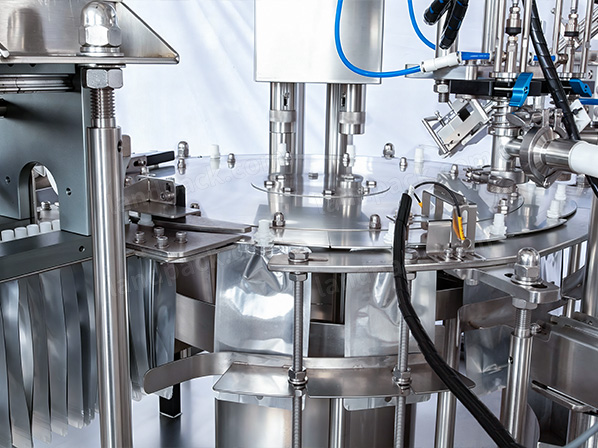

1. Pouch Loading → Pouch Positioning → Liquid Filling → Cap Feeding → Automatic Capping → Quality Inspection → Finished Product Discharge

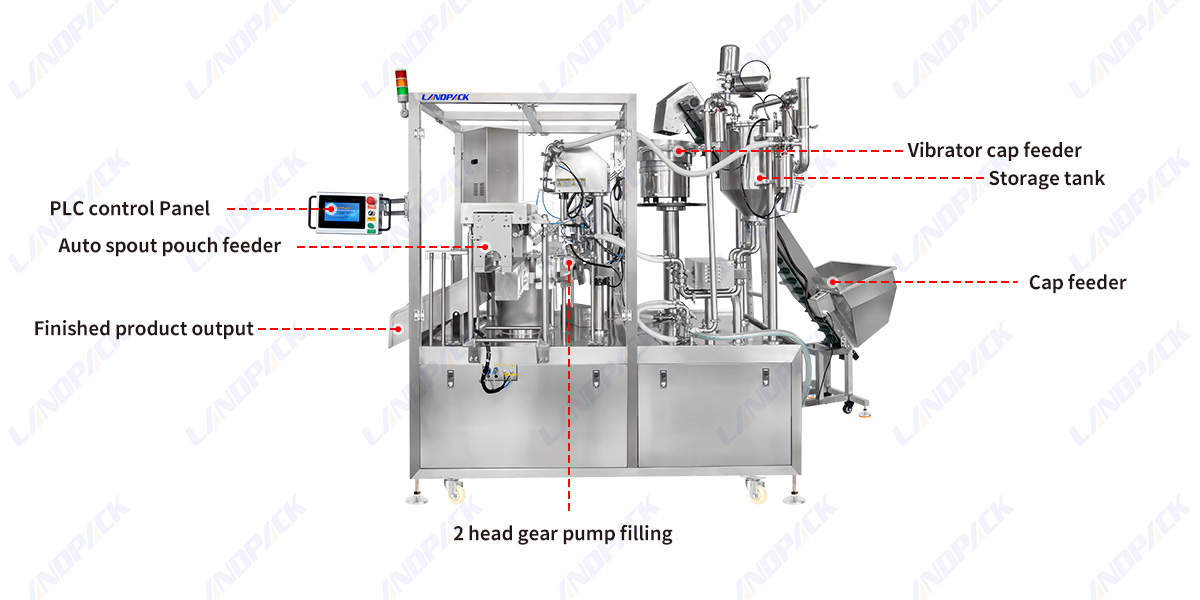

Key Component

Specification

Filling Method	2-Head Gear Pump Filling
Applicable Products	Milk, Yogurt Drinks, Fruit Juice, Puree and Other Liquid or Semi-Liquid Products
Packaging Type	Premade Spout Pouches with Screw Caps
Filling Range	Customized according to pouch size and product characteristics
Filling Accuracy	Approximately ±1%, depending on product viscosity and filling volume
Production Speed	Approximately 30–50 Pouches/Min, depending on filling volume and pouch specification
Spout Washing Heads	2 Heads
Cap Feeding System	Cap Elevator + Vibratory Bowl Feeder
Capping Method	Automatic Cap Placement and Screw Capping
Cleaning System	Dual-Head CIP Circulation Cleaning System
Product-Contact Material	SS316 Stainless Steel
Machine Frame Material	SS304 Stainless Steel
Control System	PLC + Touch Screen
Air Pressure	0.6–0.8 MPa
Power Supply	380V / 50Hz / 3 Phase, customizable

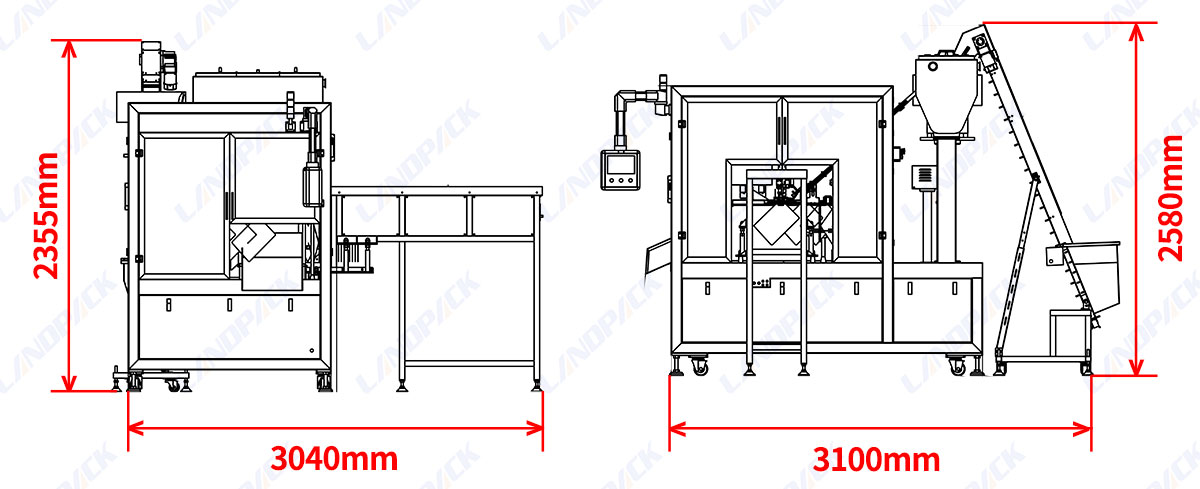

Main Machine Size	Approx. 3040 × 3100 × 2355 mm
Overall Height with Cap Elevator	Approx. 2580 mm
Machine Weight	Customized according to final configuration

Features:

1. SS316 stainless steel contact parts ensure food-grade hygiene and excellent corrosion resistance.

2. Dual-head vacuum filling system delivers accurate filling with stable liquid levels and minimal product waste.

3. Servo capping technology provides precise torque control for consistent cap tightening quality.

4. Integrated CIP cleaning system enables fast and thorough cleaning of pipelines and filling components..

5. Automatic cap elevator continuously feeds caps to the vibratory sorter for uninterrupted production.

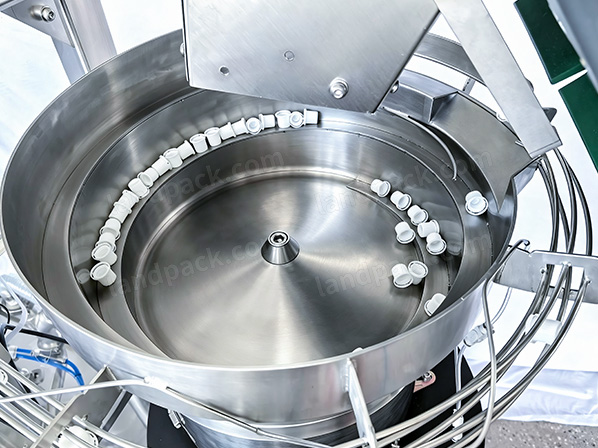

6. Vibratory cap feeding system accurately orients and supplies caps for stable capping performance.

7. Vibratory cap feeding system accurately orients and supplies caps for stable capping performance.

8. Vibratory cap feeding system accurately orients and supplies caps for stable capping performance.
