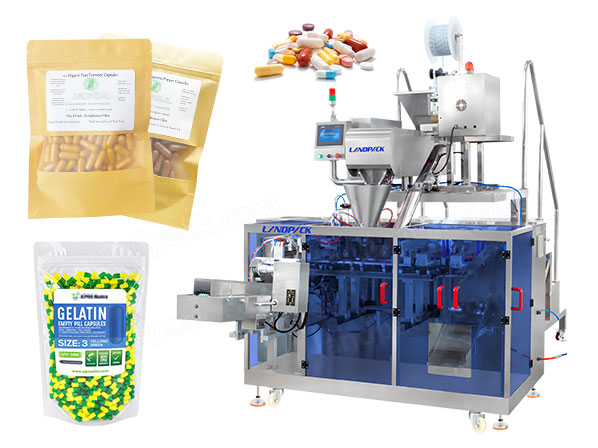

8 Lane Capsule Counting Packing Machine Tablet Horizontal Doypack Machine

Application:

This automatic capsule counting and packaging machine is designed for packing solid product packaging in premade pouches such as capsules, tablets, pills, vitamins, fish oil capsules, dietary supplements, candy tablets, chewing gum.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This automatic capsule counting and packaging machine is suitable for premade pouches such as stand-up pouches, doypack, zipper bags, and shaped pouches.Supports capsule counting with desiccant insertion, providing moisture-proof, resealable for solid products

Machine Details:

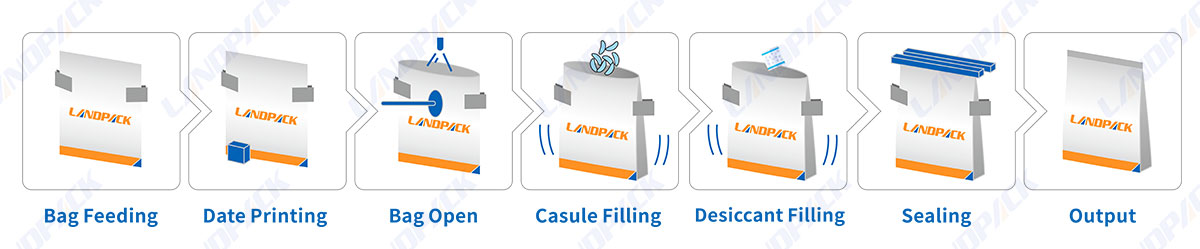

Working Process

1. Pouch feeding → Pouch opening → Capsule counting → Desiccant inserting→ Filling → Sealing → Finished pouch output

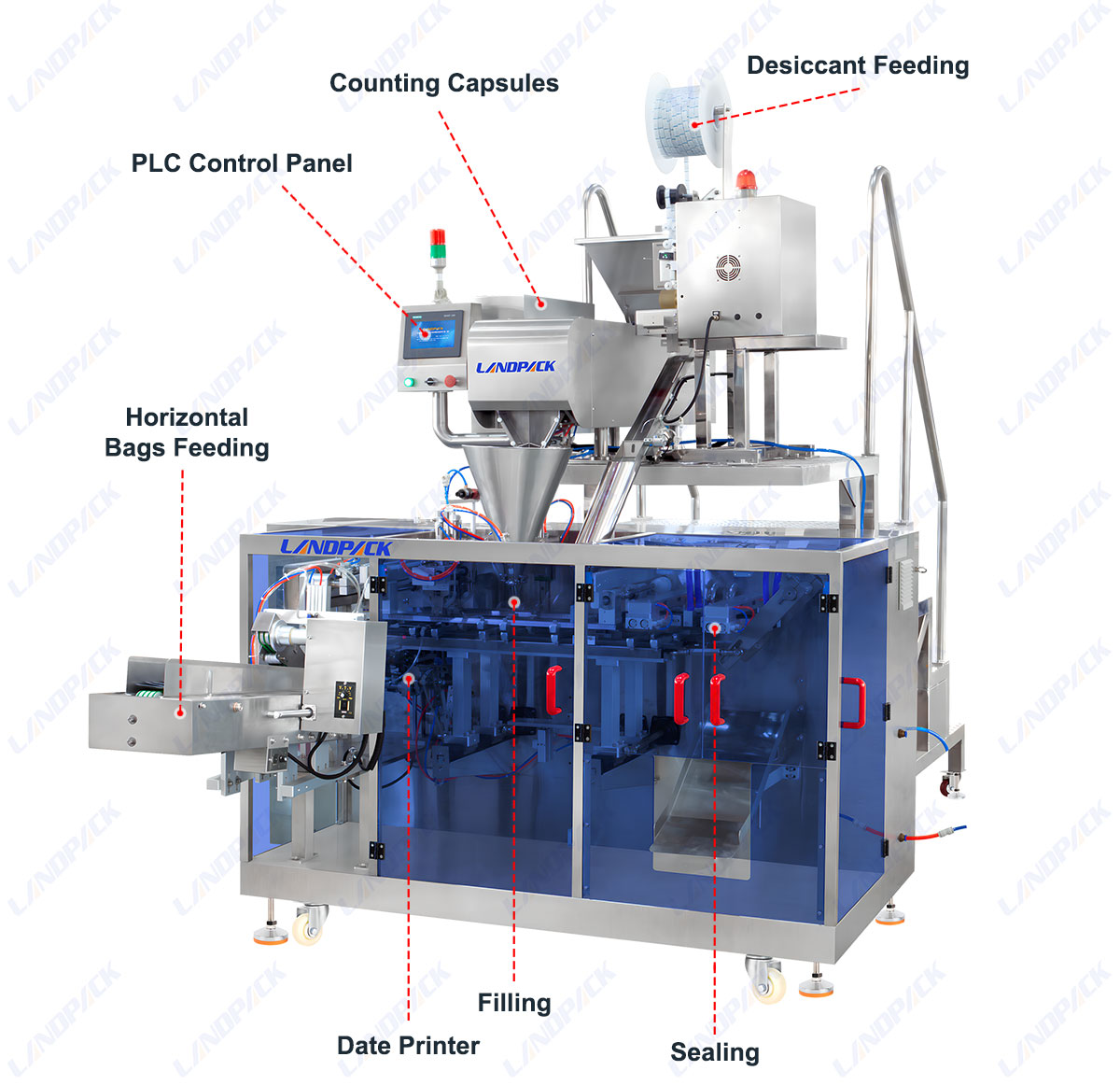

Key Component

Specification

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
