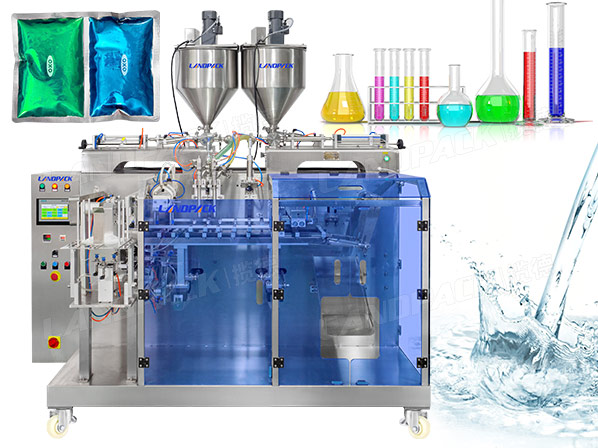

Automatic Different Liquid Material Pre-Made Twin Pack Packing Machine

Application:

Automatic different liquid premade twin pouch filling packing machine, it is suitable for packing liquid standing bags, pre-made bags, zipper bags packaging, such as juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Samples:

Specification:

Work Process:

Features:

1.Rapidly change bag specification in one-click antomaticadjustment.

2.Single shaft and the GAM design , faster packing apeed,more stable operation , easier maintence and defective rate reducting.

3.Modular heating ,temperature control is more accurate , heating fault has alarm prompt.

4.Adcanced design idea, reduce the material loss, ensure the stability of operation, extend the operation life.

5.Simple and convenient operation, adopt the adcanced PLC + POD(touchscreen) electric control system and man-machine interface.

Application:

Automatic different liquid premade twin pouch filling packing machine, it is suitable for packing liquid standing bags, pre-made bags, zipper bags packaging, such as juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.

Samples:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Work Process:

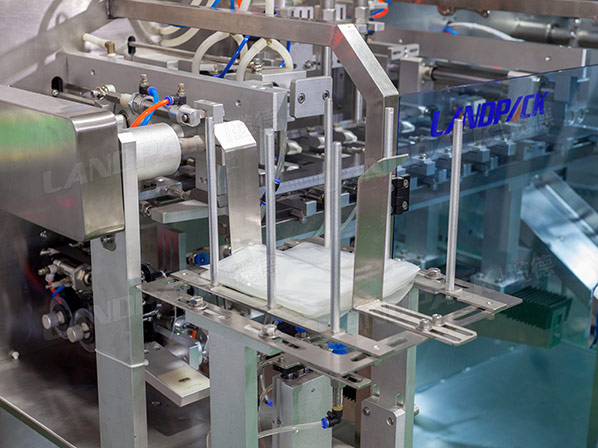

1.Vertical bag giving station

2.Ribbon coding

3.Opening bag

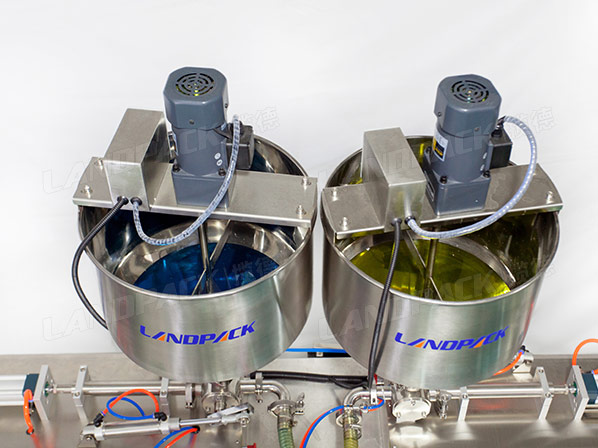

4.Double piston pump with Double filler

5.Filling different material into twin pack at the same time

6.Hot Sealing

7.Outlet
