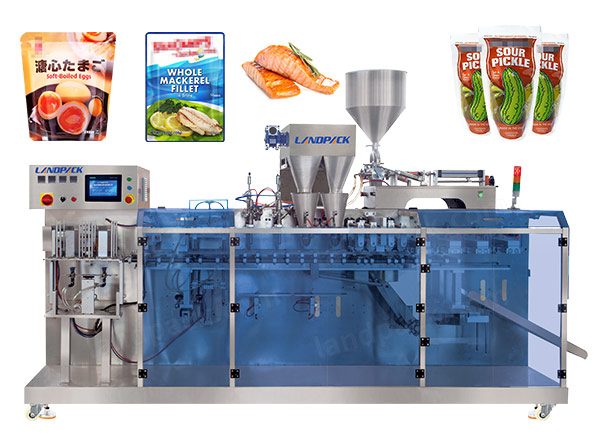

Duplex Horizontal Pouch Packing Machine For Premade Pouch

Application:

It’s widely used for packing pickled cucumbers, fruit mixes, soft-boiled eggs, chicken feet, cooked beans with sauce, curry rice, yogurt with fruit jam, custard cream, chocolate sauce, and sucking jelly. The machine’s dual filling system makes it perfect for mix-type products such as solids with sauce or paste.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The machine is compatible with various pre-made pouch, including stand-up pouch, flat pouches, zipper pouches, and spout pouches, suitable for both retail and ready-meal packaging. Optional features like air exhaust and hole punching further enhance the package’s shelf appeal and freshness.

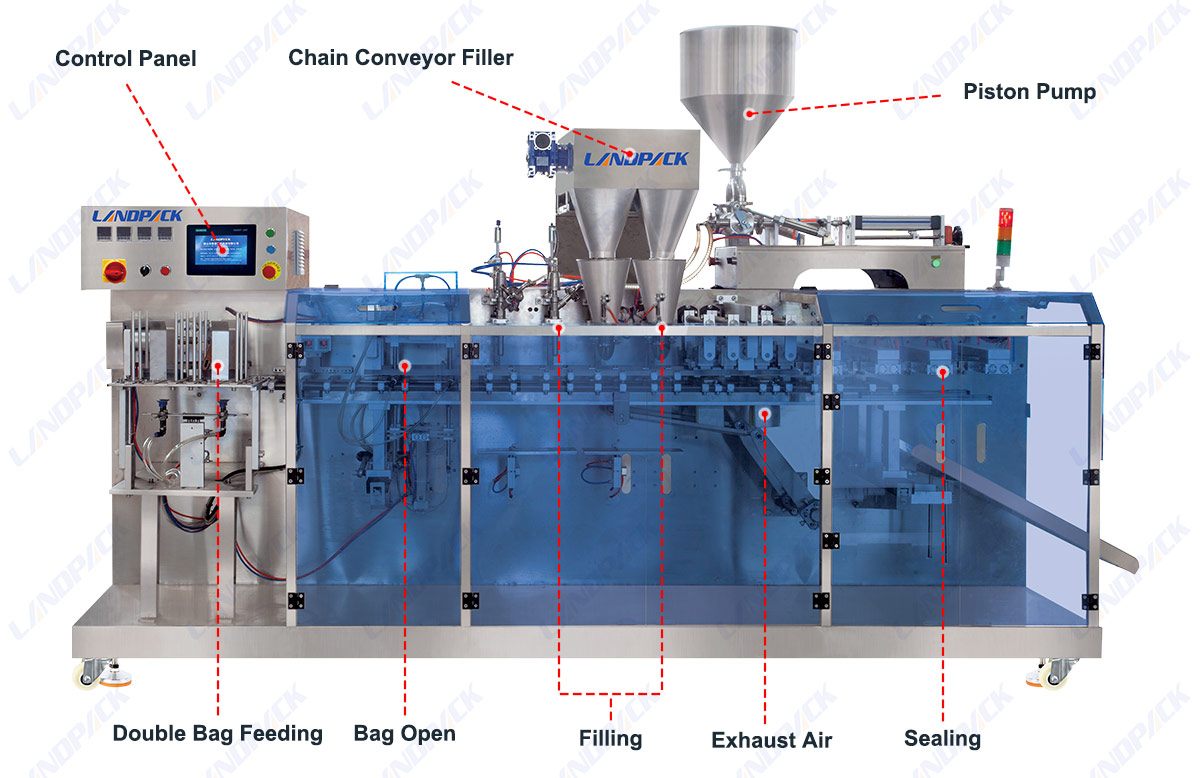

Machine Details:

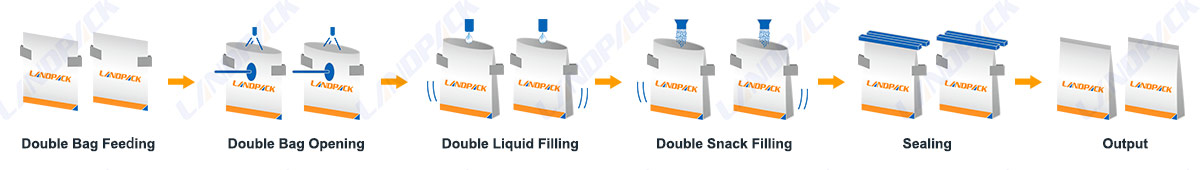

Working Process

1. Dual Chain Conveyor Feeding

2. Double Bag Feeding

3. Double Bag Opening

4. Dual Filling System (Liquid & Granule)

5. SUS304 Piston Pump Filling

6. Air Exhaust System

7. Heat Sealing & Discharge

Key Component

Specification

Item	Duplex Horizontal Pouch Packing Machine For Premade Pouch
Brand	Landpack
Model	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side sealing bag, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min	25-50bags/min	20-50bags/min	20-50bags/min
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW
Work Flow	1. Giving bag 2. Pick up the bag(coding) 3. Open the bag up and down 4. Filling 5. Heating sealing 6. Output of product
Dimensions	1750mm1285mm1360mm(LWH)		2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator

Features:

Machine Image	Benefits

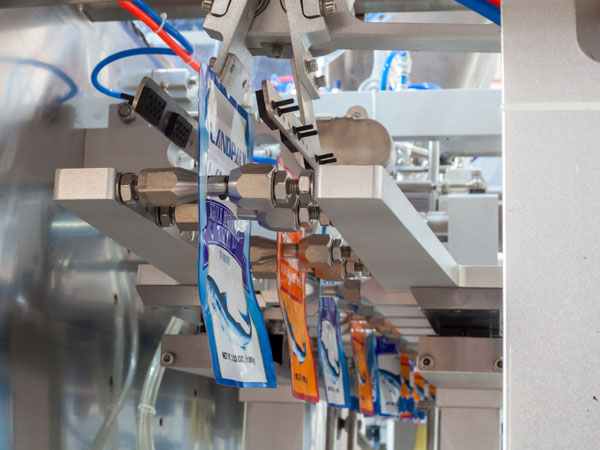

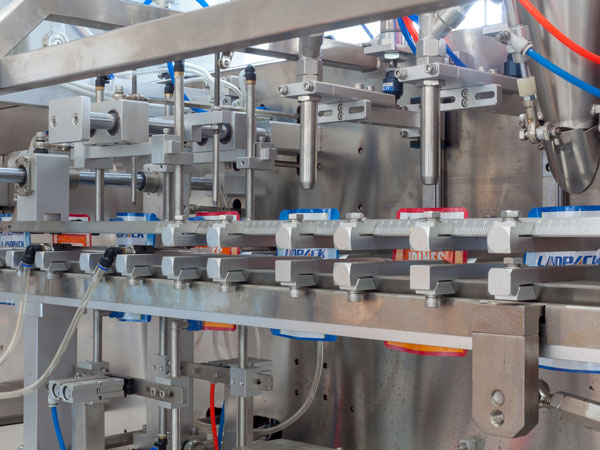

	Smart Bag Feeding System The machine uses a dual-track automatic bag feeding design, delivering doypacks smoothly into both working stations. It achieves continuous, efficient operation while reducing manual labor and ensuring precise bag positioning every cycle.

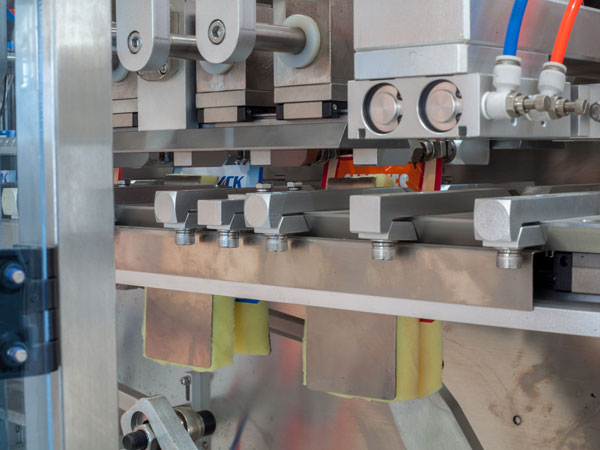

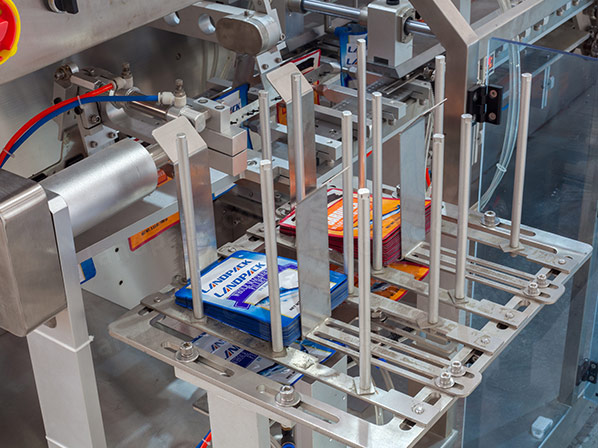

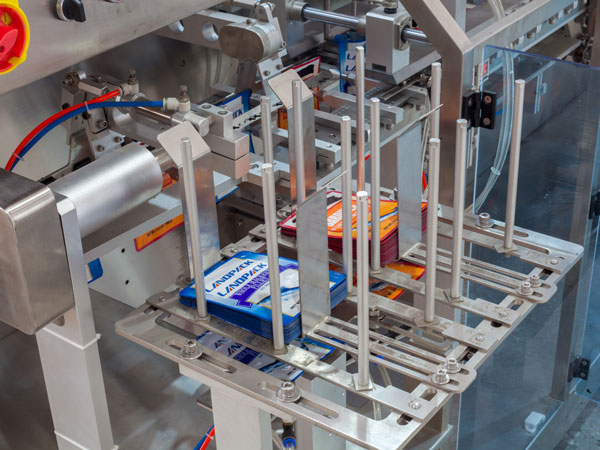

	Easy Bag Loading with Auto Press Device The bag-loading slot is wide and convenient, allowing quick placement of premade pouches. An automatic bag-pressing device keeps each pouch flat and secure, preventing slippage and ensuring stable movement during high-speed operation..
	Pressure Sensor for Smart Detection Equipped with an imported pressure sensing system, the machine can detect whether a pouch is correctly placed and filled. It automatically stops filling or sealing if no pouch is detected, avoiding product loss and saving packaging material.

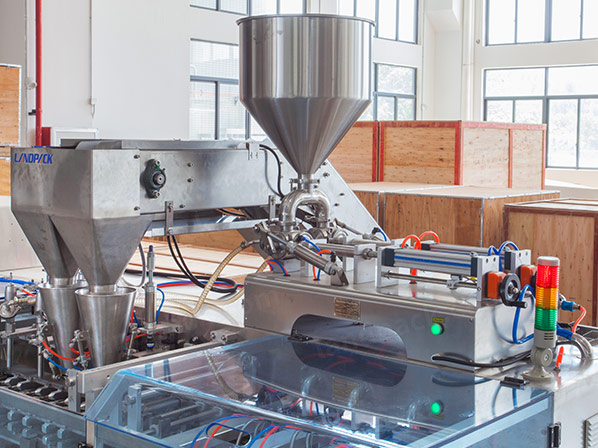

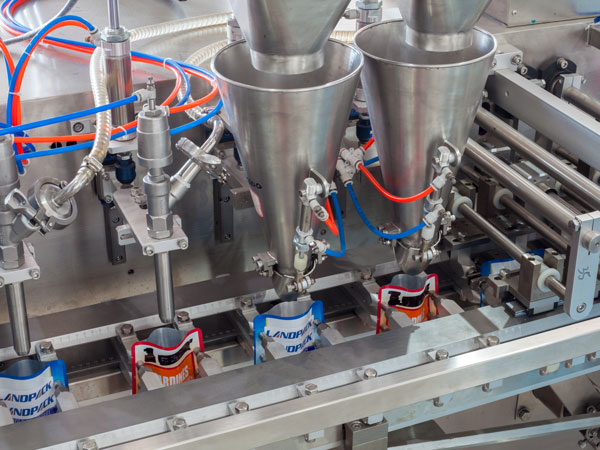

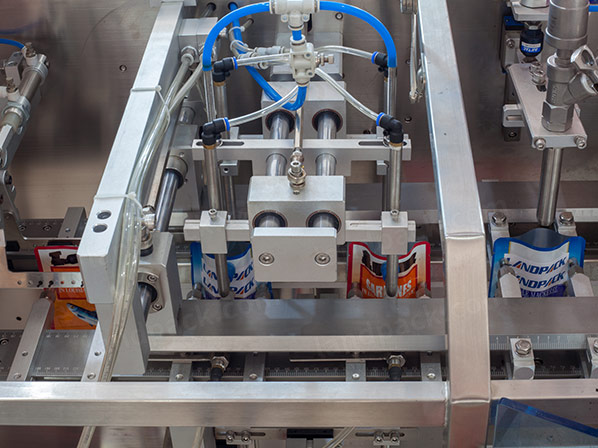

	Dual Filling Systems for Snacks & Sauces This model can be equipped with two customized filling systems—one for dry snacks or granules, and the other for sauces, pastes, or liquids.
	Air Exhaust Before Sealing Before sealing, the machine removes excess air from each pouch to maintain freshness and improve shelf life. This ensures the final package looks neat, compact, and suitable for high-quality retail presentation.

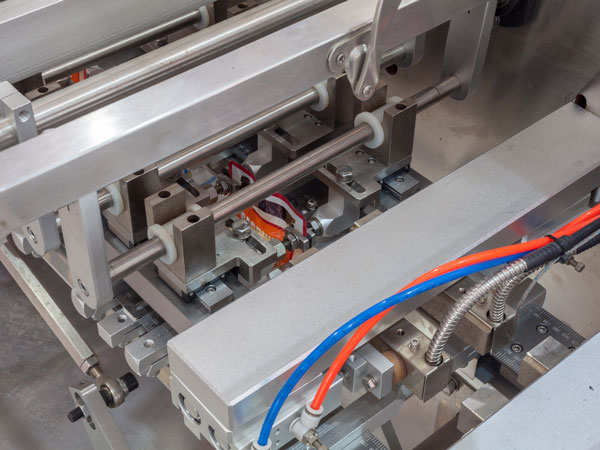

	Sealing, Coding & Punching Station The machine features temperature-controlled sealing jaws for firm, reliable sealing. Various optional systems such as date coding, inkjet printing, air exhaust, or hole punching can be added to meet different packaging demands.

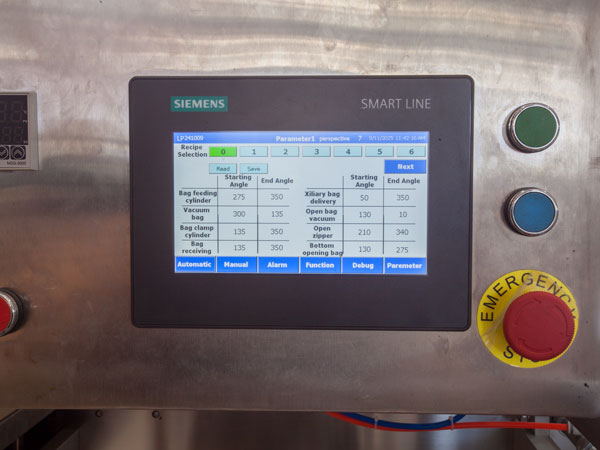

	Intelligent PLC Control System A PLC touchscreen interface makes operation simple and intuitive. Operators can easily adjust parameters, store product recipes, and monitor running status. Built-in safety alarms and protection devices ensure stable and safe performance.
