Full Automatic Premade Pouch Packing Machine

Application:

Rotary Premade Bag Packing Machine with different dosing (such as multihead weigher,auger filler,liquid filler etc.) can be suitable for the automatic packing for granular,powder,liquid,paste etc.Different kinds of product with the premade bag, stand-up zipper pouch and so on.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:
Application:
Samples:
Specification:
Combined Parts:
Inquiry
Features:

Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button.

Single shaft and the CAM design: packing speed faster; more stable operation ; maintenance easier and reduce defective rate.

Modular heating, temperature control more accurate, heating fault have alarm prompt.

Advanced design idea, reduce the material loss, ensure the stability of equipment operation, extend the operating life of the equipment.

Simple and convenient operation, adopts the advanced PLC + POD (touch screen) electric control system and man-machine interface.

Machine have wide packaging range , it can packaging : liquid, paste, granule, powder, solid various bagging materials only. According to the different material with different metering device.

Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quality and grade of the product.
Application:

Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.

Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer.

Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.

Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste.

Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.

Other bagging materials.

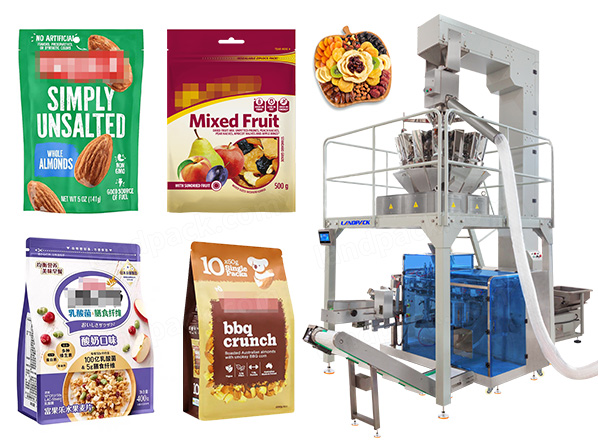

Samples:

Specification:

Model

LD-8200/LD-8250

Packing material

3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc

size

W:70-200/100-250

Filling range

10-1000g/20-2500g

Packing speed

40-60bag/min(speed is determined by the product filling quantity)

Average precision

≤ ±1%

Total power

2.5KW

Dimensions

1900mm X 1570mm X 1700mm(L*W*H)

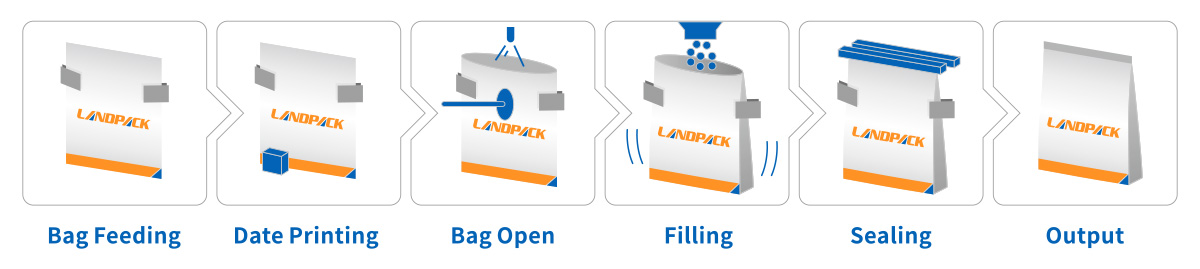

Work flow

giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product

Main standard parts

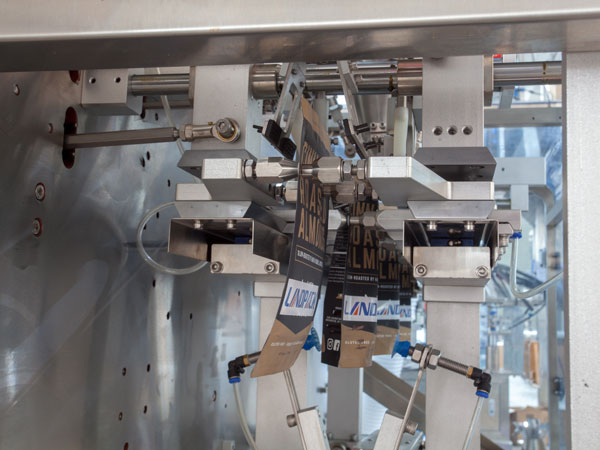

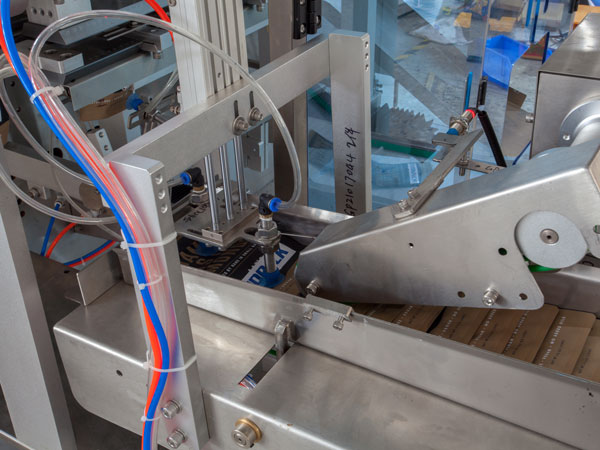

1. Code printer  2. PLC control system  3.Bag opening device  4. Vibration device  5.Cylinder  6.  Electromagnetic valve  7. Temperature controller  8.Vacuum pump  9. Inverter  10. Output system

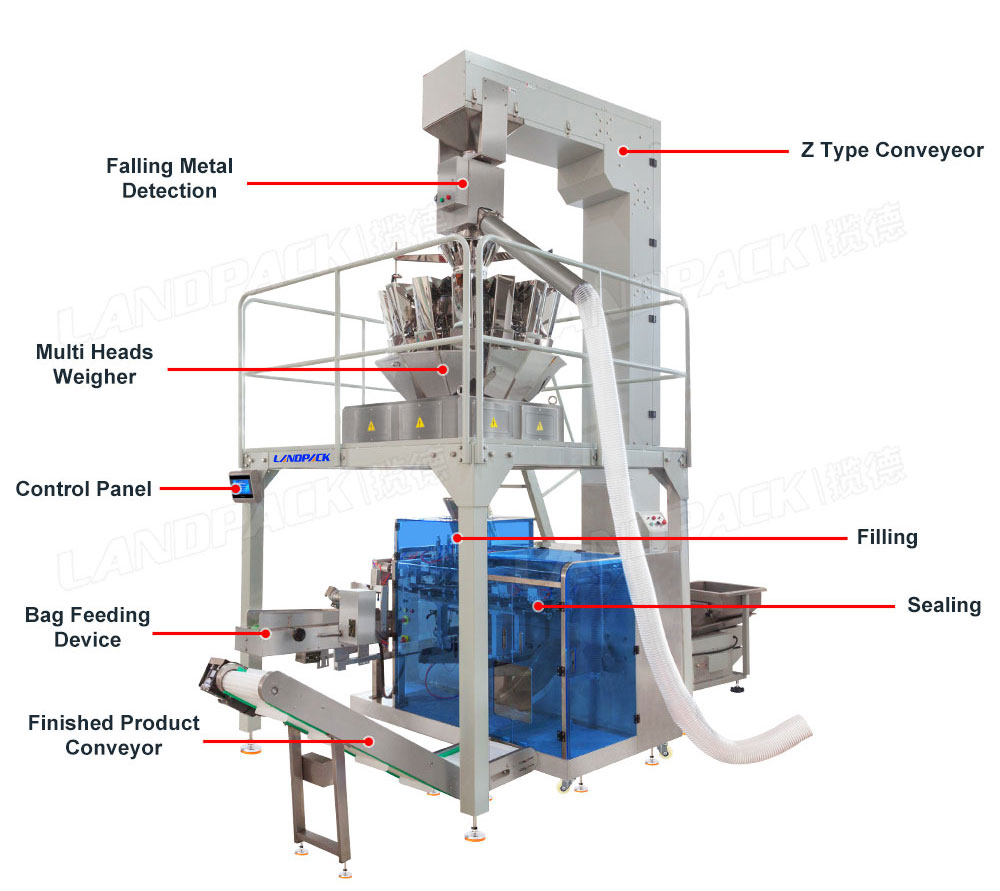

Combined Parts:

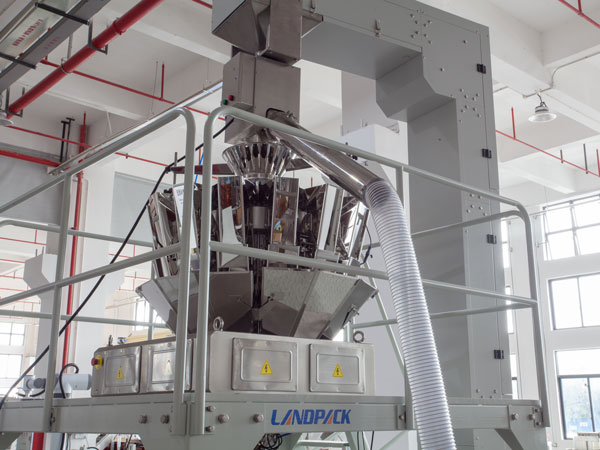

The elevator

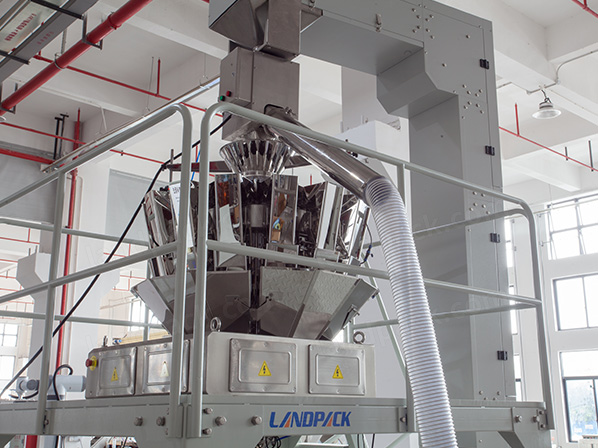

The dose and filling machine

The work platform

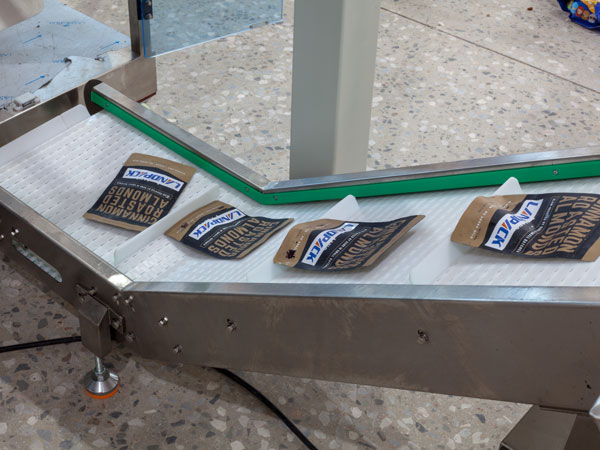

The finished product conveyor
