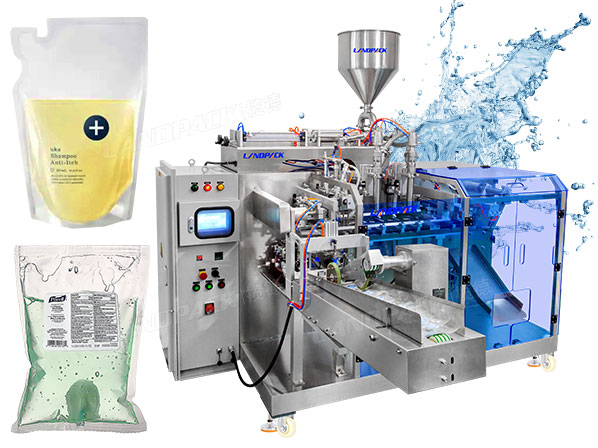

Automatic Liquid Horizontal Doypack Packing Machine With Explosion-Proof Device

Application:

This horizontal doypack packing machine is suitable for sauce, tomato sauce, olive oil, salad dressing, chili sauce, jam, peanut butter, chocolate sauce, shampoo, etc. Suitable Pouch: various premade pouches, and doypack, such as 3/4 side seal bags, stand-up bags, spout bags, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Samples:

Specification:

Working Process:

Features:

1.Horizontal bag loading device, the bag can hold a large number.

2.Double-piston metering pump, wide metering range.

3.Double feeding nozzles to increase the packaging speed.

Application:

This horizontal doypack packing machine is suitable for sauce, tomato sauce, olive oil, salad dressing, chili sauce, jam, peanut butter, chocolate sauce, shampoo, etc. Suitable Pouch: various premade pouches, and doypack, such as 3/4 side seal bags, stand-up bags, spout bags, etc.

It can adopt all type of doypack, stand up pouch, 3/4 side seal bag, spout bags, etc.

Samples:

horizontal pouch packing machine

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min(speed is determined by the product filling quantity)	25-50 bags/min(speed is determined by the product filling quantity)	20-50 bags/min (speed is determined by the product filling quantity)	20-50 bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag, 2. Pick up the bag(coding), 3.Open the bag up and down, 4.Filling, 5.Heating sealing, 6.Output of product
Dimensions	1750mm1285mm1360mm(LWH)		2140mm1366mm1360mm(LWH)	2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator

Working Process:

1.Explosion-proof elctrical box

2.Horizontal bag giving device

3.Date printer

4.Bag openner

5.Dual filling nozzle

6.Double sealing device

7.Outlet
