Automatic Robot Case Packer Palletizer Machine Packing System

Application:

This automated packing system integrates carton erecting, robotic case packing, sealing, palletizing, and pallet wrapping. Suitable for cartons, bottles, jars, cans, and pouches, It guarantees high efficacy, steady handling and safe packaging for a variety of industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

ThThe packing system combines carton erecting, robot case packing, sealing and palletizing, and pallet wrapping. It's ideal for beverage bottles, snack boxes bottles,
dairy cartons home products and pharmaceutical products, providing an efficient secondary packaging system, safe stacking and safe pallet transportation to meet large-scale production demands.

The packing system combines product film sealing and heat shrink wrapping, I-type seals on cartons, as a single procedure. It is ideal for bottles of water and instant noodles, cans of food items, cosmetic kits and cleaning equipment It offers a neat look with moisture-proofing as well as reliable sealing for secure logistical storage as well as attractive display.

Packing Type:

This automated packing system integrates carton erecting, robotic case packing, sealing, palletizing, and pallet wrapping. Suitable for cartons, bottles, jars, cans, and pouches, It guarantees high efficacy, steady handling and safe packaging for a variety of industries.

Machine Details:

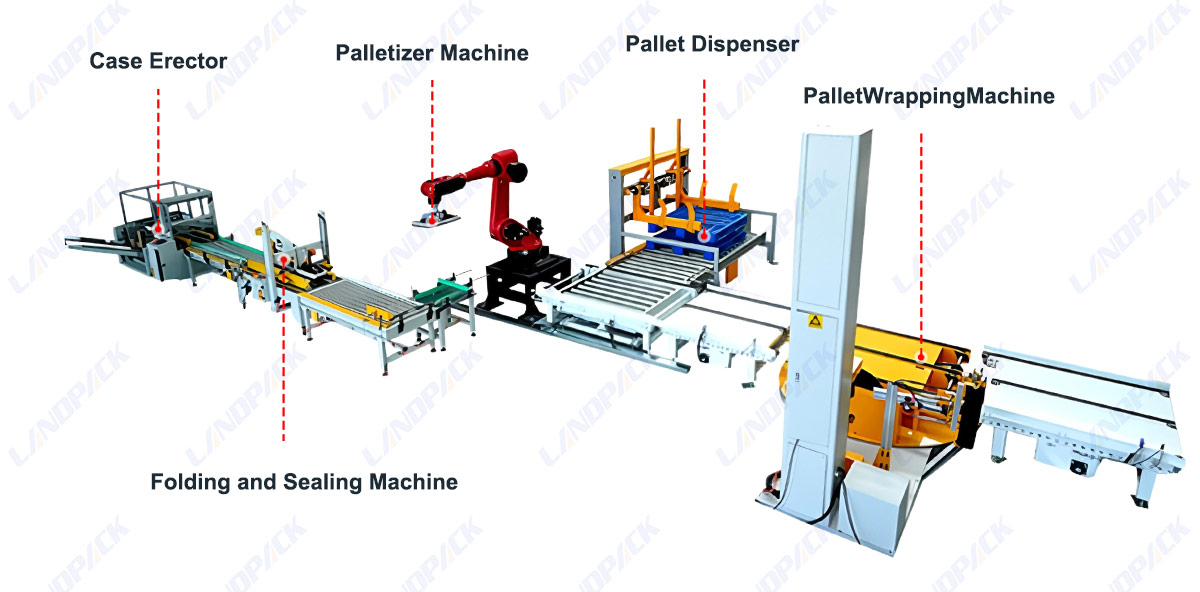

Working Process

1. Carton Erecting

2. Carton packing robot

3. Carton Top Sealing

4. Carton sides & corner sealing

6. Robot palletizer

7. Pallet wrapping

8. Finished Product Output

Specification

Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
palletizer machine
Palletizing Speed	17 cycles/minute
Payload Capacity	130 kg / 180 kg
Repeatability	±0.5 mm
Reach (Arm Span)	3,255 mm
Degrees of Freedom	4-axis
Mounting	Floor-mounted
Protection Rating	IP67 (standard); Optional IP69K for washdown
Stretch Wrapping
Pallet Size	L1200 × W1200 mm
Turntable Speed	Variable speed with soft start & stop function
Wrapping Height	1800 mm
Loading Weight	MP 303B: 2000 kg; MP 303A: 1000 kg
Pre-stretch Ratio	150%
Turntable Height	550 mm
Carriage Speed	3 m/minute
Cut Method	Heater-based cutting
Packing Speed	15–30 pallets/hour
Power	2.1 kW
Machine Voltage	3PH 380V, 50/60 Hz, 20A
Machine Weight	1800 kg
Control System	PLC programmable control
Working Method	Fully automatic, unmanned operation
Air Pressure	0.4–0.7 MPa

Features:

Machine Image	Benefits

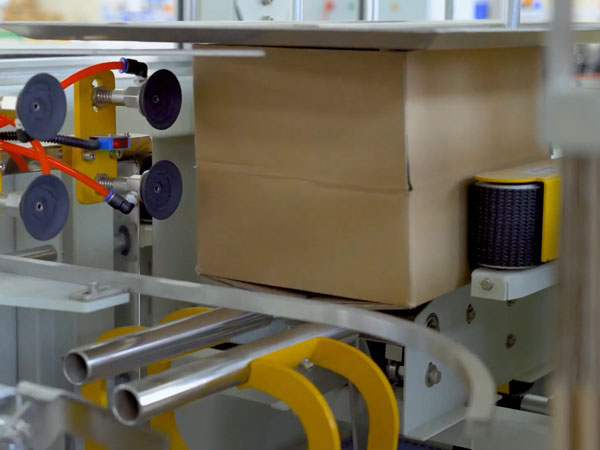

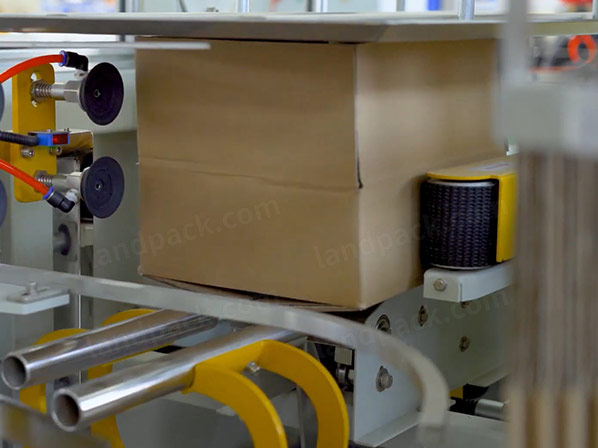

	Carton Erector The automatic opening of the carton erector is able to open and form flat boxes, sealing their bottoms with a secure seal to allow for safe loading. It guarantees consistent shapes for the cartons and supports the continuous operation and efficiently prepares the cartons to allow for further robotic packing.

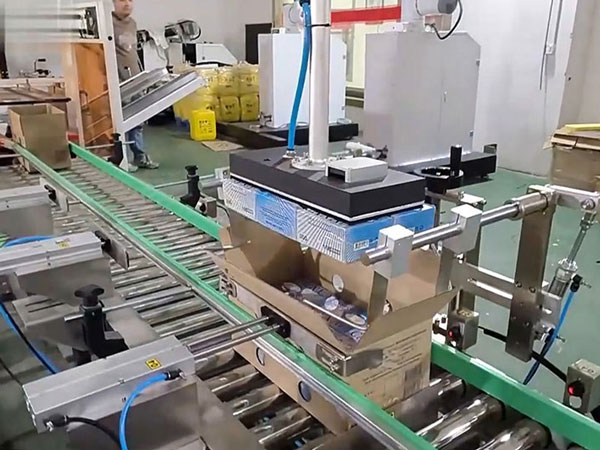

	Robotic Case Packer The case packer robot accurately selects and packs products in containers, while handling food boxes bottles, cosmetics or pharmaceuticals. The flexible grippers it uses and the programmed patterns increase effectiveness, speed up labor and can adapt to various carton sizes and packaging layouts.

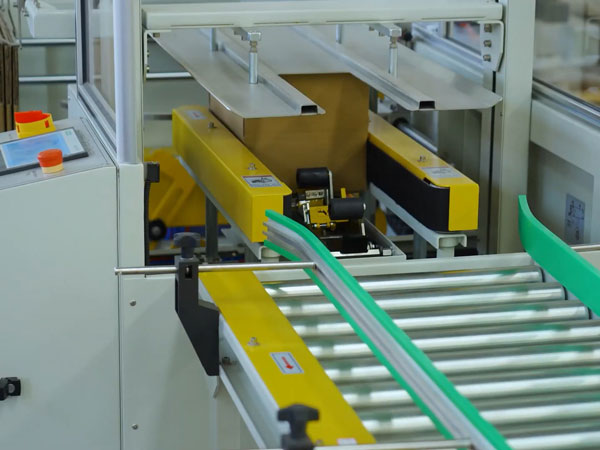

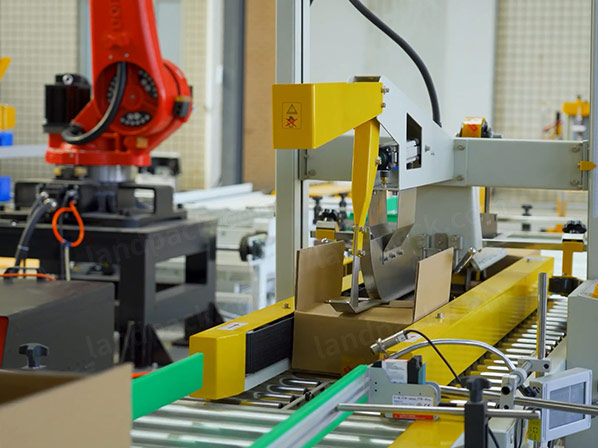

	Carton Sealer The automatic sealer of cartons applies the tape as well as hot melt glue making solid "Gong "-shaped seals. This process of sealing increases the toughness, prevents the opening of in the course of handling, and helps ensure that containers are secure throughout long-distance shipping and warehouse storage.

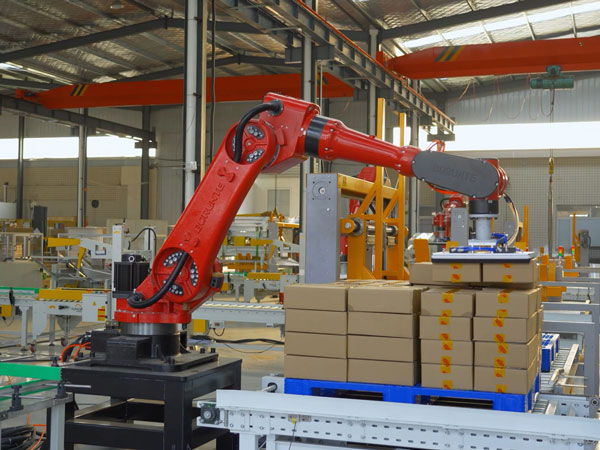

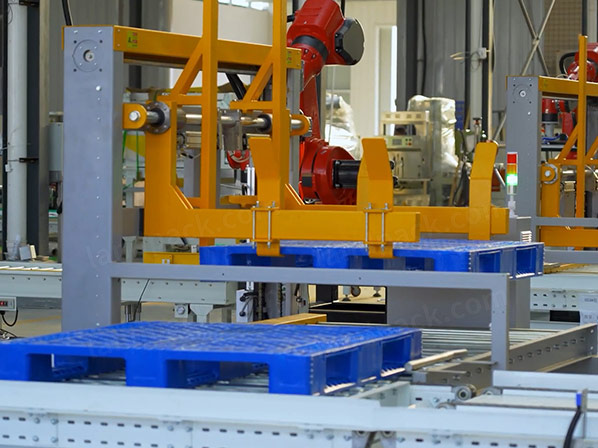

	Palletizing System The palletizing device stacks sealed containers carefully on pallets, according to pre-defined patterns. It improves stacking precision as well as enables higher storage density as well as facilitates smooth forklift handling of logistics processes within the food, beverage and other consumer goods sectors.
	Pallet Wrapping Machine The pallet wrapping machine wraps stretch film to the cartons that are stacked on pallets. This method stabilizes the load as well as protects them against moisture and dust and stops them from shifting when transporting, making sure that items arrive in a safe manner and stay unaltered throughout the entire distribution.
