Pouch Case Packing & Palletizing Machines

Pouch Case Packing & Palletizing Machines | Packing System

Description:

This packing system is widely used in liquids, powders, and granules in premade pouches and transfers them into cartons and pallets. Typical applications include sauces, healthcare supplements, snacks, grains, and detergent powders.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application(Bag & Specific material):

This premade pouch packaging line is designed to handle all major premade pouch types for automated case packing, including stand-up pouches, flat pouches, zipper pouches, gusset pouches, and spout pouches—creating a fully automatic packing solution

Wide Application Range

The horizontal premade pouch packaging system, integrated with Siemens PLC control, stainless-steel construction, and flexible dual-line configuration, allows the system to handle various products—liquid, powder, and granules:

Food Industry

• snacks, nuts, dried fruits, sauces, soup bases, spices, grains, cereals, instant food mixes.

Beverage & Nutrition

• protein powders, functional drink powders, premix blends, soluble beverages.

Chemical & Household Products

• detergents, fertilizers, powdered cleaners, desiccants, water-treatment granules.

Machine Details:

Working Process

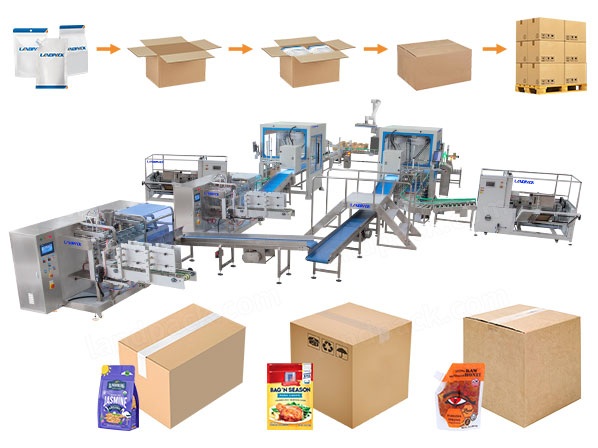

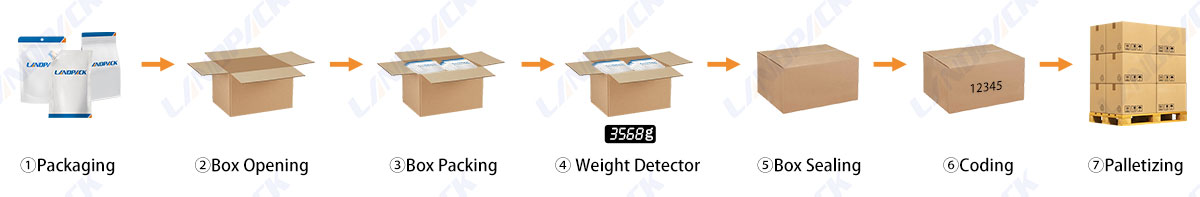

1. Bag Loading → 2. Bag Opening → 3. Material Feeding → 4. Pushing → 5. Sealing → 6. Finished Product Conveying → 7. Box Opening → 8. Box Packing→ 9. Weight Checker→ 10. Box Sealing→ 11. Inkjet Printer→ 12. Palletizing→ 13. Wrapping Machine

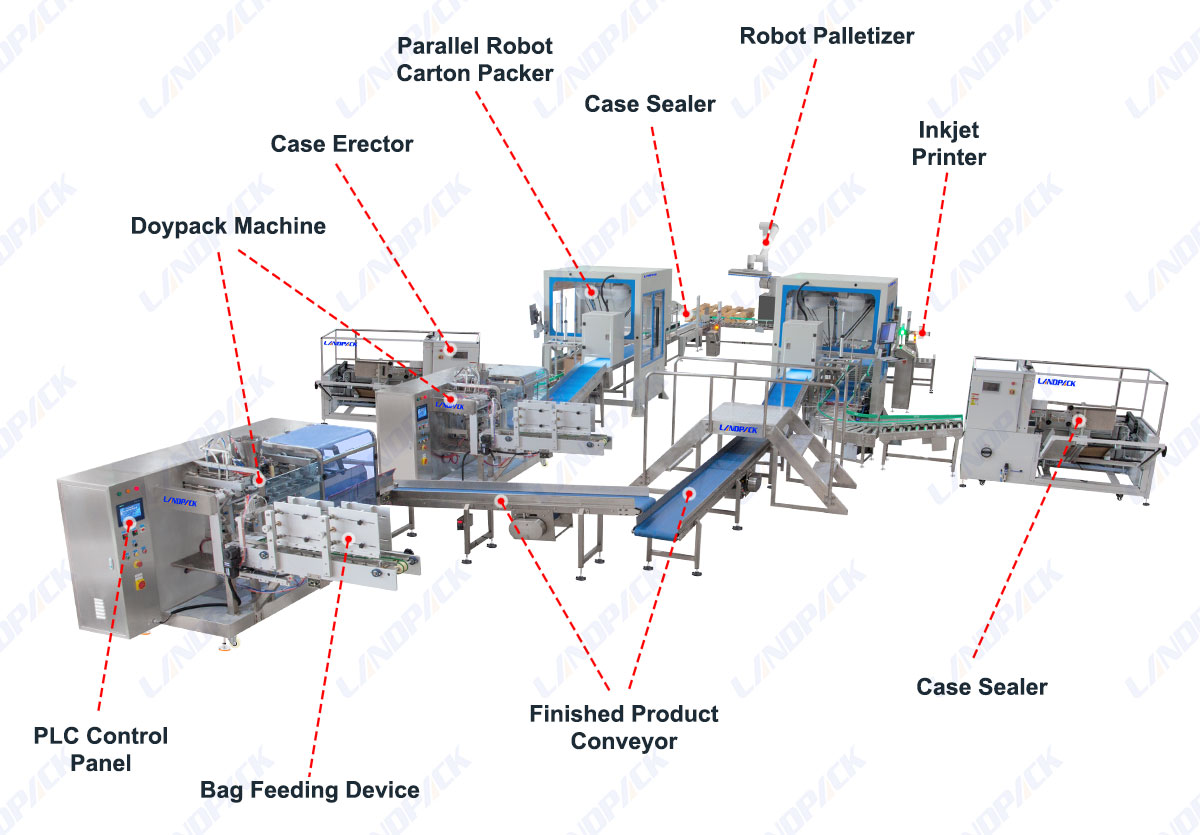

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Horizontal Premade Pouch Packing Machine
Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min (speed is determined by the product filling quantity)	25-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering, screw elevator

Coding Machine
Model	LD-TIP15
Resolution	1280*800
Language	17
Printing Rows	1-4 (57 dot),1-5(55 dot)
Dot Matrix	5,57,79,1012,1216,1824,24*32
Printing Contents	Date, time, batch number, serial number, lot number, bar code, QR code, logo, pattern, variable data, and text.
Speed	285m/min
Character Height	1.8-15mm
Printing Head to the Base	3m
Printing Distance(Printing head to the object)	<30mm (Printing head to the object)
Temperature and Humidity	5-45°C,30-90%
Power	220W
Voltage	200-240V,AC,50/60Hz
Size	370310510mm
Net Weight	23kg

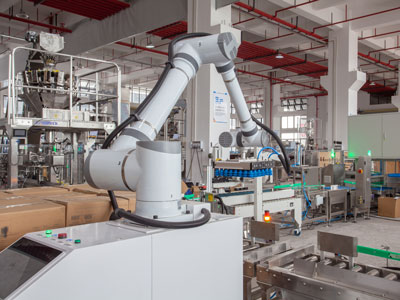

Automatic Parallel box packing workstation
Model	LD-D-800-4-1	LD-D-1200-4-1	LD-D-1600-4-1
Number of Axes	3+1	3+1	3+1
Arm Reach	800	1200	1600
Maximum Pickup Height	330	425	750
Rated Load	3	8	8
Maximum Load	5	15	15
Repeatability	R±0.1	R±0.1	R±0.1
Standard Cycle Time	240	200	185

Automatic case erecting machine
Model	LD-CF50H
Power supply	220V 50Hz
Maximum packing size	450400400mm
Minimum packing size	250200150mm
Working height	600mm
Sealing speed	6-10 boxes/min
Applicable tape	(W)48-75mm x(L)0-914mm
MechanicalDimensions	220020501450mm(LWH)
Machine weight	About 400kg

Automatic Carton sealing machine
Machine Model	LD-FXC50
Voltage	220V 50Hz
Power	400W
Case Size	(L)200-600mm(W)150-500mm(H)150-500mm
Tape Width	48-72mm
Conveying Speed	18m/min
Height of Worktable	600-750mm
Machine Size	About 17608901450mm(LWH)

Weight detector
Model	LD10	LD100	LD201	LD401	LD1000
Weight Range	10-99g	100-200g	201-400g	401-999g	1000-10000g
Rate	65bag/min	60bag/min	50bag/min	45bag/min	40bag/min
Precision	±0.5g				±1g
Minimum scale	0.1g
Predesign pattern	10kinds
Size	10506811260
Voltage	220V
Power	300W

Automatic Robot palletizer
Model	LD60-PL	LD120-PL	LD1800-PL
Arm Reach	2000mm	2400mm	3060mm
Maximum Load	60kg	120kg	180kg
Weight	500kg	1050kg	1120kg
Pallet Dimensions	1200*1200	1200*1200	1400*1400
Palletizing Speed	8 cycle/min	8 cycle/min	8 cycle/min

Stretch Wrapping
Pallet Size	L1200 × W1200 mm
Turntable Speed	Variable speed with soft start & stop function
Wrapping Height	1800 mm
Loading Weight	MP 303B: 2000 kg; MP 303A: 1000 kg
Pre-stretch Ratio	150%
Turntable Height	550 mm

Features:

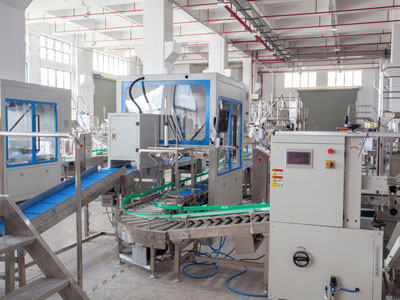

Machine Image	Features

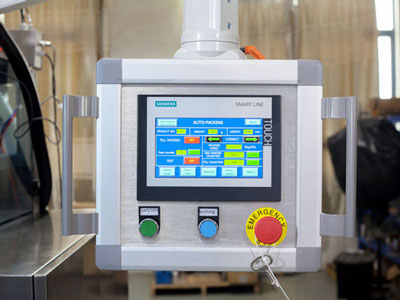

	Siemens PLC Intelligent Control: The entire system is managed by a Siemens PLC, ensuring stable performance, smart coordination between modules, and user-friendly operation.
	304 Stainless Steel Hygienic Structure All main contact parts and machine frames are made of SS304, offering excellent hygiene and meeting packing requirement.

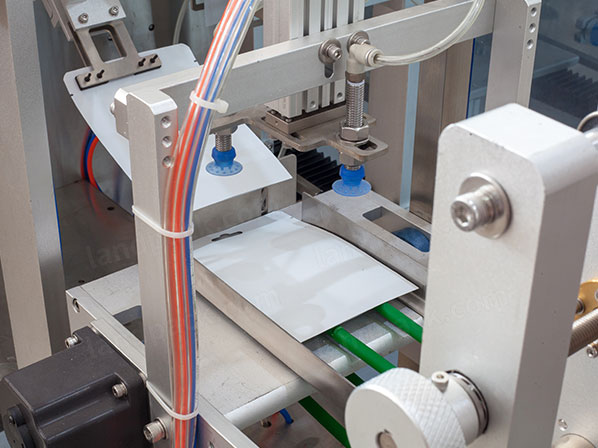

	Dual Doypack Machine for Different Products The two horizontal premade pouch packing machines run independently to handle different product types, enabling flexible production and higher overall capacity.

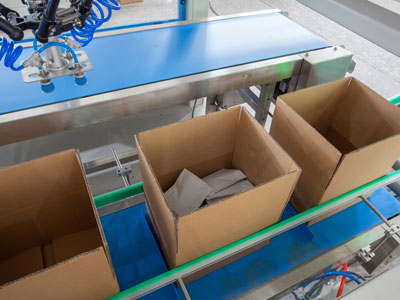

	Integrated Automatic Cartoning & Case Handling Automatic case erecting, carton packing, and case sealing systems allow seamless transfer from primary packaging to secondary packaging, realising full-line automation.

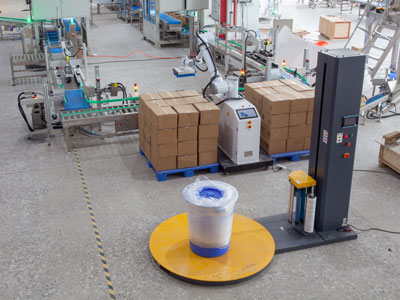

	Robotic Palletizer with Automatic Wrapping A robot palletizer and stretch wrapping machine streamline end-of-line processes, reducing labor intensity.
	Centralized Control Cabinet for Whole-Line Synchronization A unified control cabinet coordinates the doypack machines, conveyors, case packing system, checkweighers, and palletizer, ensuring quick troubleshooting.
