Automatic Pouch Counting Cartoning Case Packing System

Application:

This case packing system is designed for automatically counting and cartoning various such as bagged macaroni, penne, fusilli, biscuits, cookies, wafers, candy packs, chocolate bags, small bread packs, cake slices, snack mix pouches, instant coffee sachets.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This packing system is suitable for pillow pouches, back-sealing bags, 3-side and 4-side sealing sachets, stick packs, and gusseted bags filled into box/case / cartons.

Wide Application Range

This case packing system features servo-driven positioning, stable conveying, and precise counting before boxing, ensuring smooth transfer from pouch collection to box loading with minimal product damage.

Food Industry

• Bagged macaroni and pasta, instant noodles, biscuit and cookie packs, candy and chocolate pouches, snack foods, dried fruit bags

Daily Chemical & Personal Care

• Wet wipes, disposable masks, facial tissue packs, laundry detergent sachets, shampoo and shower gel pouches.

Pharmaceutical & Healthcare

• Nutritional supplement sachets, vitamin powder packs, oral rehydration salts, herbal granule packets

Machine Details:

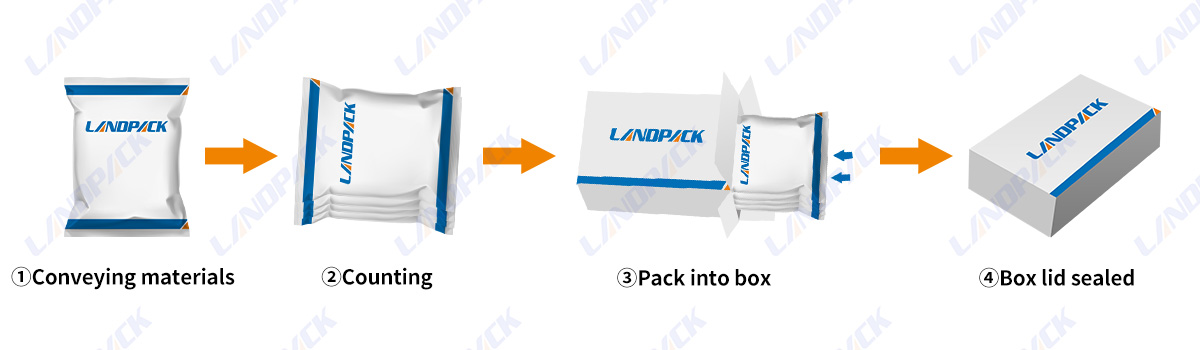

Working Process

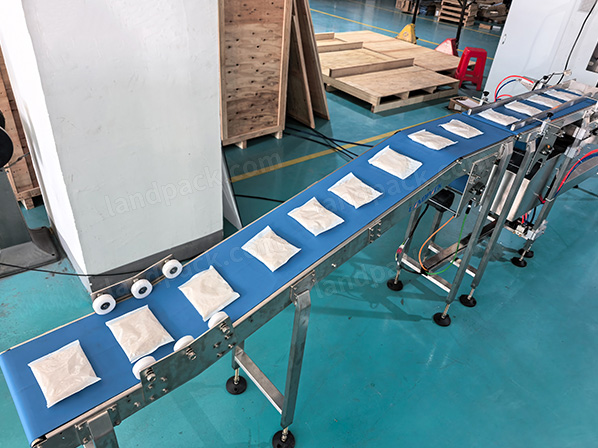

1. Conveying Bag Materials → 2. Counting → 3. Pack into Box → 4. Box Lid Sealed → 5. Output

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Model	LDDS-80	LDDS-100	LDDS-220
Packing Speed	40-60 boxes/min	30-50 boxes/min	30-50 boxes/min
Box Size	L: 60-220mm, W: 20-125mm, H: 15-60mm	L: 80-250mm, W: 100-160mm, H: 40-90mm	L: 150-320mm, W: 100-180mm, H: 90-110mm
Air Consumption	≥0.6 mpa, 20 m³/h
Power Supply	220V/380V, 50HZ
Machine Power	4.5KW	5.5KW	6.5KW

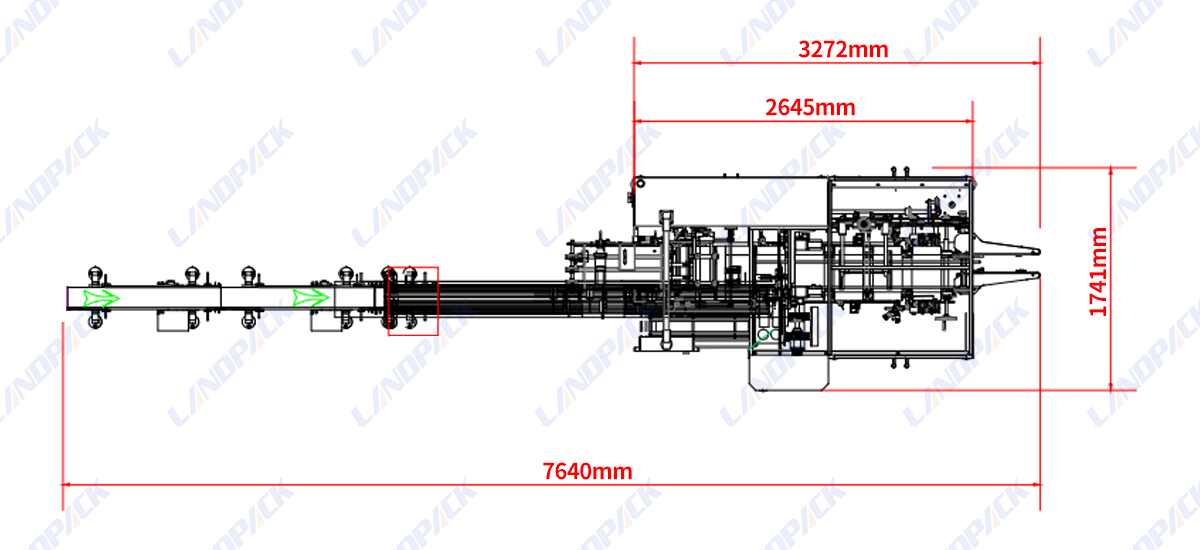

Machine Size	342513901771mm	345014501800mm	420016501850mm
Machine Weight	1200KG	1600KG	2500KG

Features:

Machine Image	Benefits
	Full Servo-Driven Cartoning System (12 Servos) The machine for cartoning uses an all-servo drive system, with 12 servo motors to provide precise motion control and steady high-speed performance. The machine can produce 60 to 70 cartons per minute, with a constant precision.

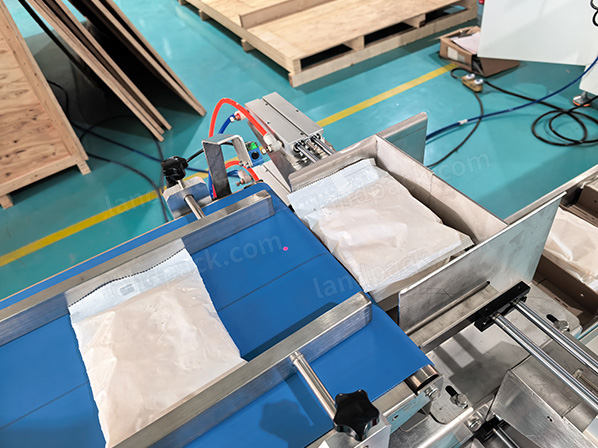

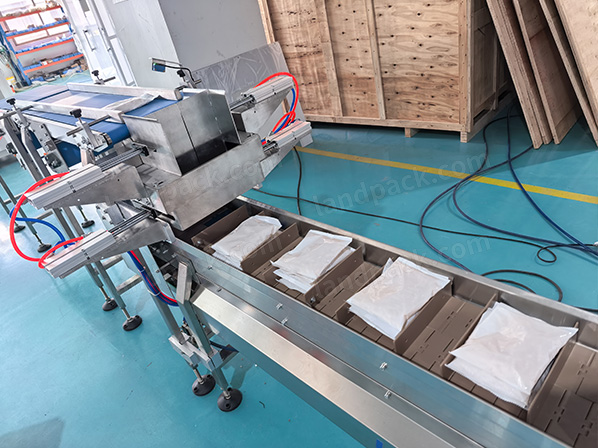

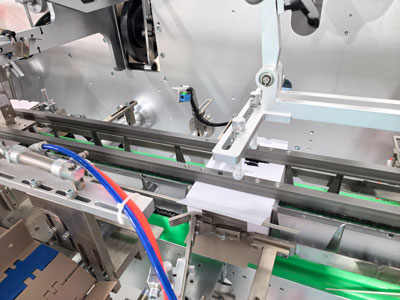

	Flexible Servo Counting for Inner Packs The servo-controlled conveyor for counting allows for a flexible adjustment of the amount of bags for pasta per container. This makes it simple to switch between various packs without making mechanical adjustments which improves flexibility in production.

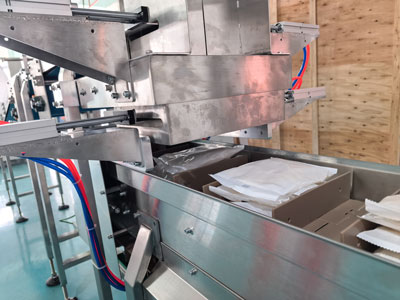

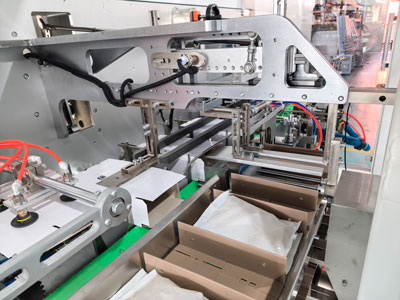

	Stable Carton Picking & Opening A suction nozzle pneumatic system is used to collect and open cartons easily. This guarantees a stable carton formation with a low rate of failure even in constant high-speed operations.
	Automatic Folding and Sealing Simple Adjustment The machine automates the process of packing and seal. The adjustments to the size of the carton are easy and quick, due to servo positioning, making changeover and operation simpler for the user.

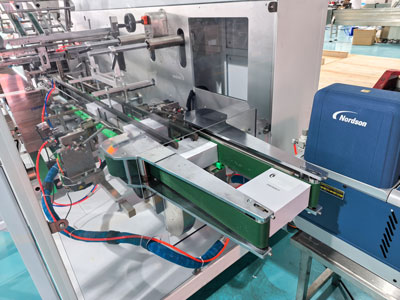

	Nordson Glue System for Reliable Sealing With a US-imported Nordson adhesive system the machine offers an adhesive that is stable, with solid sealing performance, and a long-lasting service life that ensures a secure and clean packaging.
