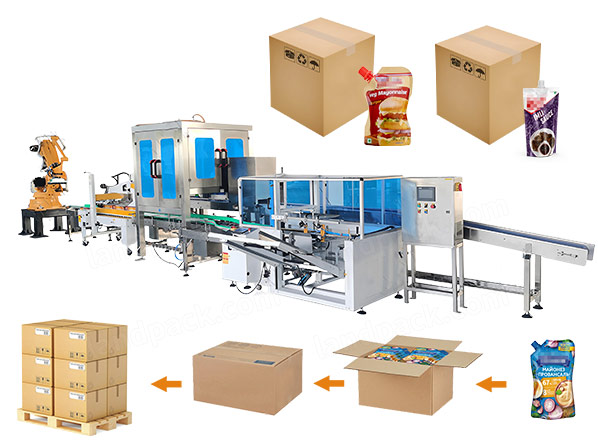

Fully Automatic Premade Pouch Robot Case Packer With Palletizer Machine

Application:

This Automatic Premade Pouch Doypack Case Packing System is widely applied in liquid and paste product industries. It is suitable for bottles, jars, or pouches filled with sauces, ketchup, mayonnaise, peanut butter, honey, edible oils, fruit jams, yogurt, and beverage concentrates.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

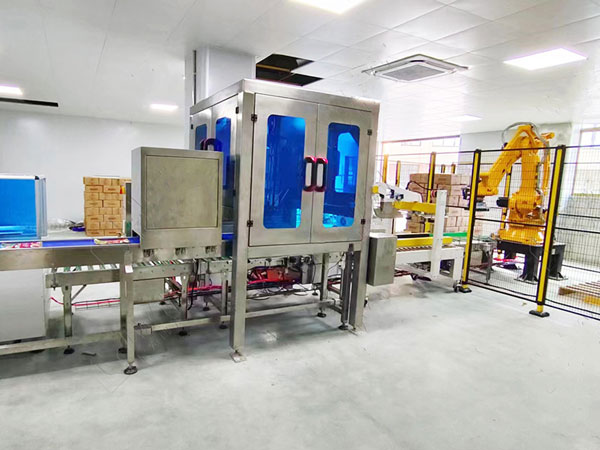

The packaging line that is automated for pouches combines the erecting of cartons as well as robotic pouch loading seal, palletizing,
and sealing. The line is specifically designed for stand-up zippered and spouted pouches it provides an efficient packing process,
safe transportation and a high level of reliability throughout the condiment, food and dairy industries.

This packing system for bottle case packing incorporates carton erecting, robotic sealing, packing and palletizing. Ideal for bottles Jars Tin cans,
as well as containers made of plastic,this system provides accuracy, safety and efficiency to the dairy, food nutrition, beverage, and food industries.

Packing Type:

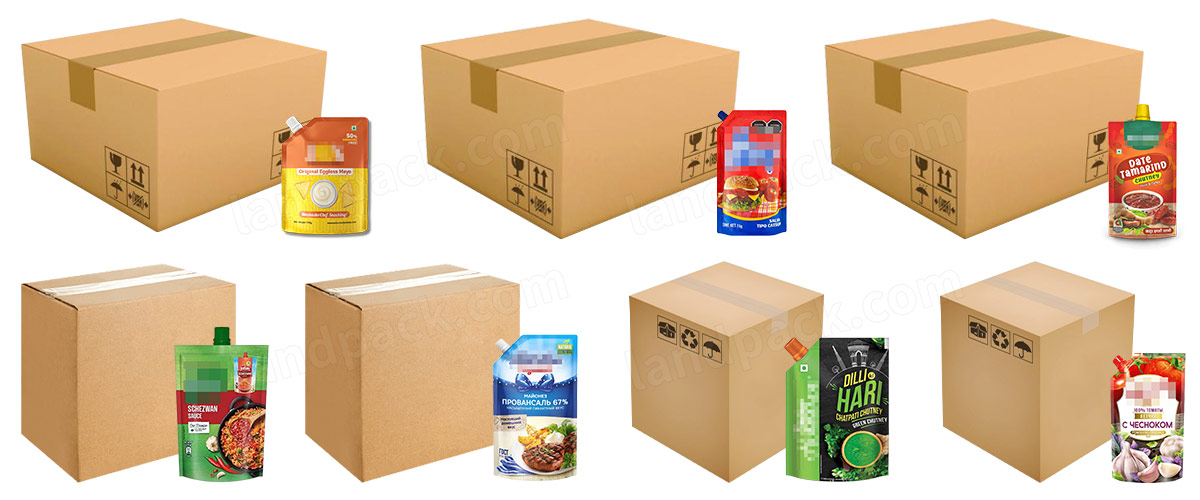

The system supports diverse packaging types including glass bottles, plastic bottles, jars, stand-up pouches, spouted pouches, packing into carton and palletizing.

Machine Details:

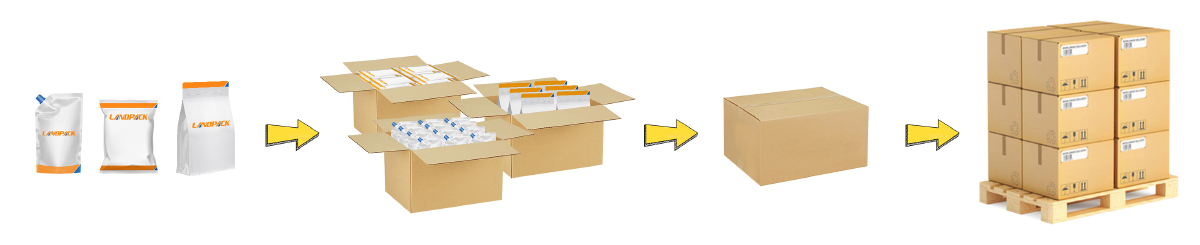

Working Process

1. Automatic Premade Pouch feeding

2. Case Erecting

3. Robotic Pick & Place

4. Case Sealing

5. Palletizing

Specification

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG

Features:

Machine Image	Benefits

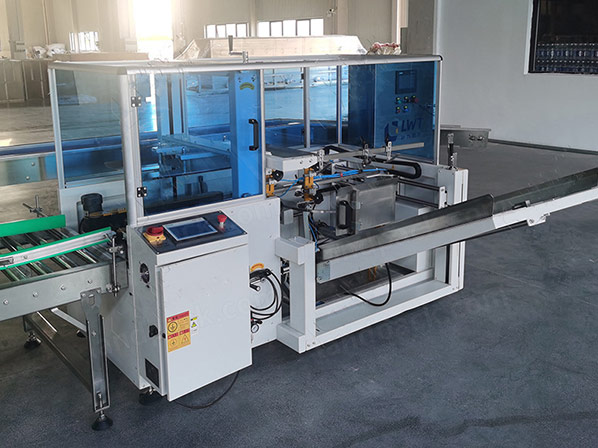

	Carton Erector The machine automatically picks it up, opens and creates flat cartons from magazines then folds down the bottom flaps and seals them using glue or tape. It ensures quick uniform and reliable carton making which reduces manual labor while improving the efficiency of packaging.

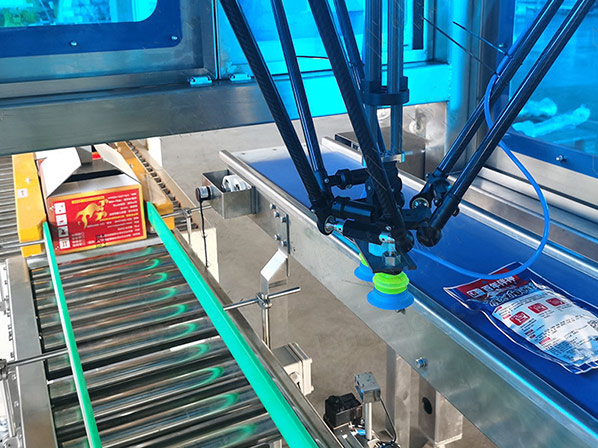

	Case Packing Robot The case packer robotic utilizes a multi-axis arm as well as custom grippers that precisely pick products off conveyors and pack them in cartons. It can accommodate a variety of layouts, handles bottles bags or boxes and provides speedy, precise packing.

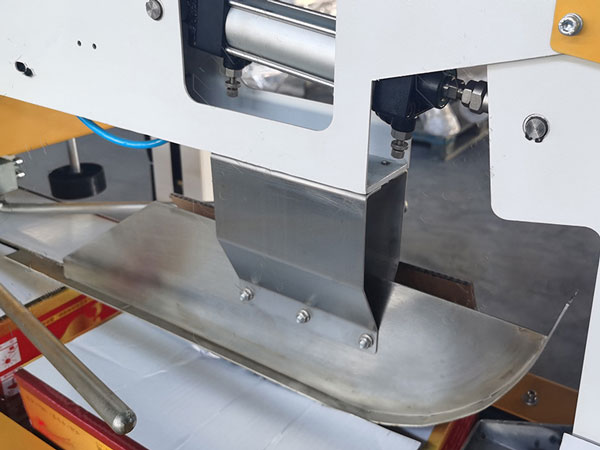

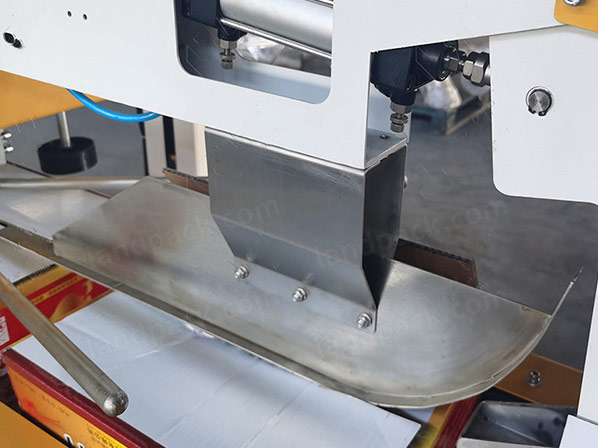

	Case Sealer This case sealer folds automatically the carton's top flaps and then apply sticky tape and hot melt glue. With adjustable guide rails, as well as solid head sealers, the case provides clean, safe packaging that is that is suitable for different sizes of cartons that are in continuous production.
	Palletizer The palletizer organizes sealed cartons into pre-defined patterns and stacks them on pallets. With conveyors, layer-forming systems and safety sensors, it ensures stable stacking and maximizes storage space and helps reduce manual handling.
