Fully Automatic Robotic Case Erector and Sealer Packing System

Application:

The packing system is widely used in the beverage, food and everyday product packing. It's ideal for the packaging of bottles of juices, milk powder bottles Instant noodles, biscuit boxes cosmetic kits, as well as electronic products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

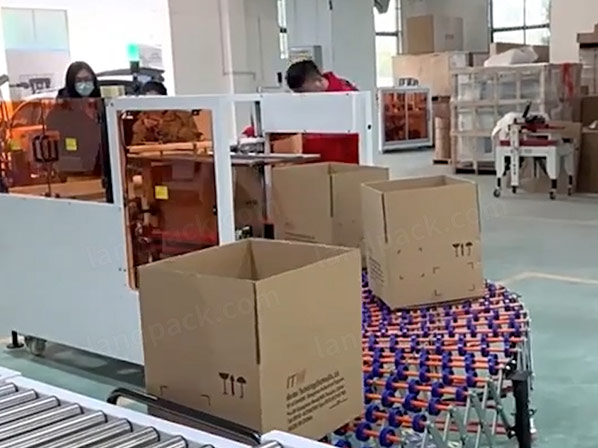

Video:

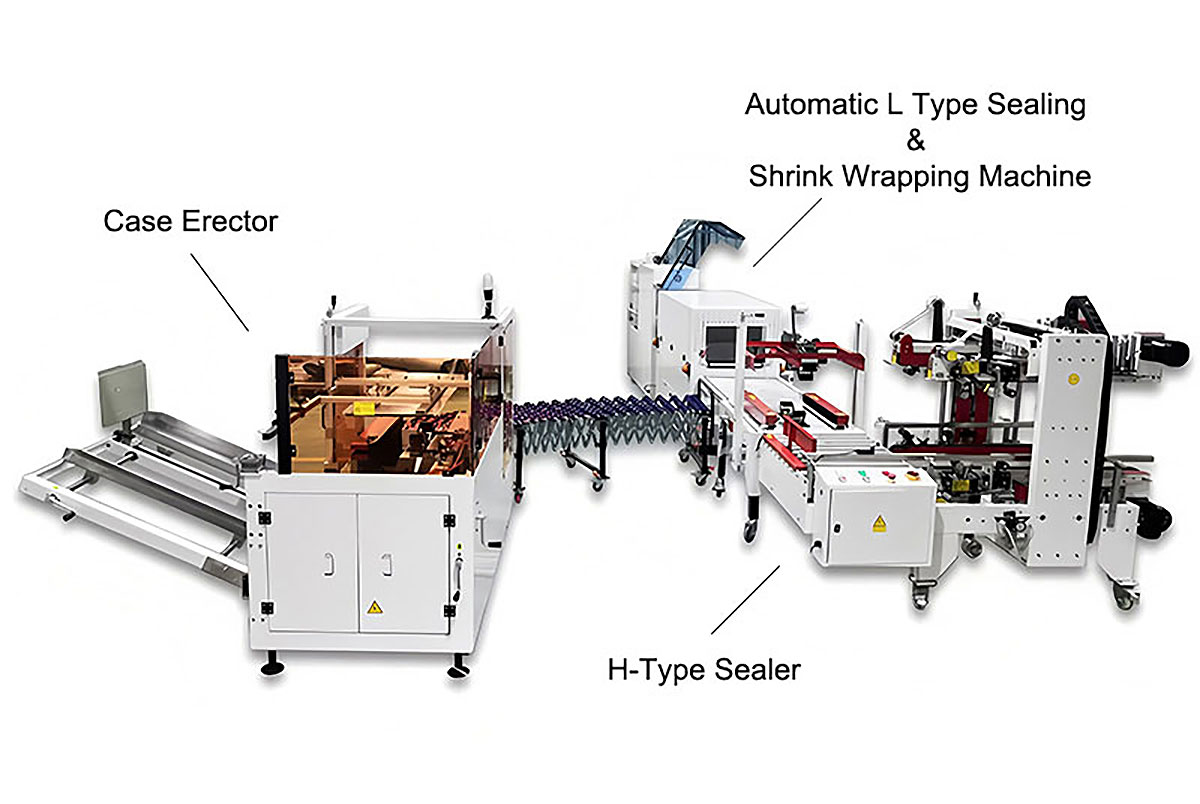

This packing system combines carton erecting, product loading with shrink wrap, as well as I-type sealing of the carton. Perfect for water bottles, biscuit containers,
quick noodles packages, milk powder bottles as well as cosmetic set-ups It ensures a neat and tidy appearance, water-proofing as well as secure transportation across beverages, food and everyday goods sectors.

This packing system combines carton erecting and case packing robot, and sealing. It is suitable for juice boxes and snack boxes, protein bars as well as electronic equipment that provide solid sealing, sturdy carton reinforcement and seamless logistics management, increasing effectiveness and safety of massive-scale packaging processes.

Packing Type:

This packing system is made to shrink wrap as well as carton erecting and sealing to ensure that items are safe and are easy to carry. It's widely used for packaging processes like sauce and juice cartoning biscuit cartons instant noodles, the cartoning of milk powder bottles cosmetics sets, as well as electronic accessories packaging.

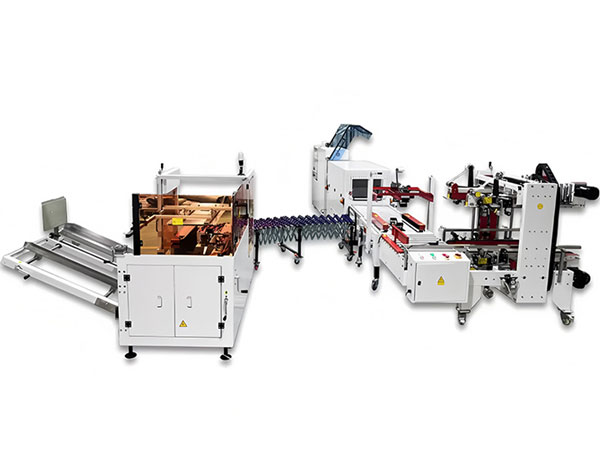

Machine Details:

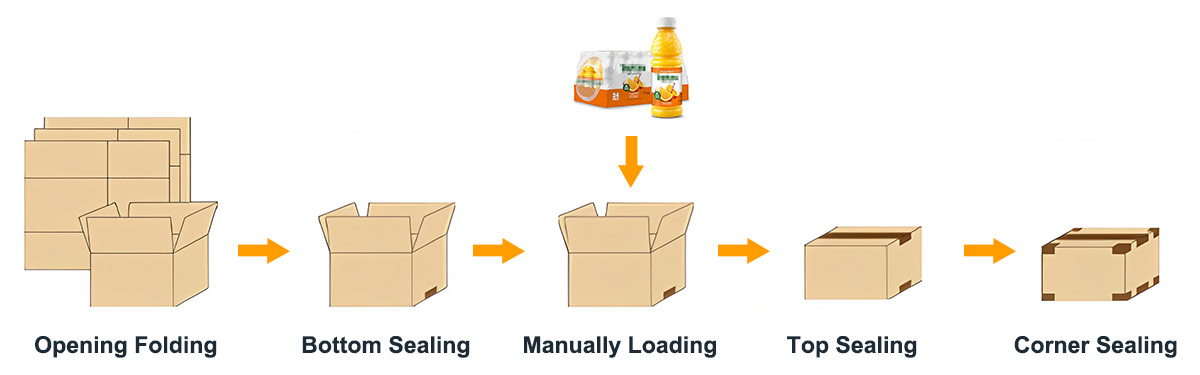

Working Process

1. Carton Erecting

2. Manual Product Loading

3. Carton Top Sealing

4. Carton sides & corner sealing

5. Finished Product Output

Specification

L type sealing cutting machine
Power Supply	AC 220V 1PH 60Hz
Power	1.8KW
Max. Packing Size	L＜500mm; W＜430mm; H＜130mm
Sealing Size	L550*W450mm
Table Height	800mm
Packing Speed	15-30pcs/min
Air Source	6kgf/c㎡
Shrink Film	POF
Film Size	(W)≤550mm;(D)≤250mm;(G)≤35KG
Sealing Type	L type full closed
Machine Size	(L)1800×(W)800×(H)1600mm
Package Size	(L)1850×(W)920×(H)1620mm
G./N. Weight	390/320kg
Heat shrink machine
Power Supply	AC 220/380V 3PH 50/60 Hz
Power	12KW
Table Height	800mm
Conveying Load	30KG
Conveyor Speed	1-15m/min
Tunnel Size	L1500×W450×H220mm
Overall Dimensions	L1910×W700×H1320mm
Package Size	L1960×W850×H1470mm
G./N. Weight	G./N. Weight
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Carton Box Case Sealer
Voltage	220V/380V, 50HZ/60HZ
Table height	600-750mm
Tape	W: 48-75mm
Speed	480*600 cartons/h
Carton size	L: 320-500W: 180-500H: 180-500mm
Machine weight	110kg+350kg
Machine size	191011501400

Features:

Machine Image	Benefits

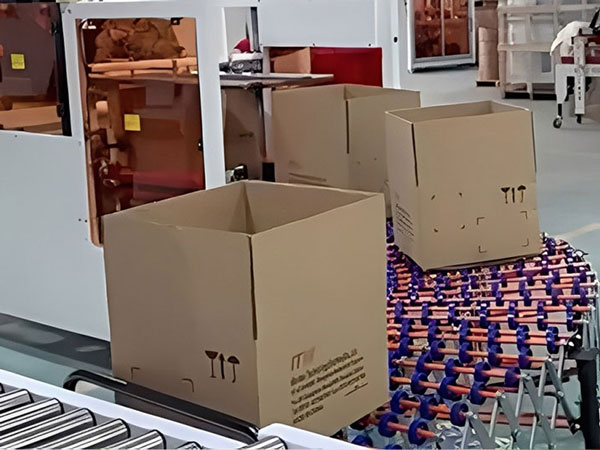

	Carton Erector The automatic cartoner opens then forms and seals the bottoms of the carton, which ensures a consistent design and strength. It increases efficiency, cuts down on work, and makes boxes for the smooth packing of products at the factory.
	Carton Packing System Products are manually or automatically packed into boxes and arranged. This system can handle a diverse assortment of products, which include drinks, food items, electronics, chemicals and more that ensure accuracy and efficient packaging.

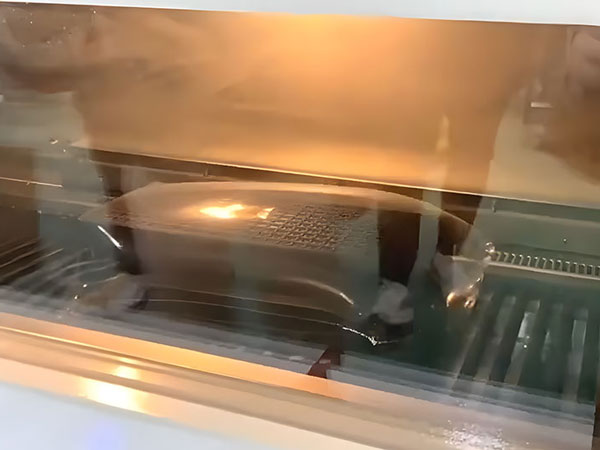

	Shrink Wrapping Machine This machine covers the products using shrink film, and goes through a heating tunnel. The film will tightly fit the product and provides dust-proof and moisture-proofing protection, while also improving the appearance of your product and facilitating transport.

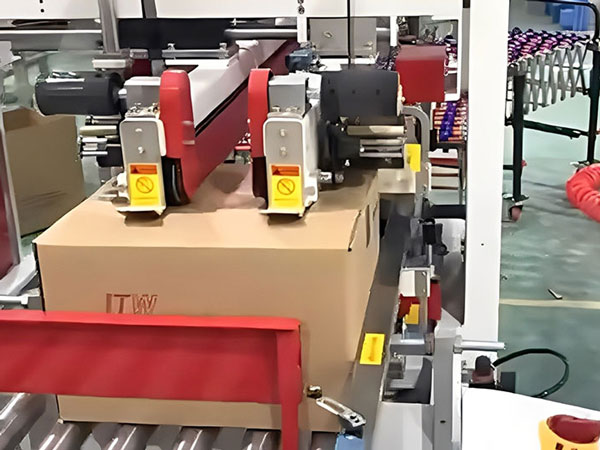

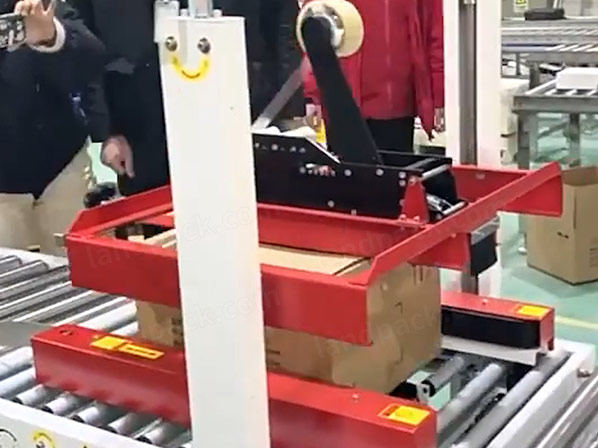

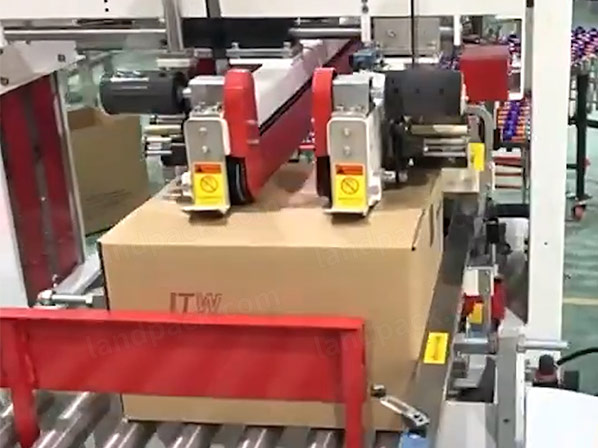

	I-Type Carton Sealer The I-type sealer for cartons utilizes a strong tape seal at the bottom and top, creating a "工 " shape. The design makes sure that the containers are sealed tightly, secured for stacking, and durable during long-distance shipping or export packing.
