Robot Case Packer | Automatic Packing Systems

Application:

It is widely applied in the food industry, packing chocolate bars, biscuits, snack boxes, tea boxes, and instant noodles. In the dairy and nutrition industry, it is suitable for milk powder boxes, protein bars, and nutritional supplements. For the pharmaceutical and healthcare industry, the packing system efficiently processes medicine boxes, health supplement cartons, and medical device kits.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

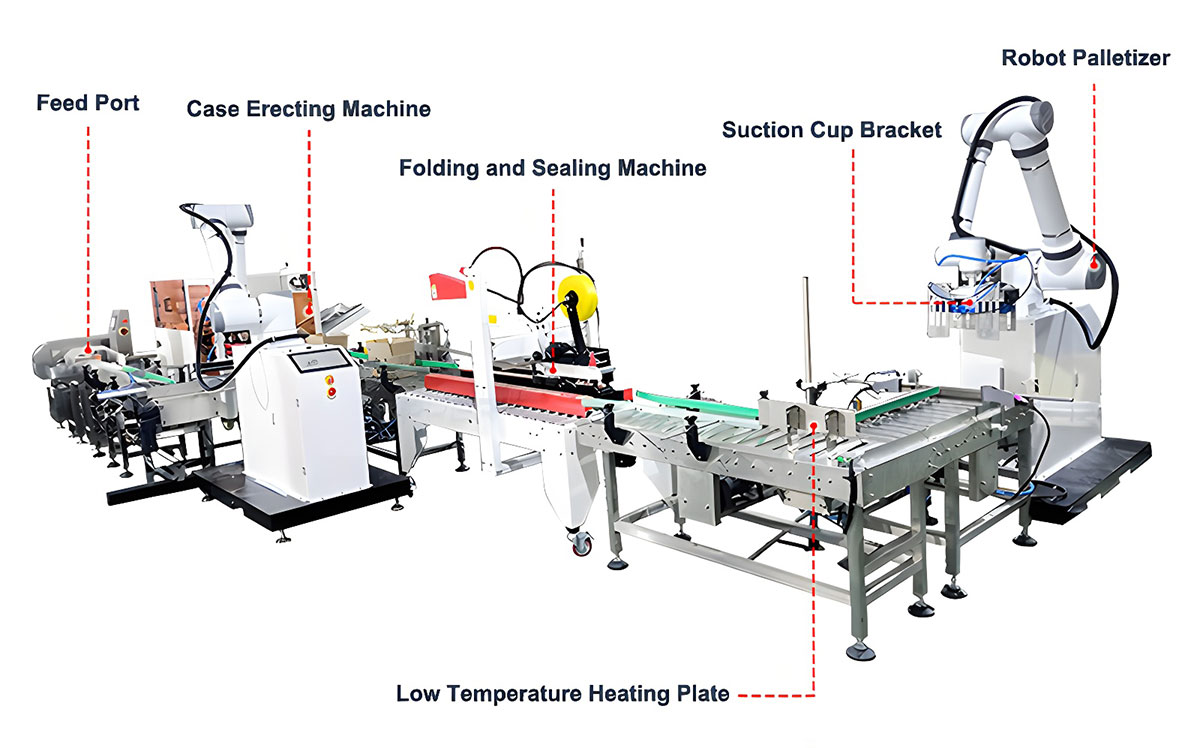

This packing system integrates carton erecting, metal detection, counting, robotic case erector, sealing and palletizing into one convenient system for
boxed foods, snacks, dairy and pharmaceuticals. Featuring safety, accuracy and efficiency; its use guarantees consistent large-scale packaging performance across various industries.

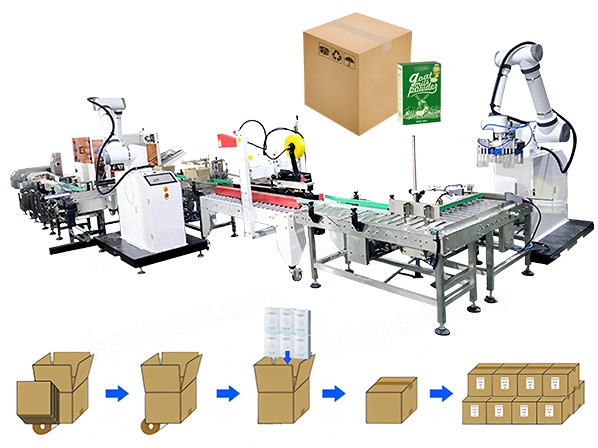

This Delta robot case packing system integrates carton erecting, parallel robot loading, sealing and palletizing as part of automatic packing systems.
Its flexible product handling provides flexible product handling along with precision packaging performance for fast throughput, improving automated packaging efficiency and reliability.

Packing Type:

This packing system is suitable for loading boxed products from different industries such as chocolate boxes, biscuit boxes, snack packs, tea boxes, instant noodle boxes, milk powder boxes, protein bar boxes, and pharmaceutical boxes into cartons.

Machine Details:

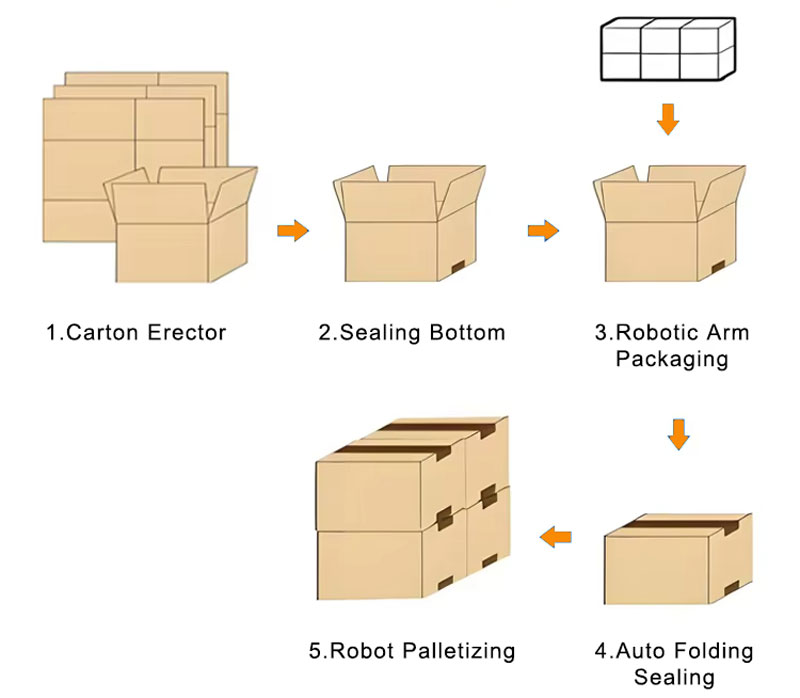

Working Process

1. Feeding Boxed Product

2. Metal Detecting

3. Accumulating Boxed Product

4. Carton erecting

5. Robot packing

6. Carton sealing

7. Palletizing

Specification

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG

Features:

Machine Image	Benefits

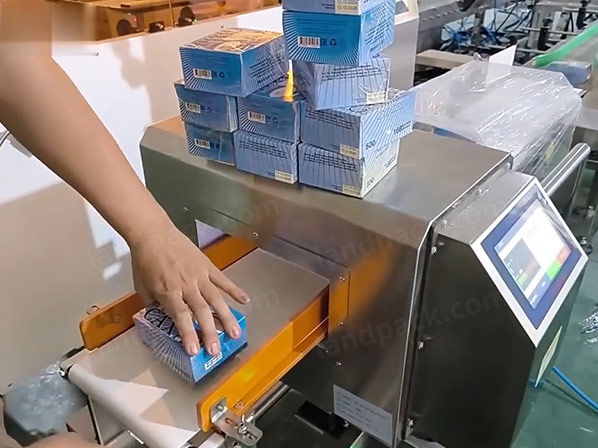

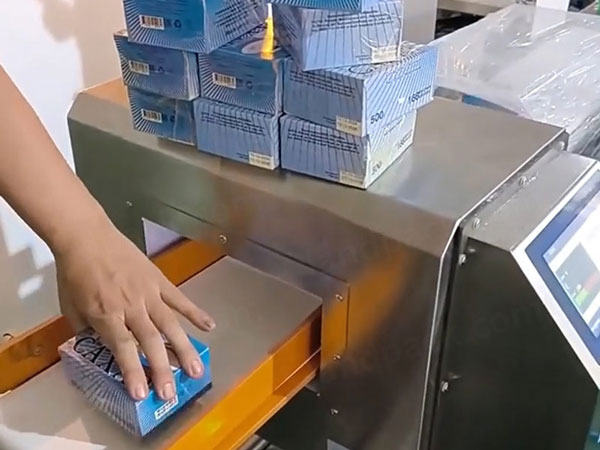

	Metal Detector A metal detector inspects each box moving along a conveyor, inspecting and rejecting products with potential metallic contamination, to guarantee product safety, meet industry hygiene standards and secure consumer trust in food and pharmaceutical packaging.

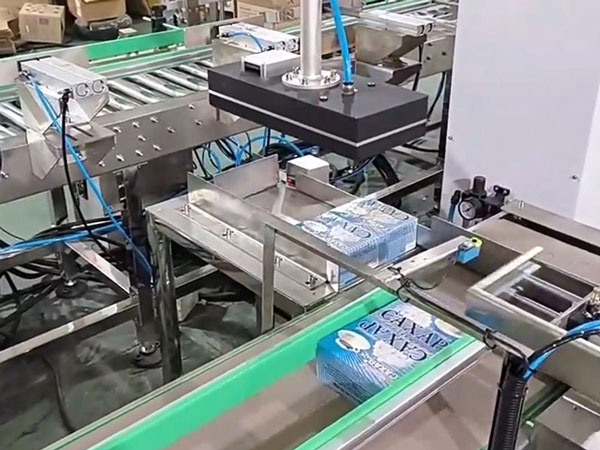

	Counting System A counting system accurately records and controls the number of boxes prior to loading into cartons. This prevents manual errors while guaranteeing required quantities per case while improving efficiency by working hand-in-hand with robotic case packing operations.

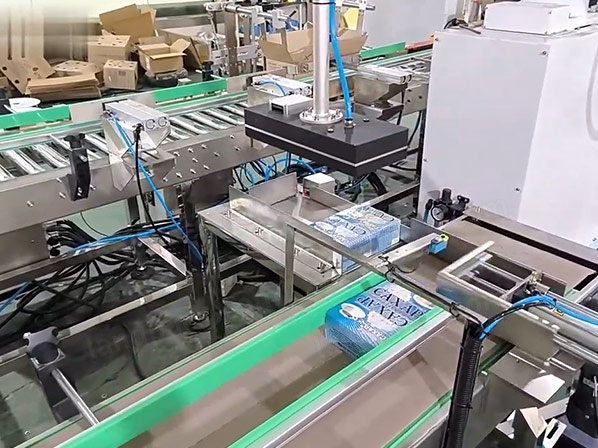

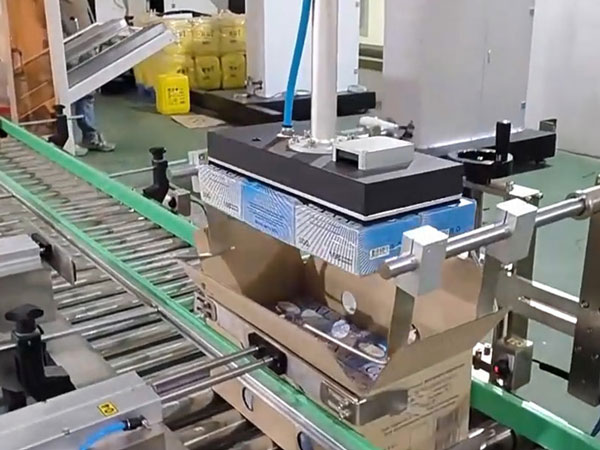

	Robotic Case Packer This robotic case packer employs a multi-axis robotic arm equipped with customized grippers to load boxed products into cartons efficiently and precisely, with minimal human intervention. The device supports flexible product arrangements and various box sizes while delivering accurate high-speed packing processes at reduced human intervention costs.

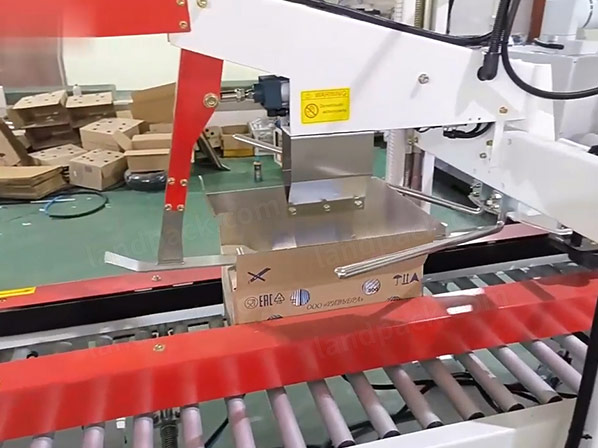

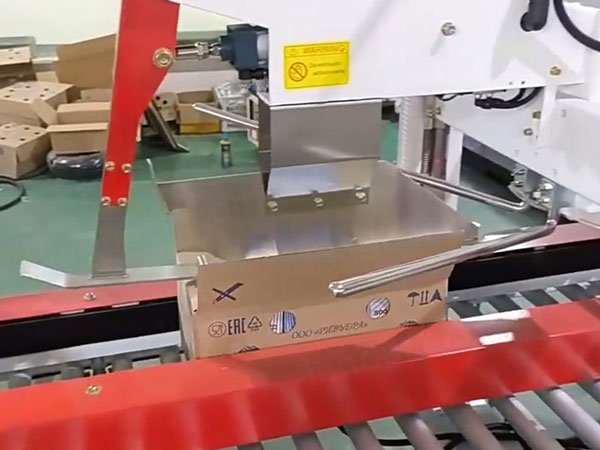

	Case Sealer A case sealer automatically folds and seals carton top flaps using adhesive tape or hot melt glue, creating a clean, strong closure that protects products during handling and transport, providing consistent performance across various carton sizes.
	Palletizer A palletizer stacks sealed cartons on pallets in an automated pattern to provide stable and space-saving arrangements. Equipped with conveyors, layer forming, and safety sensors, this machine reduces manual handling while increasing logistics efficiency and supporting large-scale automated production.
