Automatic Case Erectors Sealer Strapping Packing System

Application:

It is suitable for carton packing of detergent boxes, medical device kits, toy sets, hardware tools, and electronic components. With integrated erecting, labeling, sealing, and strapping, the packing system ensures precise labeling, reinforced sealing, and provides security for large-scale transportation.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

Suitable for a wide range of industries, this packing system can process folding cartons, corrugated boxes, and secondary cases in one system. It accurately labels, securely seals, and securely straps packaging, ensuring durable packaging that is easy to stack, store, and transport over long distances.

Machine Details:

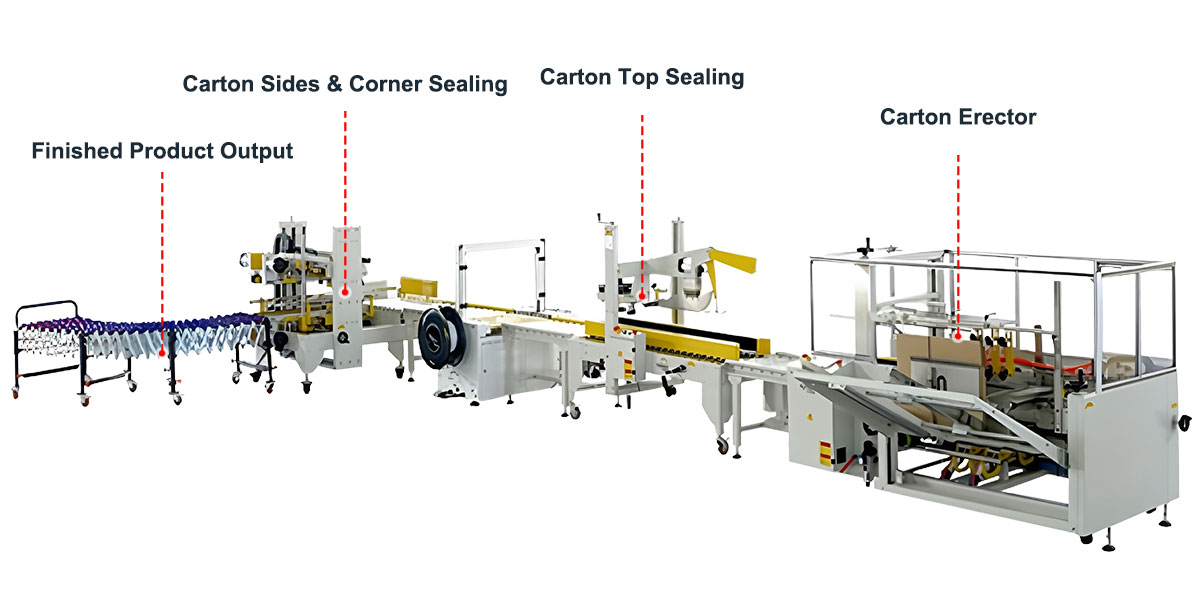

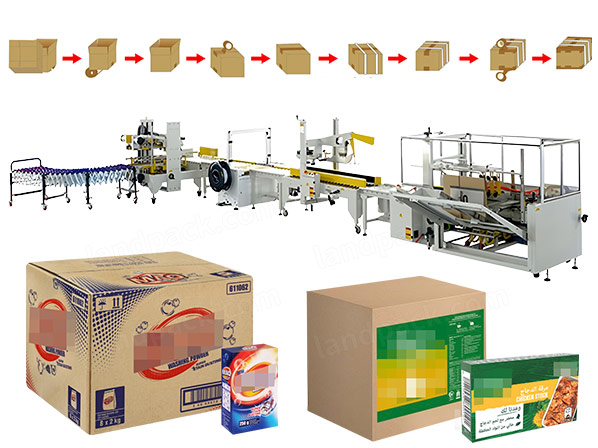

Working Process

1. Carton Erecting

2. Manual Product Loading

3. Carton Top Sealing

4. Carton sides & corner sealing

5. Labeling

6. Strapping Machine

7. Finished Product Output

Specification

Carton erector
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Carton Box Case Sealer
Voltage	220V/380V, 50HZ/60HZ
Table height	600-750mm
Tape	W: 48-75mm
Speed	480*600 cartons/h
Carton size	L: 320-500W: 180-500H: 180-500mm
Machine weight	110kg+350kg
Machine size	191011501400
Strapping Machine
Table height	630-750mm(adjustable)
Width of pp strap	9-15mm
Thickness of pp strap	0.55-1.2mm
Voltage	Voltage 220V-415V, 1PH/3PH
Power	0.75KW, 50/60HZ
Machine size	L1400W630H1430mm
Packing size	L1500730H1530mm
Machine weight	200kg

Features:

Machine Image	Benefits

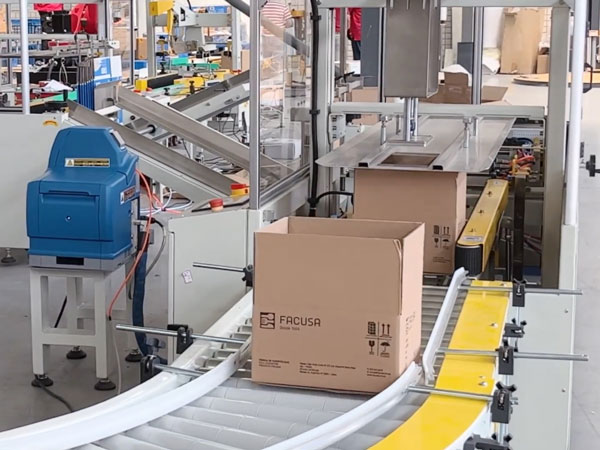

	Carton Erector The auto-cart erector automatically is able to open and produce flat cardboard boxes and closes them with a strong seal for a steady load. The machine ensures uniform shape of the cartons, and it allows for high-speed operation, and also prepares the cardboard boxes to label and seal in the downstream.

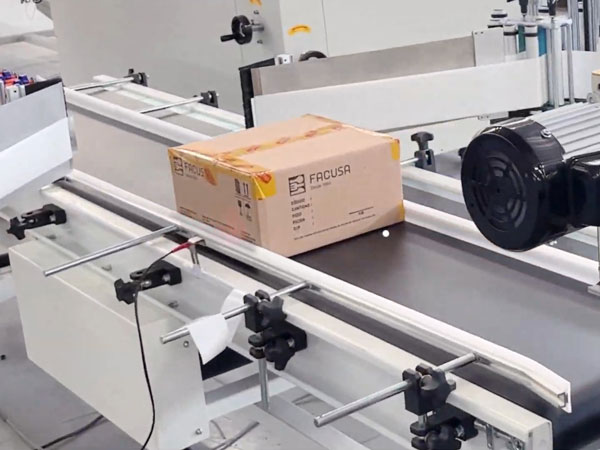

	Labeling Machine The labeling equipment is utilized for the application of labels on cartons using the highest degree of accuracy. The machine can be used to apply either side, top or corner labels for precise recognition of barcodes, proper scanning and the conformity to logistical specifications or packaging for retail.

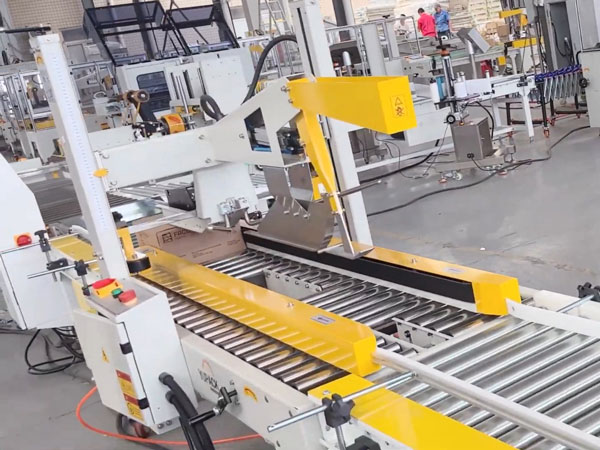

	Carton Sealer - Top Sealing The top sealer makes use of hot melt glue for securing the flaps on the carton. This technique ensures a strong seal for lightweight or standard containers, and ensures the boxes are safe for transporting short distances and handling.

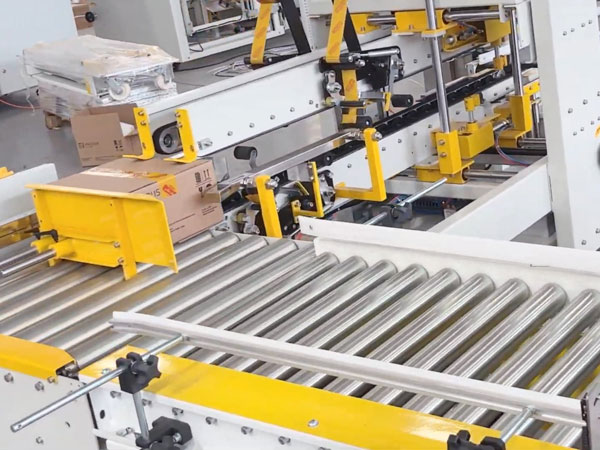

	Carton Sealer - Corner Sealing Corner sealing units strengthen the edges of cartons by making use of tape. This creates strong closures that can be used for export and large packaging. The unit stops the deformation process, improves the strength of load, and strengthens the carton during stacking or shipping over long distances.

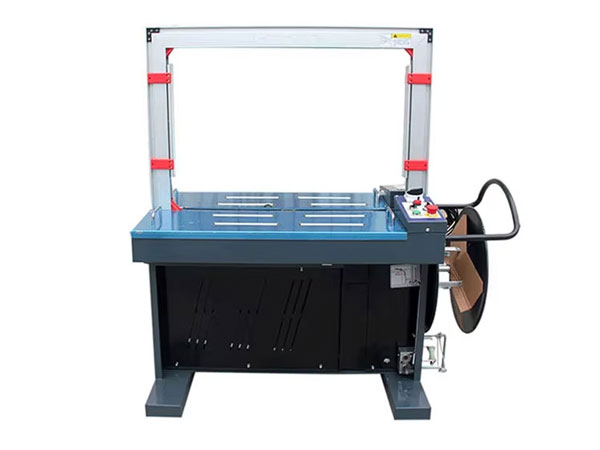

	Strapping System The strapping method uses strong straps around cartons or bundles which are stackable. This improves the security of containers and shields them from slipping and opening. It is also secure in transport through logistical activities.
