Protein Whey Milk Powders Packing Lines Automatic Powder Weighing Packaging Cartoning System

Application:

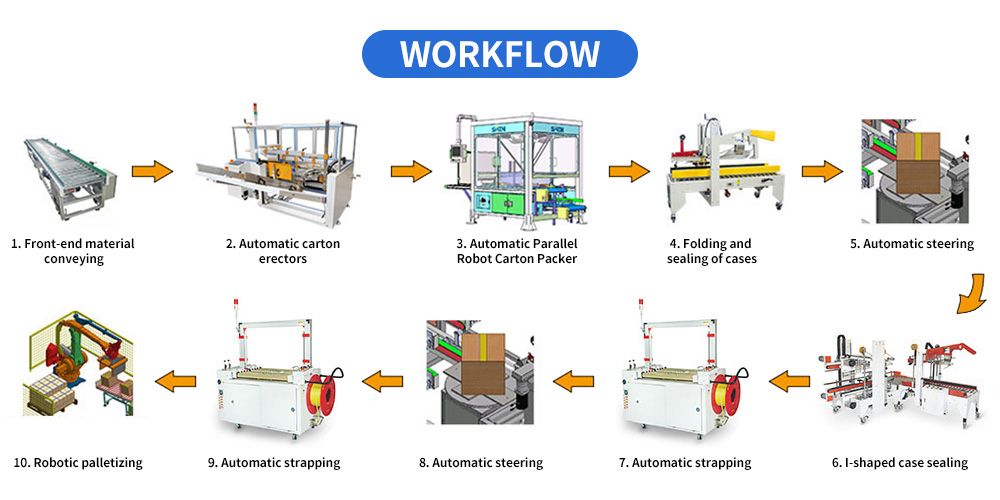

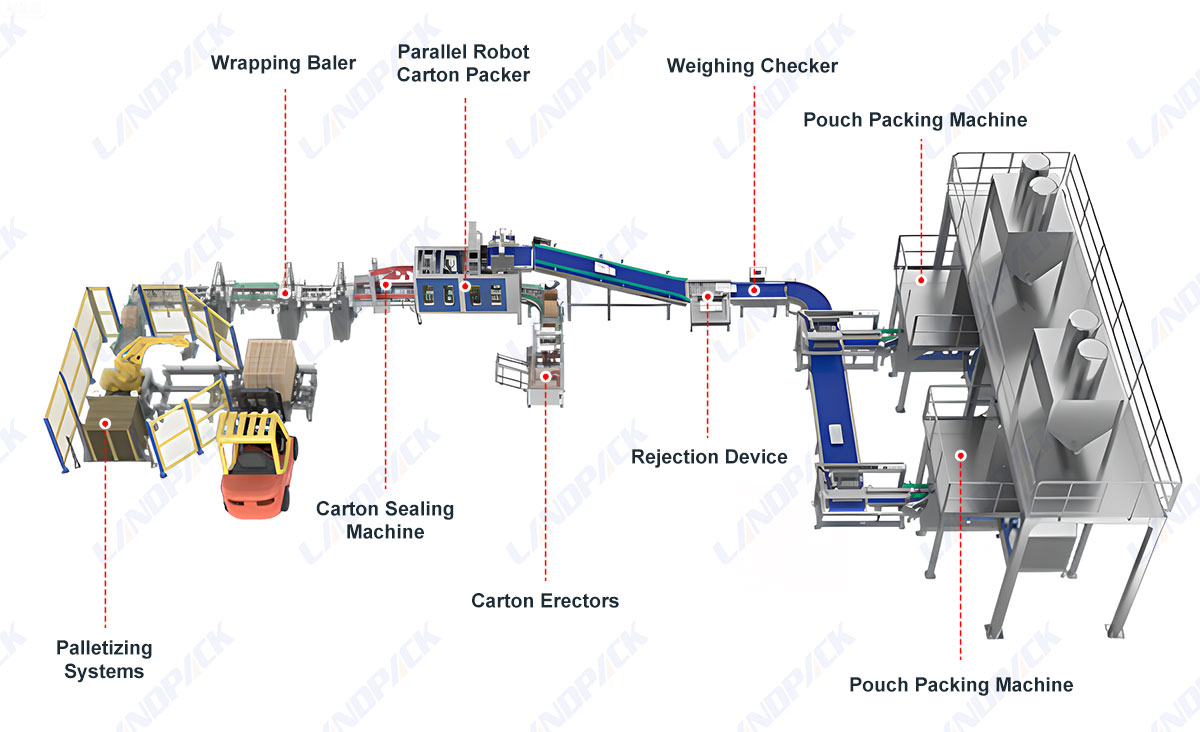

This automatic packing line integrates packing machine, checkweigher, parallel robot carton packer, case erector, case sealer, and palletizing systen. Designed for bagged powder products such as protein powder, milk powder, coffee powder, flour, spices, and detergent, it enables full-process automation from packing to palletizing, ensuring high efficiency and minimal manual intervention.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Complete End-of-Line Solution – From bagging and boxing to palletizing, designed for high-volume production.

2. High-Speed All-Servo Cartoning Machine – Delivers up to 60–70 cartons per minute with precision and stability.

3. Industrial Robot Arm – Three-axis parallel design with servo drive for ultra-fast, accurate product placement.

4. Nordson Hot Melt Glue System – Industry-proven reliability for long-term, continuous operation.

5. Space-Saving Layout – Install above or beside the line to maximize floor space utilization.

6. Versatile Cartoning Robot – Handles multiple product placement patterns with ease.

7. Advanced Vision Tracking – Optional industrial camera for dynamic tracking and pinpoint positioning.

Application:

This automatic packing line integrates packing machine, checkweigher, parallel robot carton packer, case erector, case sealer, and palletizing systen. Designed for bagged powder products such as protein powder, milk powder, coffee powder, flour, spices, and detergent, it enables full-process automation from packing to palletizing, ensuring high efficiency and minimal manual intervention.

Videos Introduction:

Specification:

Part 1 Automatic powder vertical packing machine
Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

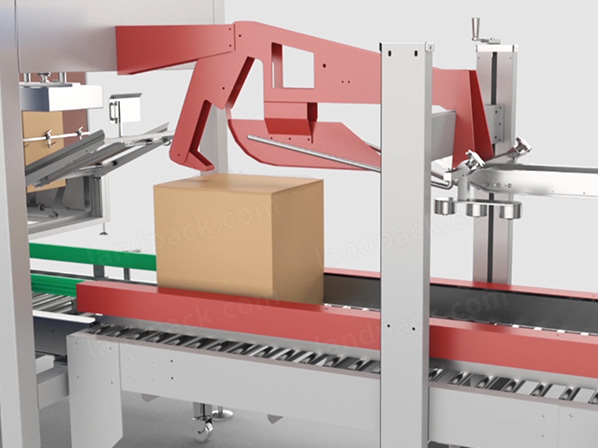

Part 2 Automatic case erecting machine
Model	LD-CF50H
Power supply	220V 50Hz
Maximum packing size	450400400mm
Minimum packing size	250200150mm
Working height	600mm
Sealing speed	6-10 boxes/min
Applicable tape	(W)48-75mm x(L)0-914mm
MechanicalDimensions	220020501450mm(LWH)
Machine weight	About 400kg

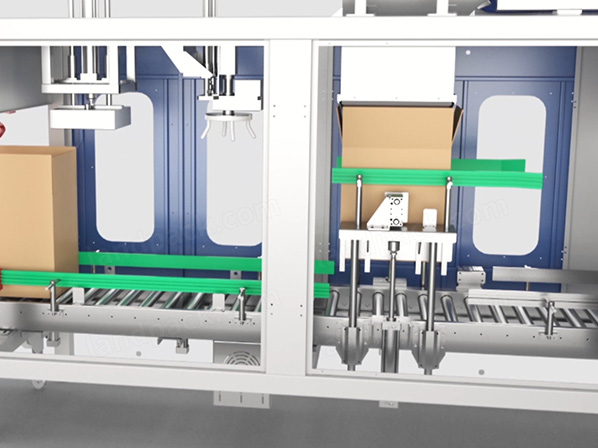

Part 3 Automatic Parallel box packing workstation
Model	LD-D-800-4-1	LD-D-1200-4-1	LD-D-1600-4-1
Number of Axes	3+1	3+1	3+1
Arm Reach	800	1200	1600
Maximum Pickup Height	330	425	750
Rated Load	3	8	8
Maximum Load	5	15	15
Repeatability	R±0.1	R±0.1	R±0.1
Standard Cycle Time	240	200	185

Part 4 Automatic Carton sealing machine
Machine Model	LD-FXC50
Voltage	220V 50Hz
Power	400W
Case Size	(L)200-600mm(W)150-500mm(H)150-500mm
Tape Width	48-72mm
Conveying Speed	18m/min
Height of Worktable	600-750mm
Machine Size	About 17608901450mm(LWH)

Part 5 Automatic Industrial robot
Model	LD60-PL	LD120-PL	LD1800-PL
Arm Reach	2000mm	2400mm	3060mm
Maximum Load	60kg	120kg	180kg
Weight	500kg	1050kg	1120kg
Pallet Dimensions	1200*1200	1200*1200	1400*1400
Palletizing Speed	8 cycle/min	8 cycle/min	8 cycle/min
