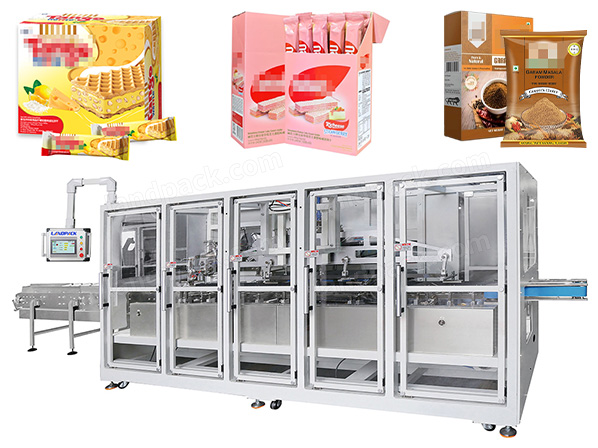

Automatic Horizontal End Load Cartoning Machine

Application:

This machine is suitable for pre-glued paper cartons such as tuck-in flap cartons, straight-tuck and reverse-tuck boxes, widely used for retail and secondary packaging applications.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This equipment is designed to handle pre-glued paperboard containers, including tuck-in flap boxes as well as straight-tuck and reverse-tuck formats. These styles are extensively utilized across various retail display and secondary packing sectors.

Wide Application Range

This Automated Horizontal Side-Load Cartoner serves the food, drink, medical, beauty, household chemical, and retail manufacturing sectors. It is engineered to load diverse items—including containers, canisters, small bags, pouches, blister sheets, tubes, and bundled goods—into paperboard cases for either direct-to-consumer sales or secondary distribution.

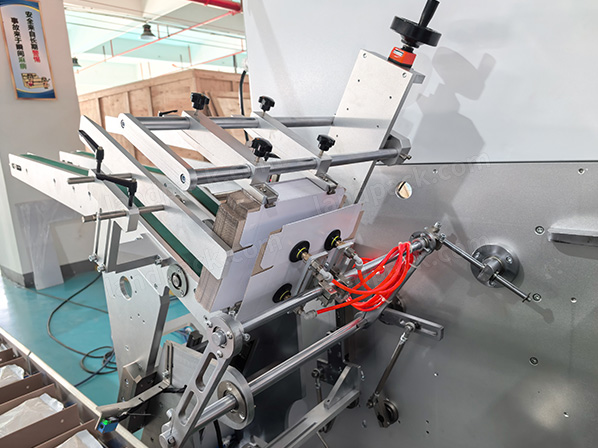

Machine Details:

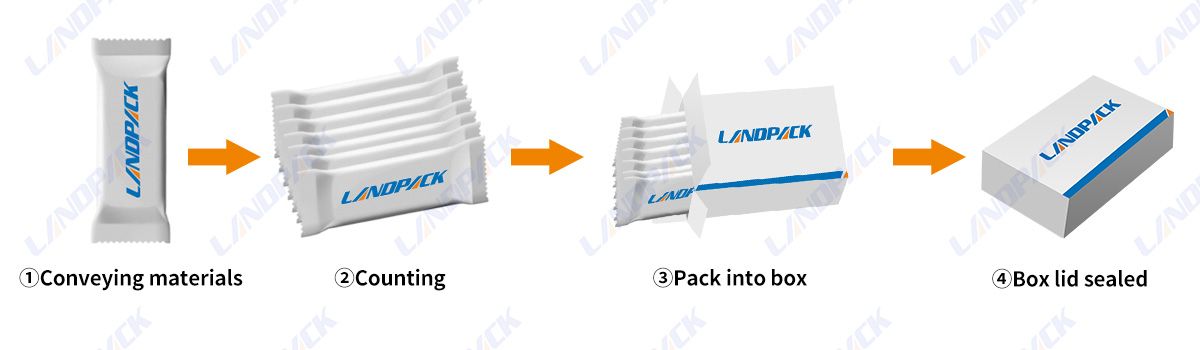

Working Process

1. Carton Picking & Erecting → 2. Product Feeding → 3. Horizontal End Loading → 4. Carton Closing & Sealing

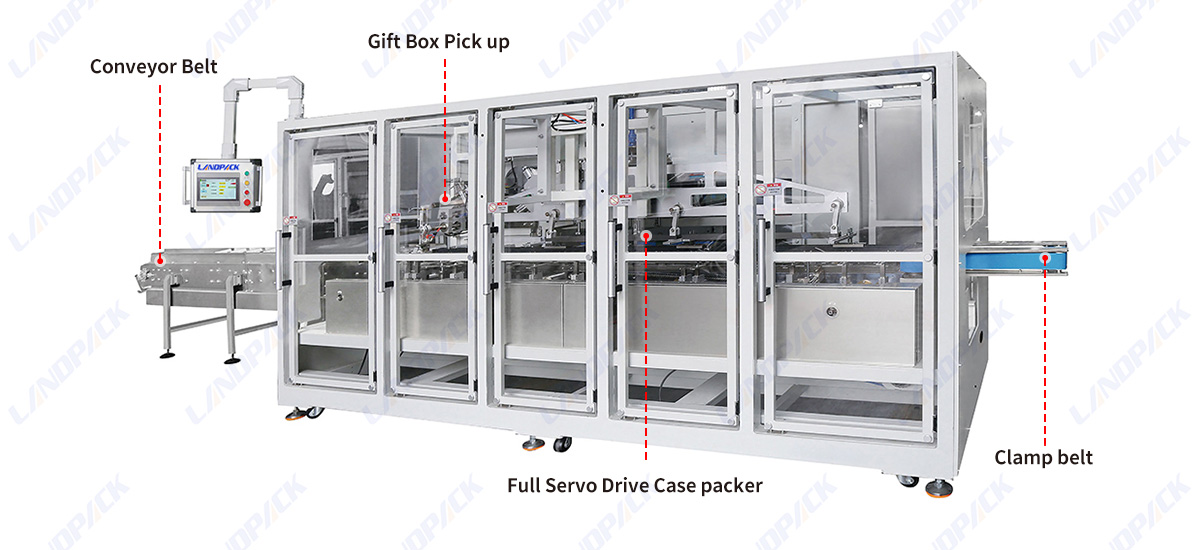

Key Component

Specification

Cartoning speed	80-150(Cartons/min)
Carton	Quality requirement	250-450 g/㎡ (According to box dimensions)
	Dimension range(LxWxH)	(110-300)mm x (80-200)mm x(30-80)mm (Special sizecan be customized)
Compressed air	Working pressure	≥0.6Mpa
	Air consumption	60m³
Power supply	380V /50Hz
Motor power	6kW

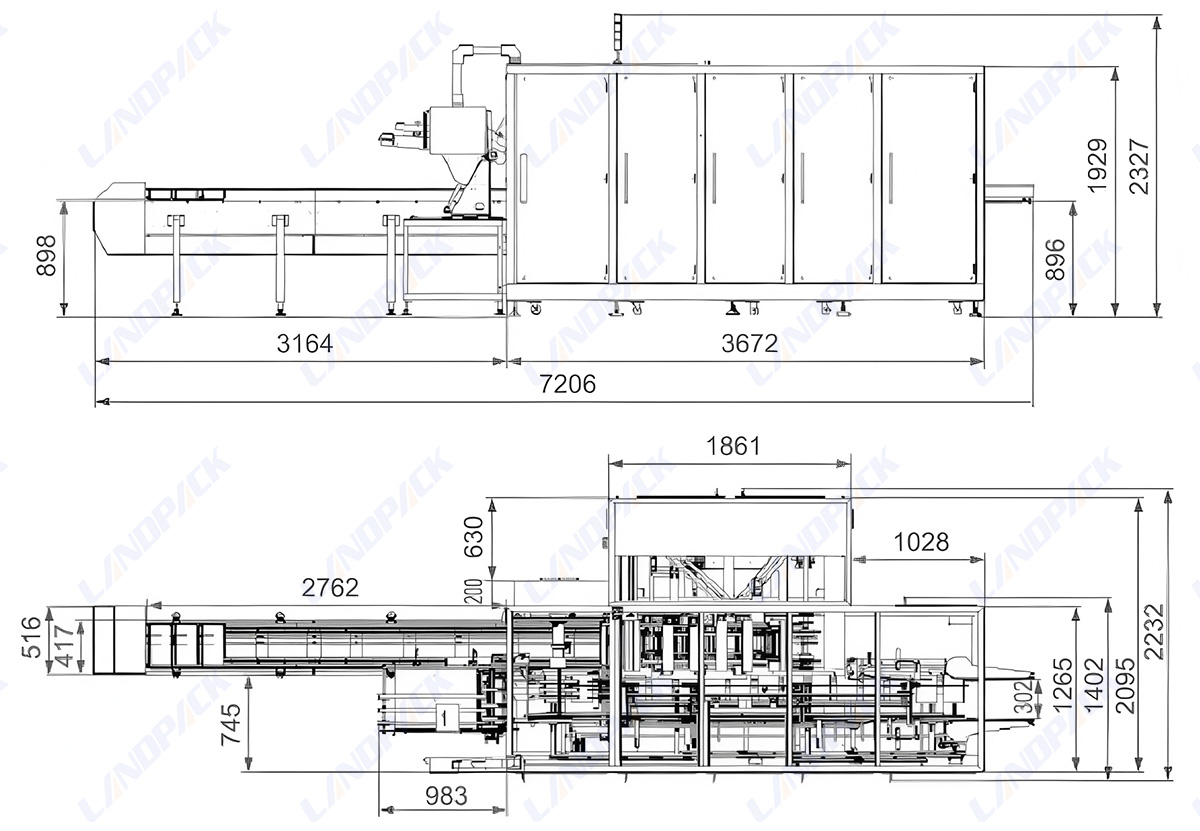

Machine dimension(LxWxH)	7200mm x 2235mm x 2330mm
Machine weight	2000-2500kg

Features:

1. Advanced PLC Control Equipped with Hechuan PLC, international-brand electrical components, and frequency-conversion speed regulation for precise, stable operation.

2. User-Friendly HMI Human-machine interface with parameter memory and menu management for easy operation and rapid adjustments.

3. Automatic Empty Package Detection Ensures only filled cartons proceed, reducing errors and waste.

4. Safety & Monitoring Functions Mechanical overload auto-stop, fault display, alarm alerts, and finished product counting for reliable production.

5. Stable & Efficient Performance Smooth operation, intuitive controls, and minimal learning curve for operators.
