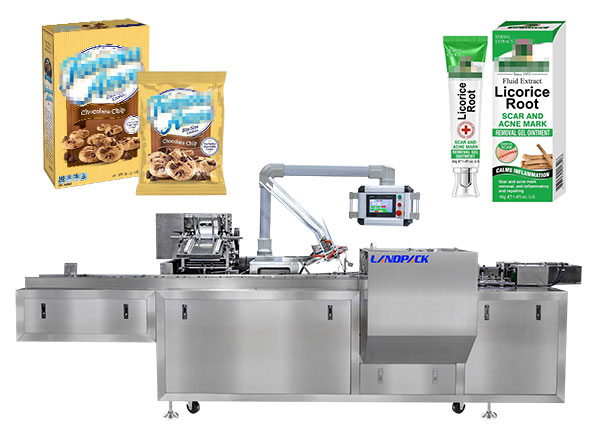

Automatic Horizontal Cartoning Machine 20-50 Cartons/Min

Application:

This system is extensively employed for the automated boxing of beauty and personal care items, including creams, lotions, facial washes, fragrances, and skincare kits. Additionally, it efficiently handles oral care products, bar soaps, moist towelettes,

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

Operating with seamless stability, this cartoning system manages the entire sequence of product infeed, manual insertion, box forming, loading, and final sealing in a single integrated cycle. It is a popular choice for the beauty and personal care market, effectively boxing items such as serums, facial masks, moisturizers, emulsions, face washes, fragrances, aromatherapy candles, and treatment kits, as well as daily essentials like toothpaste, soaps, disinfectant wipes, laundry pods, and various domestic cleaning supplies.

Wide Application Range

The cartoning machine is designed for secondary packaging, integrating automatic carton forming, product feeding, insertion, and box closing in one continuous process. Typical applications include:

Beauty and Personal Care

• Serums, moisturizing creams, hand cream, toothpaste, , and high-end fragrance.

Daily Essentials

• Toothpaste, soap, disinfectant wet wipes, and laundry pods.

Medical and Health

• Treatment kits, ointment tubes, medical disposables, and adhesive bandages.

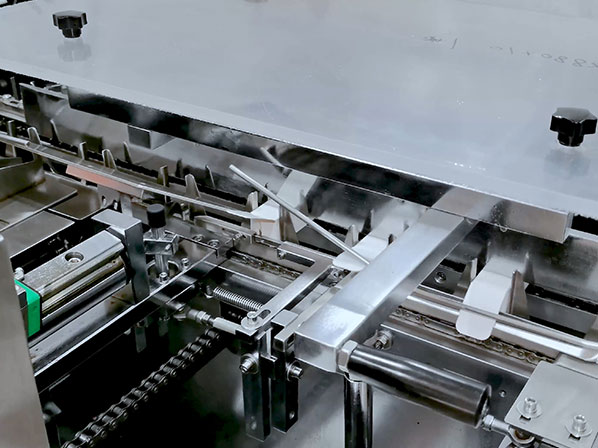

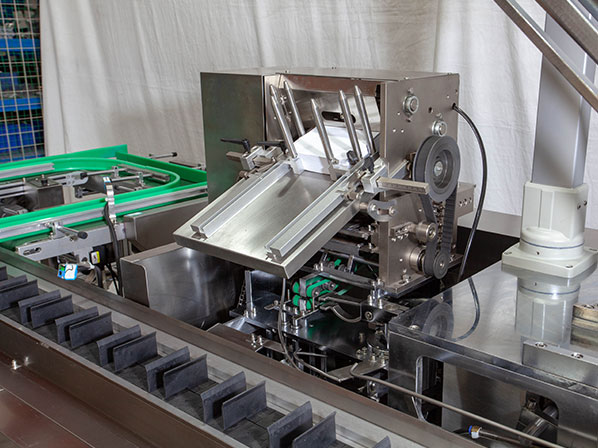

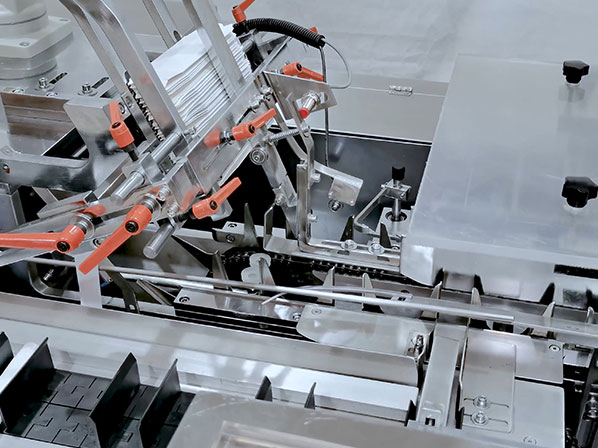

Machine Details:

Working Process

1. Product Feeding → 2. Leaflet Insertion & Counting → 3. Carton Erecting → 4. Product Loading → 5. Carton Closing & Sealing → 6. Finished Carton Output

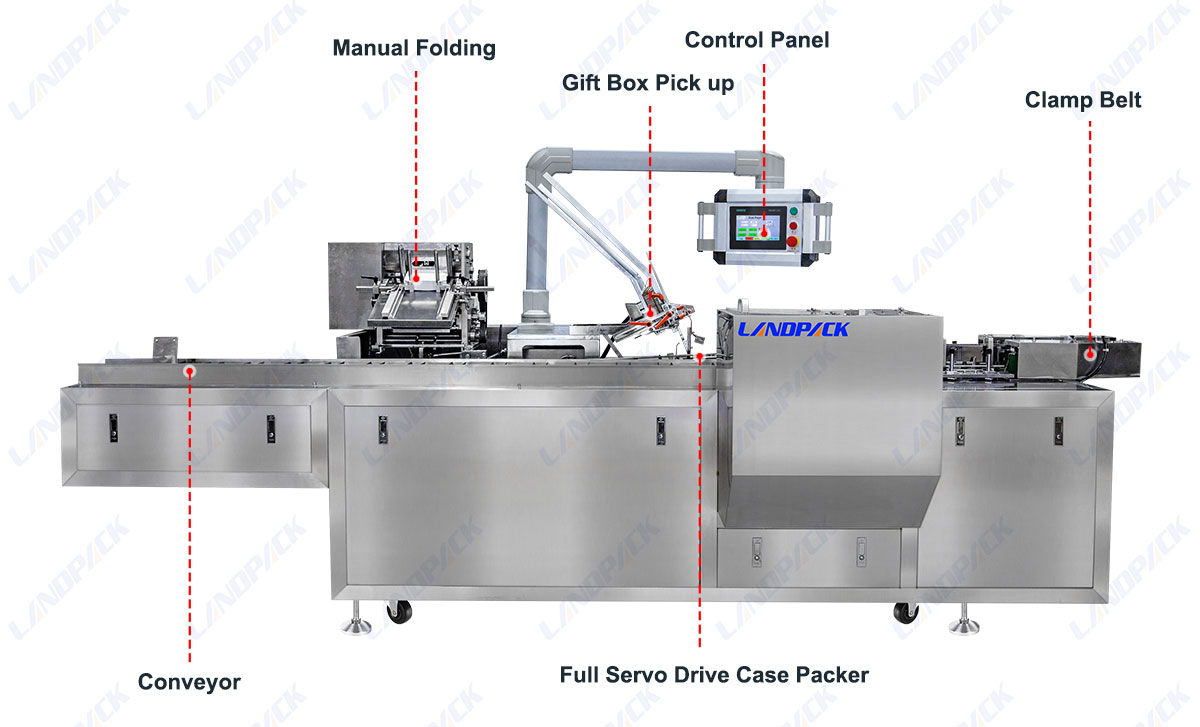

Key Component

Specification

Model		LD-80A	LD-80L
Cartoning speed		30-70 Cartons/min	20-60 Cartons/min
Carton	Quality requirement	250-450g/m2(According to box dimensions)
		Dimension range (LxWxH)	L:90-250mm W:50-200mm H:20-80mm	L:120-360mm W:50-260mm H:20-90mm
Compressed air	Working pressure	≥0.6Mpa
		Air consumption	20m'
Power supply		220V/50HZ
Motor Power		8kw
Machine dimension(Lx Wx H)		5970mm x 1610mm x 2262mm	6236mm x 1867mm x 2262mm
Machine weight		1800kg	2000kg

Features:

1. Fully automated horizontal cartoning that incorporates cart erecting, product loading leaflet insertion, as well as sealing all in one seamless process.

2. PLC and HMI control system that includes recipe storage, quick changeovers, and real-time parameters adjustment.

3. Product compatibility is high, suited for bottles, tubes and blisters. It is also suitable for sachets, blisters and many other items that are regular in shape.

4. Automatic rejection and detection of the missing product or leaflet to ensure accuracy of packing.

5. Secure and reliable operation, with safety features such as overload alarms, fault alerts and stop-by-automatic functions.

6. Simple operation and maintenance thanks to modular design and clear interface. This reduces the amount of work required.
