Automatic Pouch Bag Cartoning Packaging Machine

Application:

Designed for automatic snack packaging, the machine is widely used for pork skin snacks, crispy pork rinds, seasoned meat bites, fried snack pieces, and similar irregular snack products. It handles dry, oily, and seasoned materials with stable weighing, smooth filling, and neat sealing

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The Automatic Pouch Bag Cartoning Packaging Machine is a flexible cartoning packaging machine compatible with various pre-glued carton types, including tuck-in flap, straight-tuck, and reverse-tuck cartons.

Wide Application Range

The Automatic Pouch Bag Cartoning Packaging Machine is a versatile cartoning packaging machine suitable for food, beverage, pharmaceutical, cosmetic, daily chemical, and consumer goods industries. It is designed to automatically load pouch bags, sachets, and pre-packed products into cartons, providing efficient and reliable solutions for retail-ready and secondary packaging applications.

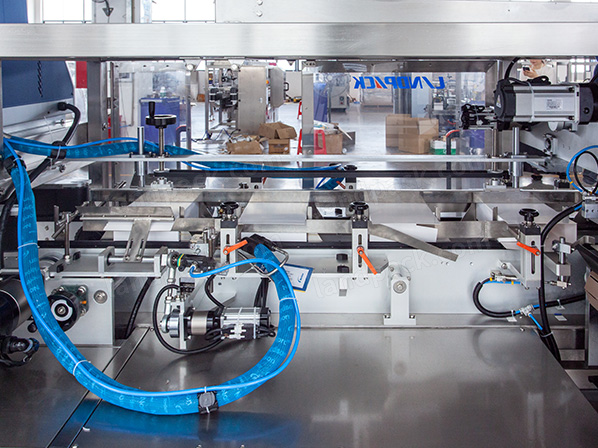

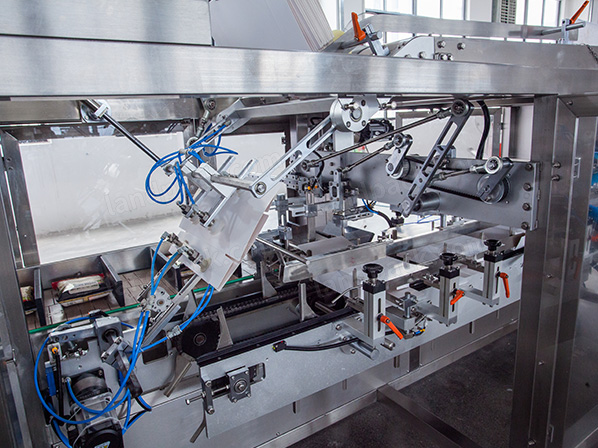

Machine Details:

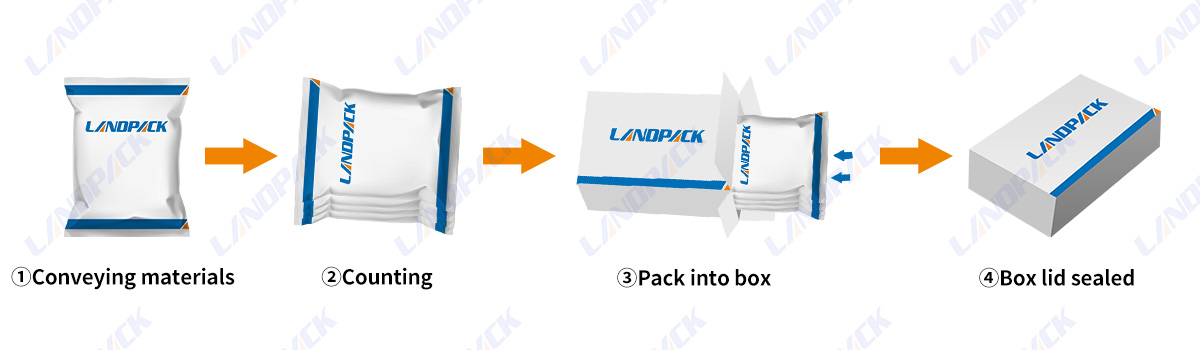

Working Process

1. Product Feeding: Pouch bags are smoothly transferred by the conveyor into the cartoning section.

2. Product Counting and Alignment: Products are counted, grouped, and aligned automatically to ensure accurate loading.

3. Carton Erecting and Positioning: Flat cartons are picked up, formed, and positioned precisely for product insertion.

4. Horizontal Product Insertion: Arranged products are pushed into the carton through an end-load mechanism.

5. Carton Closing and Sealing: Carton flaps fold and sealed for the final step of cartoning.

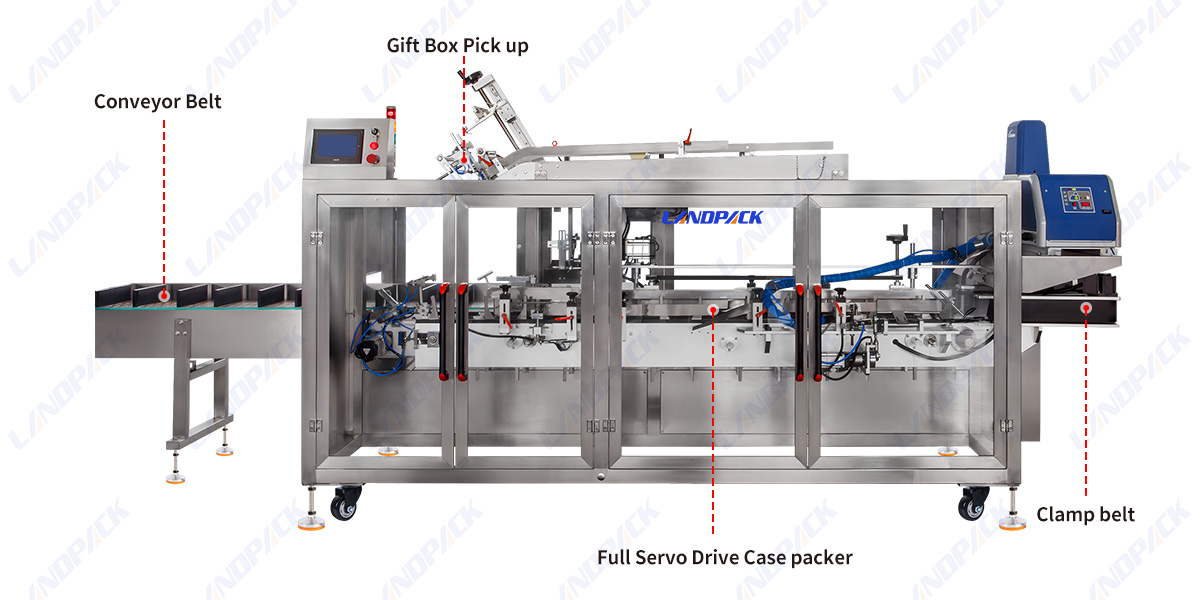

Key Component

Specification

Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg

Features:

1. Stable High-Speed Operation: It can handle 30-50 cartons/min with dependable performance.

2. Wide Product Compatibility: Perfect for back sealing bags, pillow bags, pouch bags, sachets, sticks, bottles, cans, tubes, and packaged products.

3. Flexible Carton Styles: Supports straight-tuck, reverse-tuck, and tuck-in pre-glued cartons.

4. Fully Automatic Cartoning: Integrates erecting, counting, loading, and closing in one process.

5. Easy Line Integration: It can operate as a stand-alone device or is connected to downstream and upstream equipment.

6. User-Friendly Design: HMI touchscreen with modular construction to facilitate maintenance and operation.

7. Hygienic Construction: Stainless steel contact parts meet food and pharmaceutical standards.
