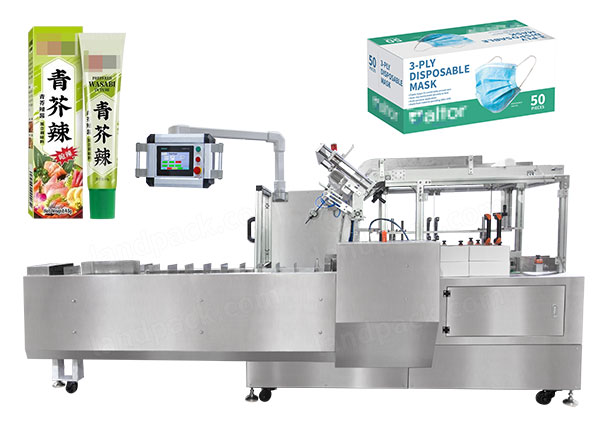

High Speed Horizontal End Load Cartoning Box Packing Machine

Application:

This end load cartoning machine is designed for high-speed horizontal carton loading of various products. The horizontal cartoning machine automatically completes feeding, carton opening, end loading, and closing, and is widely used as a reliable cartoning packaging machine in food, pharmaceutical, and daily chemical industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

Designed for carton, case, and box packaging applications, this fully automatic horizontal cartoning machine supports end-load, side-load, and top-load carton formats. It accommodates both tuck-in and glue-sealed closures, and is compatible with paperboard cartons in a wide range of sizes and thicknesses.

Wide Application Range

This horizontal cartoning machine is widely used for the automatic loading of back sealing bags, pillow bags, tubes, sachets, sticks, pouches, and bottles into preformed cartons. It integrates multiple functions, including leaflet insertion, carton closing, and finished carton discharge, ensuring efficient and reliable packaging.

- Cosmetics: Toothpaste, facial cleanser, hand cream, sunscreen, eye cream, and cosmetic ointments.

- Daily Necessities: Shampoo, body lotion, hair dye creams, household gel products, and personal care creams.

- Pharmaceutical & Health Industries: Ointments, capsules, and health supplements.

Machine Details:

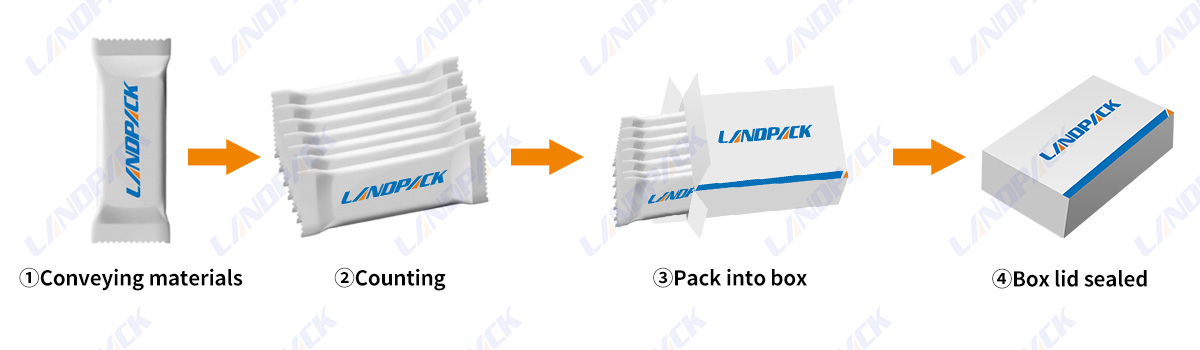

Working Process

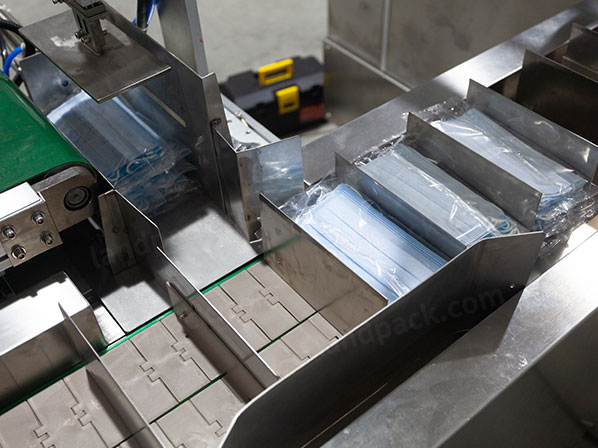

1. Product Feeding: Products are automatically conveyed, arranged, and aligned to ensure stable and continuous infeed.

2. Leaflet Insertion: Instruction leaflets are accurately and reliably inserted into cartons in accordance with packaging requirements.

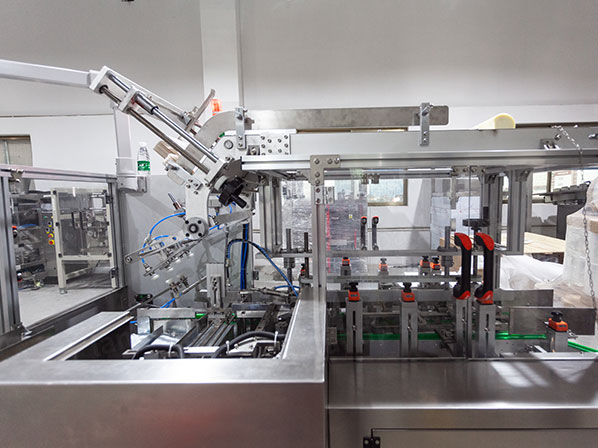

3. Carton Erecting: Flat cartons are picked up, opened, and precisely positioned by the cartoning system.

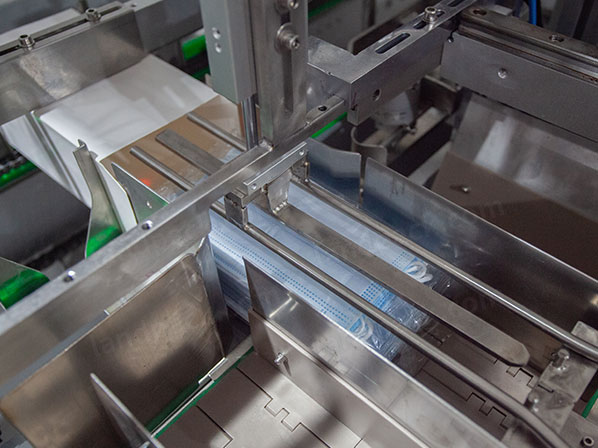

4. Product Loading: Products are smoothly pushed or placed into the erected cartons with high positioning accuracy.

5. Carton Fold and Seal: Folding and sealing cartons neatly

6. Finished Carton Output: Discharged completed cartons to downstream processes such as case packing or palletizing.

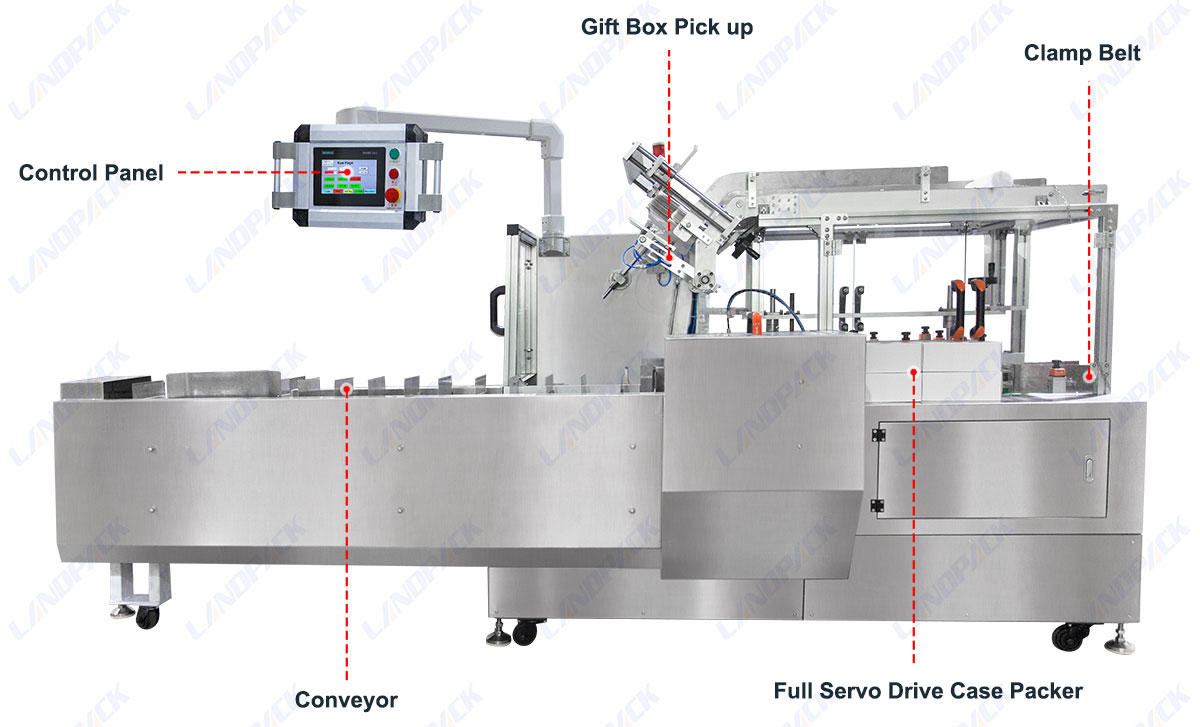

Key Component

Specification

Model		LD-80A	LD-80L
Cartoning speed		30-70 Cartons/min	20-60 Cartons/min
Carton	Quality requirement	250-450g/㎡(According to box dimensions)
	Dimension range (LxWxH)	L:90-250mm W:50-200mm H:20-80mm	L:120-360mm W:50-260mm H:20-90mm
Compressed air	Working pressure	≥0.6Mpa
	Air consumption	20m'
Power supply		220V/50HZ
Motor Power		8kw
Machine dimension(Lx Wx H)		5970mm x 1610mm x 2262mm	6236mm x 1867mm x 2262mm
Machine weight		1800kg	2000kg

Features:

1. Fully automated horizontal cartoning that incorporates cart erecting, product loading leaflet insertion, as well as sealing all in one seamless process.

2. PLC and HMI control system that includes recipe storage, quick changeovers, and real-time parameters adjustment.

3. Product compatibility is high, suited for back sealing bags, pillow bags, sachets, sticks, bottles, tubes and blisters.

4. Automatic rejection and detection of the missing product or leaflet to ensure accuracy of packing.

5. Secure and reliable operation, with safety features such as overload alarms, fault alerts and stop-by-automatic functions.

6. Simple operation and maintenance thanks to modular design and clear interface. This reduces the amount of work required.
