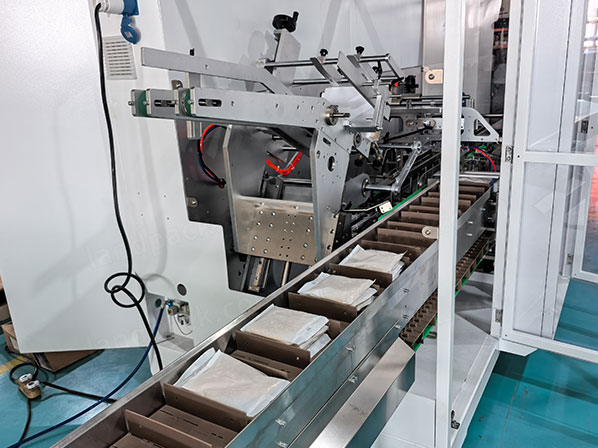

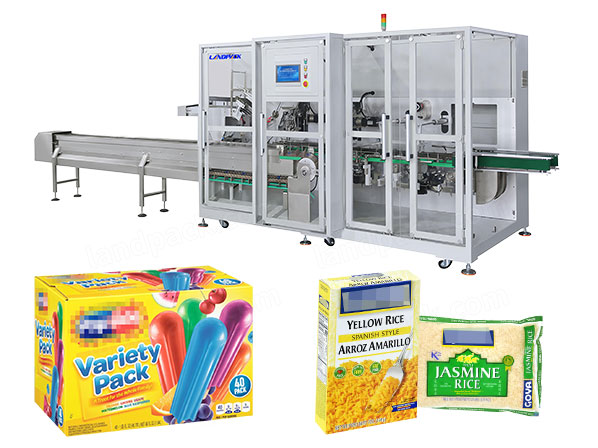

Horizontal Cartoner Fully Automatic Cartoning Packaging Machine

Application:

The horizontal cartoning machine is a fully automatic cartoning solution that integrates carton forming, product feeding, inserting, box closing, and finished carton output.Widely used in toothpaste, facial cleansers, shampoo sachets, soap bars.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

Suitable for paper cartons / boxes / cases, supporting horizontal top-load /end-load or side-load cartoning. Compatible with tuck-in cartons or glued cartons in various sizes and board thicknesses

Wide Application Range

The cartoning machine is designed for secondary packaging, integrating automatic carton forming, product feeding, insertion, and box closing in one continuous process. Typical applications include

Cosmetics

• facial cleanser tubes, hand cream, toothpaste, and skincare bottles.

Pharmaceutical and medical products

• ointment tubes, vials, test kits, and medical disposables.

Daily necessities

• soap bars, wet wipes, pens, batteries, and small hardware kits

Machine Details:

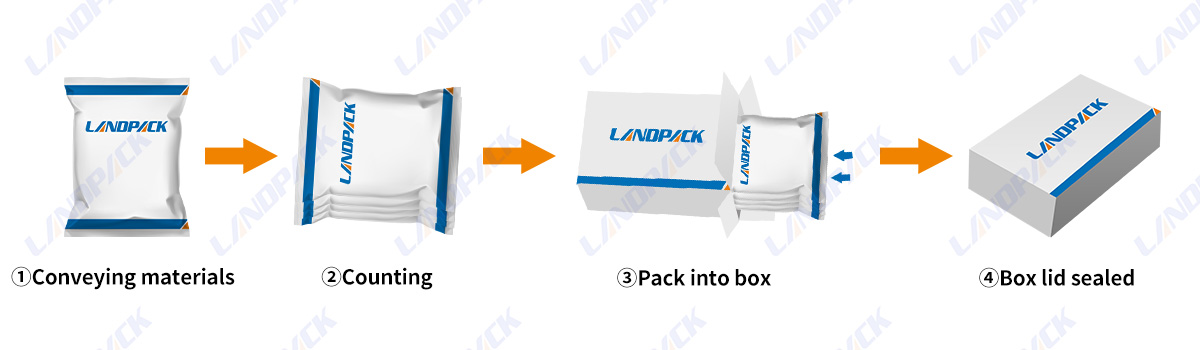

Working Process

1. Product Infeed → 2. Product Grouping & Counting → 3. Carton Erecting → 4. Product Loading → 5. Carton Closing & Sealing → 6. Output

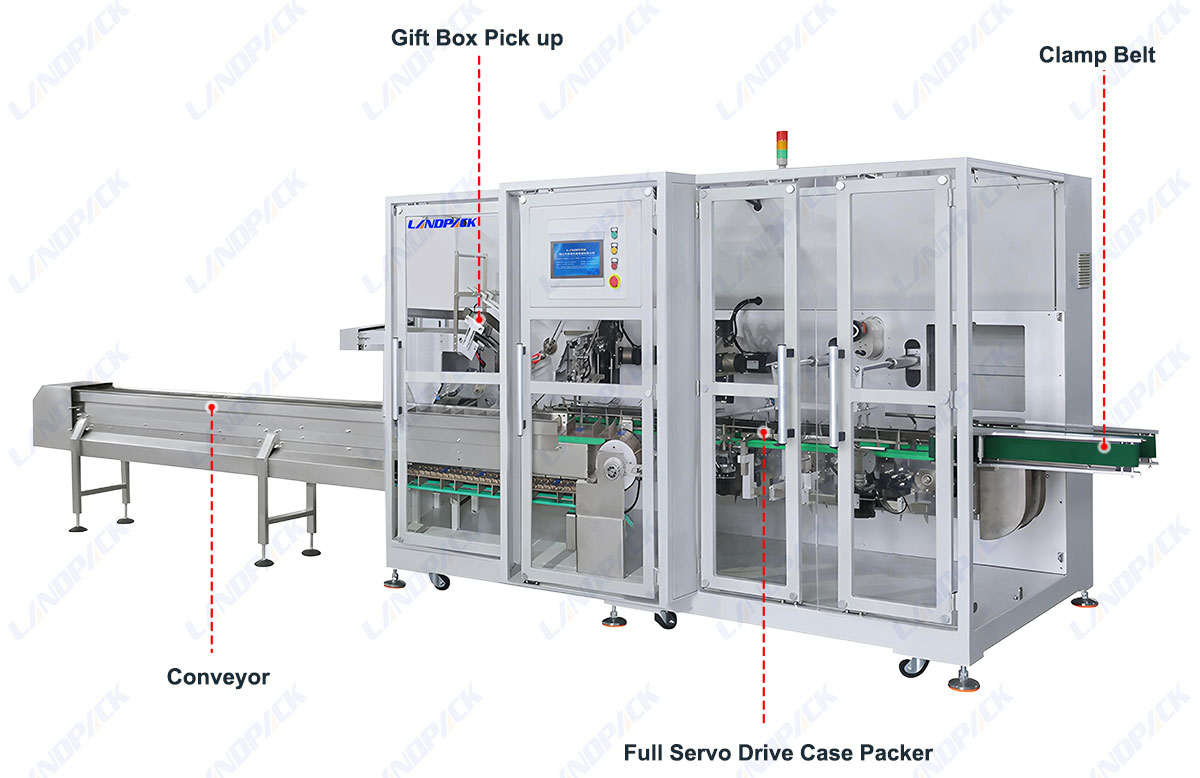

Key Component

Specification

Model LD-80A LD-80L

Cartoning speed 30-70 Cartons/min 20-60 Cartons/min

Carton Quality requirement 250-450g/m2(According to box dimensions)

Dimension range (LxWxH) L:90-250mm
W:50-200mm H:20-80mm L:120-360mm
W:50-260mm H:20-90mm

Compressed air Working pressure ≥0.6Mpa

Air consumption 20m'

Power supply 220V/50HZ

Motor Power 8kw

Machine dimension(Lx Wx H) 5970mm x 1610mm x 2262mm 6236mm x 1867mm x 2262mm

Machine weight 1800kg 2000kg

Features:

1. A servo-driven horizontal structure for cartoning assures precise opening of the carton and smooth loading of the product.

2. Control system for PLC and HMI makes it easy to operate as well as recipe storage and quick size changes for various packaging and products.

3. The automatic detection system refuses empty cartons and products to ensure integrity of the packaging.

4. Flexible feeding compatibility allows tubes, sachets and pouches, bottles, and wrapped products that have the same placement.

5. A sturdy closure mechanism for cartons allows glue sealing to secure and neat box-forming.

6. The compact and modular design helps reduce the amount of floor space and allows for simple integration with filling and packing machines.

Learn More:

1.If you need more Cartoning Machine for your product , read our-- Cartoning Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Model		LD-80A	LD-80L
Cartoning speed		30-70 Cartons/min	20-60 Cartons/min
Carton	Quality requirement	250-450g/m2(According to box dimensions)
	Dimension range (LxWxH)	L:90-250mm W:50-200mm H:20-80mm	L:120-360mm W:50-260mm H:20-90mm
Compressed air	Working pressure	≥0.6Mpa
	Air consumption	20m'
Power supply		220V/50HZ
Motor Power		8kw
Machine dimension(Lx Wx H)		5970mm x 1610mm x 2262mm	6236mm x 1867mm x 2262mm
Machine weight		1800kg	2000kg
