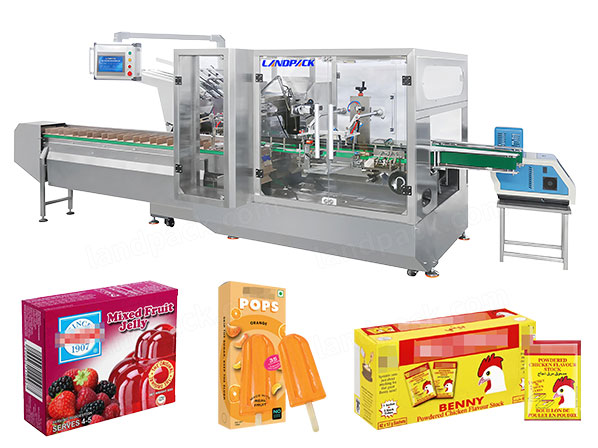

Fully Automatic End Load Cartoning Machines For Pouch Sachet

Application:

The end load cartoning machine is designed to automatically erect cartons, push products into boxes from the end side, and complete carton closing in a continuous and stable process.Apply for biscuit, chocolate bars, wafer packs, snack bags, and frozen food pack, soap bars, wet wipes, tissue packs.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

Designed for end-load cartoning, the machine is compatible with cartons, cases, and paper boxes in glue-sealed styles. It supports single or multiple product loading, and grouped pack end pushing, allowing stable handling of pouches, sachets, stick packs, bottles, and tube products.

Wide Application Range

The end load cartoning machine features a stable end-side pushing structure, precise servo control, and reliable carton erecting and sealing, making it highly suitable for

Food industry

• biscuit sleeves, chocolate bars, wafer packs, snack bags, frozen food portions, and candy multipacks.

Daily necessities

• soap bars, wet wipes, tissue packs, toothpaste boxes, batteries, and household consumables.

Pharmaceutical & healthcare field

• medicine packs, capsule sachet, medical disposables, diagnostic kits, and small boxed supplements.

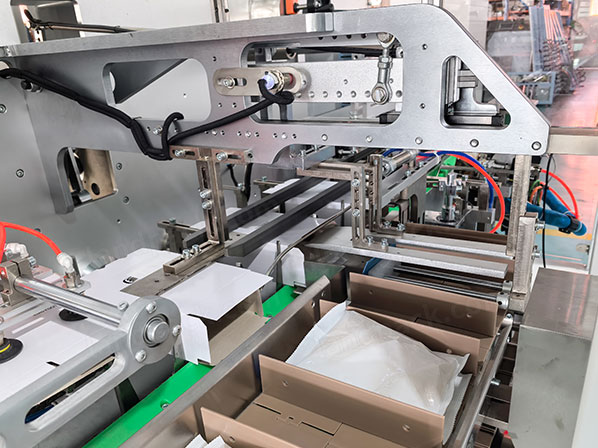

Machine Details:

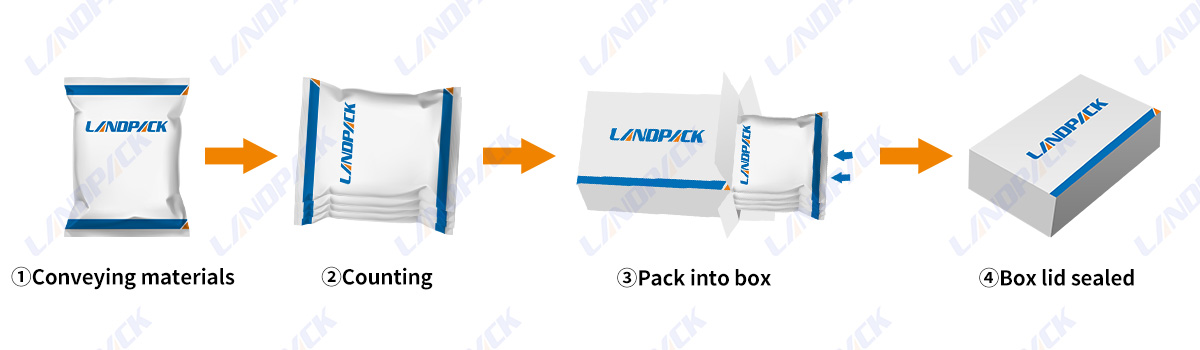

Working Process

1. Suction-Feed Cartoning → 2. Servo-Timed Infeed → 3. Insertion → 4. Integrated Sealing → 5. Quality Outfeed

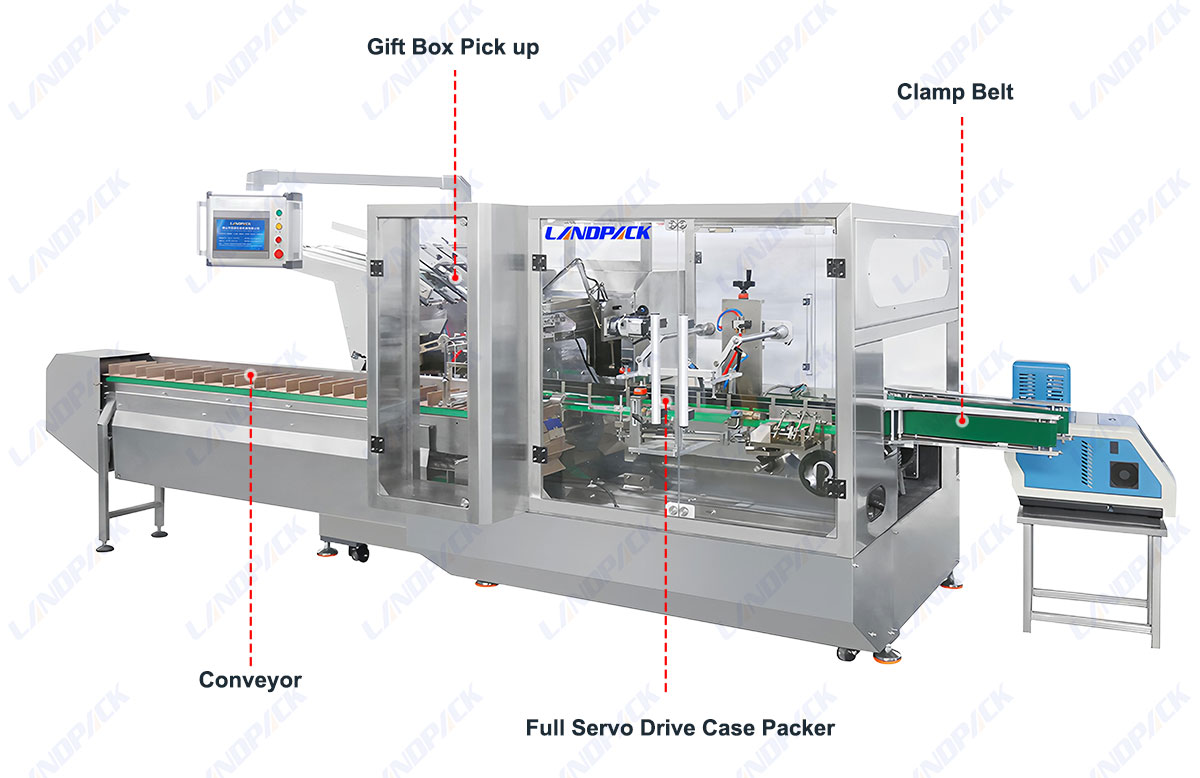

Key Component

Specification

Model LD-80A LD-80L

Cartoning speed 30-70 Cartons/min 20-60 Cartons/min

Carton Quality requirement 250-450g/m2(According to box dimensions)

Dimension range (LxWxH) L:90-250mm
W:50-200mm H:20-80mm L:120-360mm
W:50-260mm H:20-90mm

Compressed air Working pressure ≥0.6Mpa

Air consumption 20m'

Power supply 220V/50HZ

Motor Power 8kw

Machine dimension(Lx Wx H) 5970mm x 1610mm x 2262mm 6236mm x 1867mm x 2262mm

Machine weight 1800kg 2000kg

Features:

1. End-side pushing structures ensure stable and precise loading, particularly ideal for stackable and regular products.

2. The servo-driven control system offers exact motion and smooth control and quick speed adjustments.

3. Automated carton erecting and closing enhances efficiency and minimizes intervention by hand.

4. Carton presence and detection of products screening to prevent missing or empty product cartons.

5. Quick changeover design makes it easy to make adjustment of different sizes and carton sizes.

6. Small and compact structure with stable output perfect for use with flow packers or bagging machines.
