Automated Granule Weighing Packaging Cartoning System

Automated Granule Weighing Packaging Cartoning System | Intelligent Packing Line

Application:

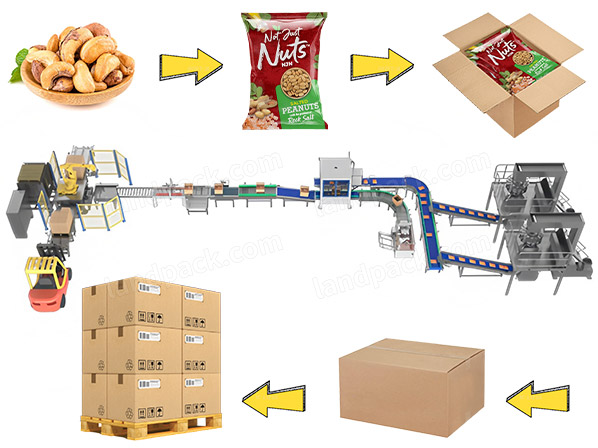

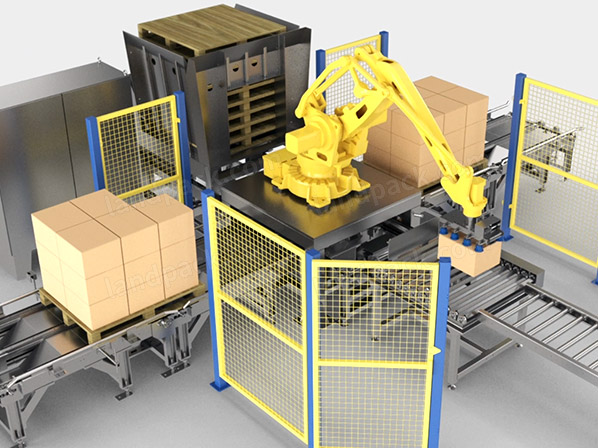

This automatic cartoning line for bagged granule consists of a vertical packaging machine set, a checkweigher, a one-to-two intelligent cartoning robot, a case erector, a case sealer, and a palletizing robot.It is suitable for the automatic cartoning and palletizing of a wide range of products, including puffed snacks, cereal, grains, sunflower seeds, nuts, dried fruits, pet food, plant seeds, and frozen food.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Full Servo Drive Case Packer: Provides precise control with speeds of 60-70 cases per minute for efficient packing.

2. Norson Glue Dispenser: Known for its stable and durable operation in industrial applications.

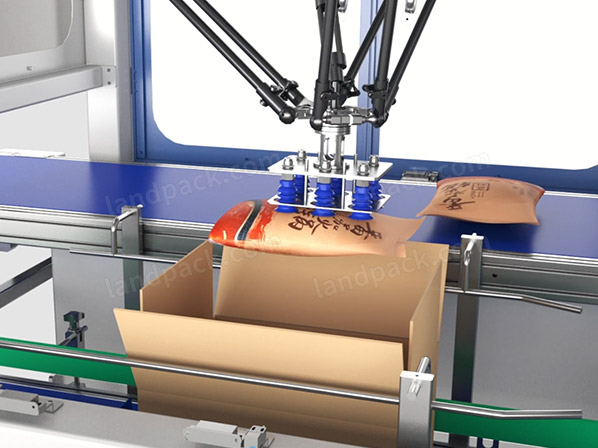

3. Robotic Carton Packer: Offers strong compatibility to accommodate various product placement requirements.

4. Customizable Packaging Line: Designed to handle larger product dimensions, catering to specific packaging needs.

5. Integrated Vision System: Enables accurate product positioning and orientation recognition, enhancing packing precision and reducing error rates in high-speed operations.

6. Intelligent Line Synchronization: Ensures seamless coordination between upstream and downstream equipment through centralized PLC control, optimizing overall production efficiency and minimizing downtime.

Application:

This automatic cartoning line for bagged granule consists of a vertical packaging machine set, a checkweigher, a one-to-two intelligent cartoning robot, a case erector, a case sealer, and a palletizing robot. It is suitable for the automatic cartoning and palletizing of a wide range of products, including puffed snacks, cereal, grains, sunflower seeds, nuts, dried fruits, pet food, plant seeds, and frozen food.

Videos Introduction:

Specification:

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)

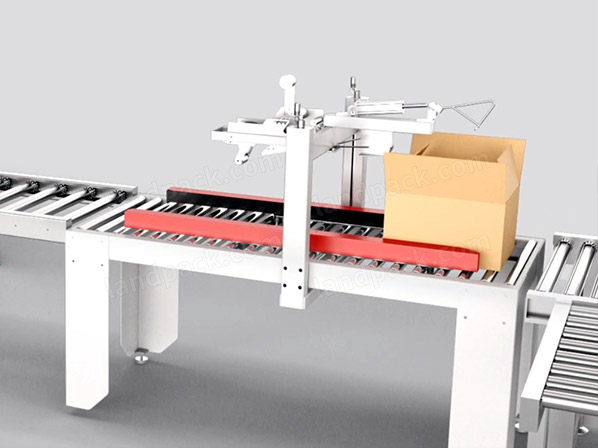

Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
