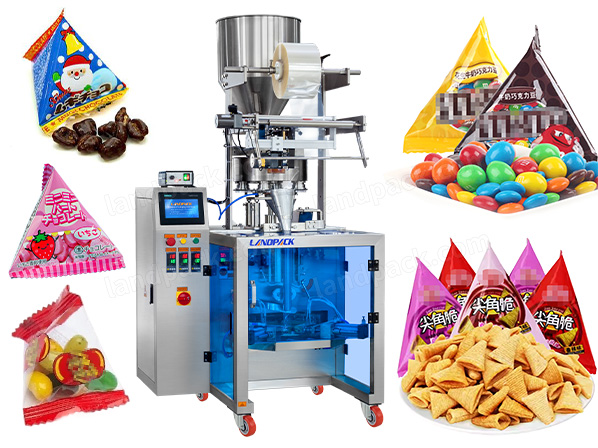

Fully Automatic Vertical Vffs Triangle Packing Machine

Application:

This Vertical Form Fill Seal Triangle Packing Machine is specially designed for granule products such as chocolate beans, colorful candy drops, jelly beans, sugar-coated chocolates, roasted peanuts, mini cereal balls, and crispy rice bites.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Video:

Application:

Machine Details:

Features:

Learn More:

Video:

Application:

Designed for triangle bag (triangular pyramid pouch) , pillow bag, back sealing bag, sachet packaging, with adjustable bag length and width. bag.

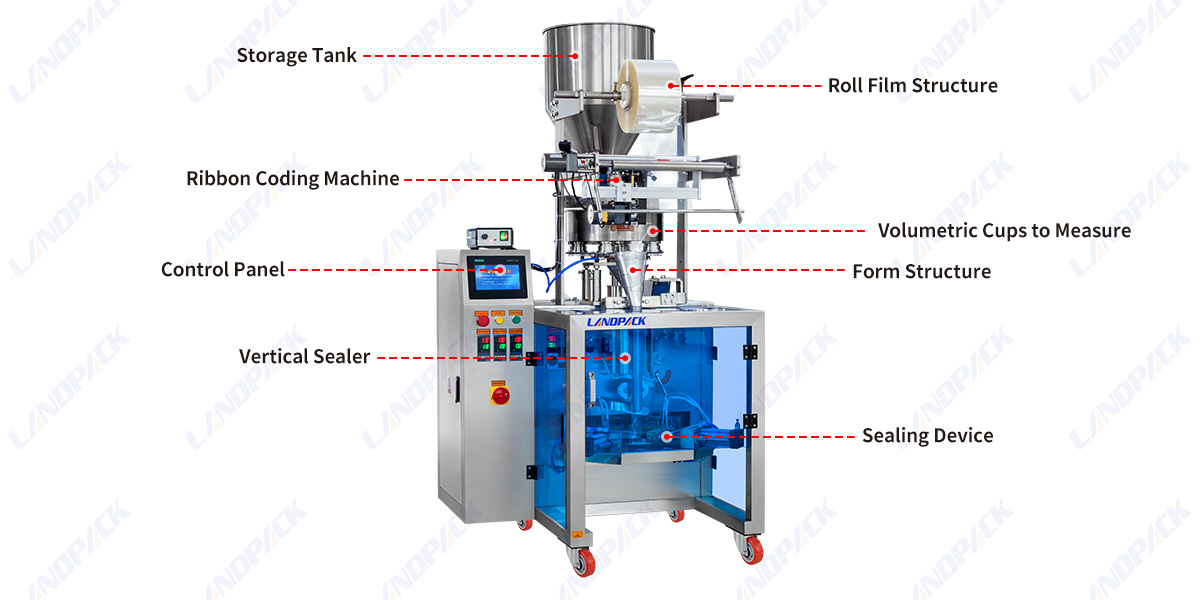

Machine Details:

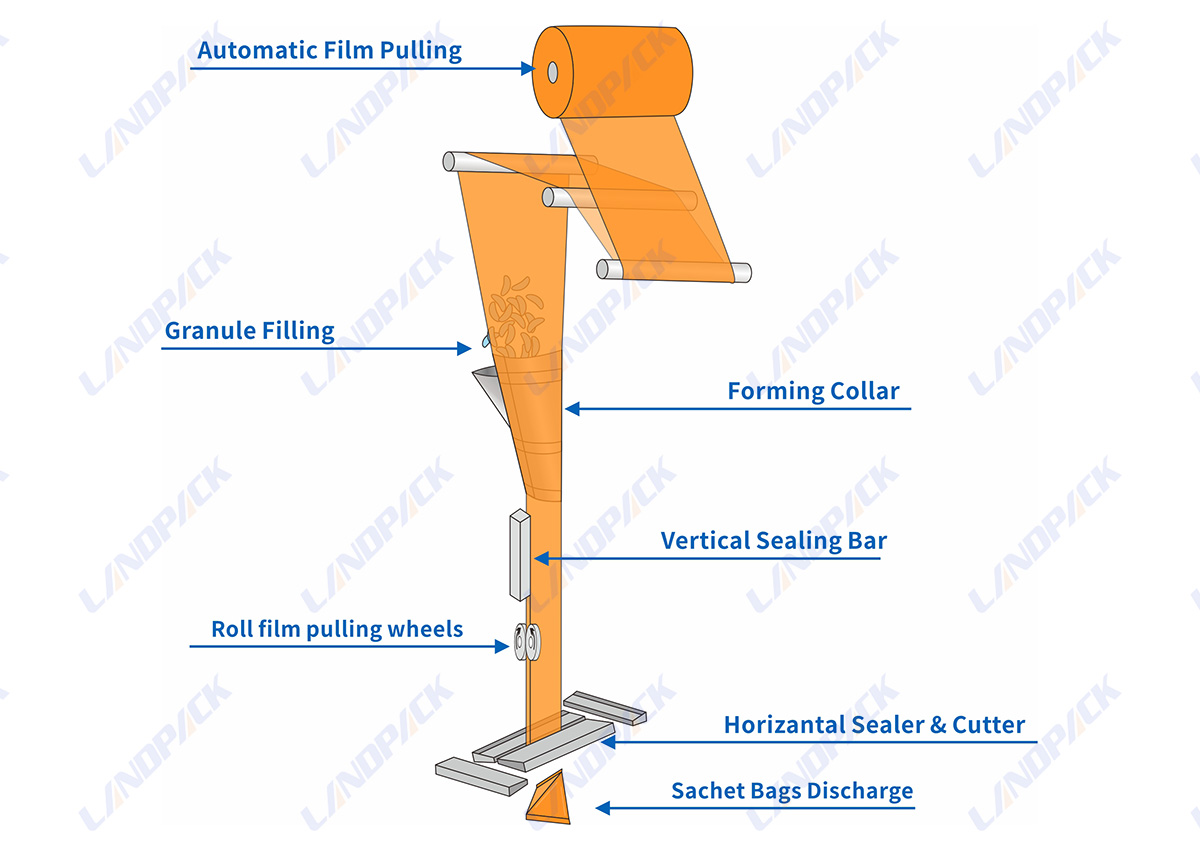

Working Process

1. Material feeding → 2. Automatic weighing → 3. Film forming → 4. Filling → 5. Triangle sealing → 6. Date coding → 7. Finished Bag Output

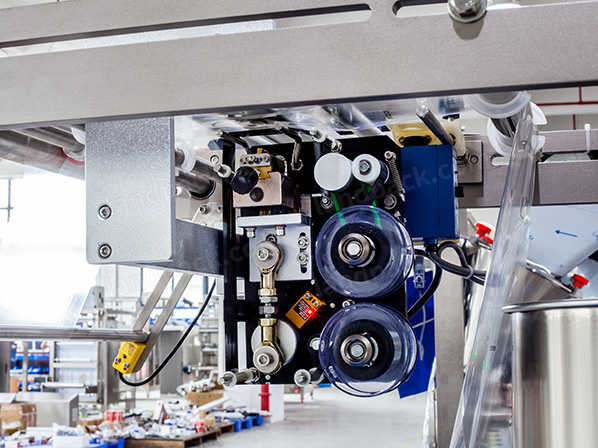

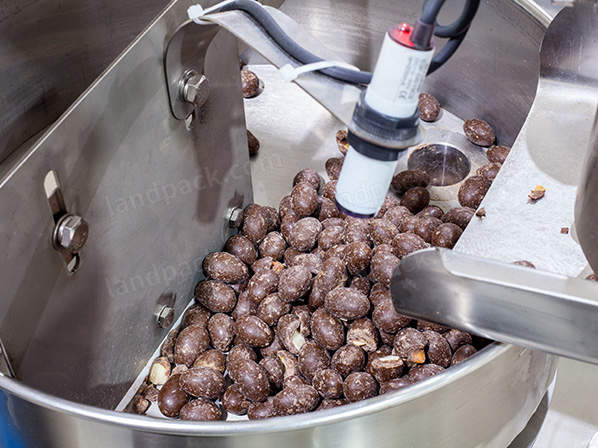

Key Component

Specification

Model LD-320S

Capacity 20-100 bag/min

Bag size L:50—170mm， W:50—150mm

Film width 120mm—320mm

Film thickness 0.05—0.12mm

Control system PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen

Power supply 1N+PE/50HZ/AC220V 4KW

Airconsumption 0.6—0.8Mpa, 0.3—0.5㎥/h

Dimension L1350*W900*H1400mm

Equipment Material Main body 3mm thickness 304 stainless steel frame

Weight 350kg

Description of Main Packaging Process Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.

Features:

1. Stable triangle bag forming with firm sealing.

2. Speed up to 40–80 bags/min, smooth and efficient.

3. Accurate filling with consistent weight control.

4. Stainless steel structure, durable and reliable.

5. PLC touch screen control, easy to operate

Learn More:

1.Learn more Landpack Vertical Form Fill Seal Machine(VFFS)

2.Why choose Landpack

3.Certificate of the Landpack packing machine.

4.Guidance for first time to buy Filling Machine/ Packing Machine
