Automatic Vertical VFFS Powder Packing Machine For Four Sides Sealing Pouch

Description:

Automatic vertical vffs powder packaging machine is specially suitable for powder products such as flour, milk powder, coffee powder, cocoa powder, starch powder, seasoning powder and baking ingredients.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

The automatic vertical vffs powder packaging machine is suitable for four-side sealing pouches, three-side sealing sachets, linked sachets, perforated pouches, chain bags and customized small powder packs. Compatible packaging materials include PET/PE, PET/AL/PE, BOPP/PE, laminated films and other heat-sealable materials.

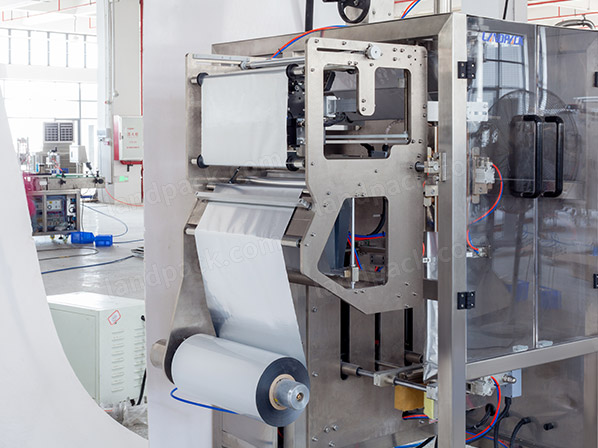

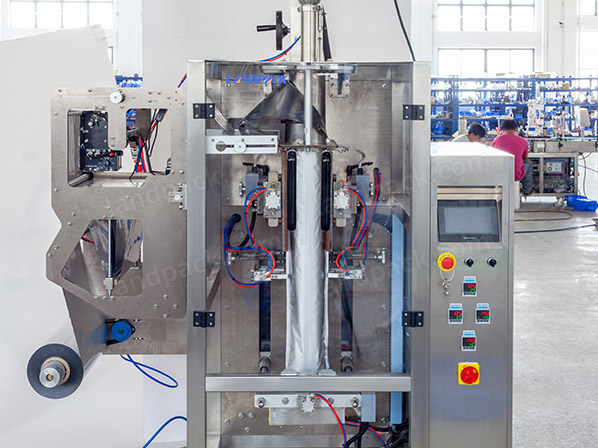

Machine Details:

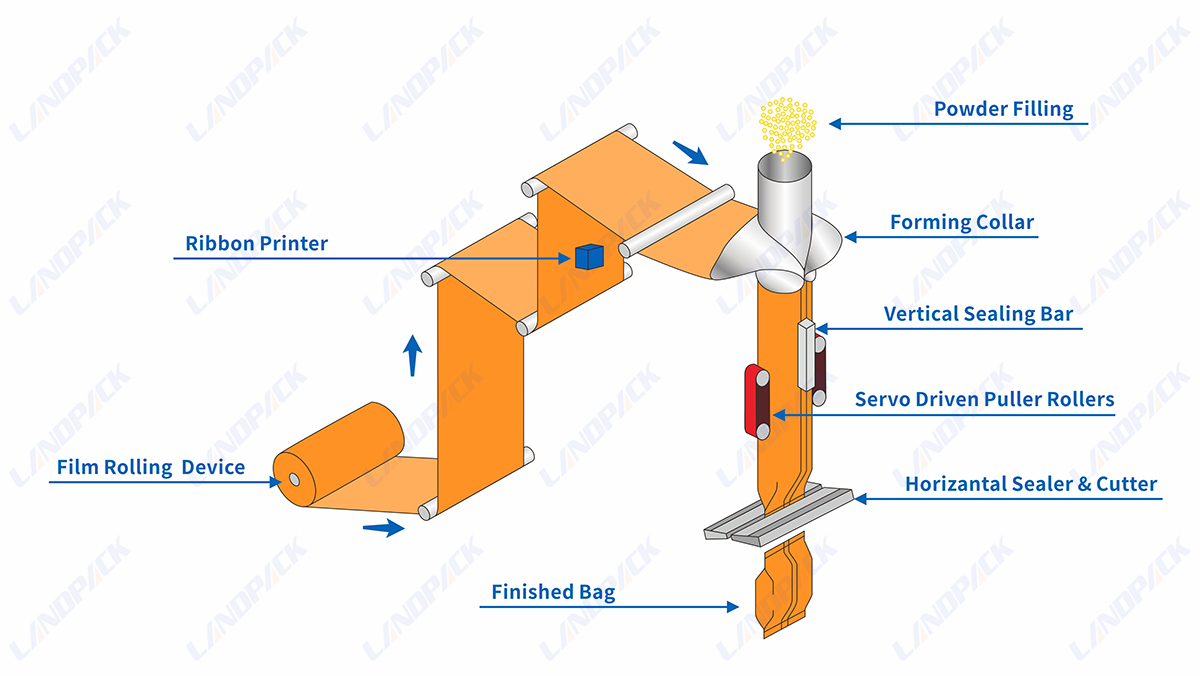

Working Process

1. Powder Feeding → Servo Auger Measuring → Bag Forming → Filling → Four-Side Sealing → Date Coding → Cutting → Finished Product Output

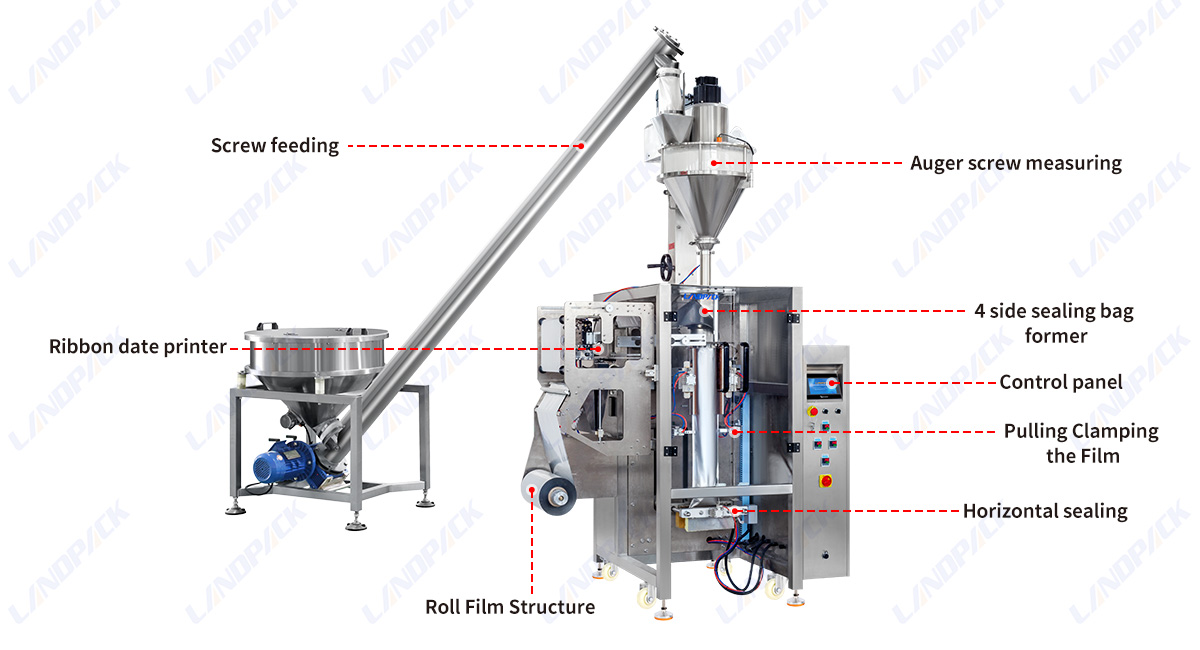

Key Component

Specification

Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200

Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm

Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm

Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm

Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm

Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min

Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm

Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L

Features:

1. Servo auger filling system provides accurate powder dosing with adjustable filling weights.

2. Automatic bag forming, filling, sealing, coding and counting in one continuous process.

3. PLC control with touch screen interface for easy operation and fast parameter adjustment.

4. Ribbon date printer supports 1-3 lines printing for production date, batch number and expiry date.

5. Independent PID temperature control ensures stable and attractive sealing quality.

6. Supports both straight cutting and serrated cutting to meet different packaging requirements.

Learn More:

1.If you need more Vertical Packing Machinee for your product , read our-- Vertical Form Fill Seal Machine(VFFS)

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
