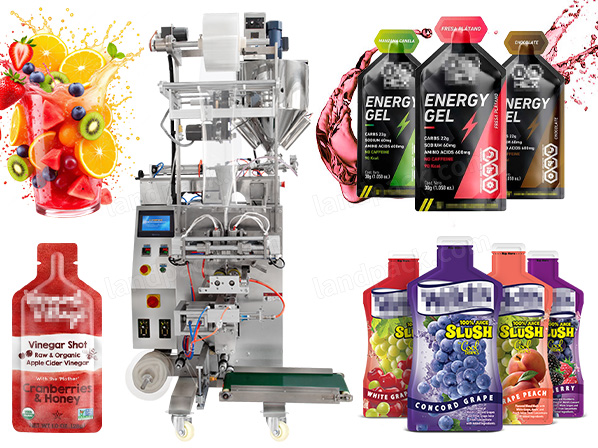

Irregular Shape Pouch Form Fill Seal Machine

Irregular Shape Pouch Form Fill Seal Machine | Vertical Packaging Machine

Description:

It efficiently handles materials like shampoo, conditioner, shower gel, fruit juice, flavored drinks, energy gel, liquid detergent, and other fluid or semi-fluid products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This machine supports a variety of liquid-friendly pouch types, including custom-shaped sachets, pillow pouches, and back sealing pouches, allowing brands to achieve distinctive, eye-catching packaging designs while ensuring secure sealing and easy consumer use.

Wide Application Range

This machine is suitable for a wide range of liquid and semi-liquid products, commonly used in personal care, food & beverages, and household chemical industries.

Personal Care Products

• Shampoo, conditioner, shower gel, hair treatment essence

Beverage & Food Liquids

• Fruit juice, flavored drinks, energy gel, concentrated syrup

Daily Chemical Liquids

• Liquid detergent, fabric softener, dishwashing liquid

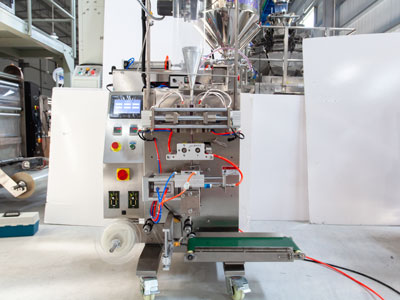

Machine Details:

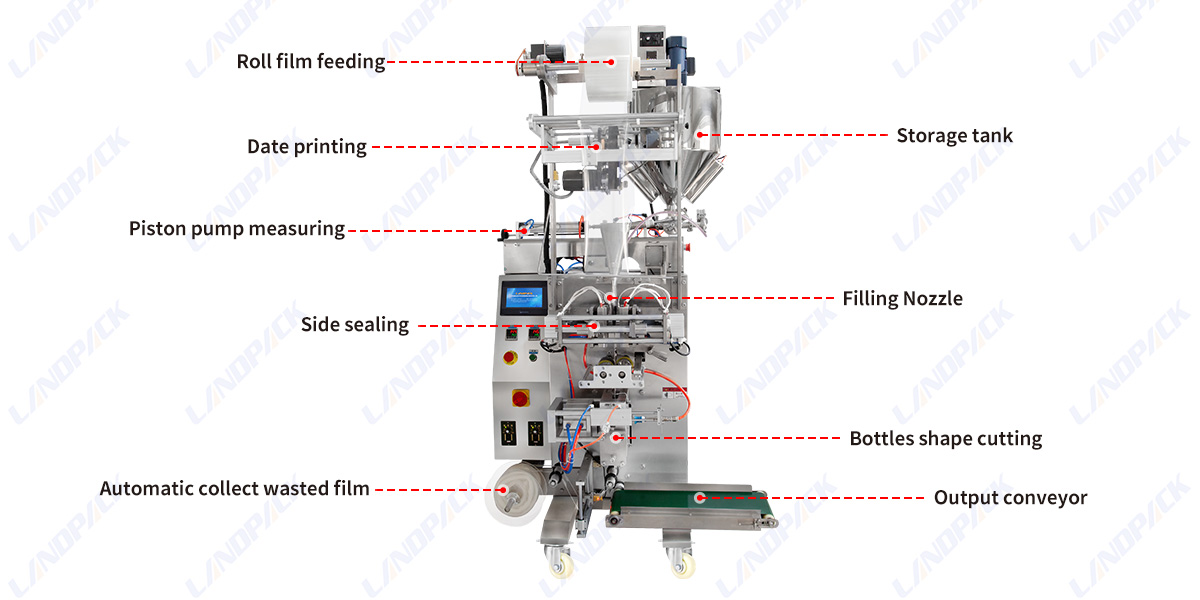

Working Process

1. Roll film feeding → 2. Piston pump measuring and filling → 3. Side sealing → 4. Bottles shape cutting → 5. Output conveyor

Key Component

Specification

Model LD-320L

Capacity 20-100 bag/min

Bag size L:50—170mm， W:50—150mm

Film width 120mm—320mm

Film thickness 0.05—0.12mm

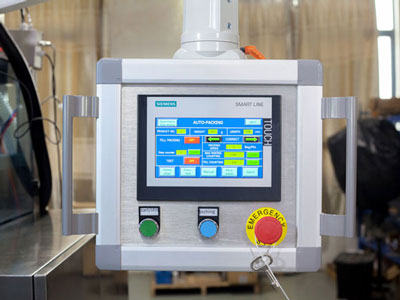

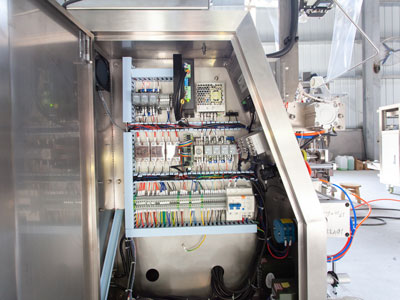

Control system PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen

Power supply 1N+PE/50HZ/AC220V 4KW

Airconsumption 0.6—0.8Mpa, 0.3—0.5㎥/h

Dimension L1350*W900*H1400mm

Equipment Material Main body 3mm thickness 304 stainless steel frame

Weight 350kg

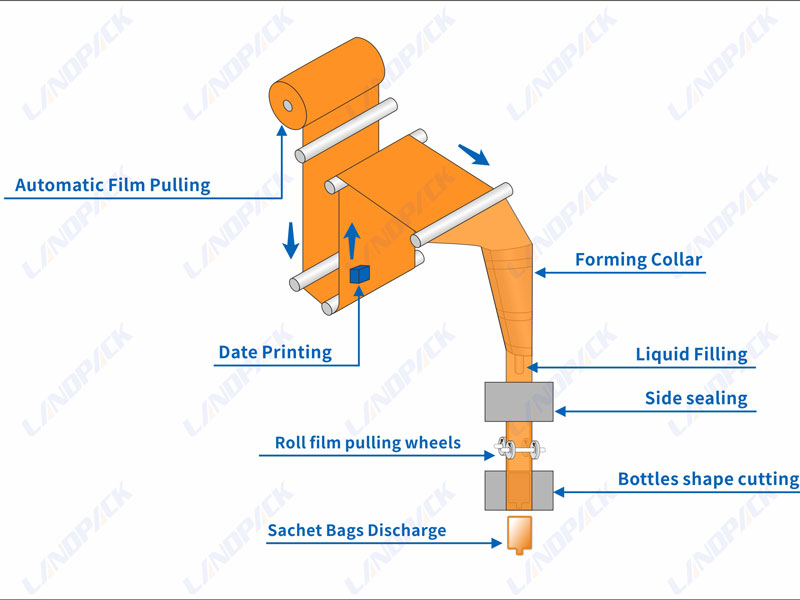

Description of Main Packaging Process Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.

Features:

Machine Image	Benefits

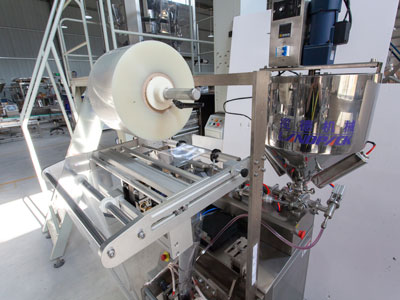

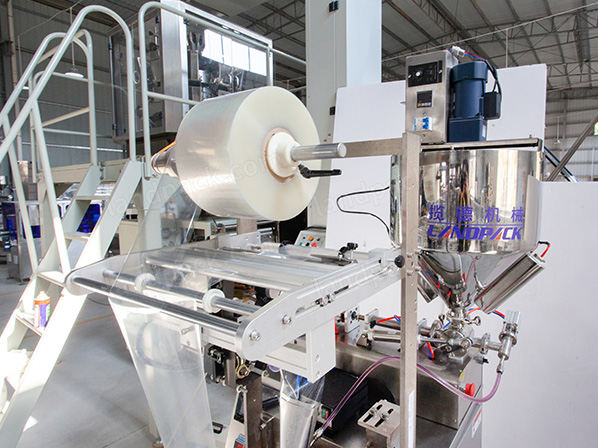

	Mixing & Heating Storage Tank Equipped with an integrated mixing and heating system to keep liquid materials well-blended, stable, and smooth for accurate filling and consistent product quality.
	Customized Shaped Sachet Forming Supports tailor-made shaped sachets, allowing various contours and designs to enhance brand identity and shelf appeal.
	Fully Automatic Packing & Output From bag forming, dosing, filling, sealing to cutting and product discharge, all processes are fully automated for higher efficiency and uniform packaging results.

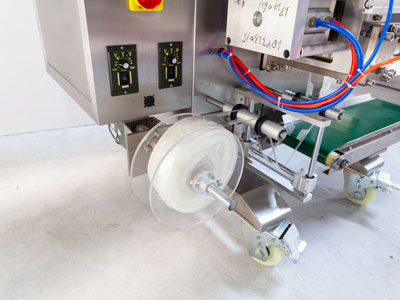

	Automatic Waste Film Collection Features an automatic waste-film collection system that keeps the working area clean while reducing manual handling and material waste.

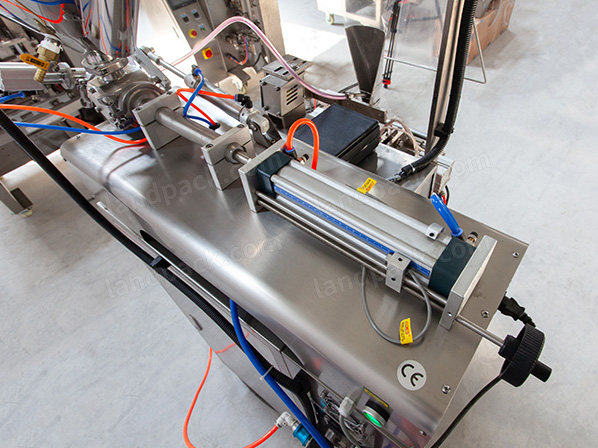

	High-Precision Liquid Control System Utilizes a stable liquid pumping and dosing structure suitable for shampoo, juice, liquid gel, and other viscosities, ensuring accurate filling with minimal dripping.

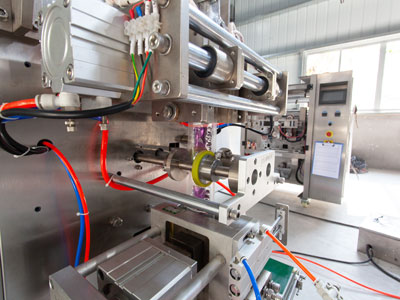

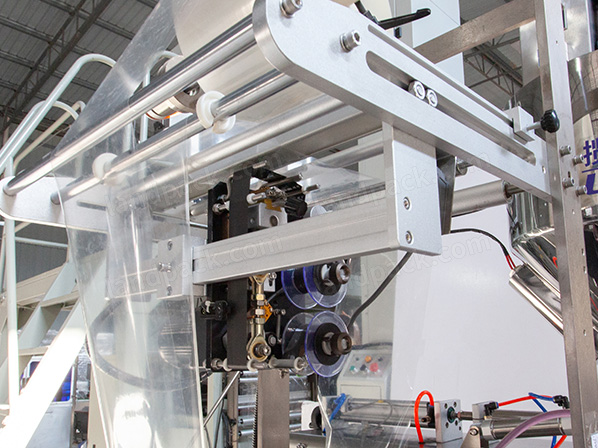

	Servo-Driven Accuracy Key mechanisms are powered by servo motors, guaranteeing precise film pulling, sealing, and shaped-bag forming, resulting in stable operation and premium bag appearance.

Learn More:

1.If you need more Vertical Packing Machinee for your product , read our-- Vertical Form Fill Seal Machine(VFFS)

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Model	LD-320L
Capacity	20-100 bag/min
Bag size	L:50—170mm， W:50—150mm
Film width	120mm—320mm
Film thickness	0.05—0.12mm
Control system	PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen
Power supply	1N+PE/50HZ/AC220V 4KW
Airconsumption	0.6—0.8Mpa, 0.3—0.5㎥/h
Dimension	L1350W900H1400mm
Equipment Material	Main body 3mm thickness 304 stainless steel frame
Weight	350kg
Description of Main Packaging Process	Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.
