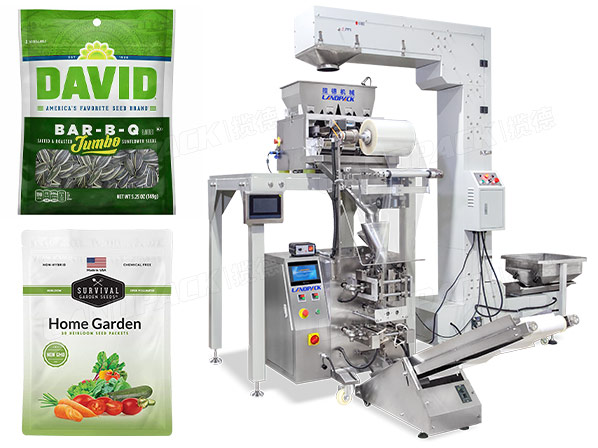

High Precision Granule Linear Vertical Pouch Weighing Filling Sealing Machine

Application:

This vertical pouch weighing filling sealing machine is suitable for filling all kinds of grain material, sheet material, strip material, and abnormity material, such as seeds, sunflower seeds, melon seeds, nuts, candy, chips, peanuts, nutlets, preserved fruit, jelly, biscuit, confect, camphor ball, currant, almond, chocolate, filbert, corn, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1.The machine is multi functions, match with the adjustable weigher.

2.Mesure at high accuracy : The weigher weight the material.

3.Take up small place , Match the small weigher, elevator and support platform, take up little place.

4.Cost-effective, Compare with the LD-420 main packer, the LD-320 model could reach the demand of the snack packing with low cost.

Application:

This vertical pouch weighing filling sealing machine is suitable for filling all kinds of grain material, sheet material, strip material, and abnormity material, such as seeds, sunflower seeds, melon seeds, nuts, candy, chips, peanuts, nutlets, preserved fruit, jelly, biscuit, confect, camphor ball, currant, almond, chocolate, filbert, corn, etc.

It can adopt all type of 3/4 sided seal bag, pillow bag, back sealing bag, etc.

vertical ffs machine

Videos Introduction:

Specification:

Model	LD-320	LD-380
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70 bags/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V, 50/60Hz, 2.2KW	220V, 50/60Hz, 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg

Working Process:

1.Feeding the sunflower seed by the elevator

2.4 heads weigher to measure the sunflower

3.Form and seal the bag

4.Output the finished product
