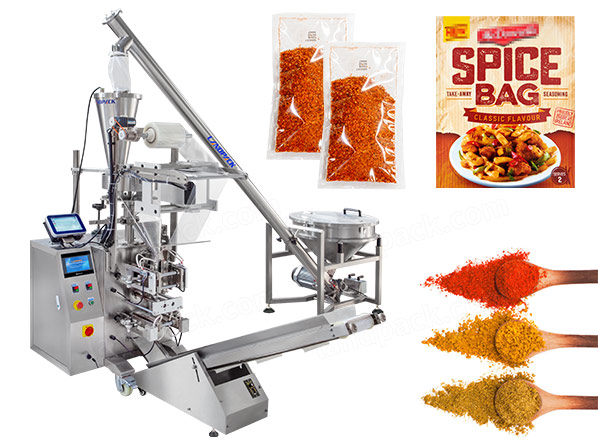

Automatic Four Side Sealing Packing Machine

Automatic Four Side Sealing Packing Machine | Powder Packing Machine

Application:

Powder packaging machines deliver precise metering and attractive four-side-seal packaging, complete with date/batch coding capability and thermal transfer printer for efficient date and batch control. This machine is ideal for packaging a range of powder products, all with an attractive four-side seal finish for professional-looking packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This machine is ideal for packaging a wide range of powder products, including milk powder, sugar powder, coffee powder, wheat flour, detergent powder, coconut powder, spice powder, and more — all with a premium four-side-seal finish for a neat, professional appearance. It can be found widely used for sealing pouches of various sizes with four sides sealing mechanisms. Furthermore, its easy operation provides professional-looking displays.

Machine Details:

Working Process

1. Film Unwinding & Feeding

2. Film Steering & Guiding

3. Film Slitting & Forming

4. Longitudinal Sealing

5. Product Filling & Horizontal Sealing

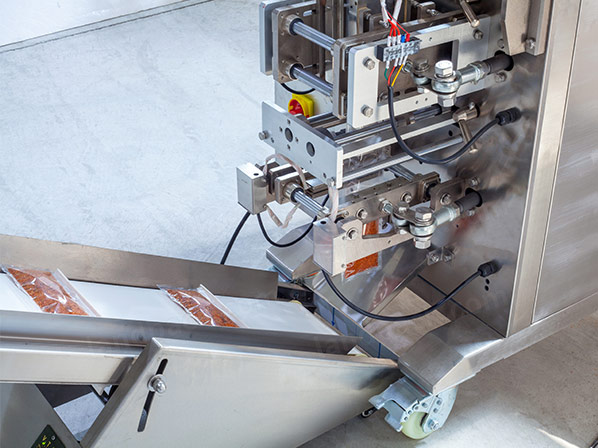

6. Cutting & Discharge

Specification

Model	LD-320D	LD-380D
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
Packing Type	Back seal bag, 3/4 side seal sachet, stick bag, continuous bag etc. Support customization

Features:

Machine Image	Benefits

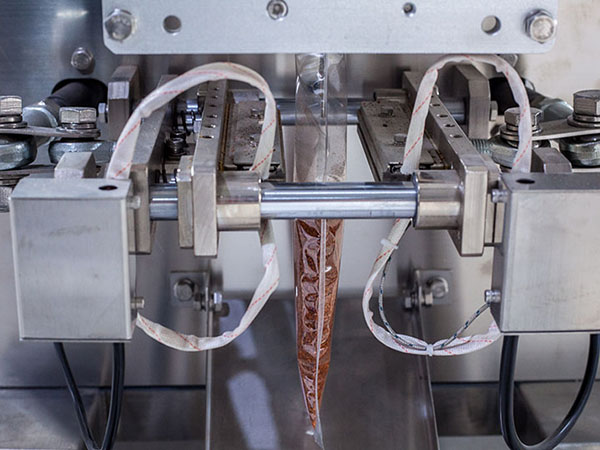

	Full Four-Edge Sealing All four sides are sealed for maximum protection from the elements of air, moisture, and contamination as well as ensuring stability of the shelf and the preservation of powder quality.

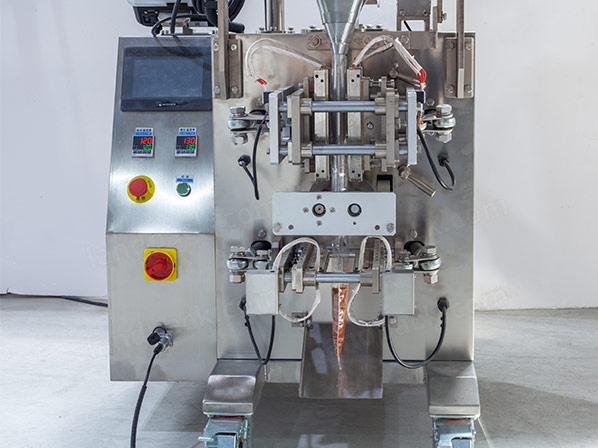

	Control system Control of PLCs touchscreen interface; sensor for registration of film, temperature controls and safety systems. automated fault diagnosis.

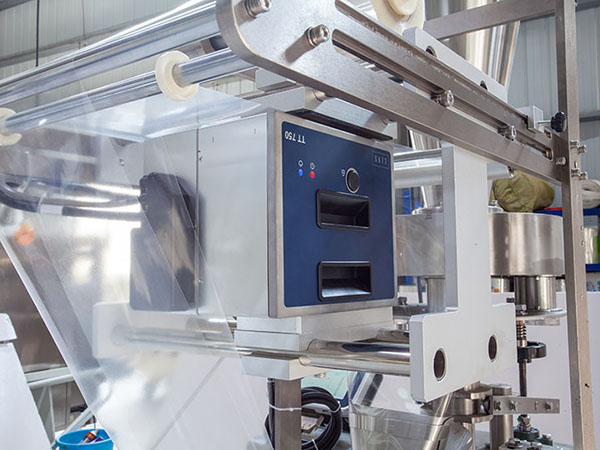

	Thermal Transfer (or other) Printing For traceability – dates, batch numbers, codes.

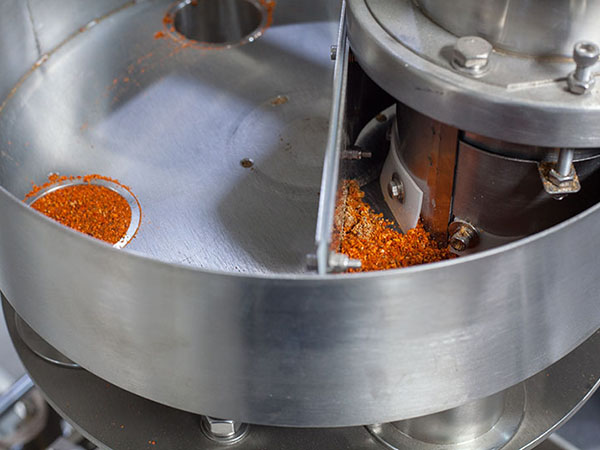

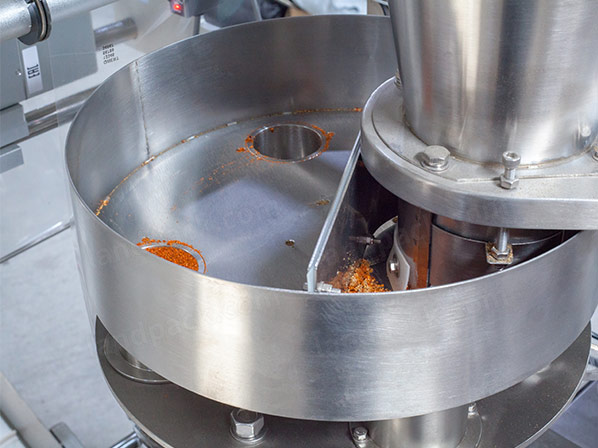

	Volumetric Filling Device The machine is fitted with a filling volumetric method specifically designed for powders. Each component is measured according to volume to ensure that it is accurate and consistently filled.

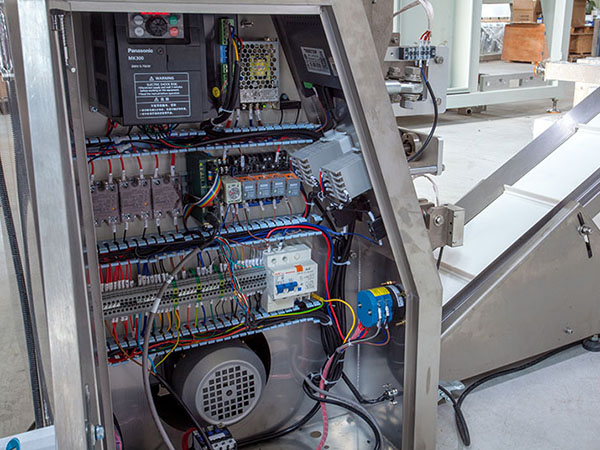

	Electrical Cabinet The electrical cabinet incorporates the control elements of an easily accessible, secure enclosure. Top-quality electrical components guarantee the same performance and a long longevity.
